Installation Procedure

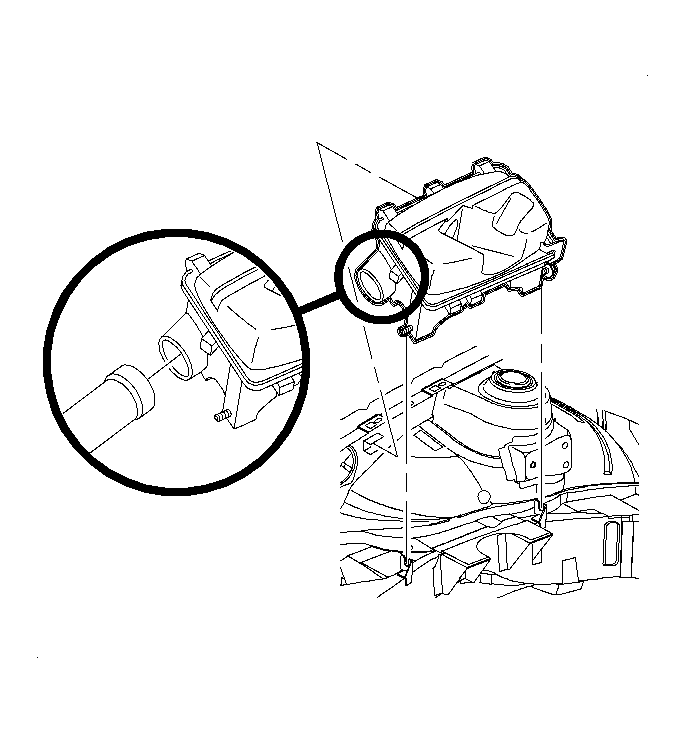

    Fig 1: Removing Air Cleaner Assembly
    GM894286Courtesy of GENERAL MOTORS CORP.
  1. Install the air box. Ensure that the lower pin engages into the rubber mount grommet and that the lower duct fits into the resonator outlet.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the air box mount bolt.

    Tighten:  Tighten the air box mount bolt to 6 N.m (53 lb in).

  3. Install the air cleaner.

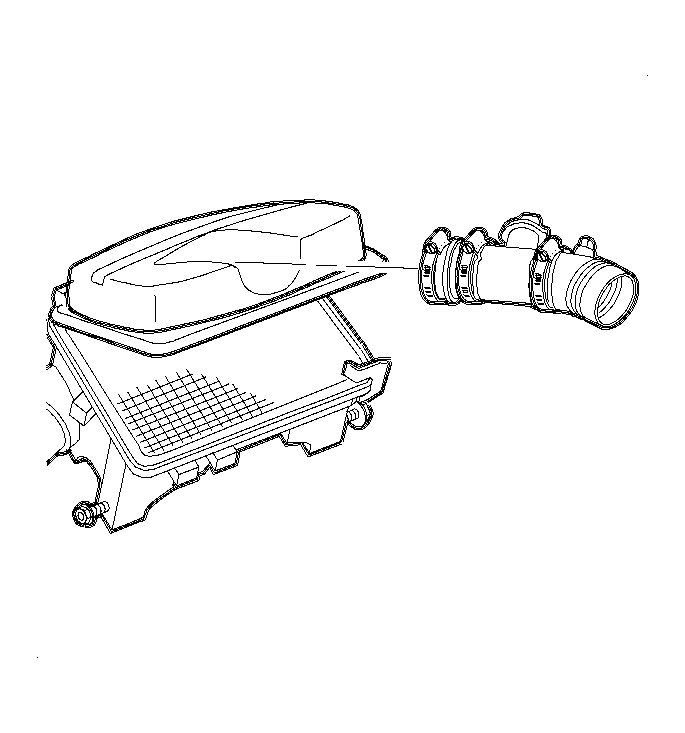

    4. Fig 2: Installing Flexible MAF Hose-To-Throttle Body Hose
    GM896613Courtesy of GENERAL MOTORS CORP.
  4. Install the air cleaner lid. Ensure that the lid hinge is fully engaged in the air box slots or the lid may not properly seal.
  5. Slide the flexible hose and hose clamp on the throttle body.
  6. Tighten the hose clamp.

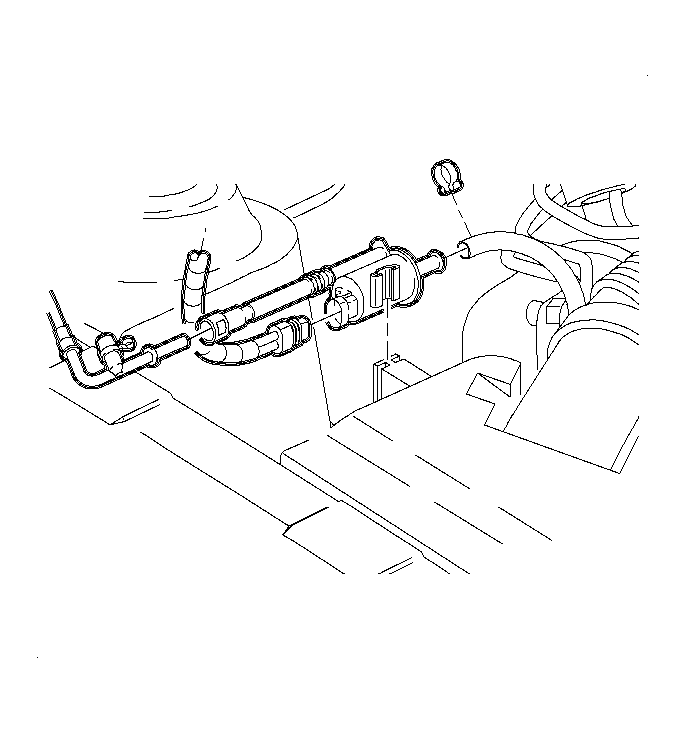

    7. Fig 3: Removing/Installing EVAP Canister Purge Solenoid Valve
    GM894280Courtesy of GENERAL MOTORS CORP.
  7. Install the EVAP purge valve assembly.

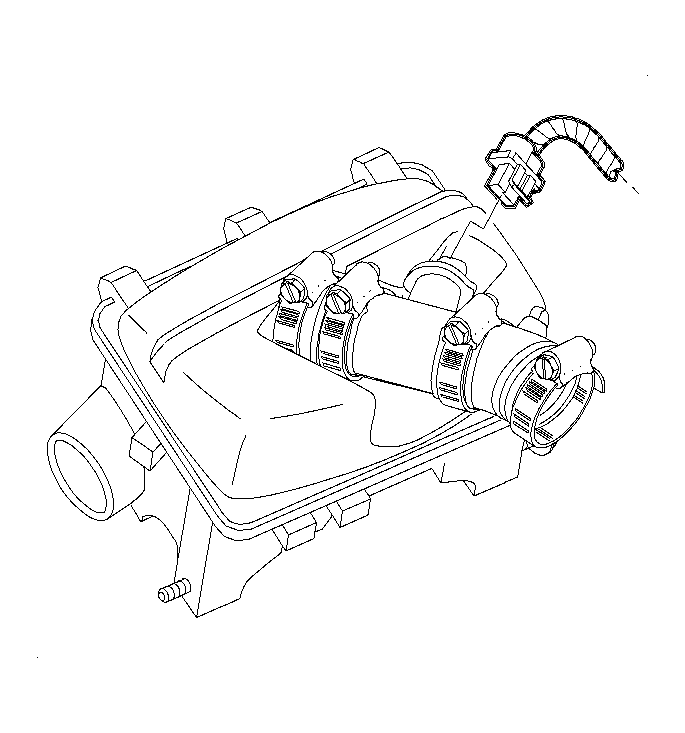

    8. Fig 4: Locating Mass Airflow Sensor Electrical Connector
    GM894283Courtesy of GENERAL MOTORS CORP.
  8. Connect the MAF electrical connection.
