Installation Procedure

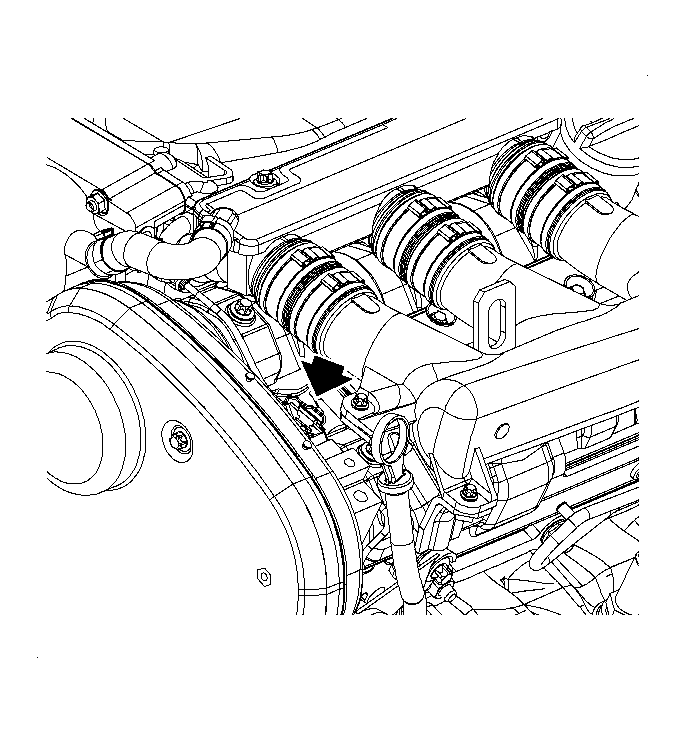

    Fig 1: Removing/Installing Camshaft Position Sensor
    GM897184Courtesy of GENERAL MOTORS CORP.
  1. Install the knock sensor 2 pigtail clip to the CMP sensor if installing the new sensor.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the CMP sensor by gently pushing into place and install the attachment bolt.

    Tighten:  Tighten the camshaft position sensor bolt to 8 N.m (71 lb in).

  3. Insert the knock sensor 2 pigtail to the clip.
  4. Connect the CMP sensor harness connector. Push the connector in until the lock position is felt, then pull back to confirm engagement.
