Installation Procedure

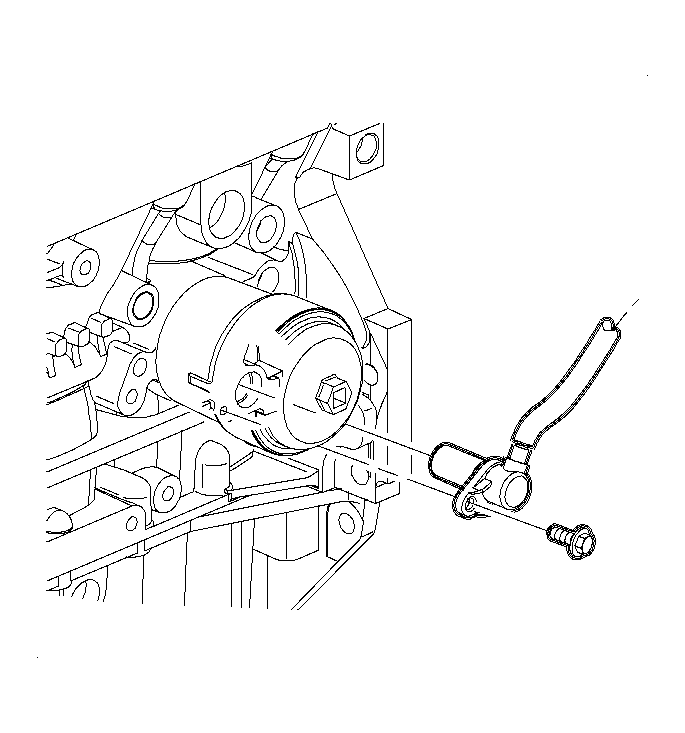

    Fig 1: Removing/Installing Crankshaft Position Sensor
    GM894668Courtesy of GENERAL MOTORS CORP.
  1. Make sure the O-ring is on the CKP sensor and lubricate the O-ring with mineral oil based grease.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the CKP sensor and the attachment bolt.

    Tighten:  Tighten the crankshaft position sensor bolt to 8 N.m (71 lb in).

  3. Lower the vehicle.
  4. Connect the CKP sensor harness connector. Push the connector in until the lock position is felt, then pull back to confirm engagement.
