Installation Procedure

  1. Make sure the EGR valve mating surface is clean.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the EGR valve with a new gasket and new attachment bolts.

    Tighten:  Tighten the EGR valve bolts to 20 N.m (15 lb ft).

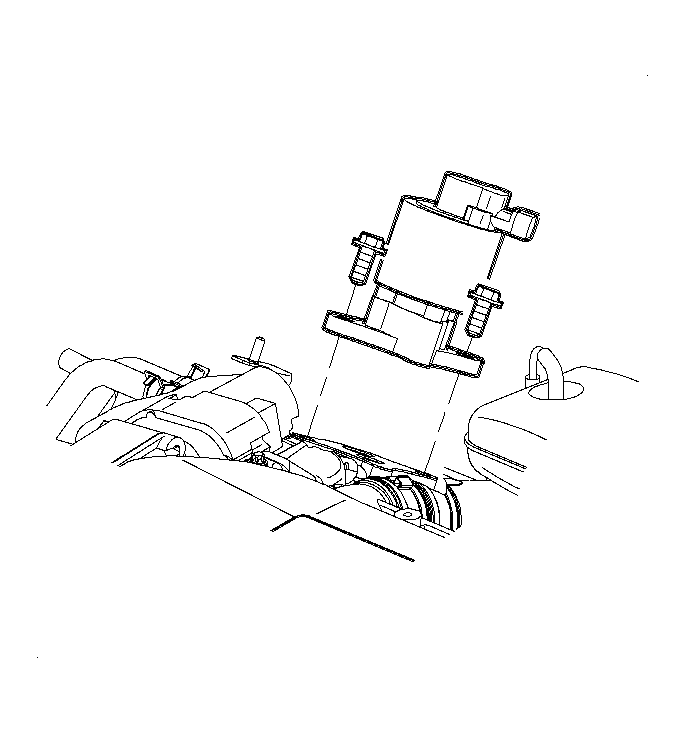

    3. Fig 1: Removing/Installing EGR Valve
    GM894683Courtesy of GENERAL MOTORS CORP.
  3. Connect the EGR valve harness connector. Push the connector in until the lock position is felt, then pull back to confirm engagement.
