Removal Procedure

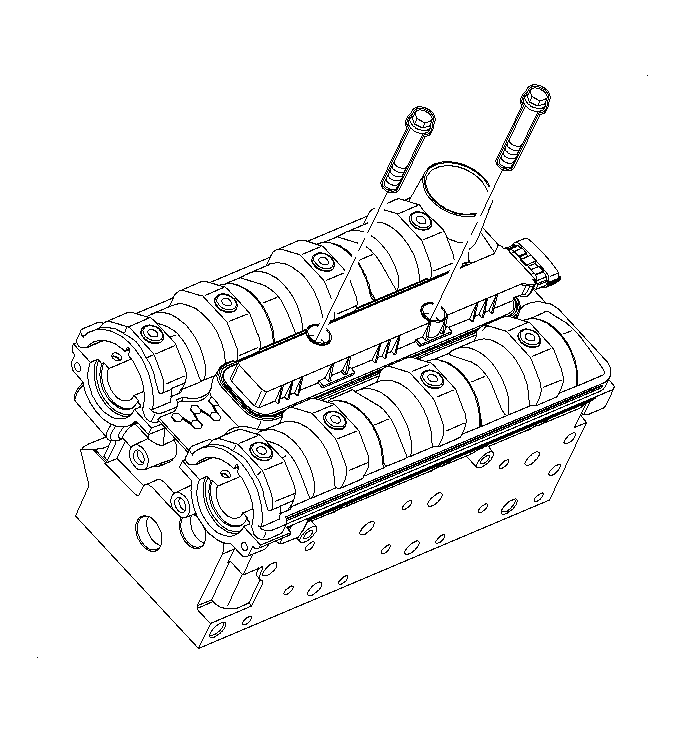

    Fig 1: Removing/Installing Ignition Module
    GM894329Courtesy of GENERAL MOTORS CORP.
  1. Remove the ignition module bolts.
  2. Remove the ignition module.
