Installation Procedure
- Route the knock sensor by placing the harness behind the generator bracket and attach the knock sensor 1 wire to the attachment clips.

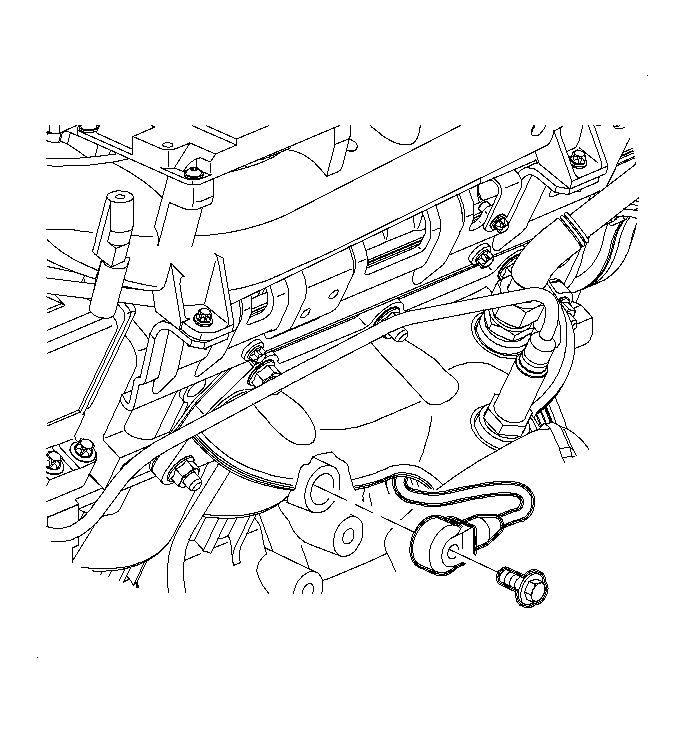

- Install the knock sensor between the 2 and 3 o'clock position and install the attachment bolt.
Tighten: Tighten the knock sensor bolt to 20 N.m (15 lb ft).
- Install the generator and the attachment bolts.
Tighten: Tighten the generator mounting bolts to 40 N.m (30 lb ft).
- Install the generator charging post terminal (ORN wire) and the attachment nut.
Tighten: Tighten the B+ cable to the generator nut to 16 N.m (12 lb ft).
- Install the generator L-terminal connector (ring terminal) and hold down the nut.
Tighten: Tighten the generator L-terminal nut to 16 N.m (12 lb ft).

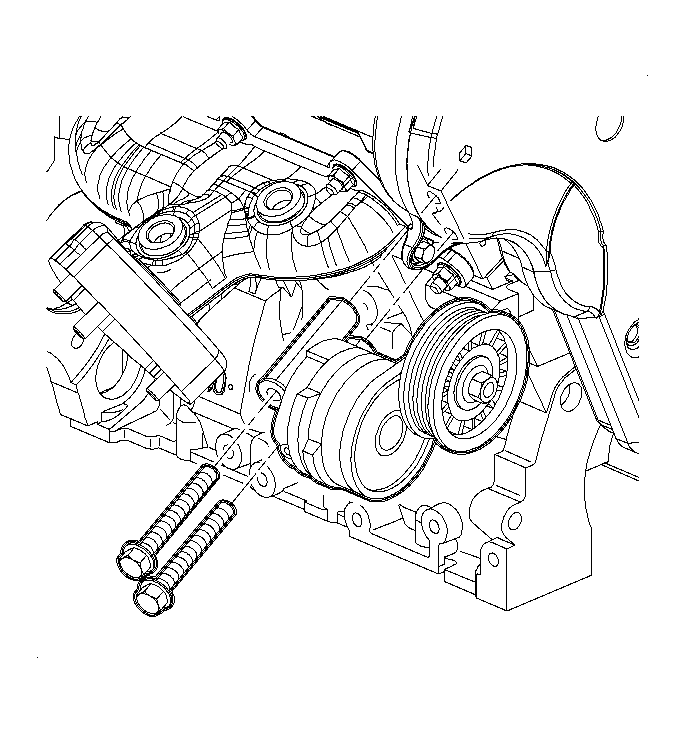

- Install the belt tensioner and the attachment bolts.
Tighten: Tighten the belt tensioner bolts to 40 N.m (30 lb ft).
- Install the front splash shield, pushpins, and screws.
- Lower the vehicle.
- Tighten the upper generator to the engine block bolt, if not already tightened.
Tighten: Tighten the generator mounting bolts to 40 N.m (30 lb ft).
- Connect the knock sensor 1 harness connector. Push the connector in until the lock position is felt, the pull back to confirm engagement.

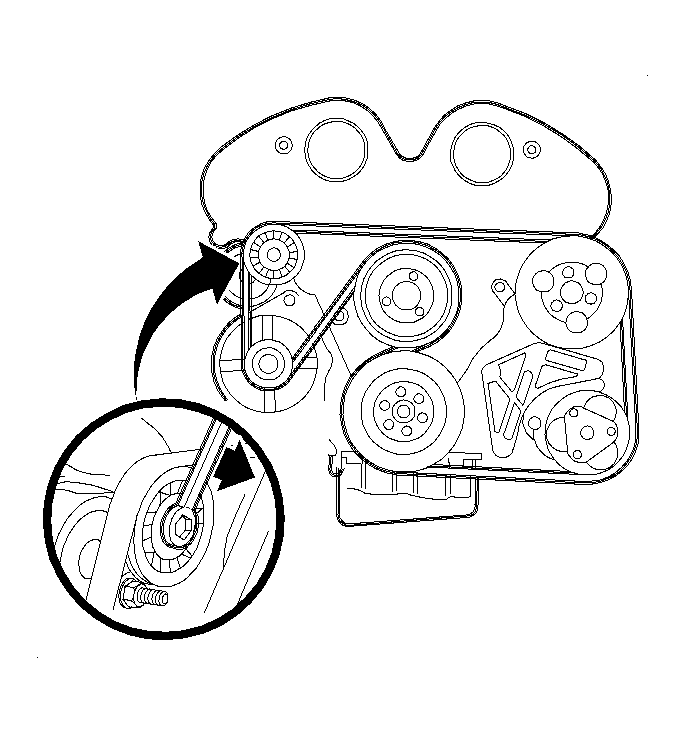

- Install the drive belt.
- Connect the negative battery cable to the battery.
Tighten: Tighten the battery terminal bolts to 17 N.m (13 lb ft).
- Reprogram the preset radio stations and set the clock to the correct time.
NOTE:
Refer to Fastener Notice
in Cautions and Notices.
IMPORTANT:
It may be easier to tighten the upper generator bolt when the vehicle is brought back to the ground.
