Installation Procedure

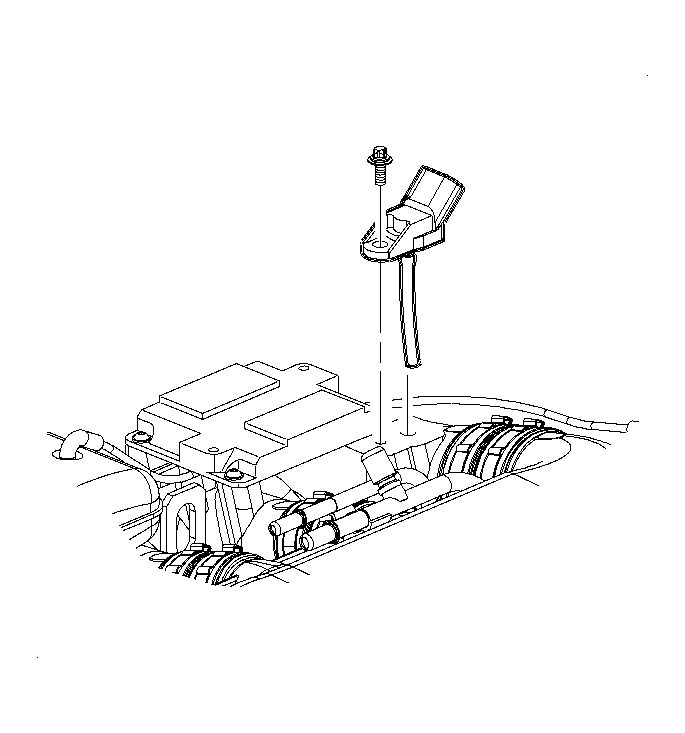

    Fig 1: Removing/Installing Manifold Absolute Pressure Sensor
    GM894678Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Make sure the MAP sensor mounting surface is clean. Install the MAP sensor with the grommet and attachment bolt.

    Tighten:  Tighten the manifold absolute pressure sensor bolt to 5 N.m (44 lb in).

  2. Connect the MAP sensor harness connector. Push the connector in until the lock position is felt, then pull back to confirm engagement.
