Removal Procedure

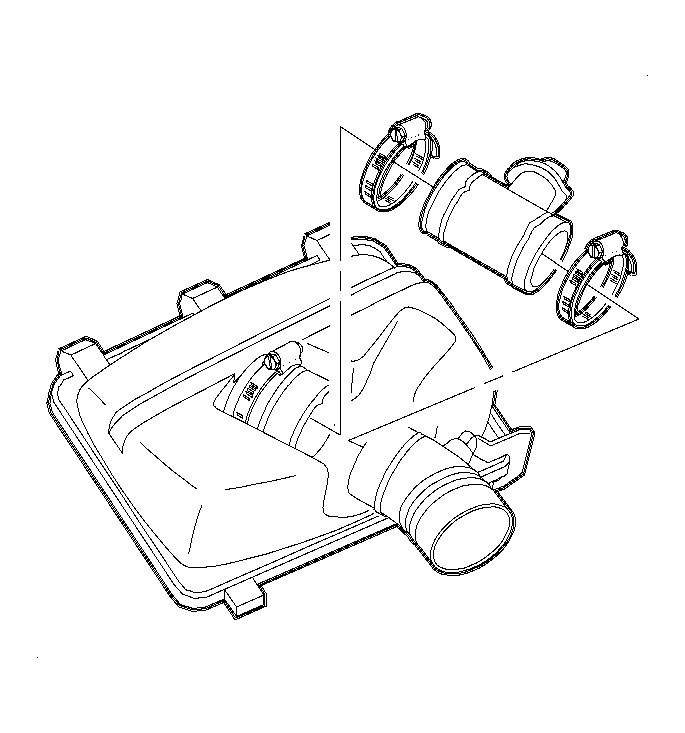

    Fig 1: Removing/Installing Mass Air Flow Sensor
    GM897187Courtesy of GENERAL MOTORS CORP.
  1. Turn the ignition OFF.
  2. Disconnect the mass air flow (MAF) sensor harness.
  3. Remove the hose clamps from each end of the MAF sensor and remove the MAF sensor.
