Installation Procedure

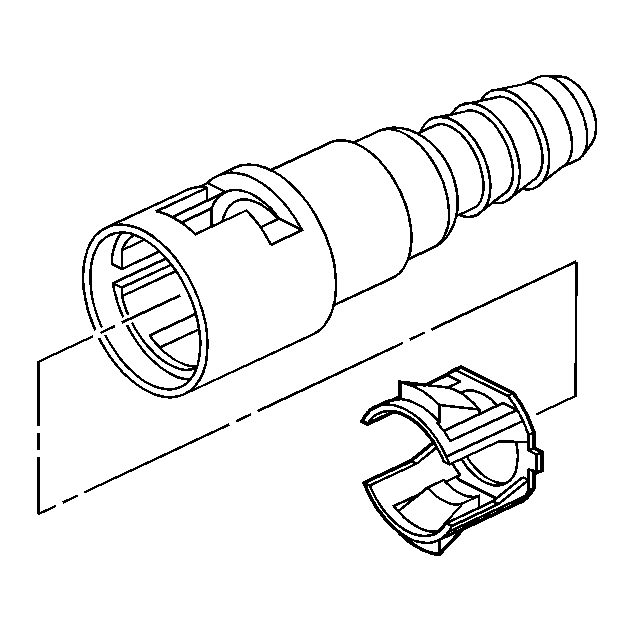

Fig 1: Installing NEW Retainer Into Female Connector

Courtesy of GENERAL MOTORS CORP.

Install a new retainer into the female connector.

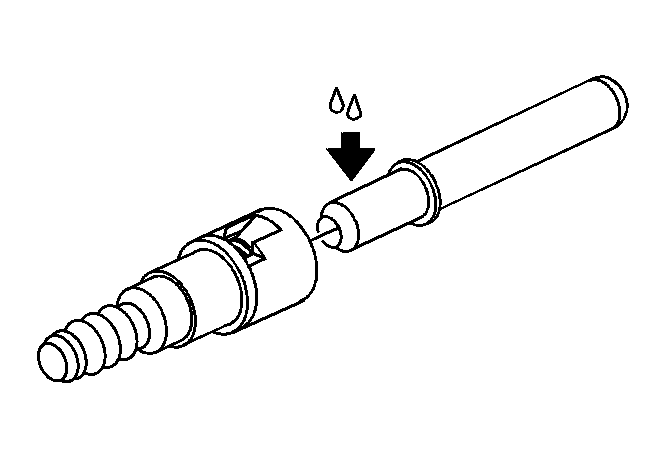

Fig 2: Oiling Male Pipe Ends (Plastic Collar)

Courtesy of GENERAL MOTORS CORP.

CAUTION: In order to reduce the risk of fire and personal injury, before connecting fuel pipe fittings, always apply a few drops of clean engine oil to the male pipe ends.
This will ensure proper reconnection and prevent a possible fuel leak.
During normal operation, the O-rings located in the female connector will swell and may prevent proper reconnection if not lubricated.

Apply a few drops of clean engine oil to the male pipe end.

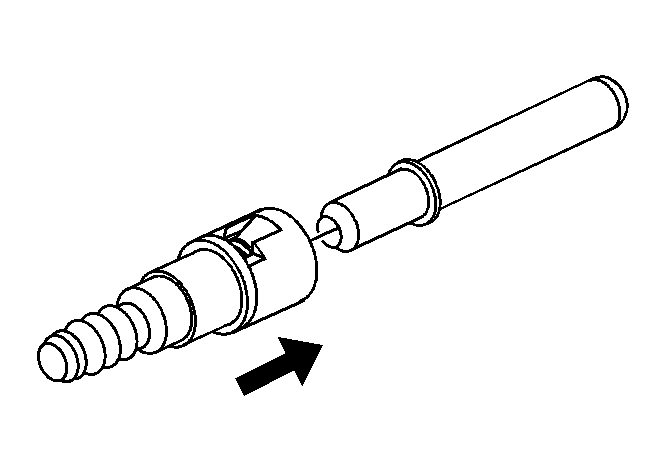

Fig 3: Connecting Fittings (Plastic Collar)

Courtesy of GENERAL MOTORS CORP.

Push both sides of the quick-connect fittings together in order to snap the retainer in place.
Pull on both sides of the quick-connect fitting in order to make sure the connection is secure.
