Engine Controls Schematics

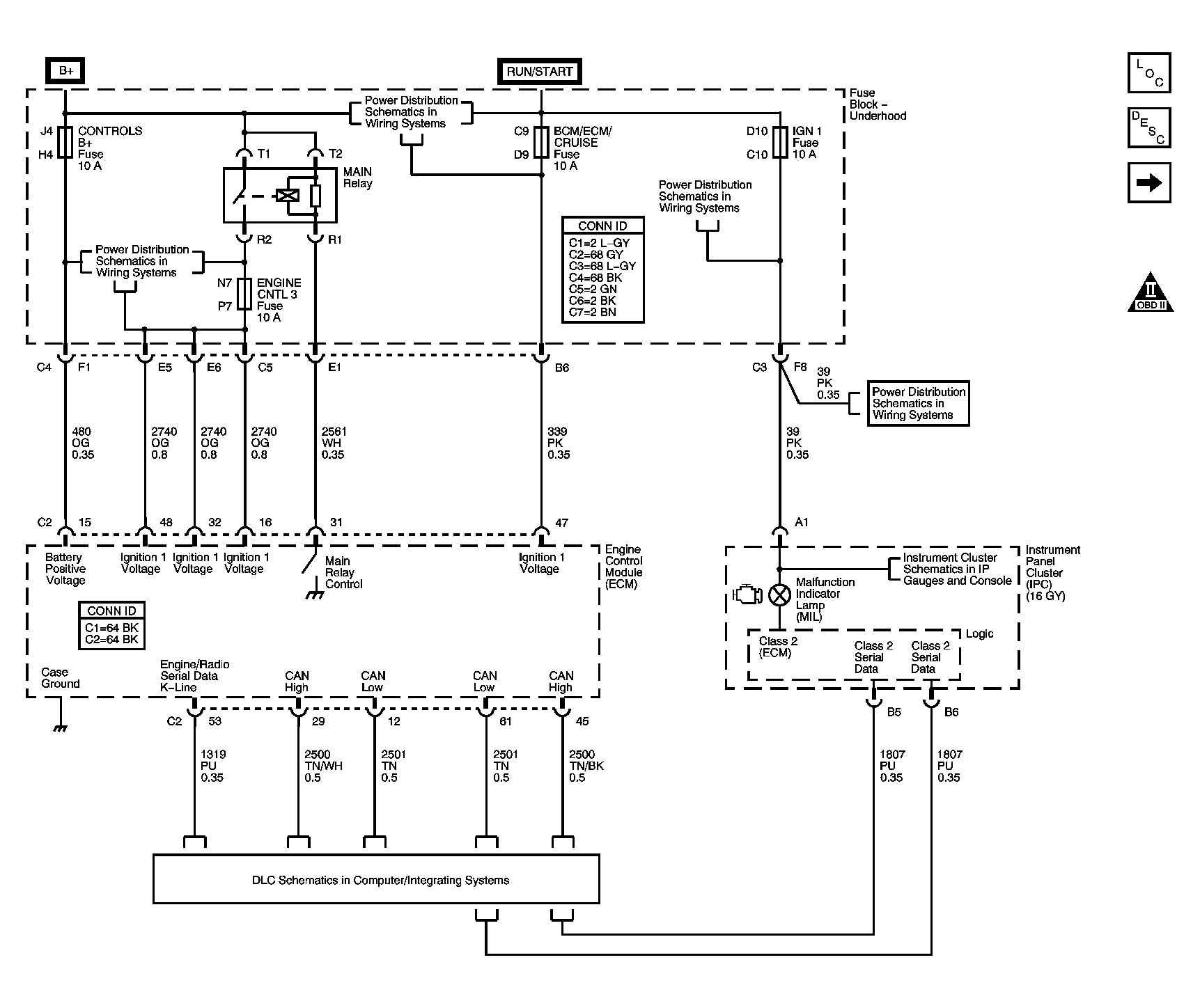

Fig 1: ECM Power, Ground, Serial Data & MIL Schematic

Courtesy of GENERAL MOTORS CORP.

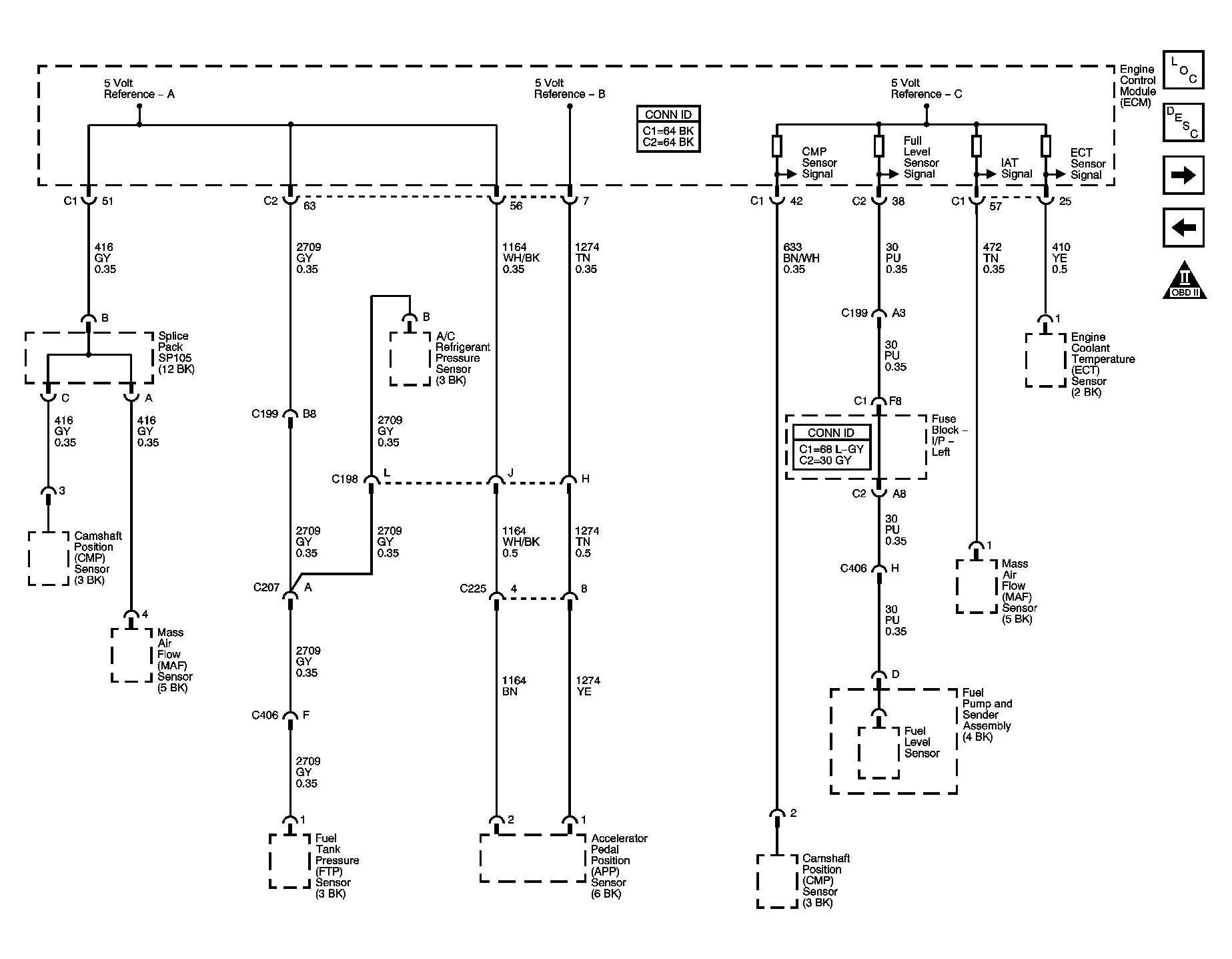

Fig 2: Engine Data Sensors - 5-Volt References Circuit Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

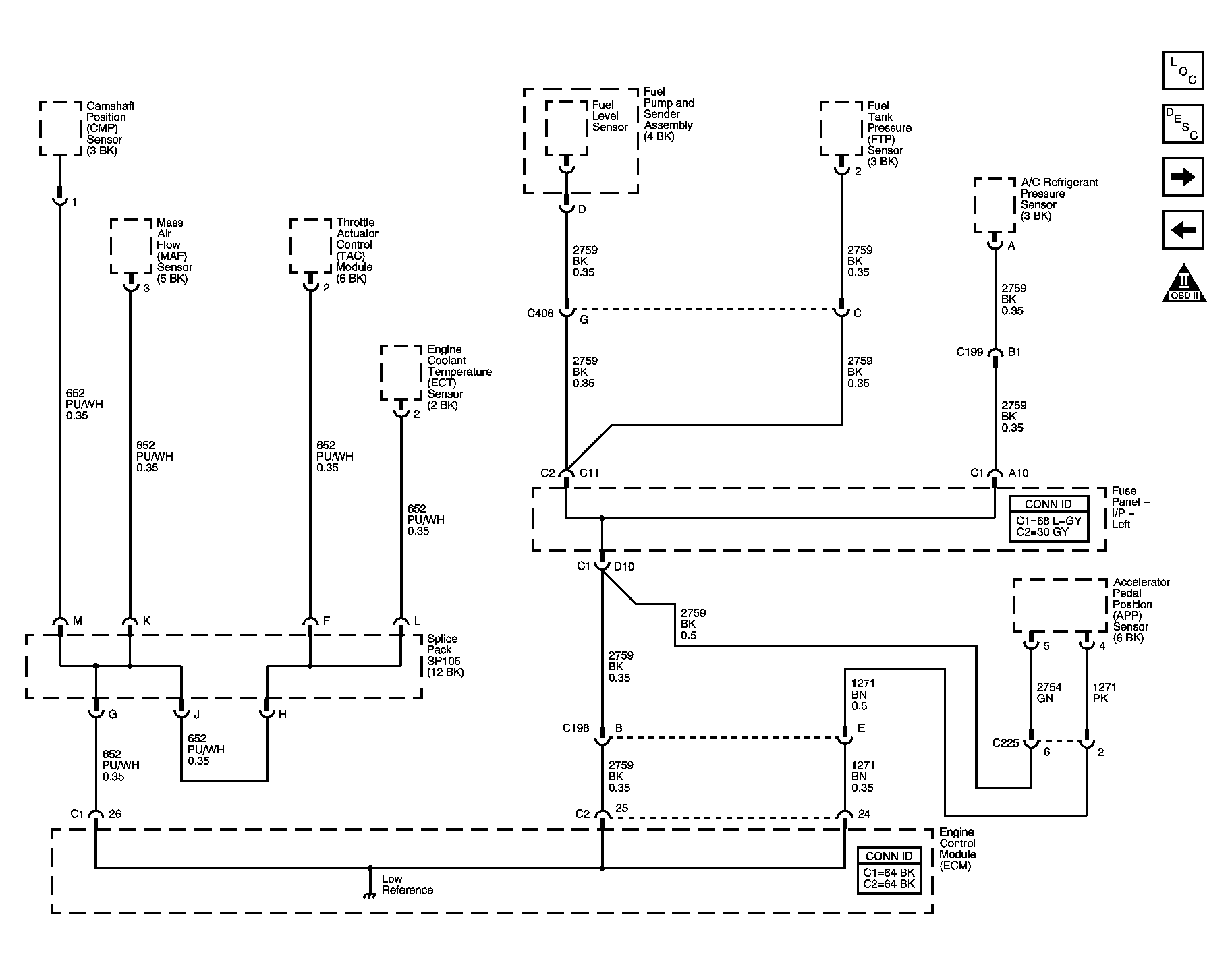

Fig 3: Engine Data Sensors - Low References Circuit Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

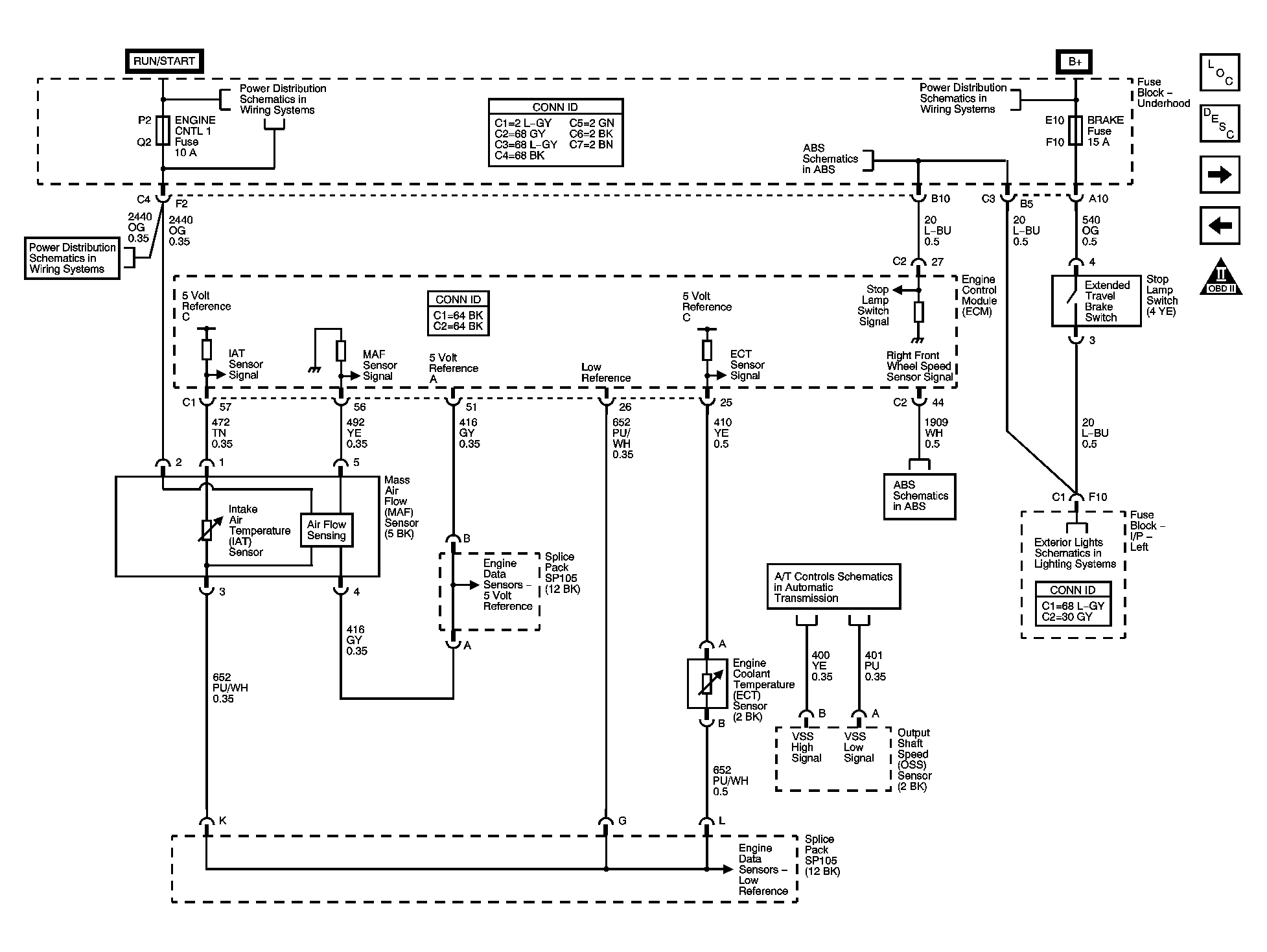

Fig 4: Engine Data Sensors - Temperature, VSS, MAF & Extended Brake Travel Switch Schematic

Courtesy of GENERAL MOTORS CORP.

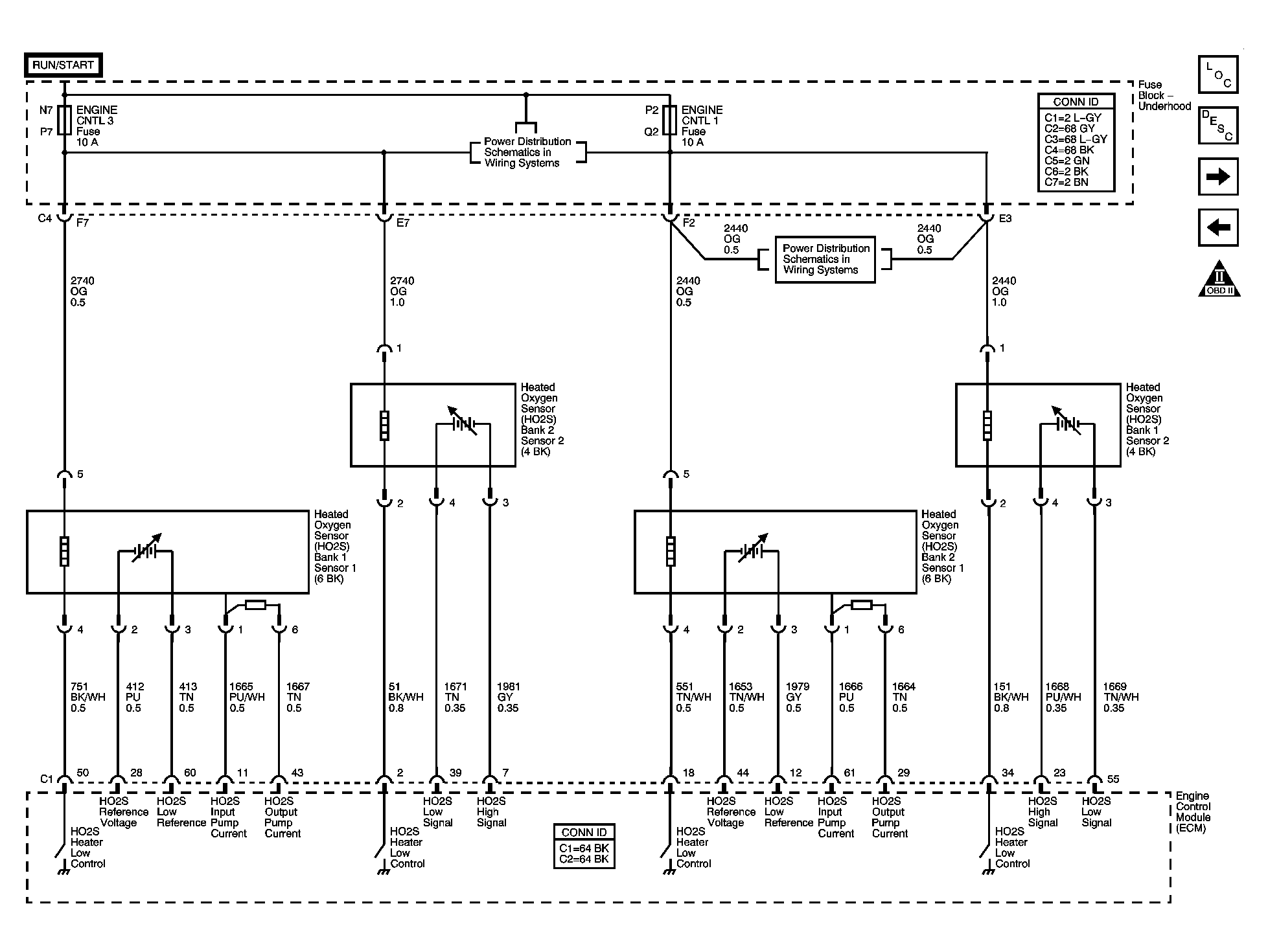

Fig 5: Engine Data Sensors - HO2 Sensors Circuit Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

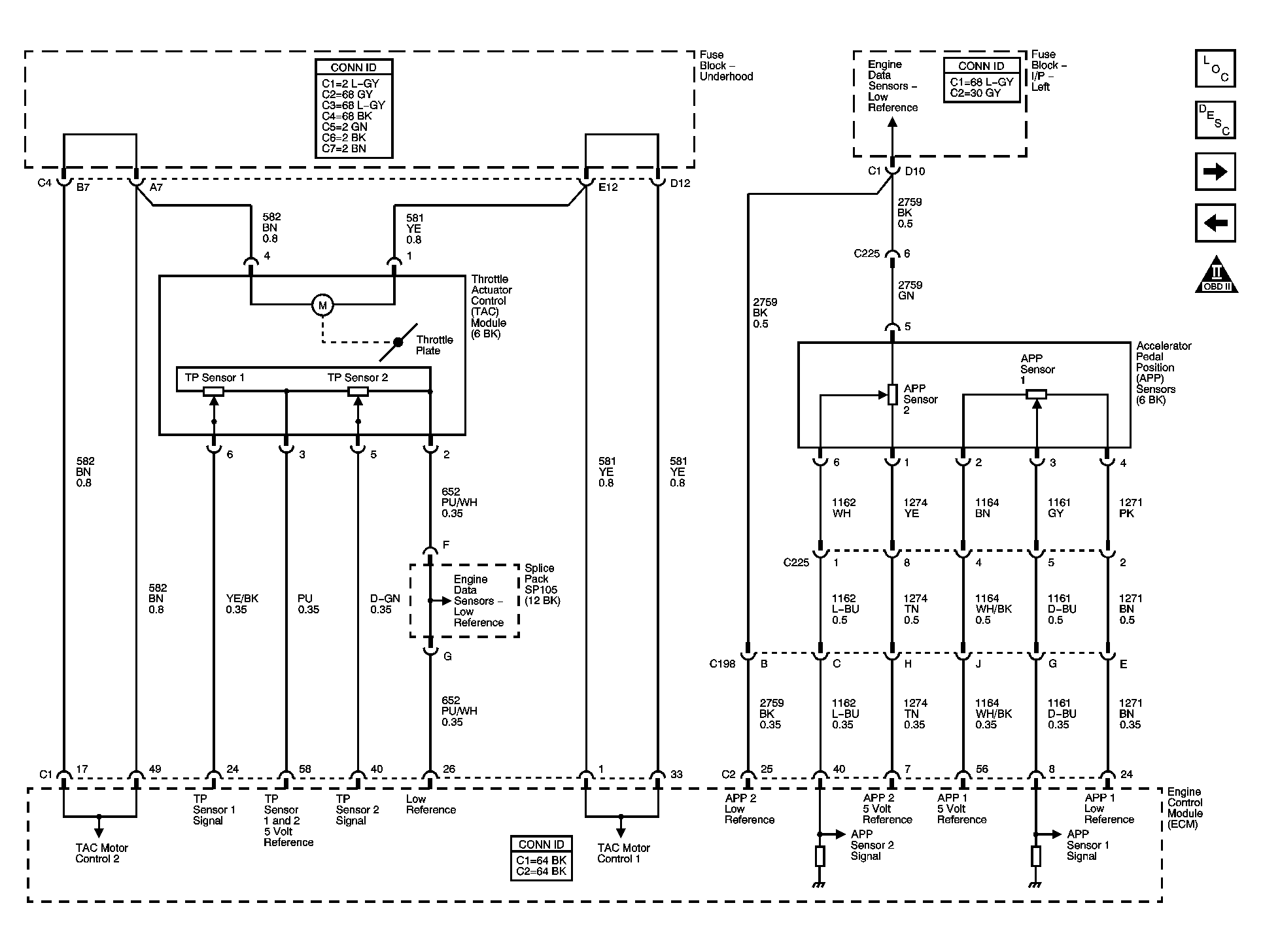

Fig 6: Electronic Throttle Controls Circuit Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

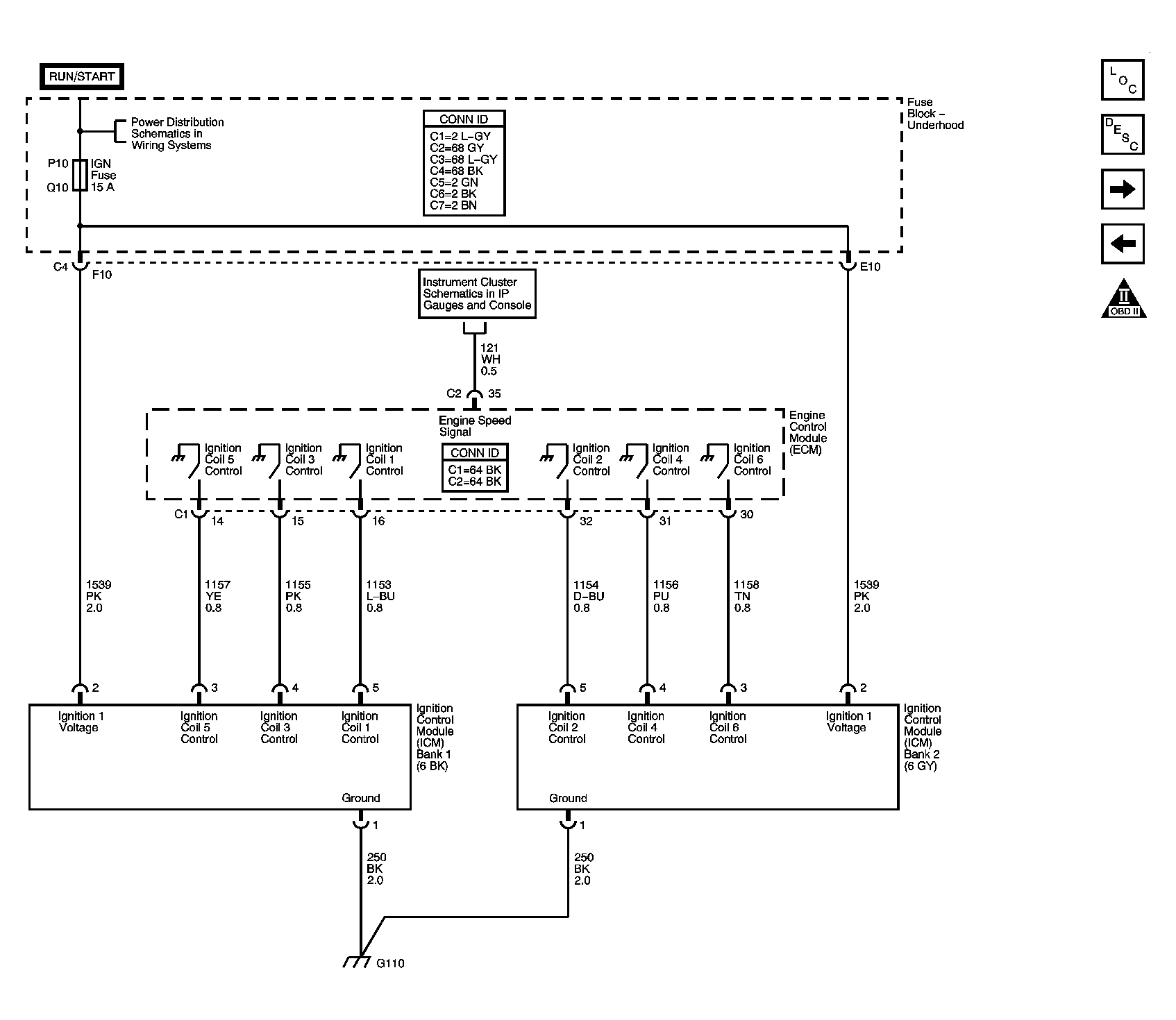

Fig 7: Ignition System Circuit Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

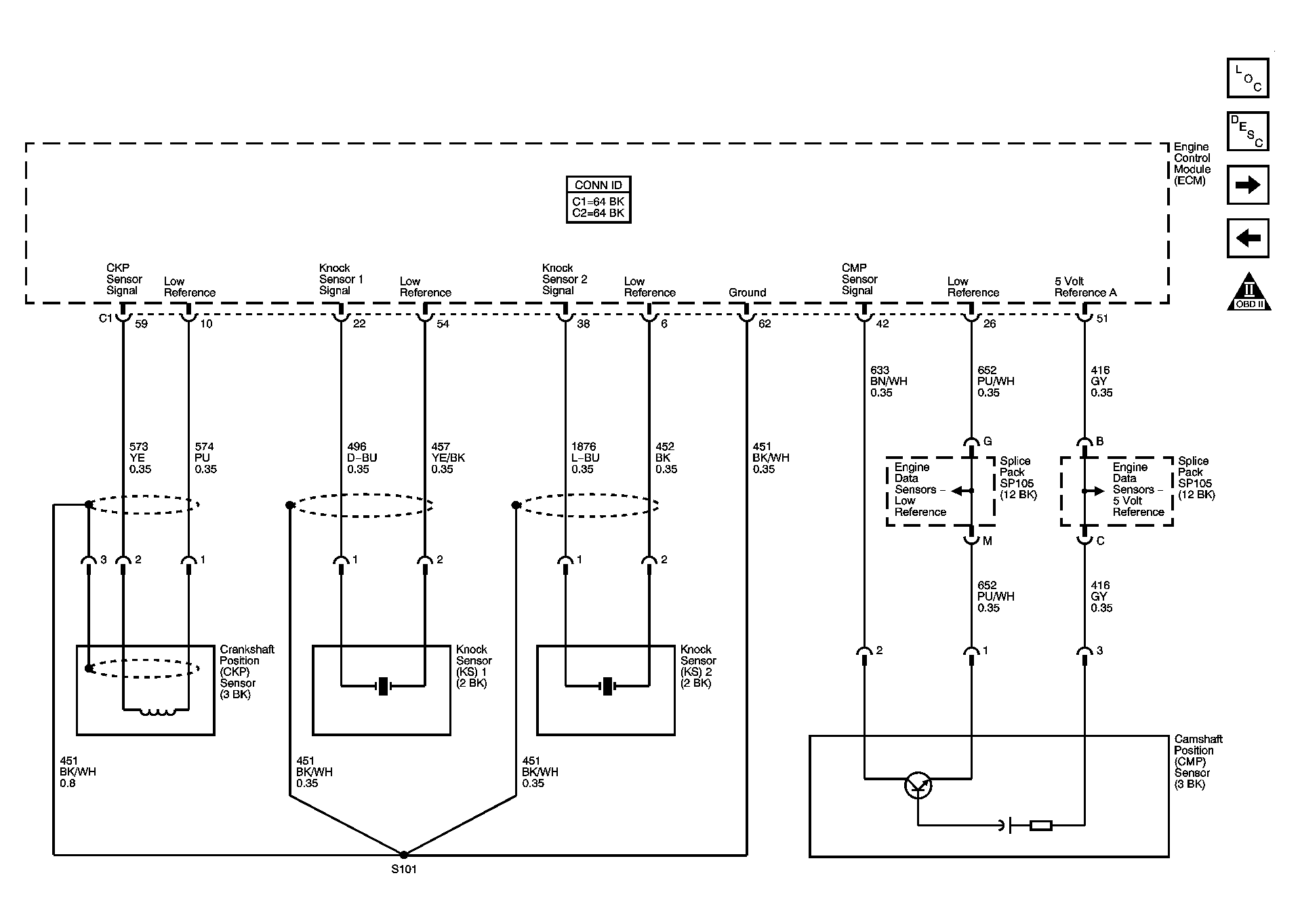

Fig 8: Ignition Control Sensors Circuit Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

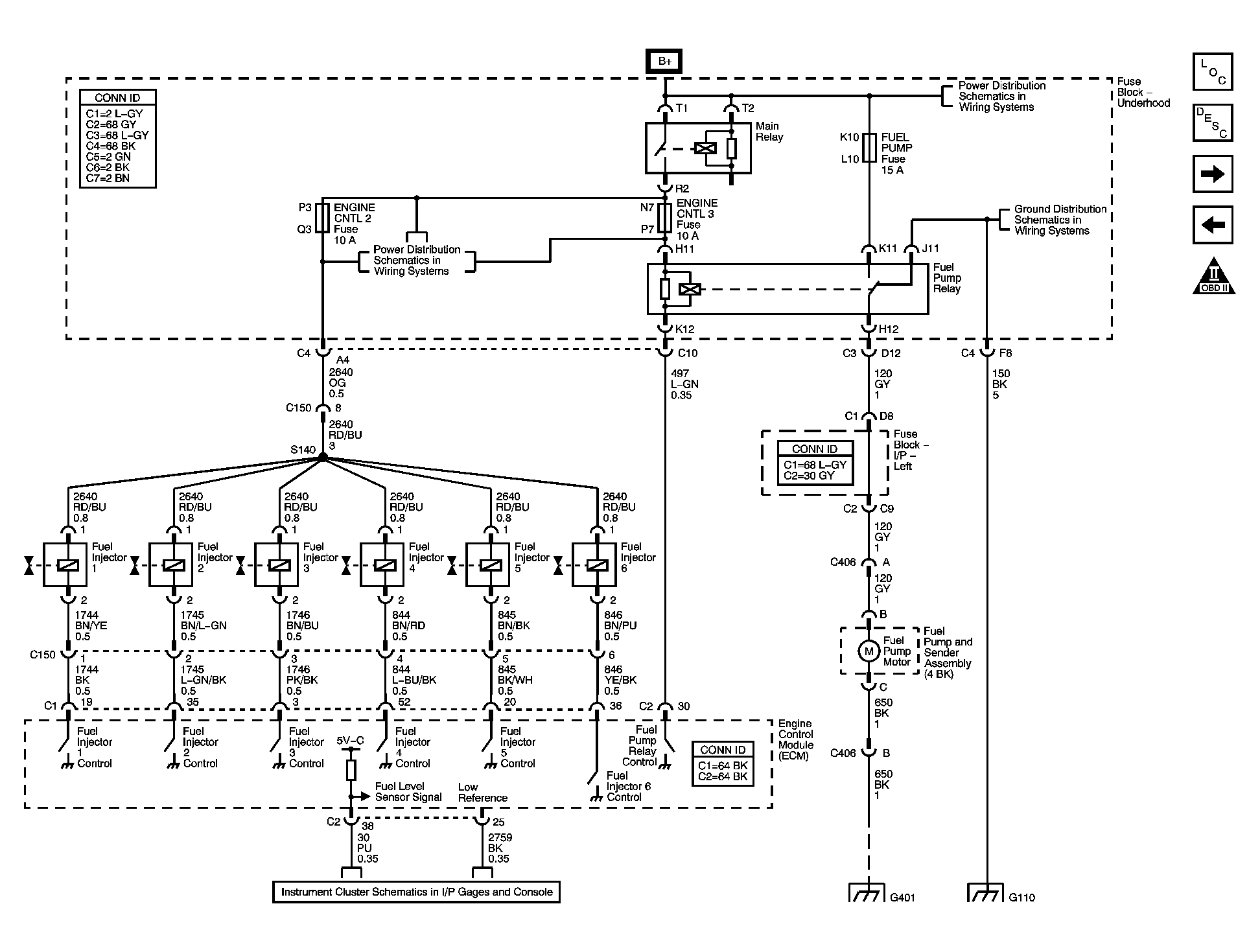

Fig 9: Fuel Controls Schematic - Fuel Pump & Fuel Injector Controls

Courtesy of GENERAL MOTORS CORP.

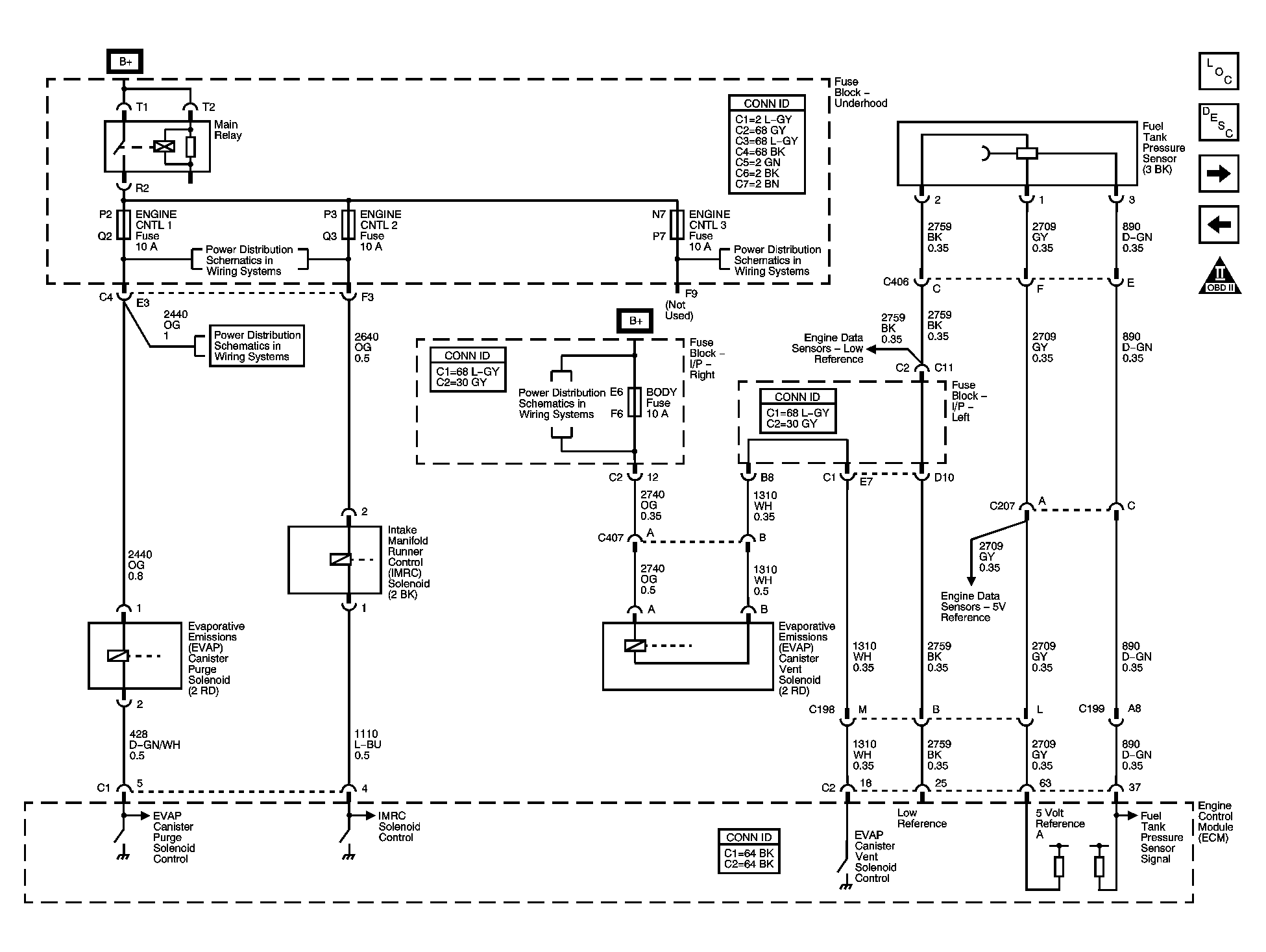

Fig 10: Fuel Controls Schematic - EVAP Controls

Courtesy of GENERAL MOTORS CORP.

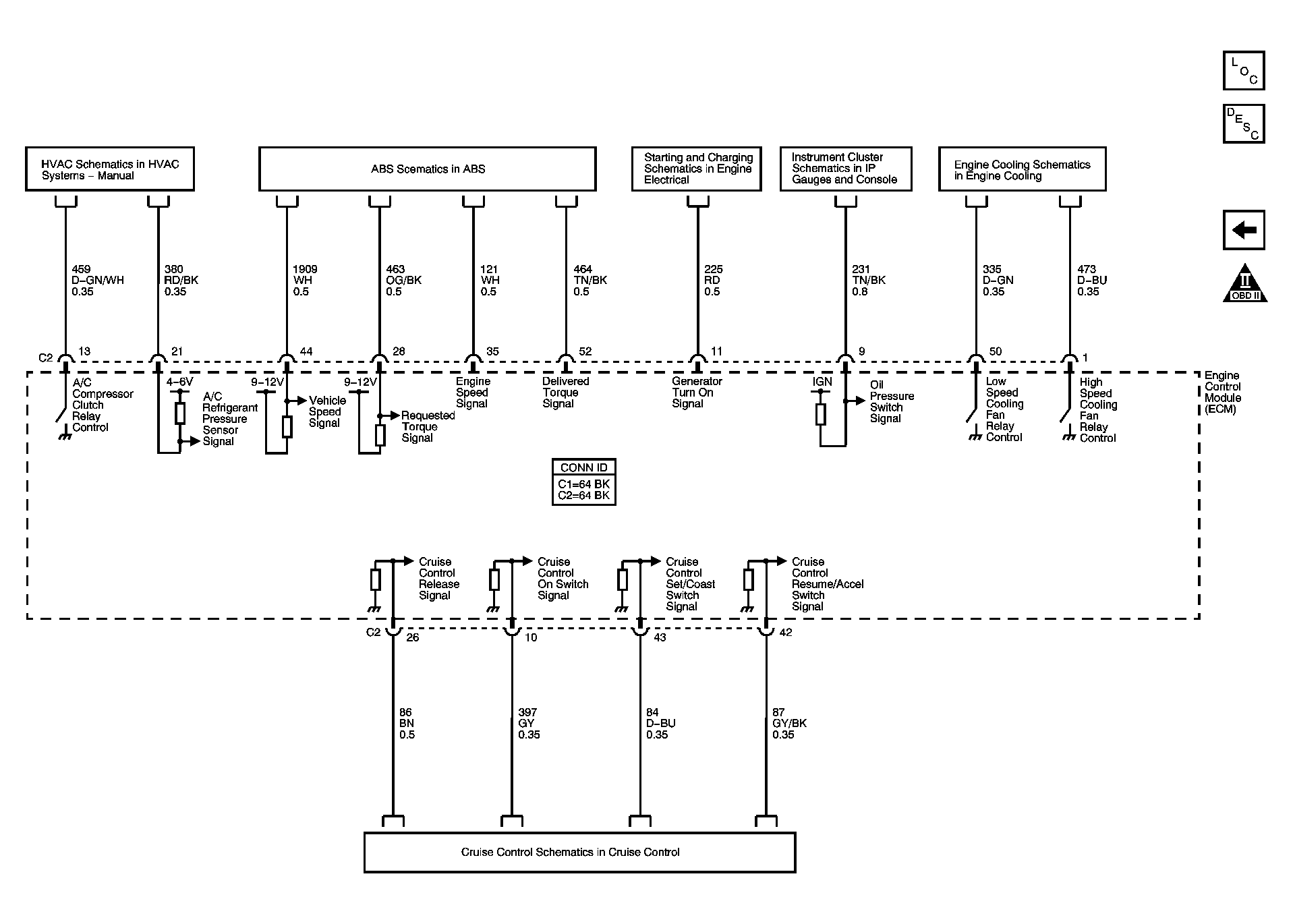

Fig 11: Controlled/Monitored Subsystem References Circuit Wiring Schematic

Courtesy of GENERAL MOTORS CORP.
