Installation Procedure

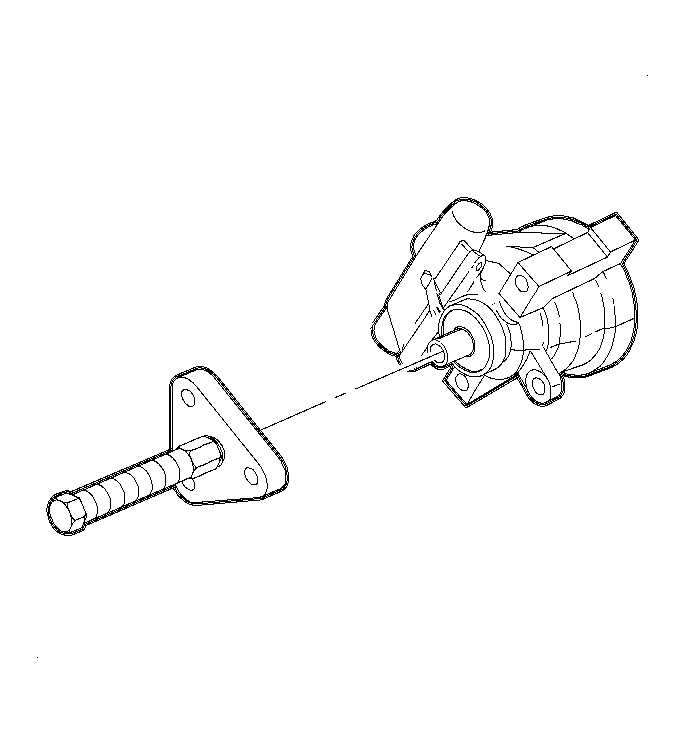

    Fig 1: Installing Power Steering Pump Pulley Hub - L81
    GM891653Courtesy of GENERAL MOTORS CORP.
  1. Using the SA9218NE  , install the power steering pulley hub to the power steering pump. See Special Tools .

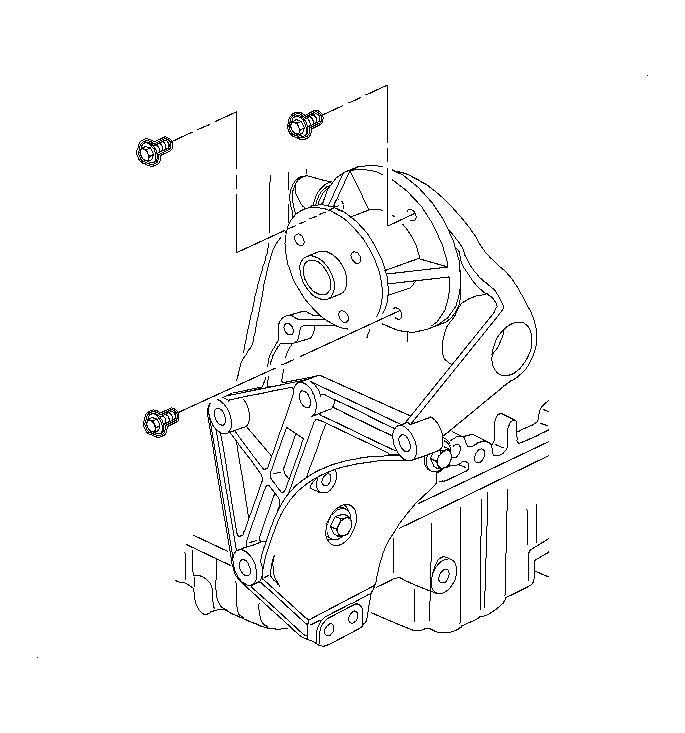

    2. Fig 2: Removing/Installing Power Steering Pump - L81
    GM891791Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the power steering pump to the power steering pump bracket.

    Tighten:  Tighten the pump to bracket bolts to 20 N.m (15 lb ft).

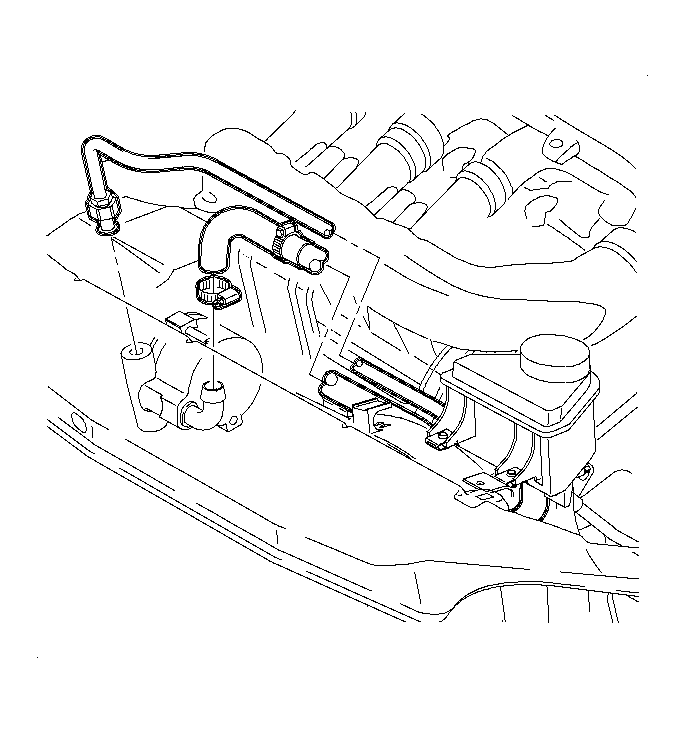

    3. Fig 3: Removing/Installing Power Steering Hoses At Power Steering Pump - L81
    GM891789Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Inspect the power steering hose O-ring and replace if necessary.
  3. Connect the power steering pressure hose to the power steering pump.

    Tighten:  Tighten the fitting to 27 N.m (20 lb ft).

  4. Connect the power steering return hose to the power steering pump.

    Tighten:  Tighten the clamp to 2.5 N.m (22 lb in).

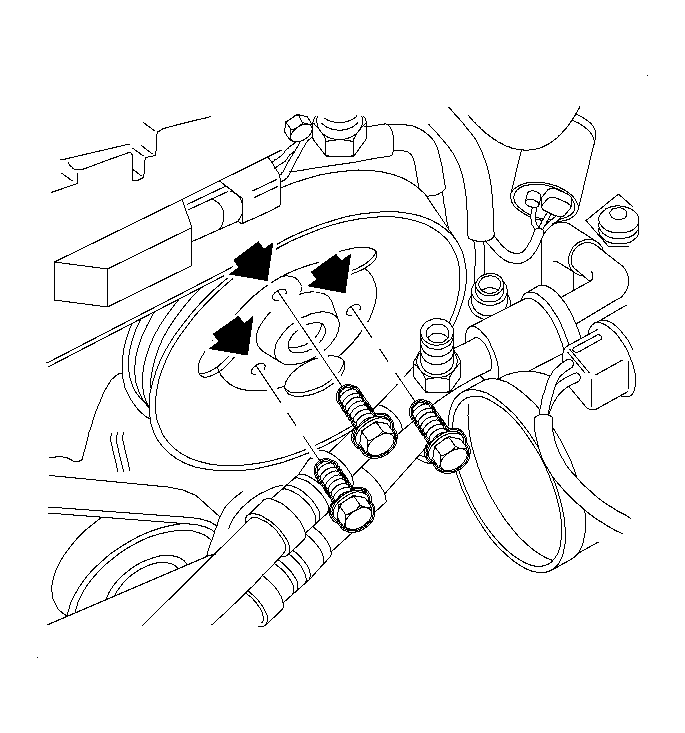

    5. Fig 4: Removing/Installing Power Steering Pump Pulley Bolts
    GM891786Courtesy of GENERAL MOTORS CORP.
  5. Install the Power steering pump pulley. Refer to Power Steering Pulley Replacement .
    6. Fig 5: Removing/Installing Air Cleaner Assembly
    GM895973Courtesy of GENERAL MOTORS CORP.
  6. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement in Engine Controls - 3.0L (L81).
  7. Fill the power steering reservoir and bleed air from the system. Refer to Bleeding the Power Steering System .
