Body Control System Schematics

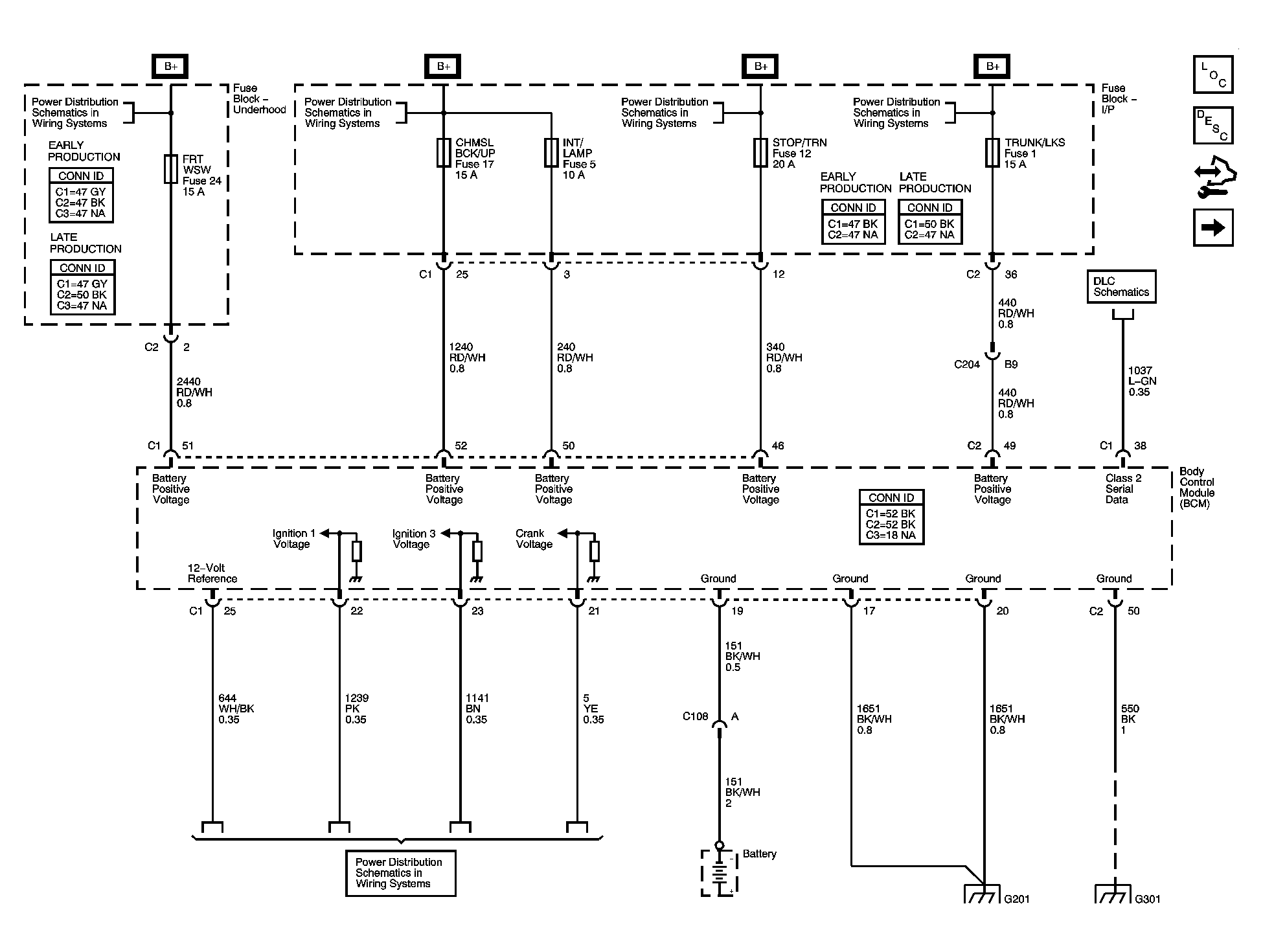

Fig 1: Ground, Power & References To DLC & Power Distribution Schematic

Courtesy of GENERAL MOTORS CORP.

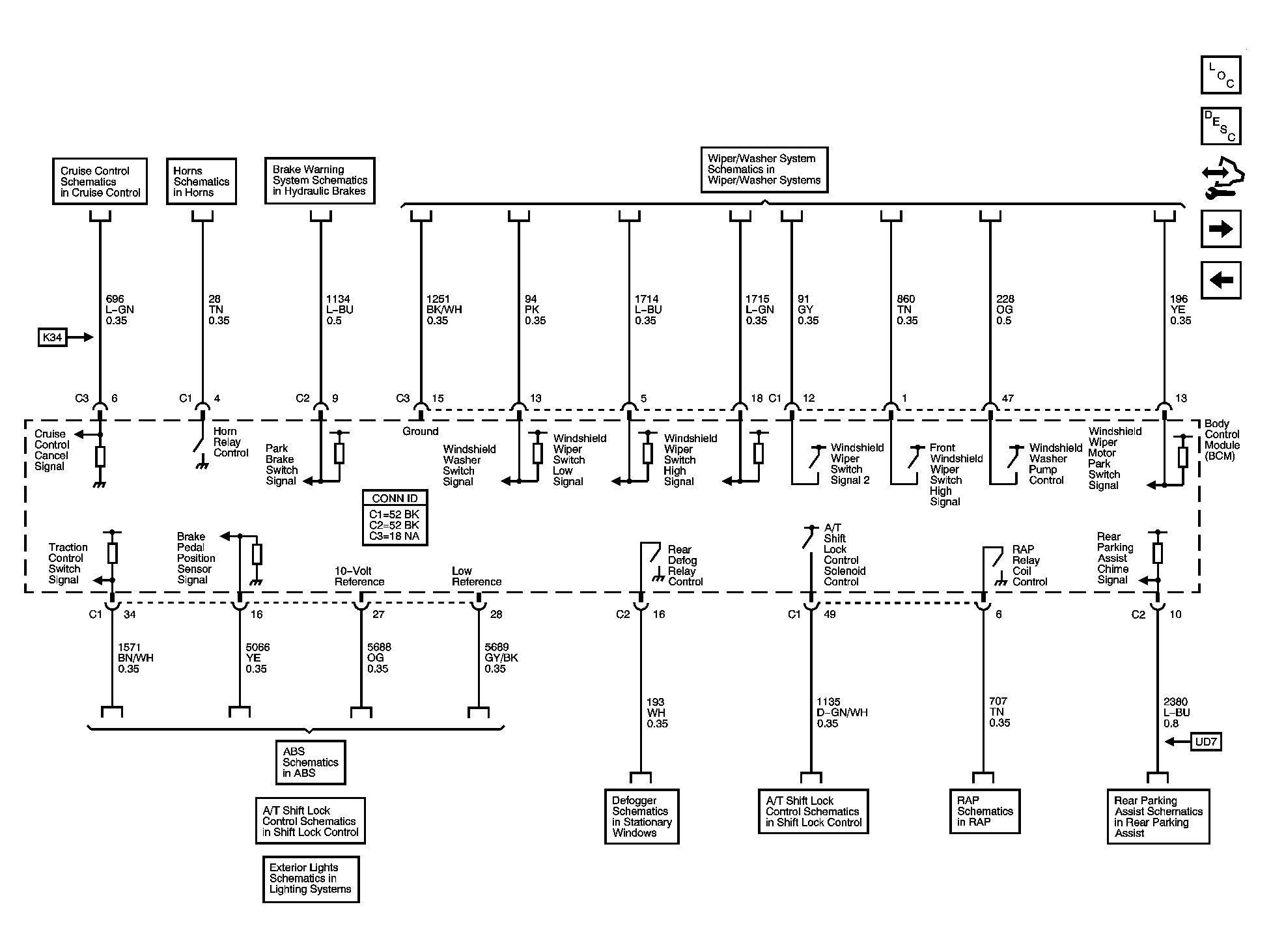

Fig 2: References to ABS, Brakes, Cruise Control, Horns, RAP, Rear Park Assist, Shift Lock, Stationary Windows, and Wipers/Washer System Schematic

Courtesy of GENERAL MOTORS CORP.

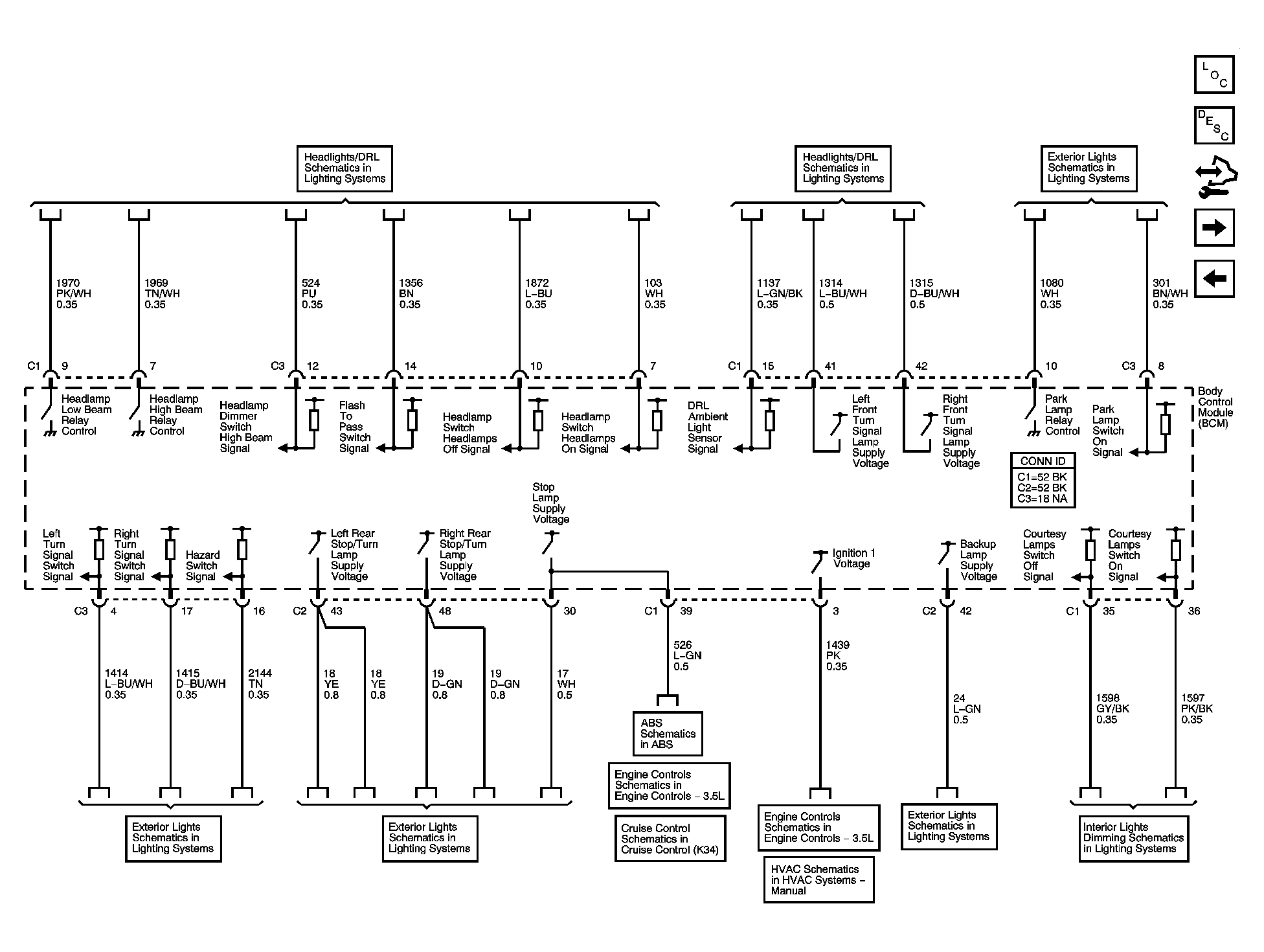

Fig 3: References To ABS, Cruise Control, Engine Controls, HVAC - Manual & Lighting Schematic

Courtesy of GENERAL MOTORS CORP.

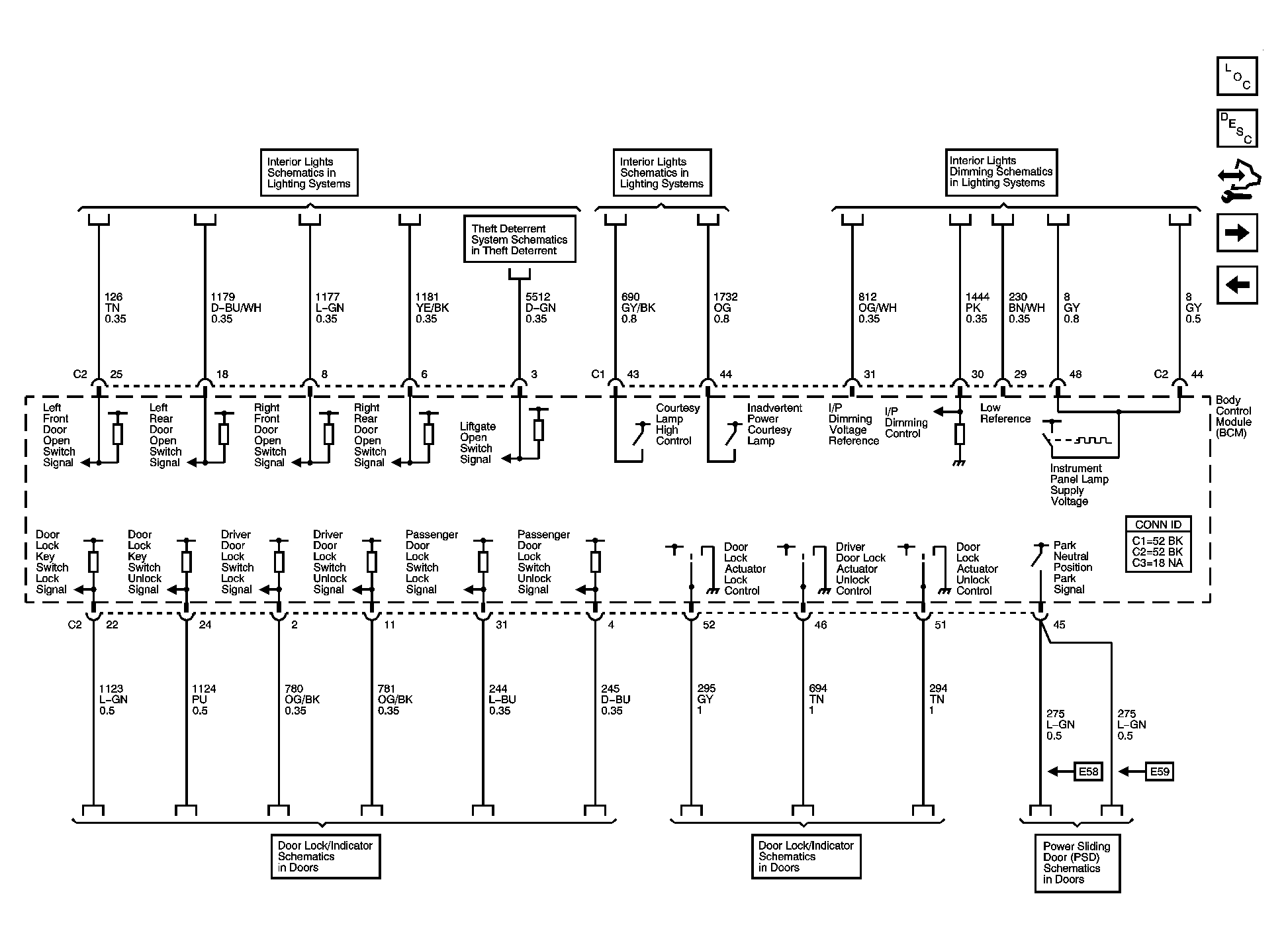

Fig 4: References To Doors, Lighting & Theft Deterrent Schematic

Courtesy of GENERAL MOTORS CORP.

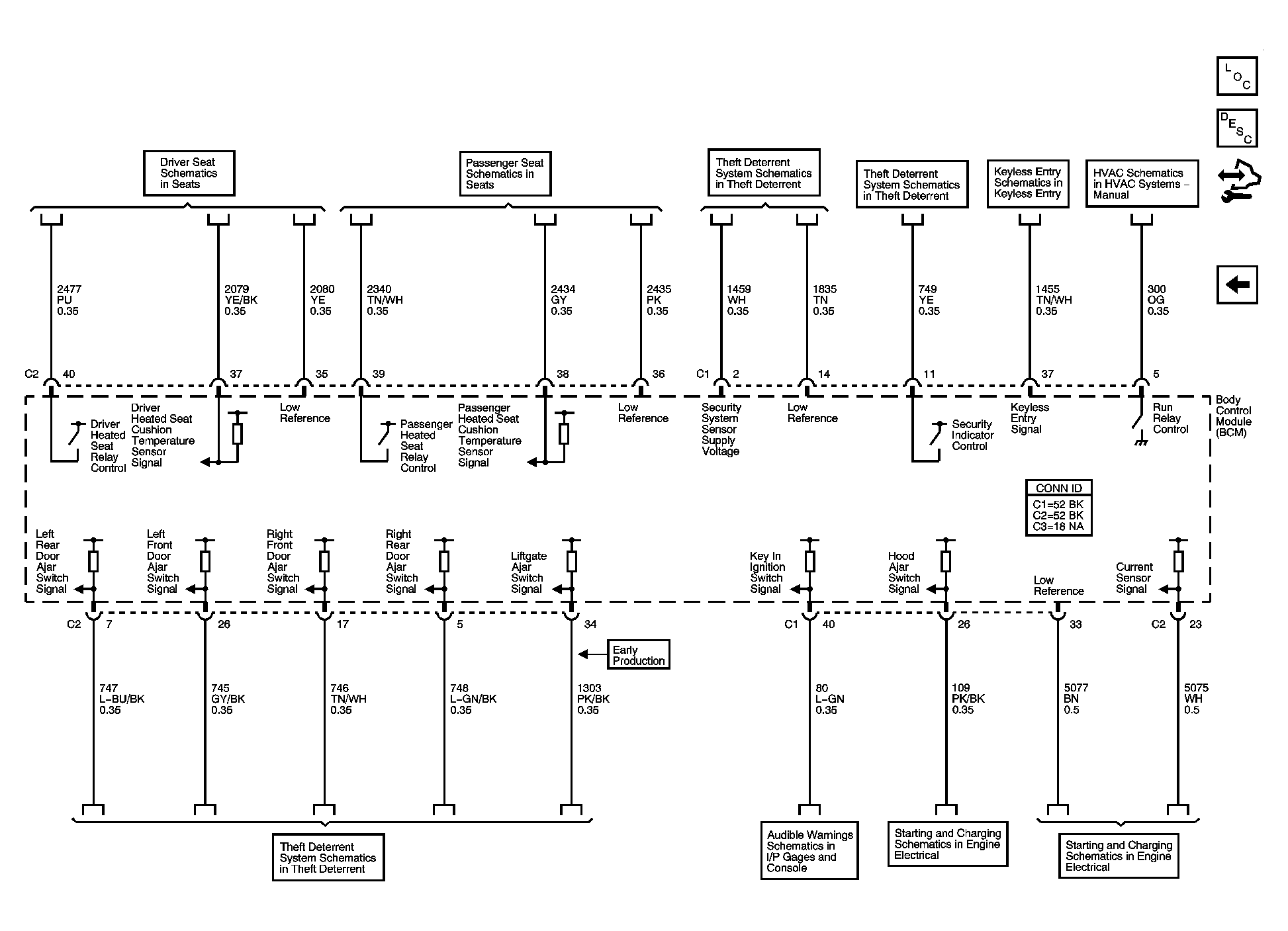

Fig 5: References To Audible Warnings, Engine Electrical, HVAC Schematic - Manual, Keyless Entry, Seats & Theft Deterrent

Courtesy of GENERAL MOTORS CORP.
