Installation Procedure

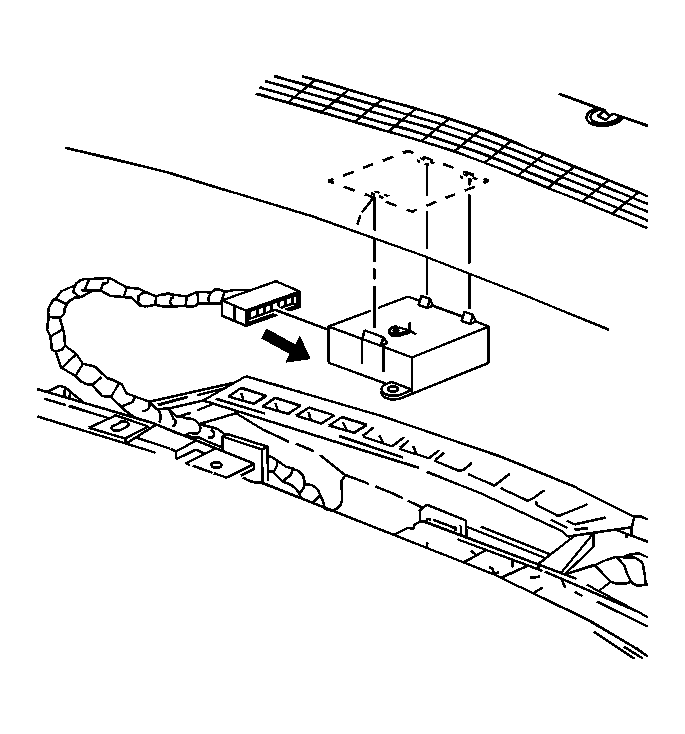

Fig 1: View Of Door Lock Receiver

Courtesy of GENERAL MOTORS CORP.

Connect the electrical connector to the door lock receiver.
Engage the retaining tabs in order to install the door lock receiver to the I/P upper trim.
Install the I/P upper trim. Refer to Upper Trim Pad, Outer Trim Cover, Fuse Block Access Cover Replacement - Instrument Panel in Instrument Panel, Gages, and Console.
Program transmitter to the new receiver. Refer to Transmitter Programming .
