Installation Procedure

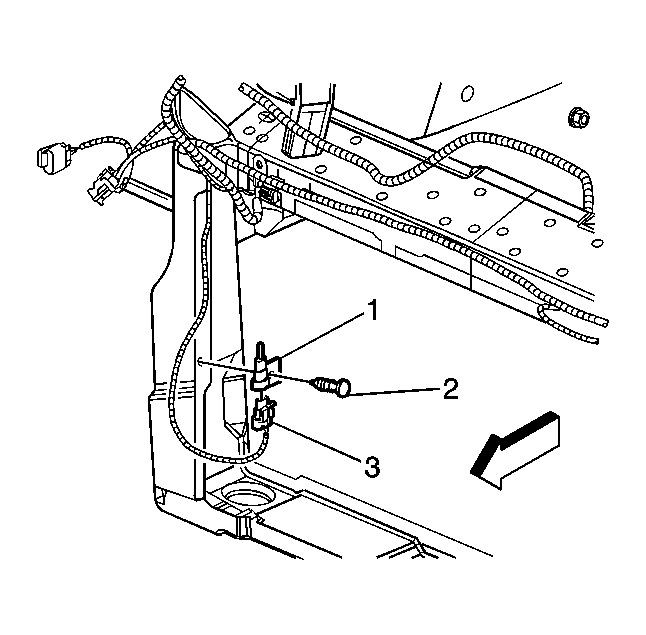

    Fig 1: Identifying Ambient Air Temperature Sensor
    GM1482430Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector (3) to the ambient temperature sensor (1).
  2. Position the sensor to the radiator support and install a NEW retainer (2).
  3. Install the lower front bumper fascia. Refer to Fascia Replacement - Front Bumper - Lower (Buick ) or Fascia Replacement - Front Bumper - Lower (Chevrolet) or Fascia Replacement - Front Bumper - Lower (Pontiac ) in Bumpers.
  4. Close the hood.
