Installation Procedure

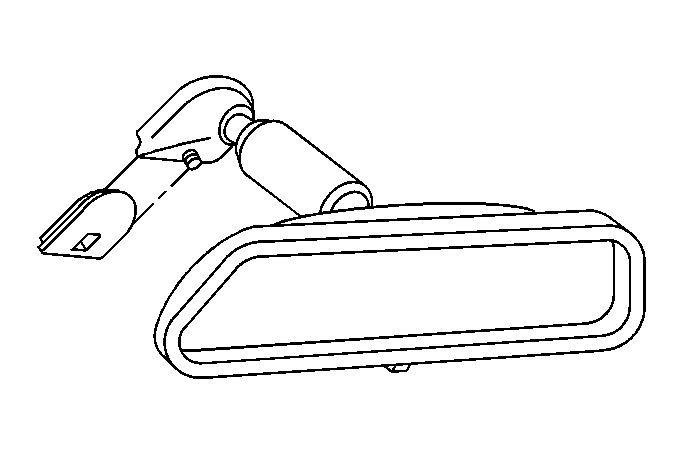

    Fig 1: View Of Rearview Mirror
    GM319020Courtesy of GENERAL MOTORS CORP.
  1. Locate the rearview mirror support on the windshield.
  2. Install the rearview mirror to the rearview mirror support, ensuring that the mirror is fully seated.
    3. NOTE: Refer to Fastener Notice .
  3. Install the screw at the rearview mirror support.

    Tighten:  Tighten the screws to 2 N.m (18 lb in).
