Removal Procedure

CAUTION: Refer to Brake Fluid Irritant Caution in Cautions and Notices.

NOTE: Refer to Brake Fluid Effects on Paint and Electrical Components Notice in Cautions and Notices.

NOTE: Always connect or disconnect the wiring harness connector from the EBCM/EBTCM with the ignition switch in the OFF position. Failure to observe this precaution could result in damage to the EBCM/EBTCM.

Turn the ignition switch to the OFF position.
Remove the air cleaner assembly from the engine compartment. Refer to Air Cleaner Assembly Replacement in Engine Controls - 3.5L.

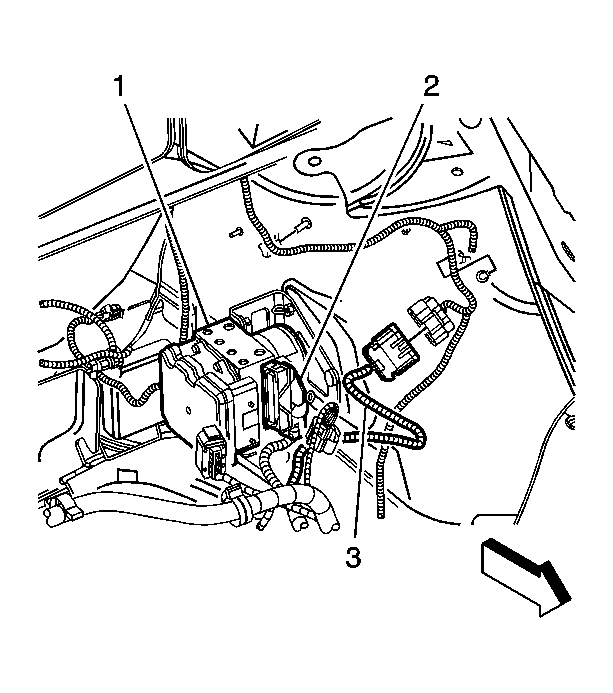

Fig 1: Identifying Electronic Brake Control Module

Courtesy of GENERAL MOTORS CORP.

Disconnect the electronic brake control module (EBCM) harness connector (2).
Brush off any dirt/debris that has accumulated on the assembly.
Disconnect the pump motor connector at the bottom of the EBCM.

IMPORTANT:

Do not damage the seal by prying the EBCM from the brake pressure modulator valve (BPMV).
Do not damage the solenoid valves while removing the EBCM from the BPMV.

Fig 2: Removing EBCM To BPMV Screws

Courtesy of GENERAL MOTORS CORP.

Remove the EBCM to BPMV screws.

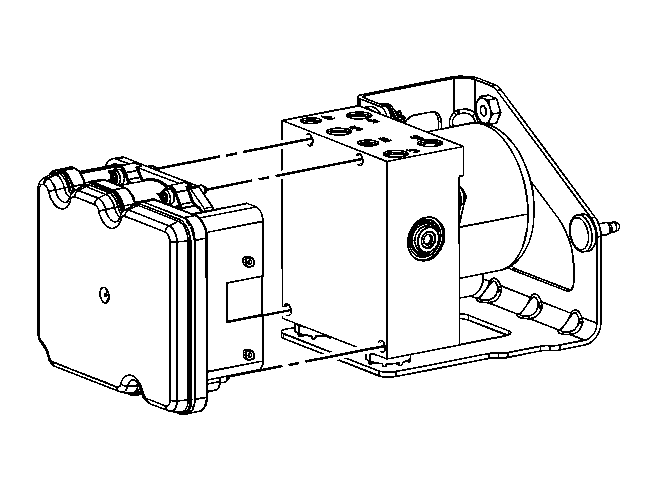

Fig 3: Separating/Installing EBCM From BPMV

Courtesy of GENERAL MOTORS CORP.

Separate the EBCM from the BPMV by gently pulling apart until separated (1).
