Traction Control Switch Replacement

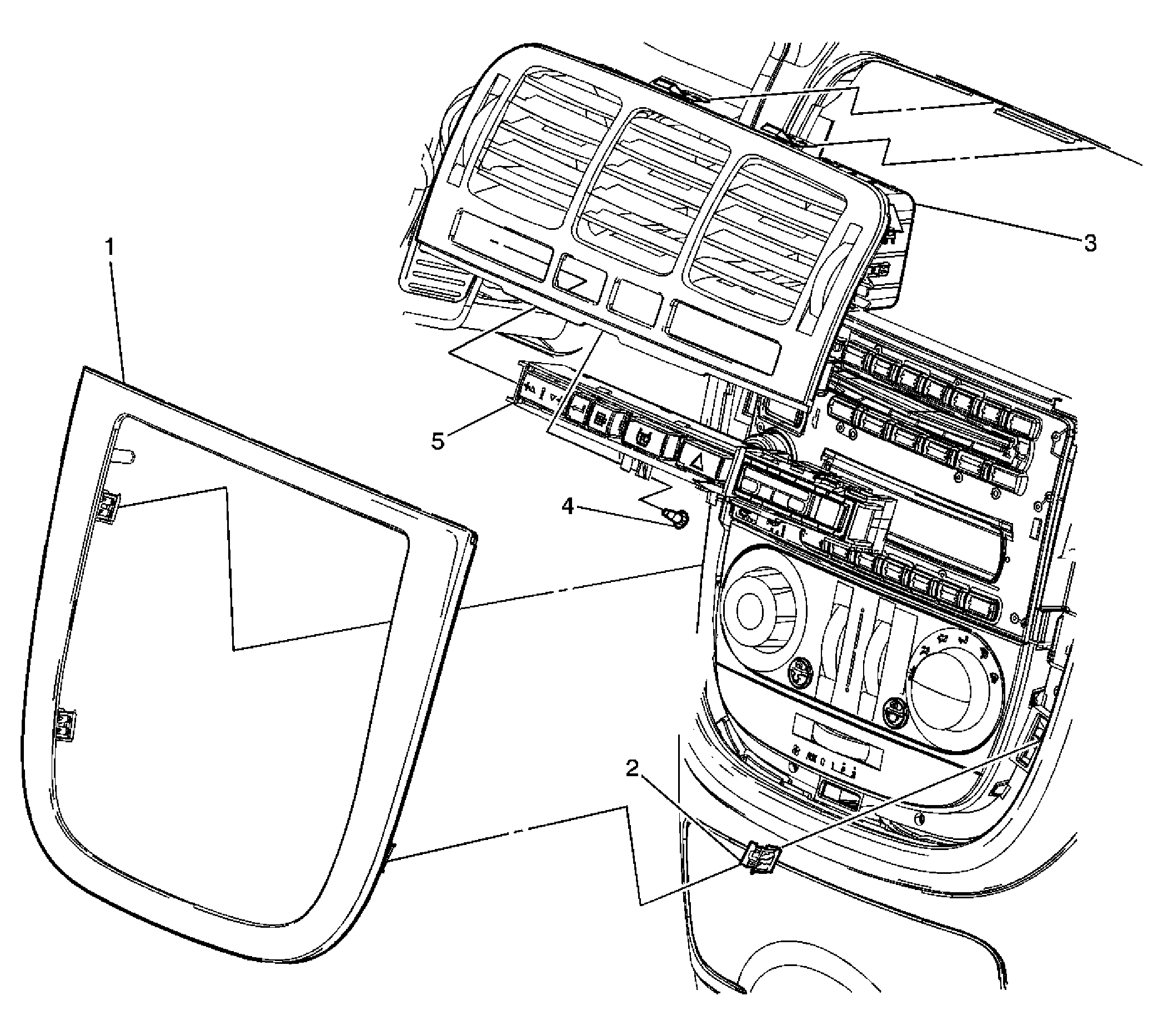

Fig 1: Replacing Traction Control Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
Traction Control Switch Replacement
1	Panel, Instrument Panel (I/P) Accessory Trim
2	Clip, I/P Accessory Trim Panel (Qty: 5)
3	Outlet Assembly, I/P A/C Center Tip: Pull rearward of the I/P to remove. Disconnect electrical connectors from the switches.
4	Screw, Driver Information Center Display Switch Tighten: 2 N.m (18 lb in)
5	Switch Assembly, Traction Control
