Installation Procedure

    Fig 1: Identifying MAP Sensor Retaining Bolt & Bracket
    GM1544765Courtesy of GENERAL MOTORS CORP.
  1. Install the MAP sensor (1) to the intake manifold.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the MAP sensor retaining bracket (2) and bolt (3).

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

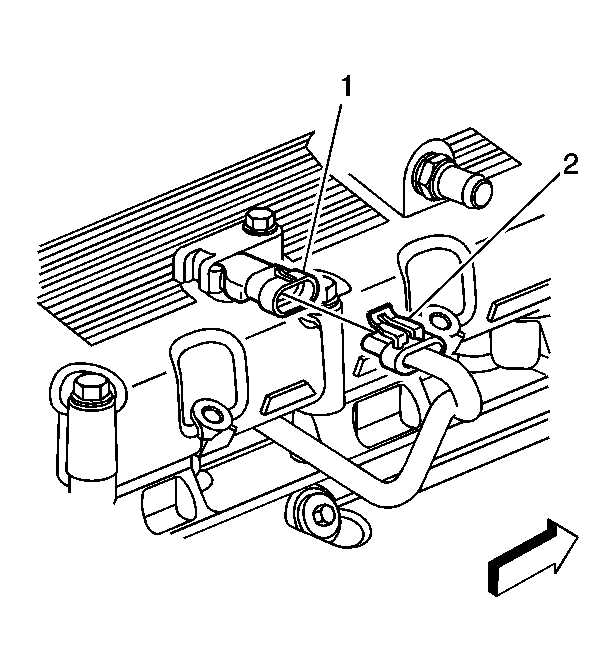

    3. Fig 2: Disconnecting/Reconnecting Manifold Absolute Pressure (MAP) Sensor Electrical Connector
    GM1544767Courtesy of GENERAL MOTORS CORP.
  3. Connect the MAP sensor electrical connector (2).
