Engine Controls Schematics

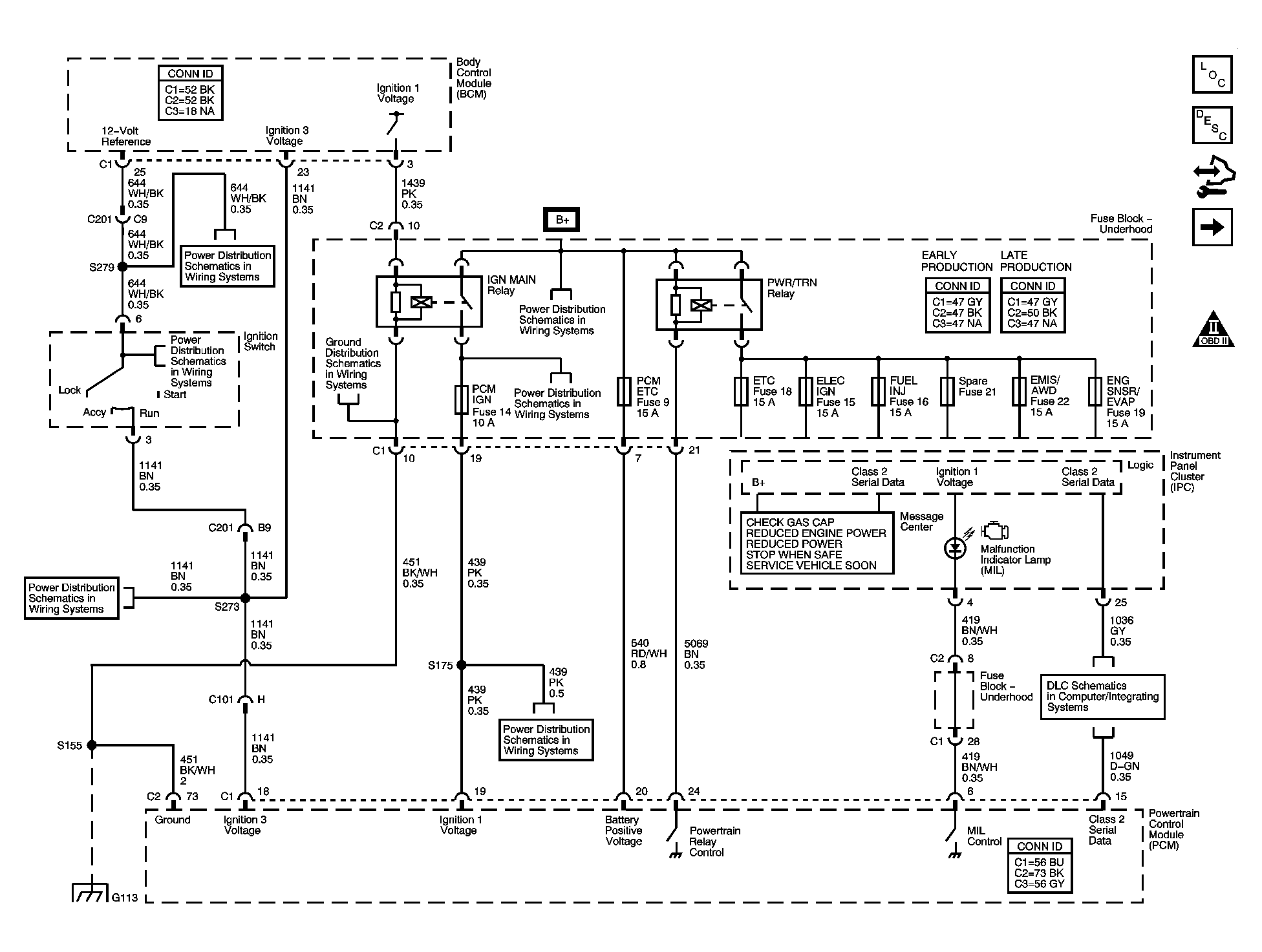

Fig 1: Module Power, Ground, Serial Data & MIL

Courtesy of GENERAL MOTORS CORP.

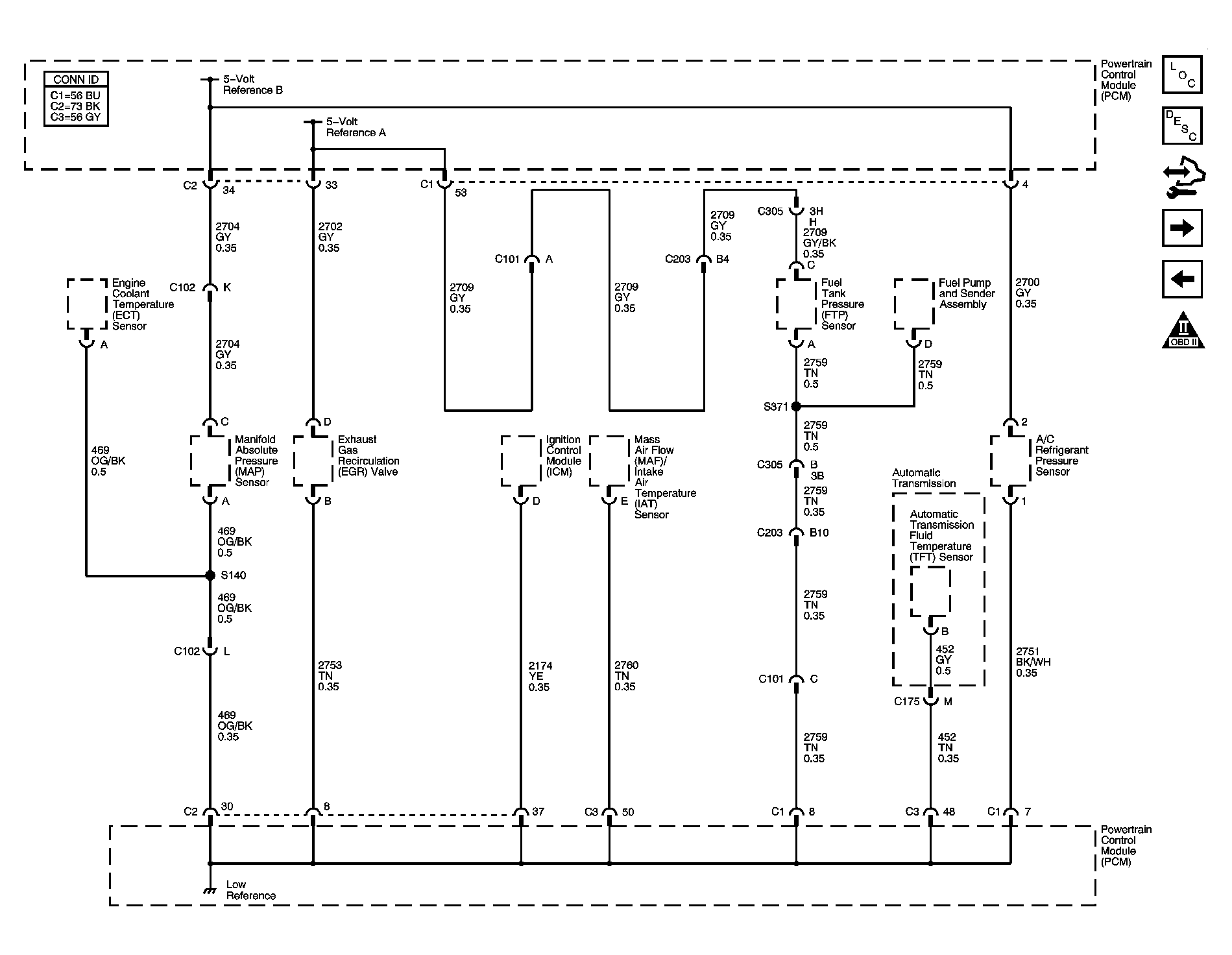

Fig 2: Engine Data Sensors - 5-Volt & Low Reference

Courtesy of GENERAL MOTORS CORP.

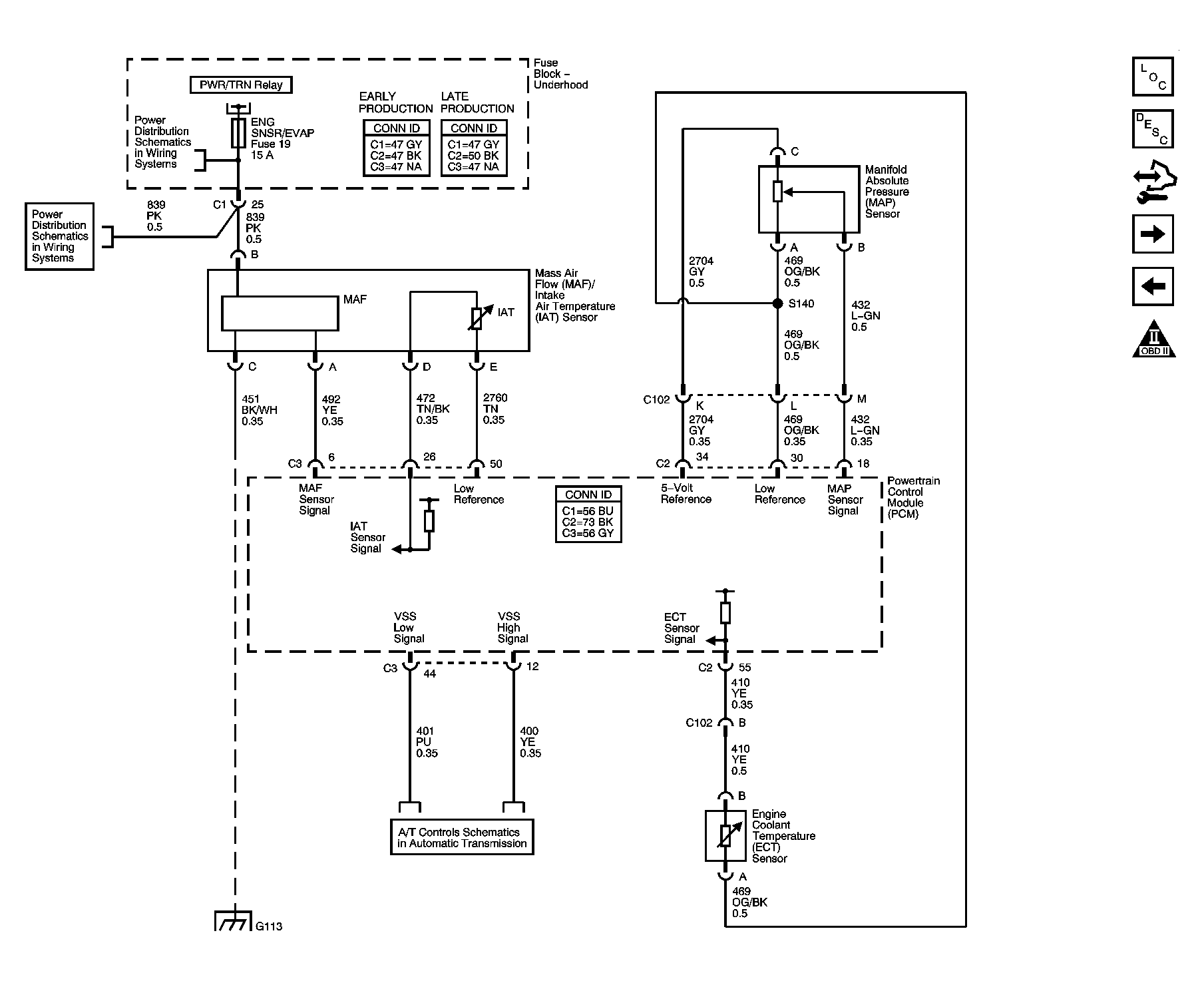

Fig 3: Engine Data Sensors - MAF, Pressure, Temperature & VSS

Courtesy of GENERAL MOTORS CORP.

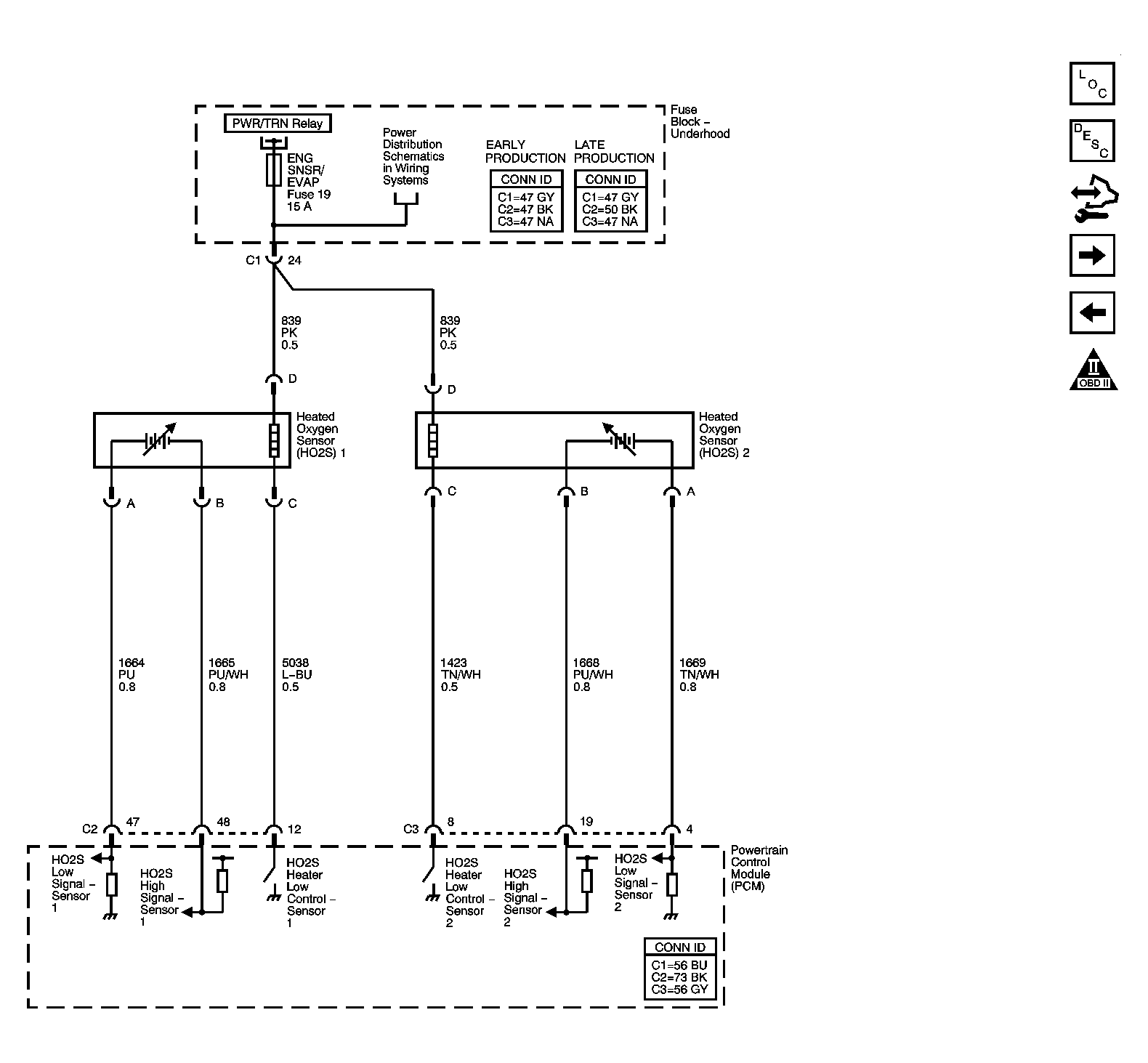

Fig 4: Engine Data Sensors - Oxygen Sensors

Courtesy of GENERAL MOTORS CORP.

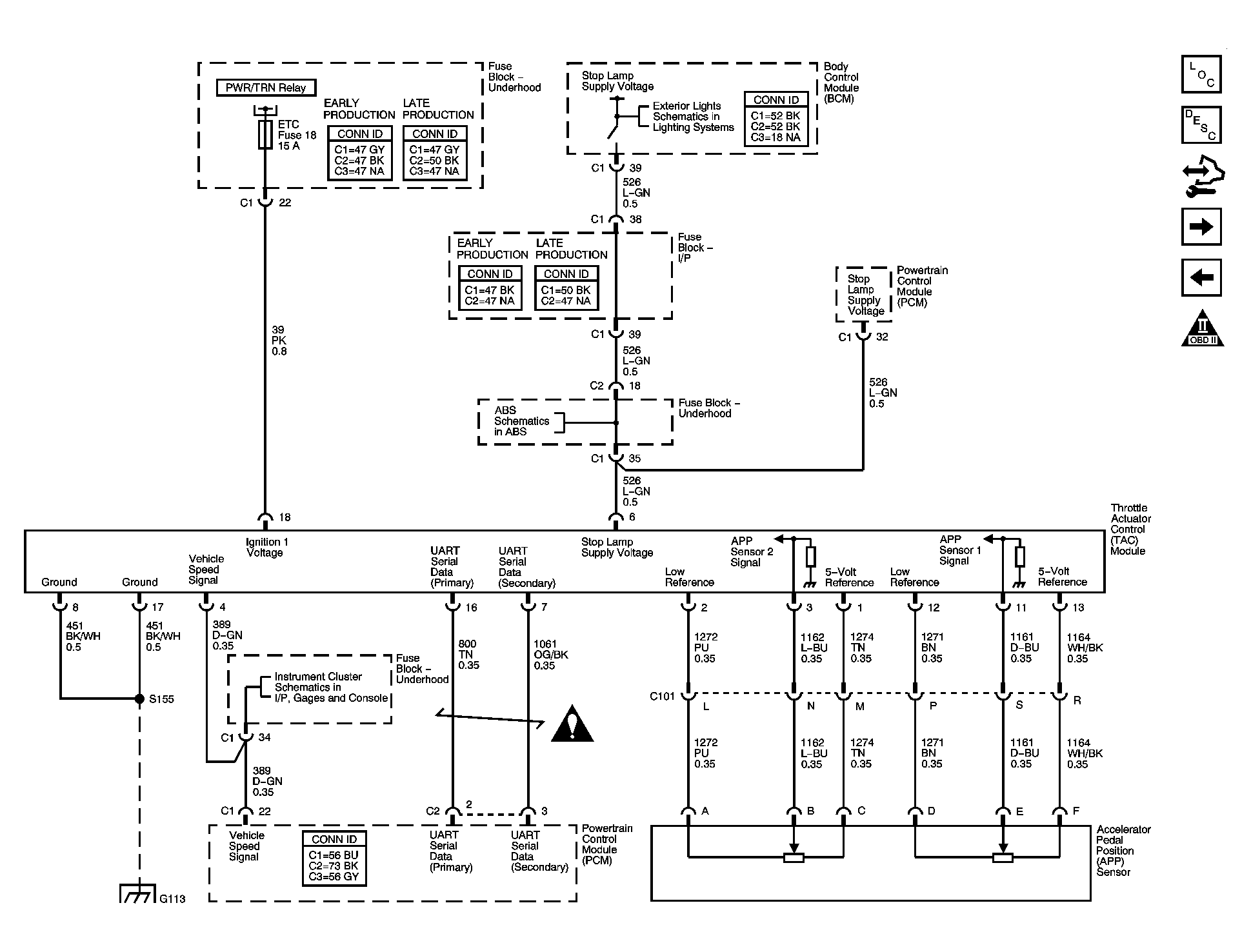

Fig 5: Engine Data Sensors - Throttle Actuator Controls

Courtesy of GENERAL MOTORS CORP.

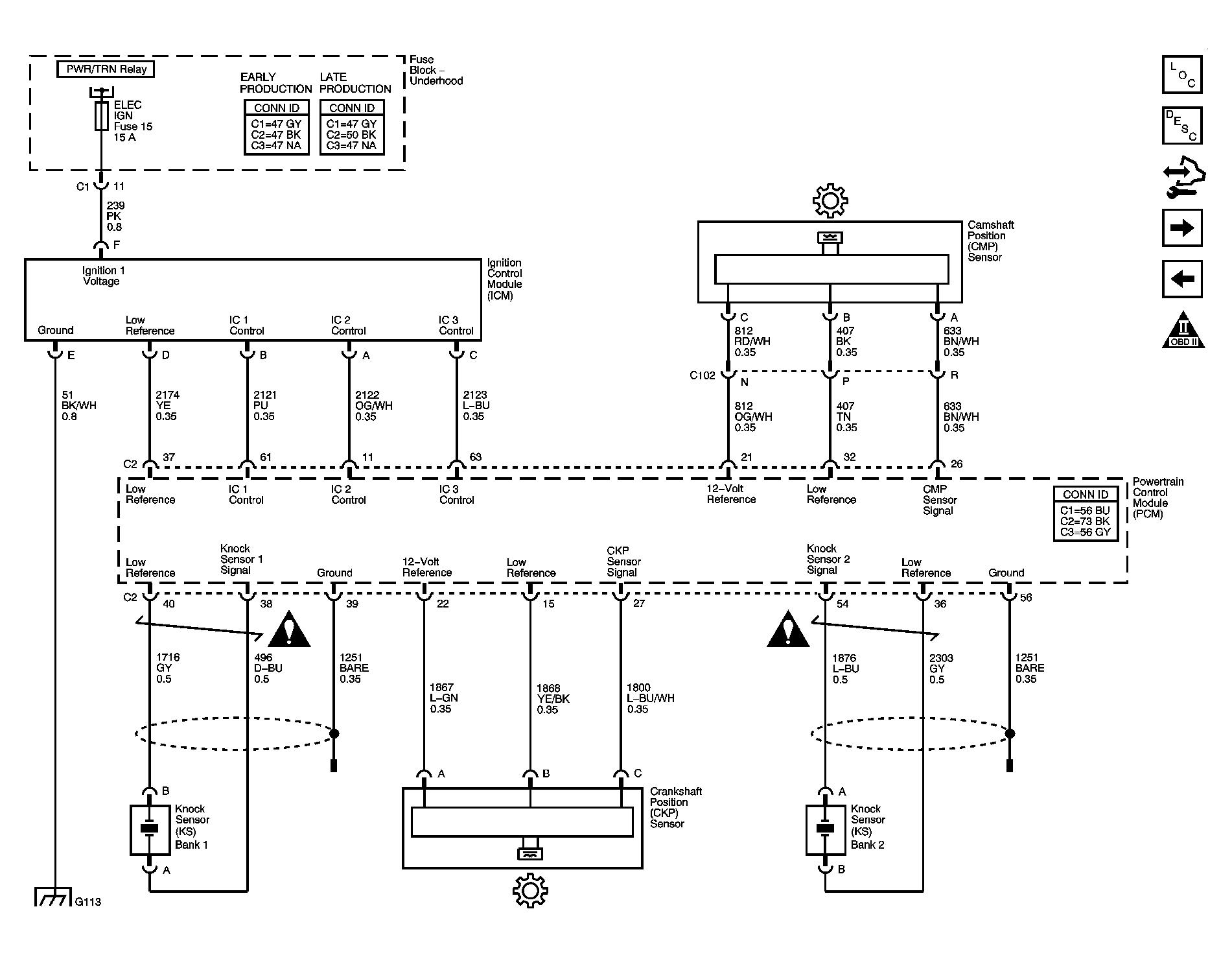

Fig 6: Ignition Controls - Ignition System

Courtesy of GENERAL MOTORS CORP.

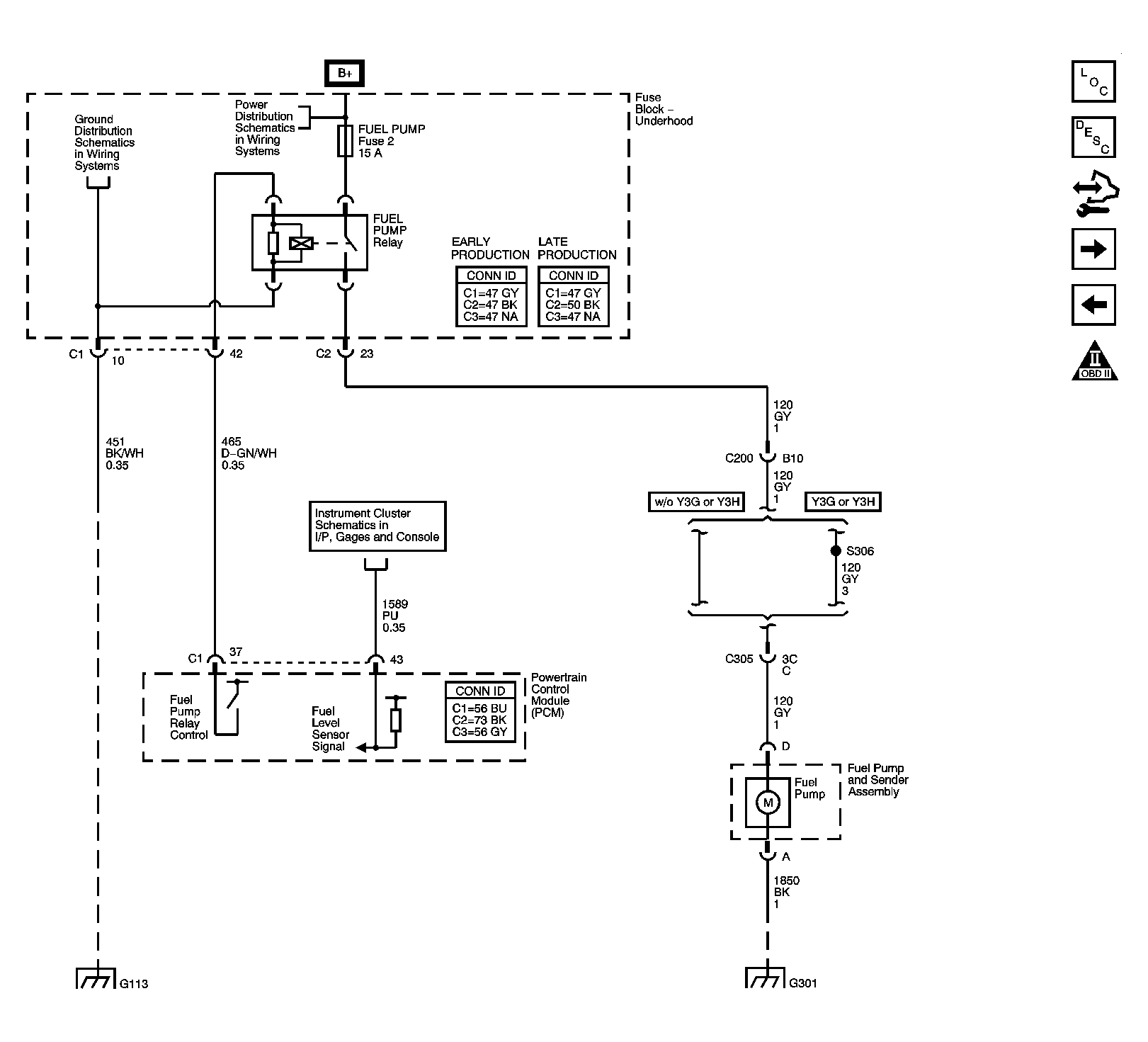

Fig 7: Fuel Controls - Fuel Pump Controls

Courtesy of GENERAL MOTORS CORP.

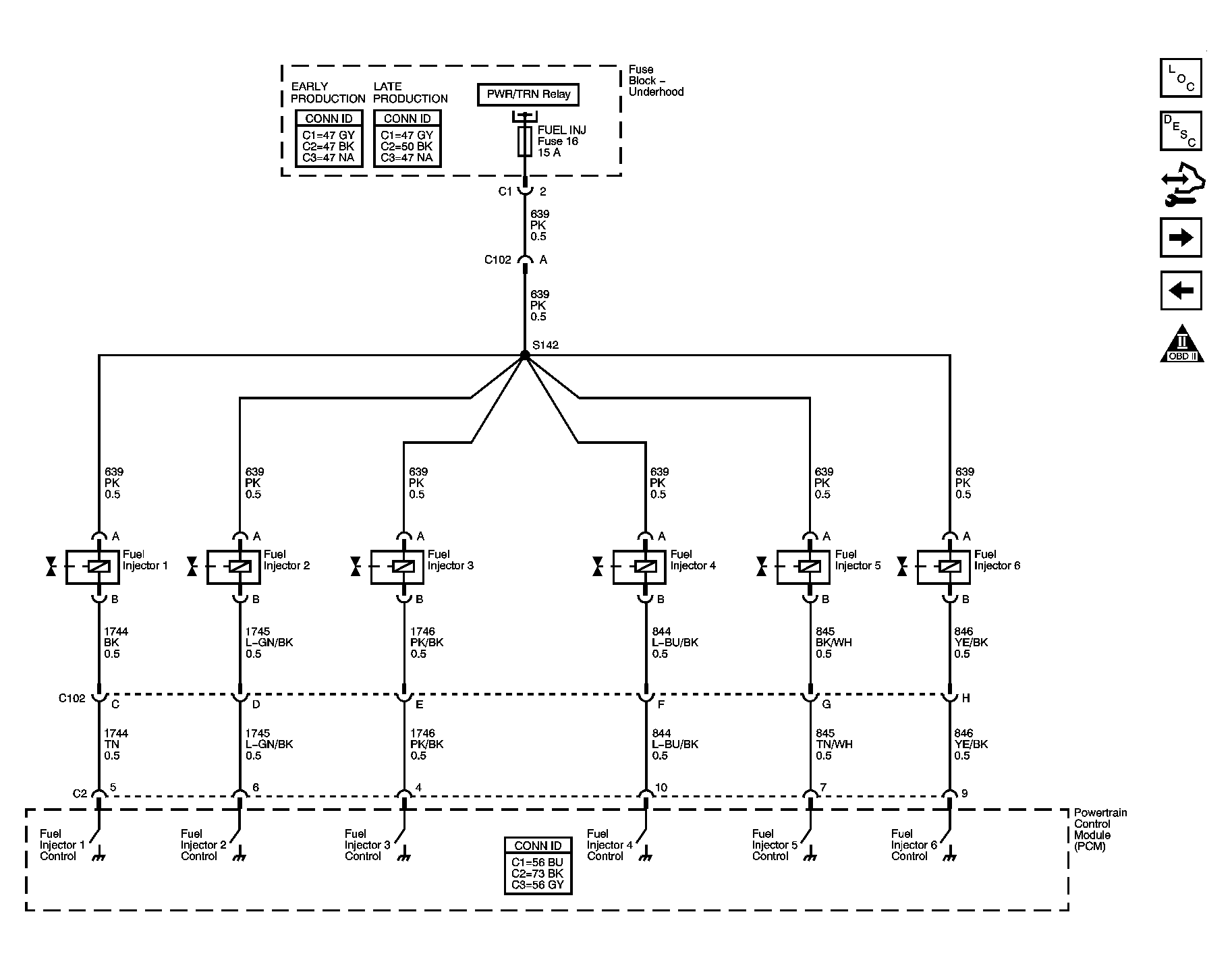

Fig 8: Fuel Controls - Fuel Injectors

Courtesy of GENERAL MOTORS CORP.

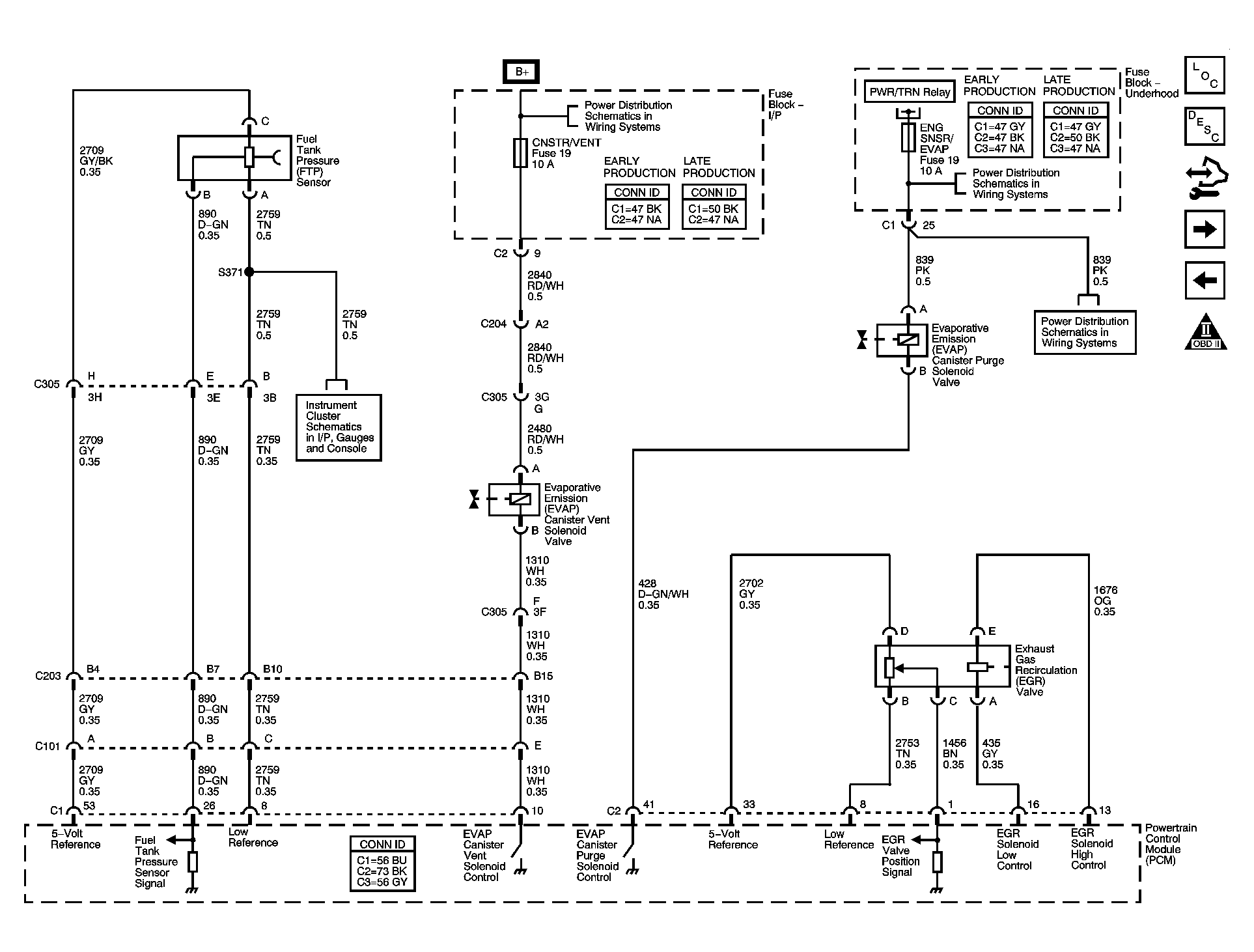

Fig 9: Fuel Controls - EVAP Controls

Courtesy of GENERAL MOTORS CORP.

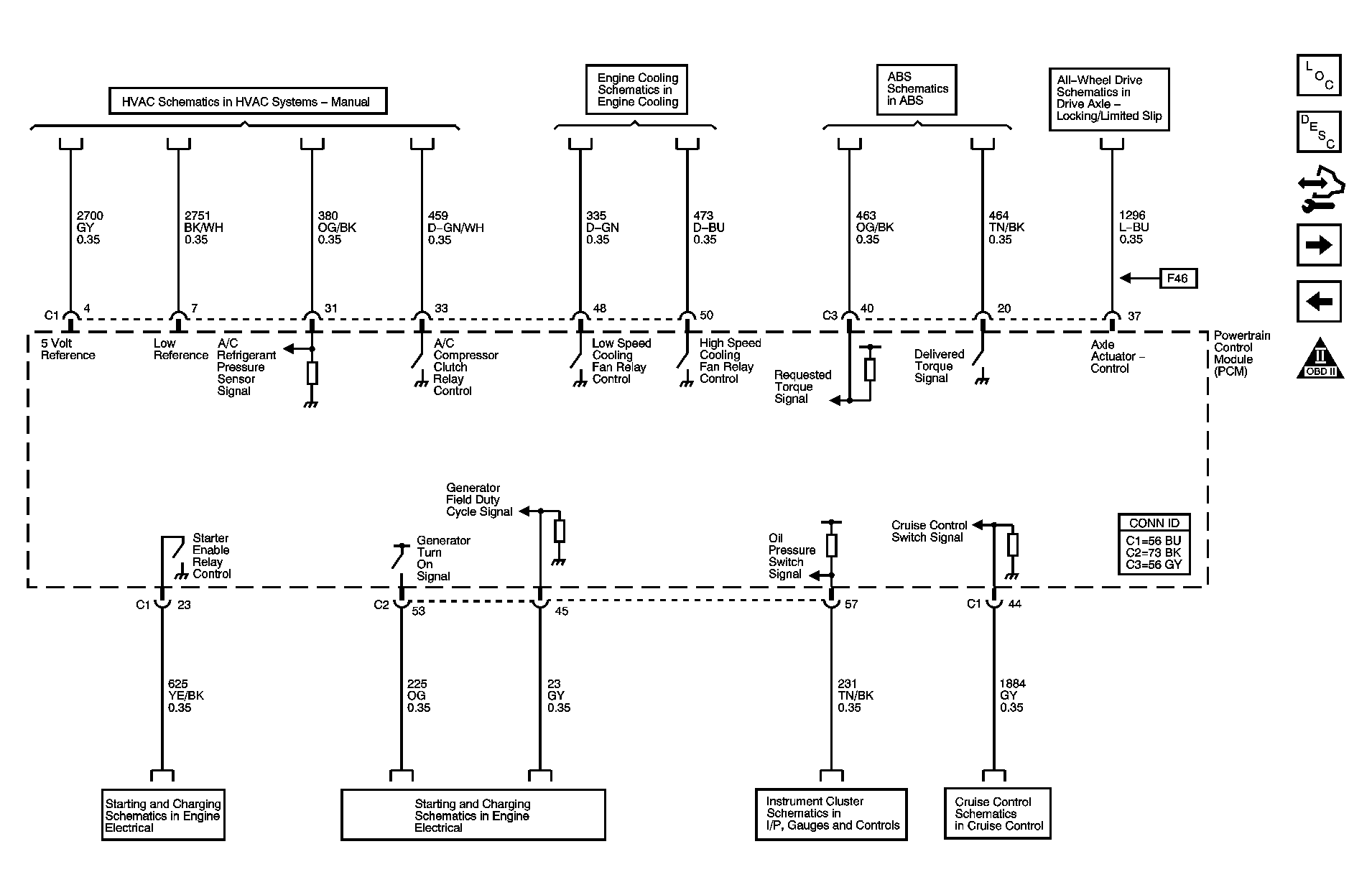

Fig 10: Controlled/Monitored Subsystem References

Courtesy of GENERAL MOTORS CORP.

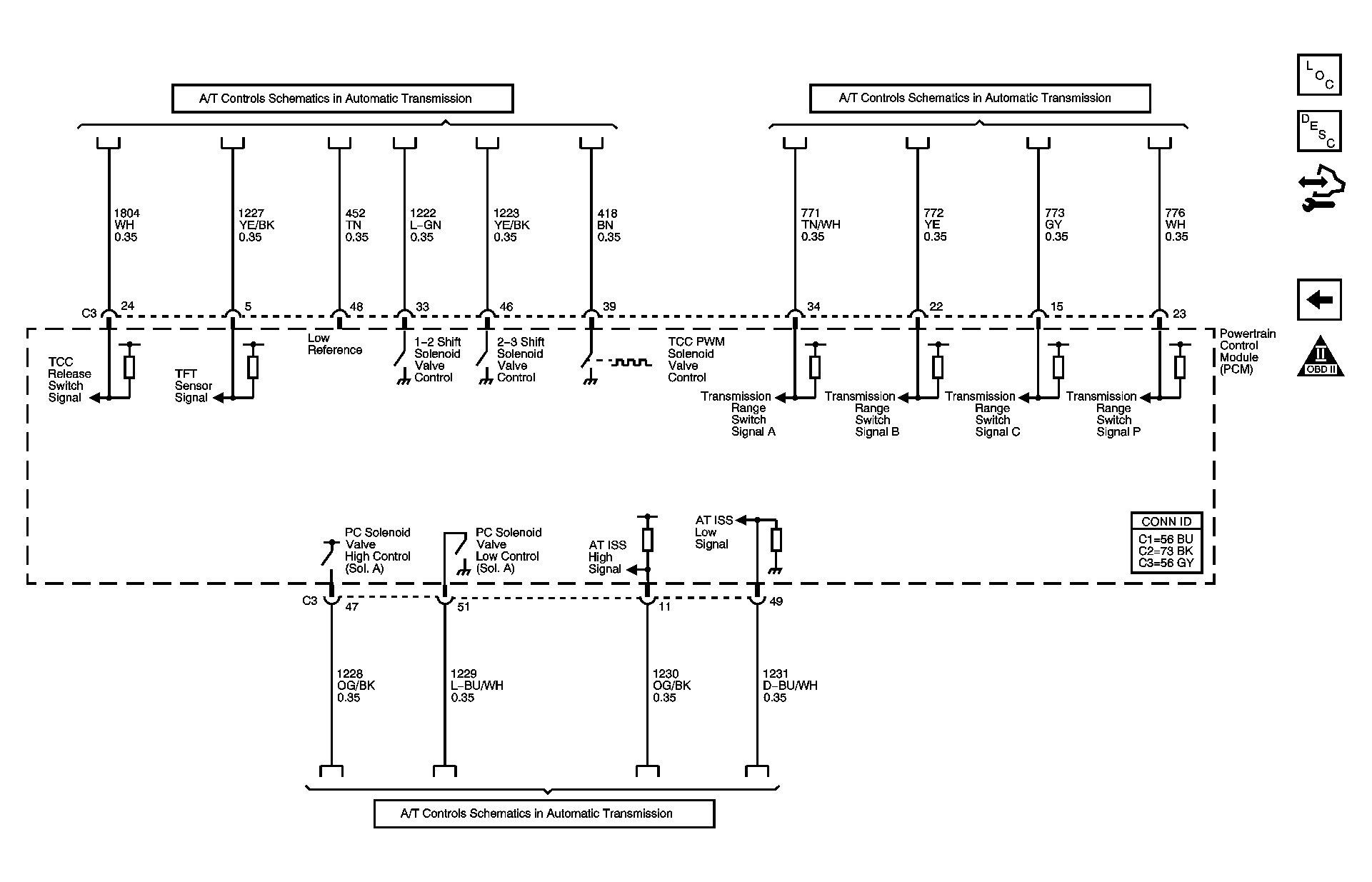

Fig 11: Transmission Controlled References

Courtesy of GENERAL MOTORS CORP.
