Installation Procedure

WARNING: This page is about a different car, the 2007 Pontiac Montana SV6, 2007 Chevrolet Uplander, and 2007 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

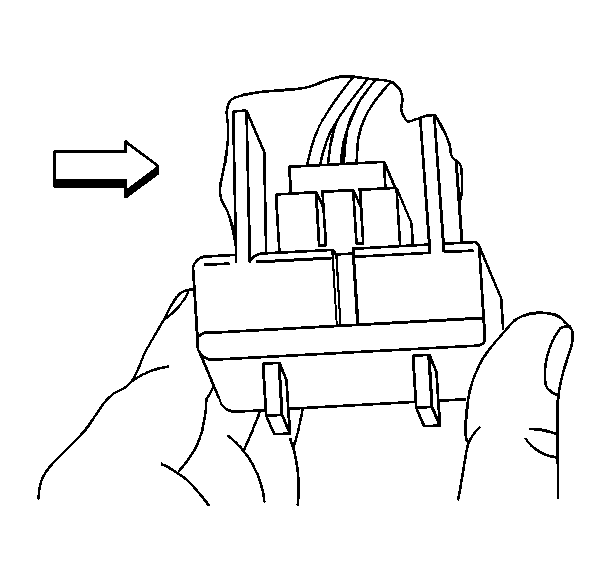

    Fig 1: View Of Information Center Telltale Assembly
    GM491157Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector to the information center telltale assembly.
  2. Position the information center telltale assembly into the headliner until locking tab locks into position. It may be necessary to rock the display into position.
  3. Install bezel by pressing into place until the locking tabs are fully seated.
