Seat Belt Retractor Replacement - Left Front

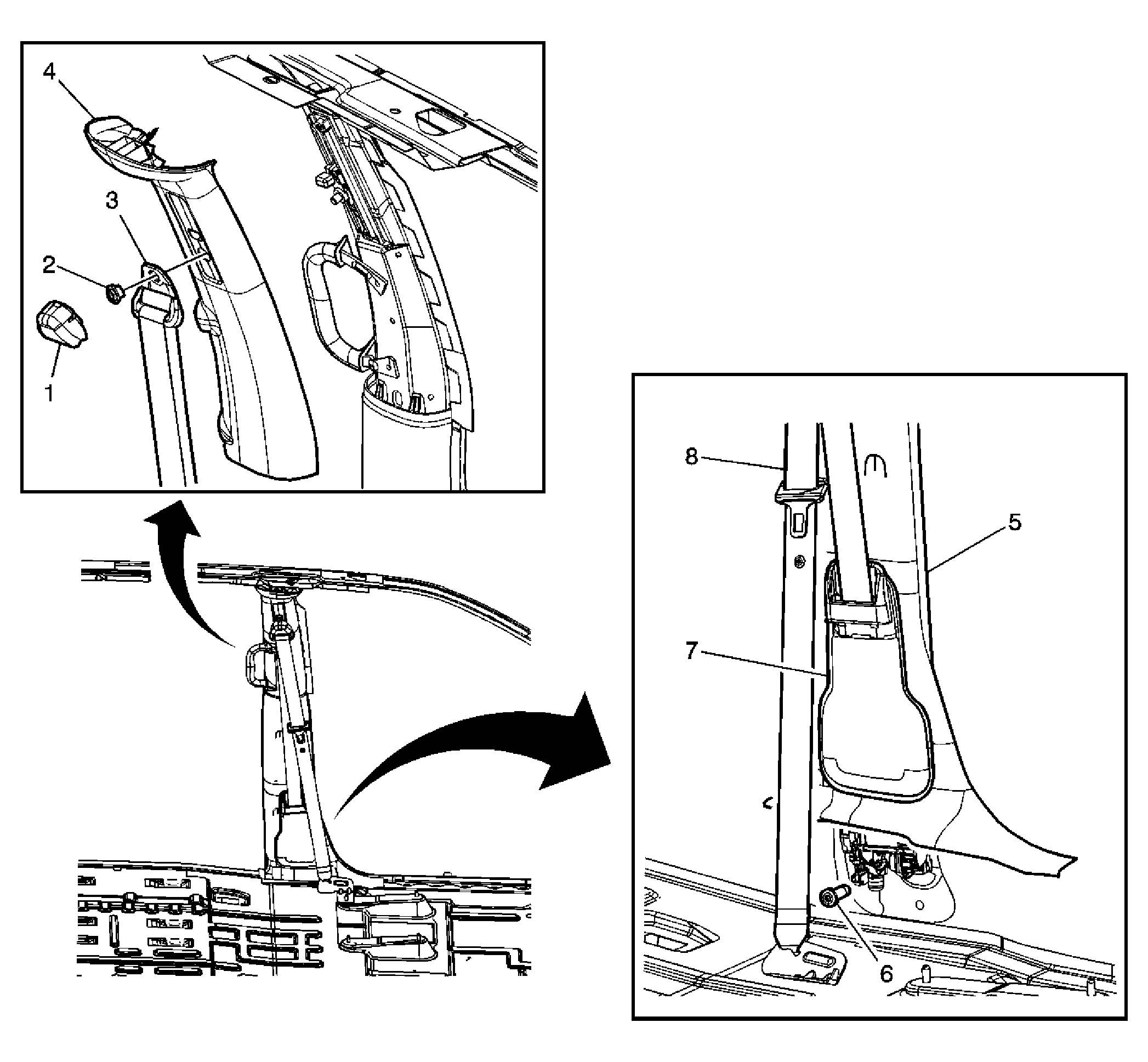

Fig 1: View Of Left Front Seat Belt Retractor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
Preliminary Procedures: Remove the front bucket seat. Refer to Seat Replacement - Front Bucket .
1	Cover, Shoulder Belt Guide Trim
2	Nut, Shoulder Belt Guide Tighten: 29 N.m (31 lb ft)
3	Guide, Shoulder Belt
4	Panel, Center Pillar Upper Trim Refer to Trim Panel Replacement - Upper Center Pillar .
5	Panel, Center Pillar Lower Trim Refer to Trim Panel Replacement - Lower Center Pillar . Tip: Lift the trim panel up enough to access the seat belt retractor bolt.
6	Bolt, Driver Seat Belt Retractor Tighten: 43 N.m (3 lb ft)
7	Bezel, Shoulder Belt Retractor
8	Belt Assembly, Driver Seat Tip Remove the seat belt anchor from the seat stud. Remove the seat belt and lower trim panel as an assembly. Slide the bezel up and remove the belt from the lower trim panel.
