Automatic Level Control Suspension Schematics

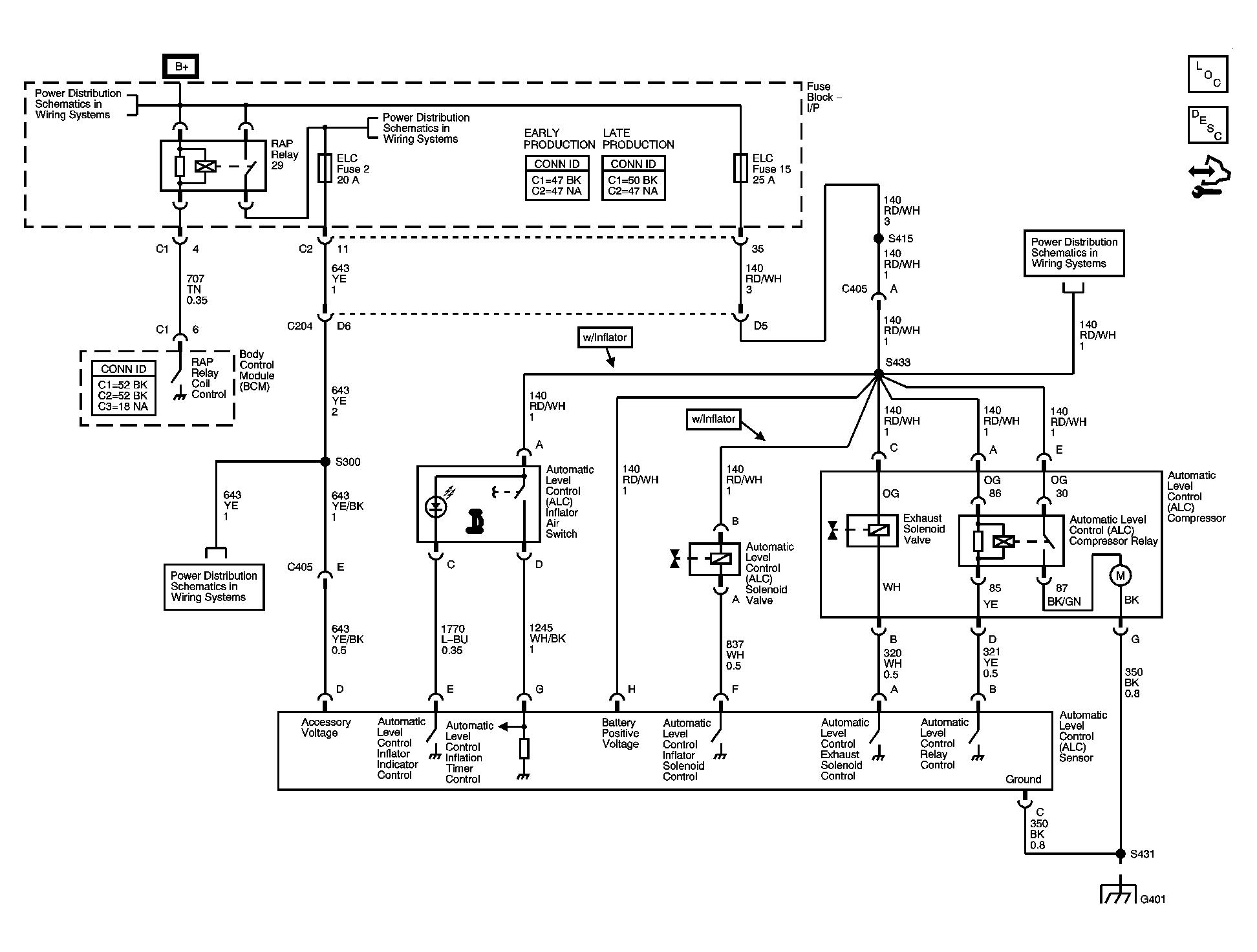

Fig 1: Automatic Level Control Suspension Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
