Memory Seat Control Module Replacement

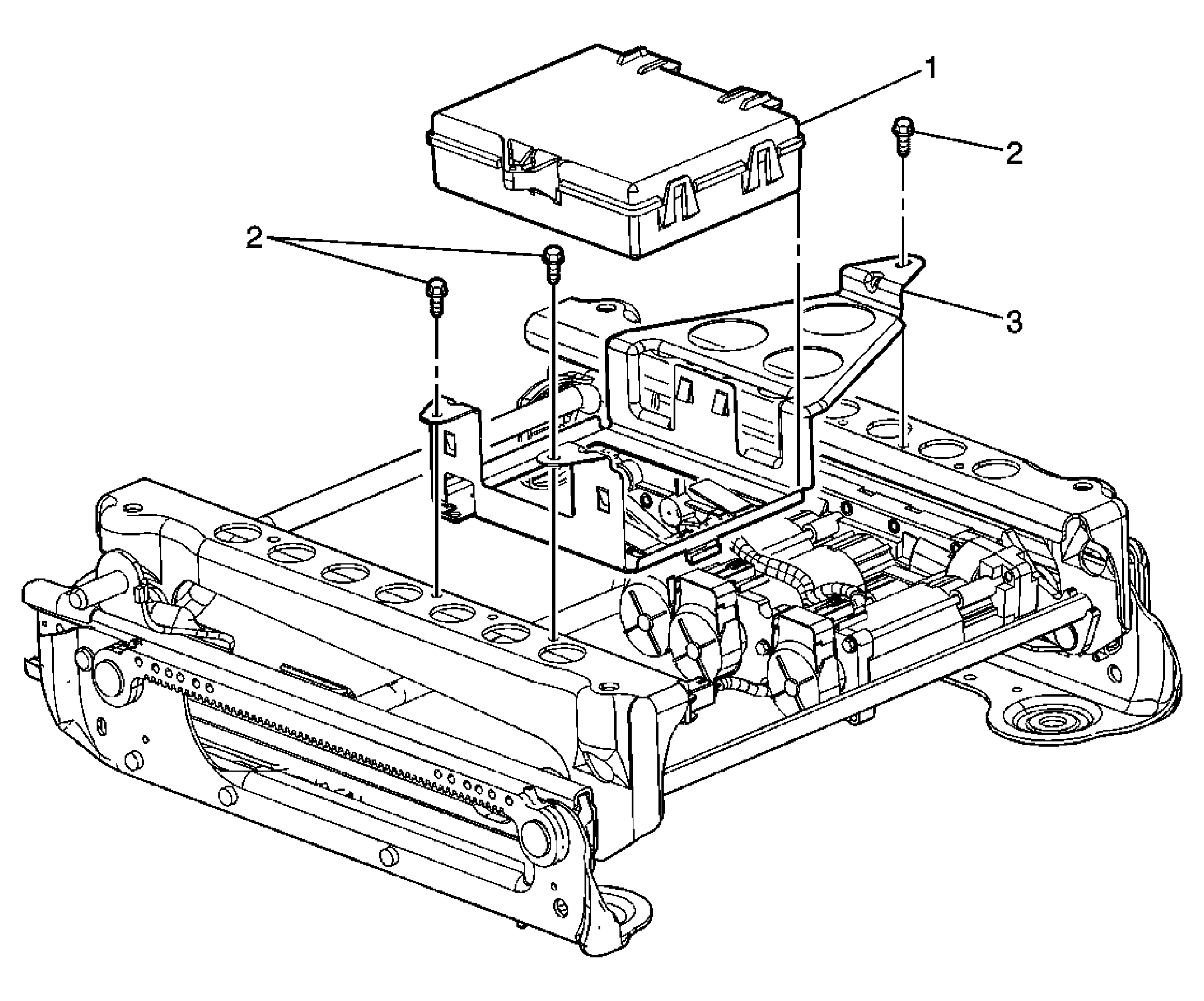

Fig 1: Identifying Memory Seat Control Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the front bucket seat. Refer to Seat Replacement - Front Bucket . Remove the seat cushion cover and pad. Refer to Seat Cushion Cover and Pad Replacement - Front .
1	Module, Memory Seat
2	Screw, Memory Seat Module Bracket (Qty: 3) Tighten: 2 N.m (18 lb in)
3	Bracket, Memory Seat Module
