Installation Procedure

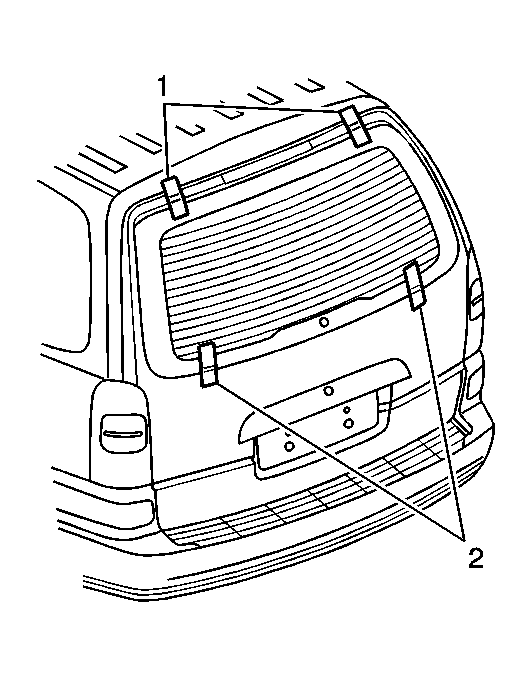

Fig 1: Securing Liftgate Window With Tape

Courtesy of GENERAL MOTORS CORP.

Install the stationary window into the opening. Refer to Urethane Adhesive Installation of Stationary Windows .
Use masking tape (1, 2) to hold the liftgate window into position until the urethane adhesive cures.

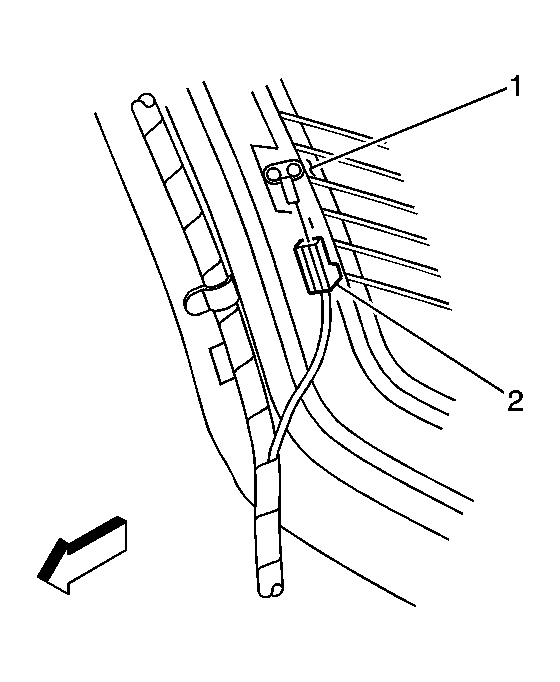

Fig 2: Disconnecting/Reconnecting Rear Window Defogger Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Reconnect the rear window defogger electrical connector (2).
Install the wiper motor. Refer to Wiper Motor Replacement - Rear in Wipers/Washer Systems.
Install the liftgate trim panel. Refer to Trim Panel Replacement - Liftgate in Interior Trim.
Close the liftgate.
Remove the double layer of masking tape around the perimeter of the painted surfaces and the interior trim.
