Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| Blower Motor Resistor Assembly | Below right side of dash, in front HVAC module. |

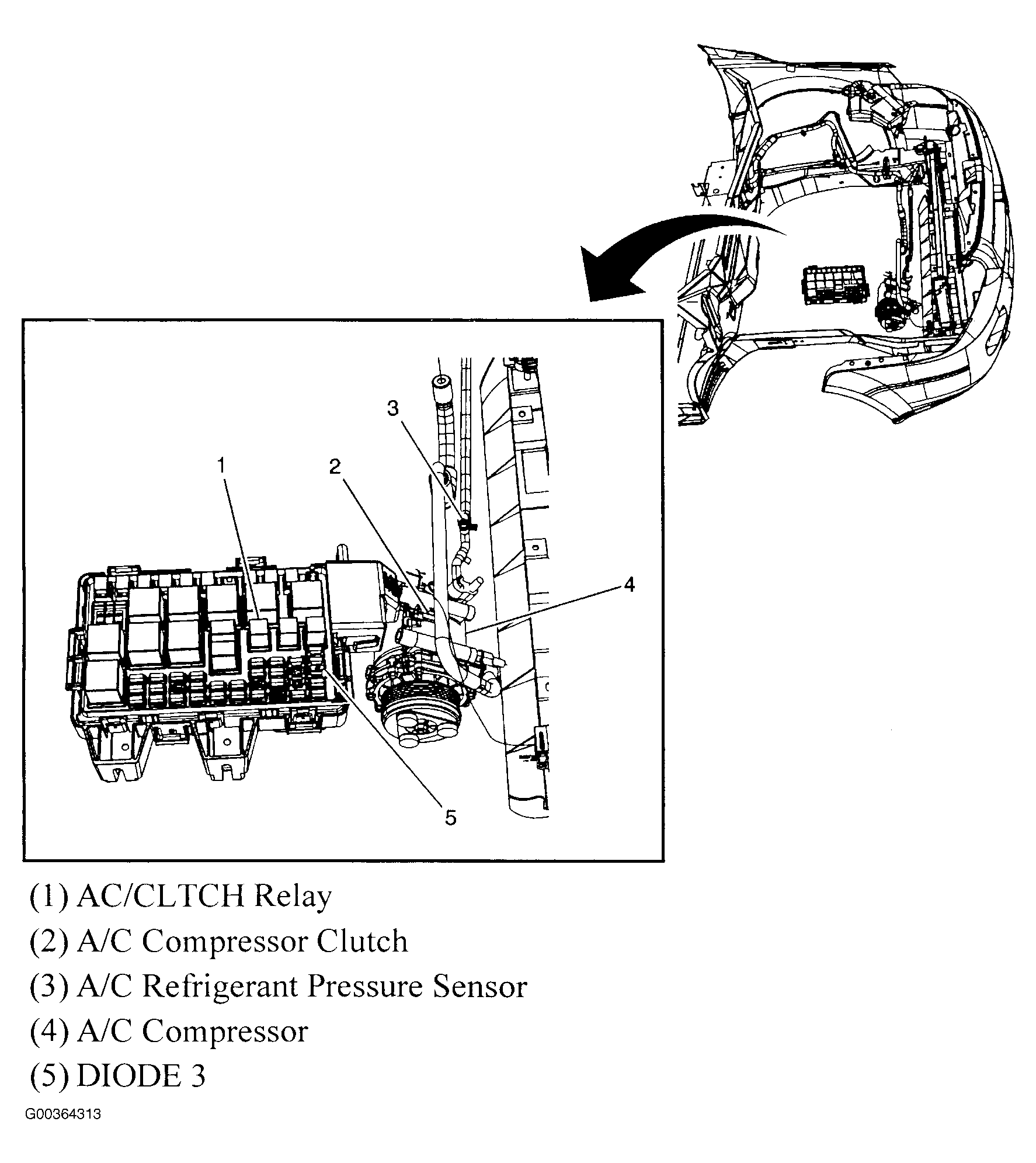

| Diode 3 | In engine compartment fuse box. See Figure . |

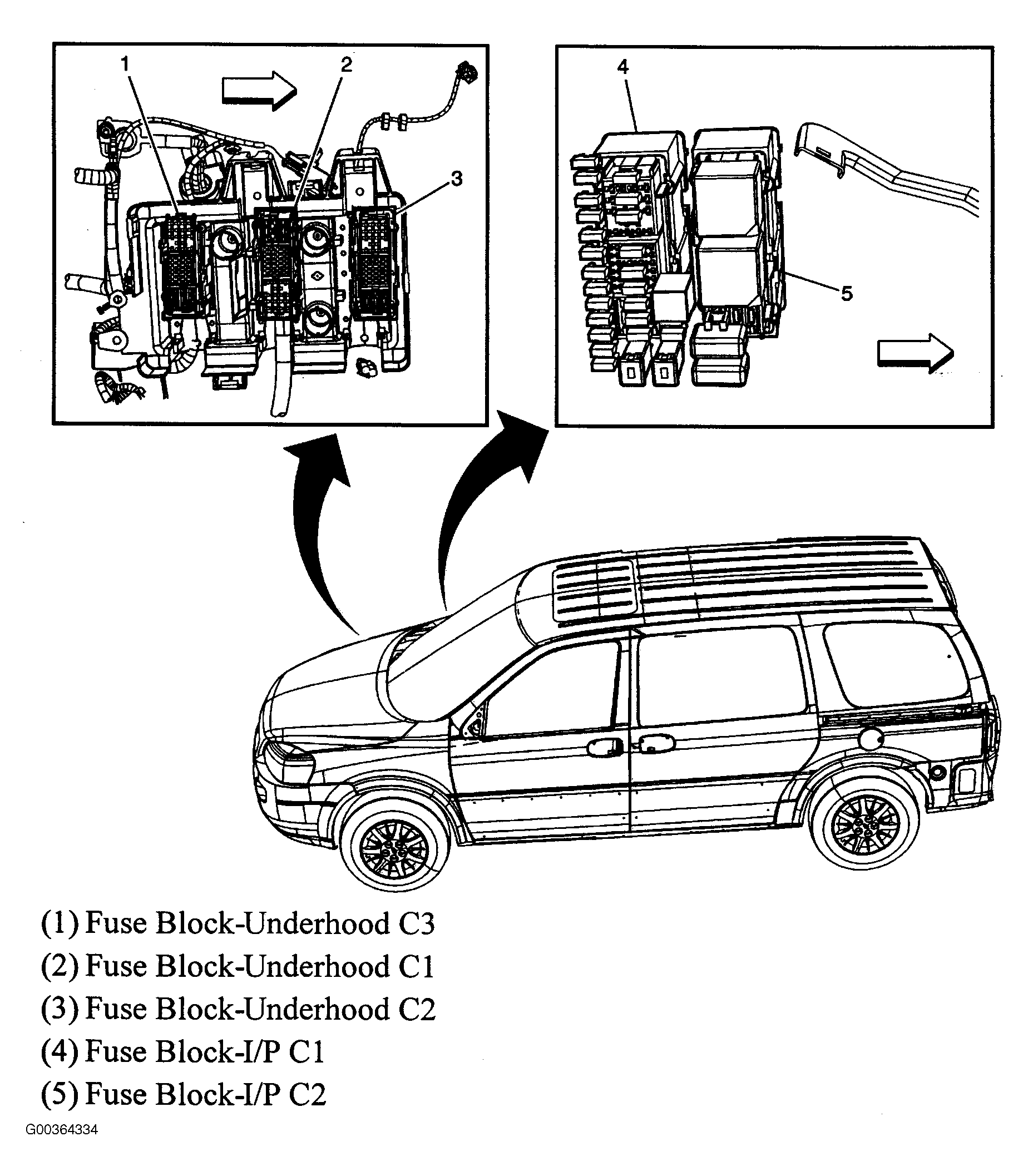

| Fuse Block - I/P | Right side of dash, behind access panel. See Figure . |

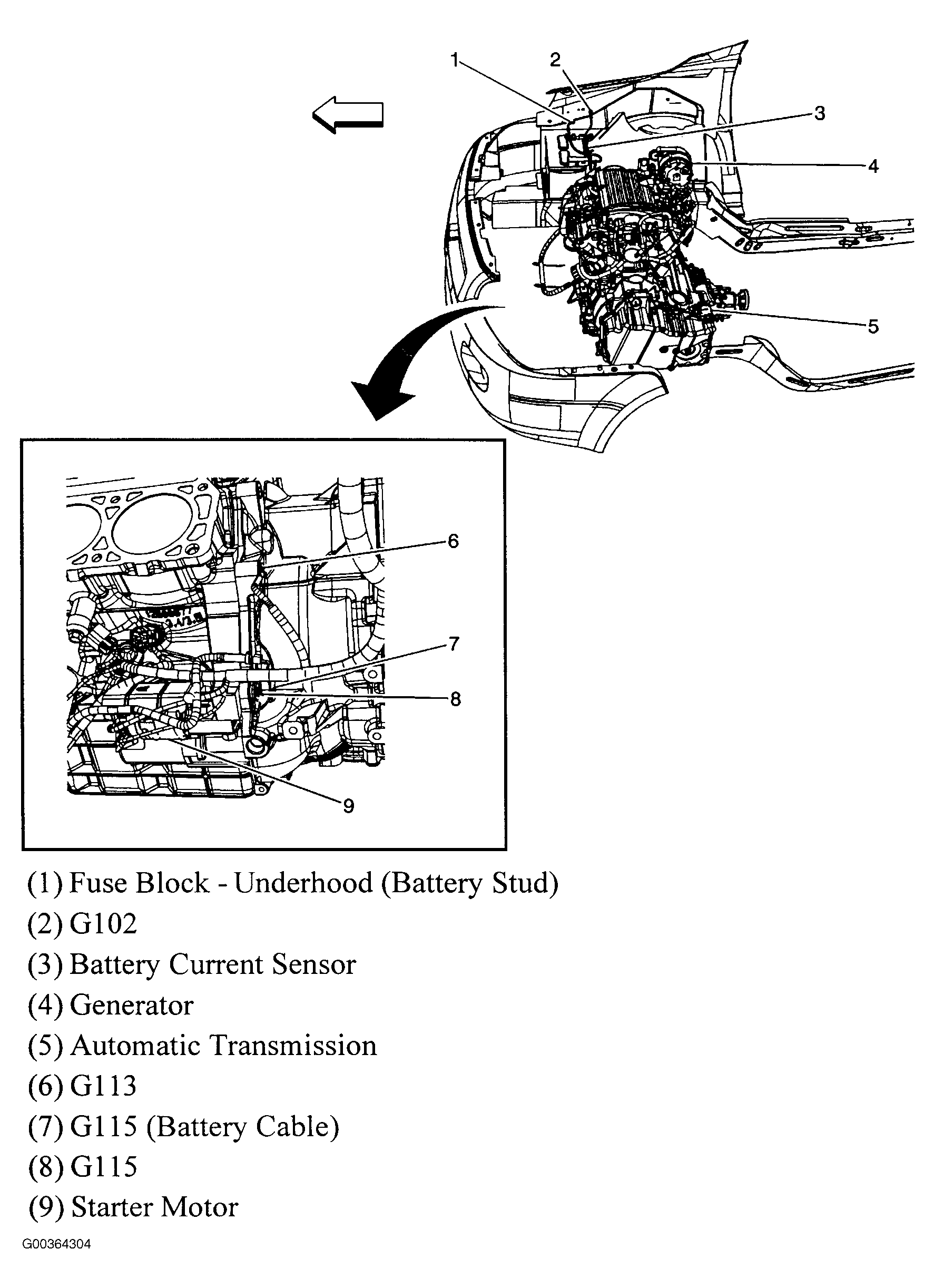

| Fuse Block - Underhood | In underhood compartment, above right front wheel well. See Figure . |
| Theft Light Emitted Diode (LED) | Center of dash, near windshield defrost vent, left of ambient light sensor. |
