Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

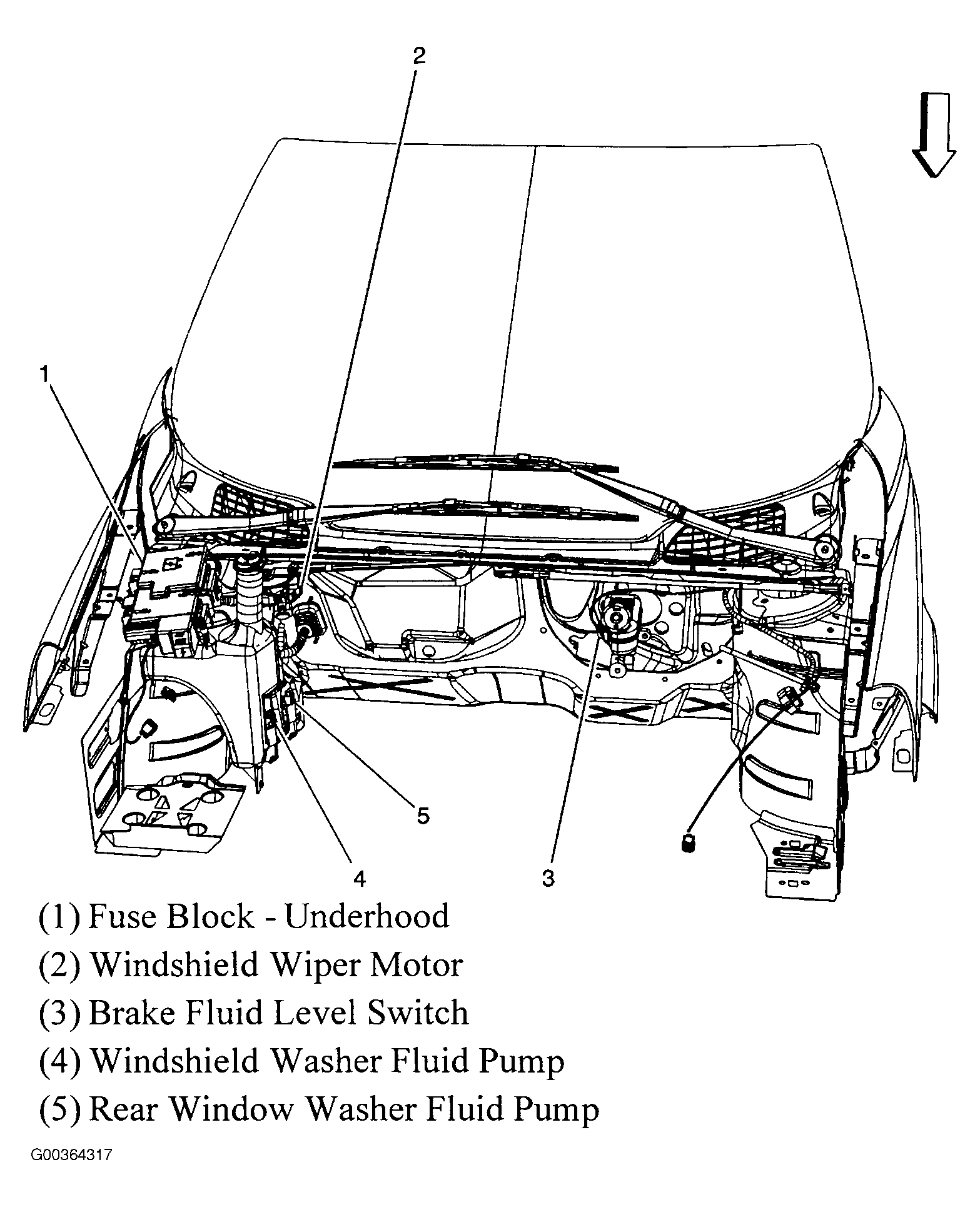

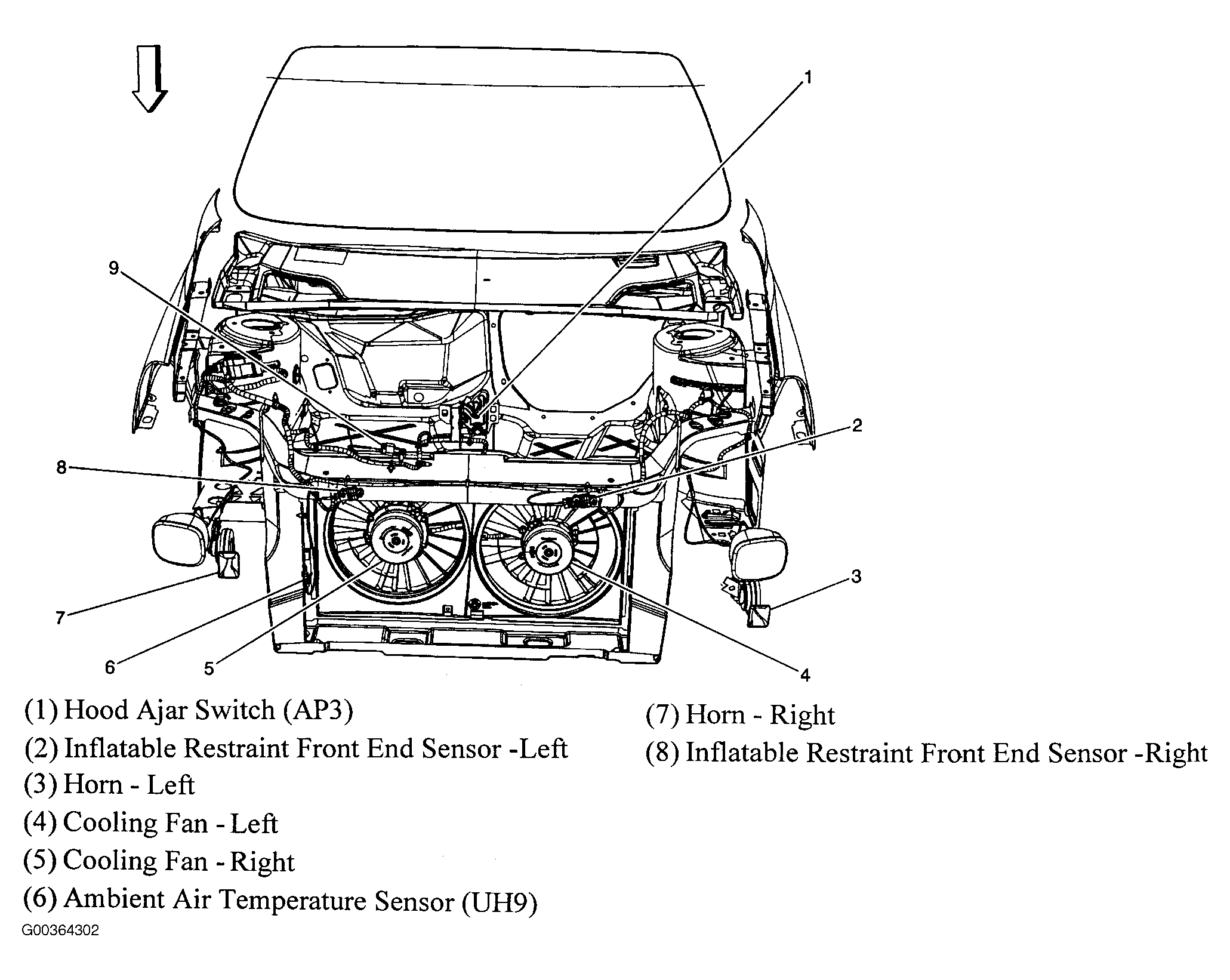

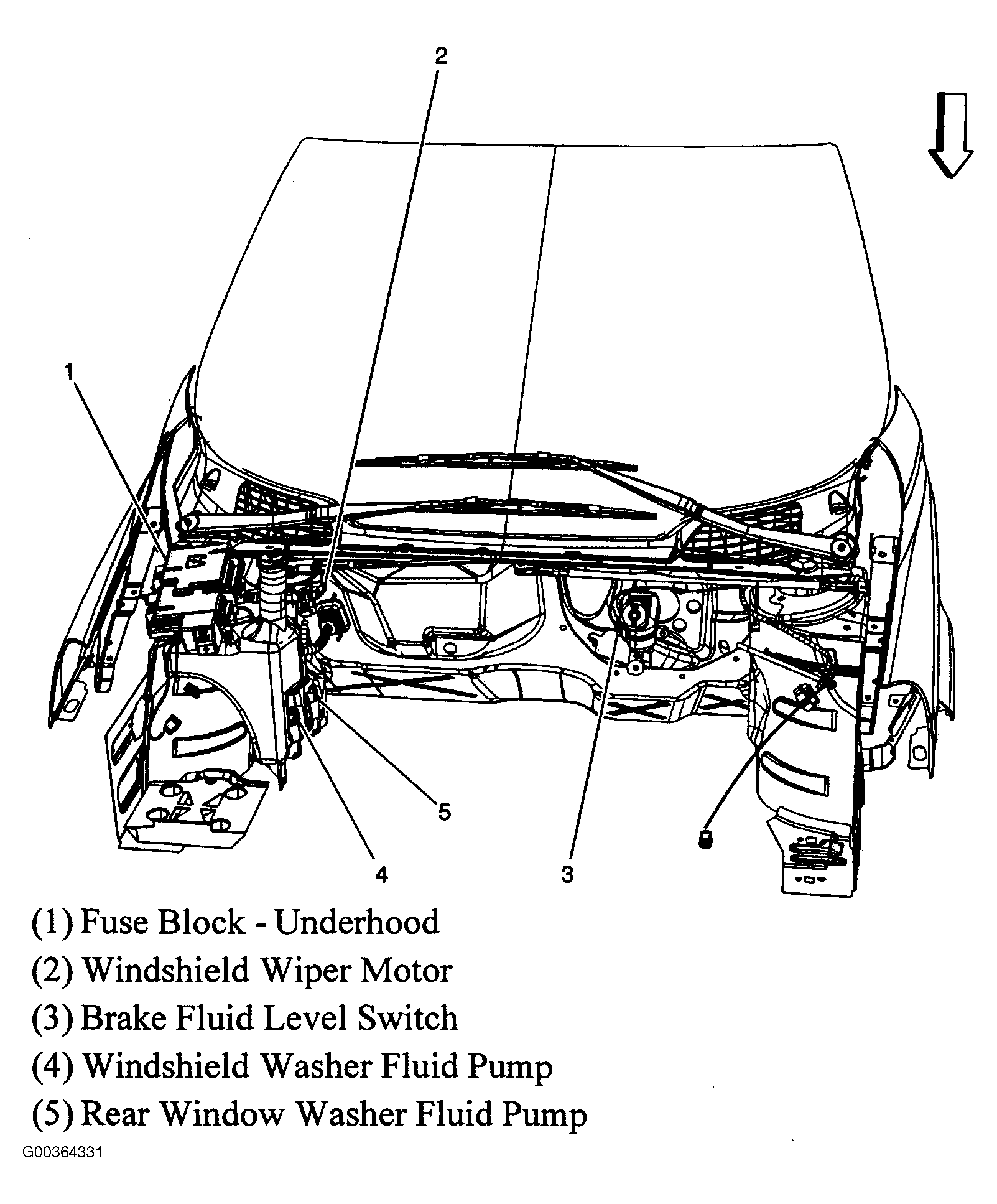

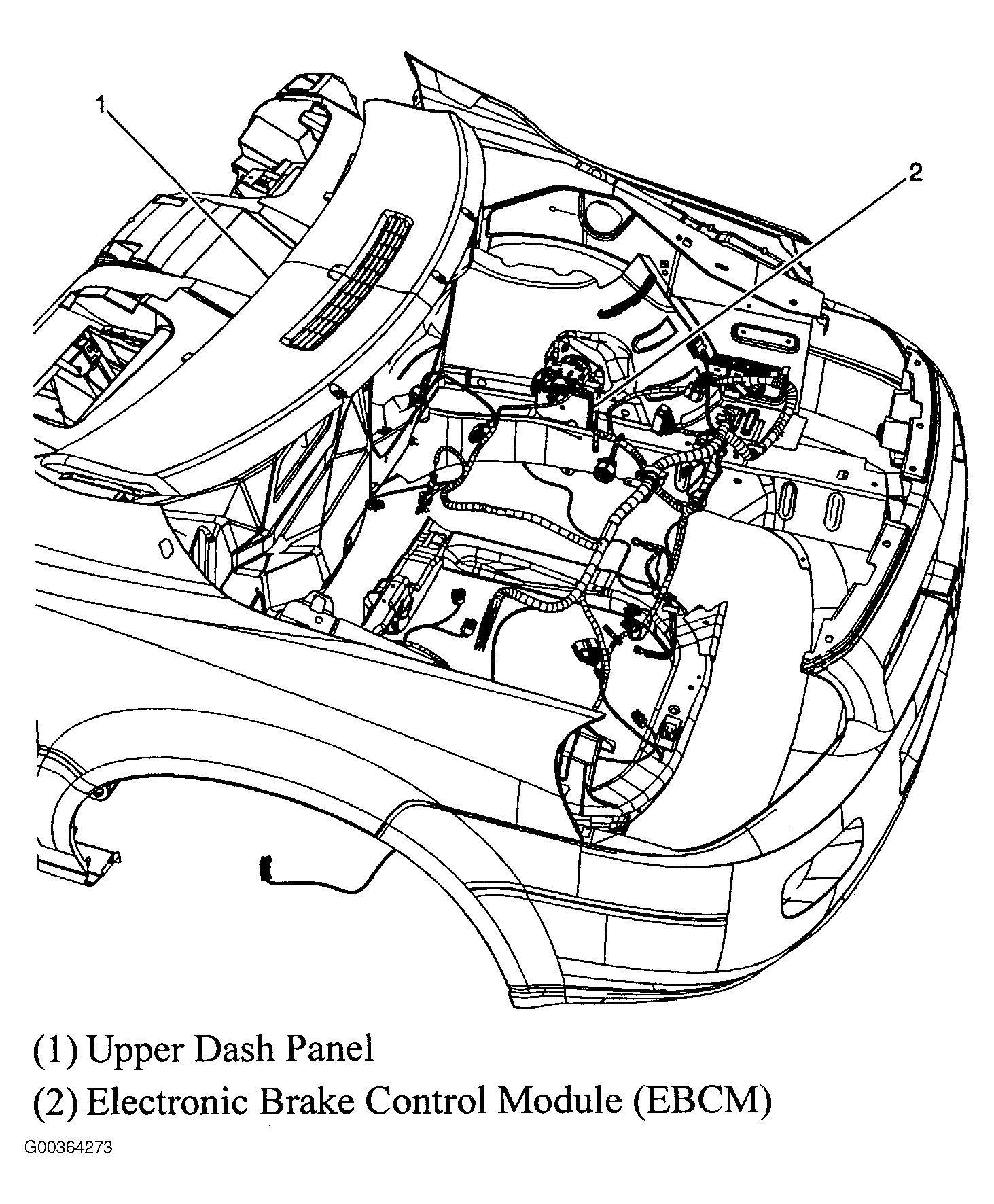

Fig 1: Engine Compartment
Courtesy of GENERAL MOTORS CORP.

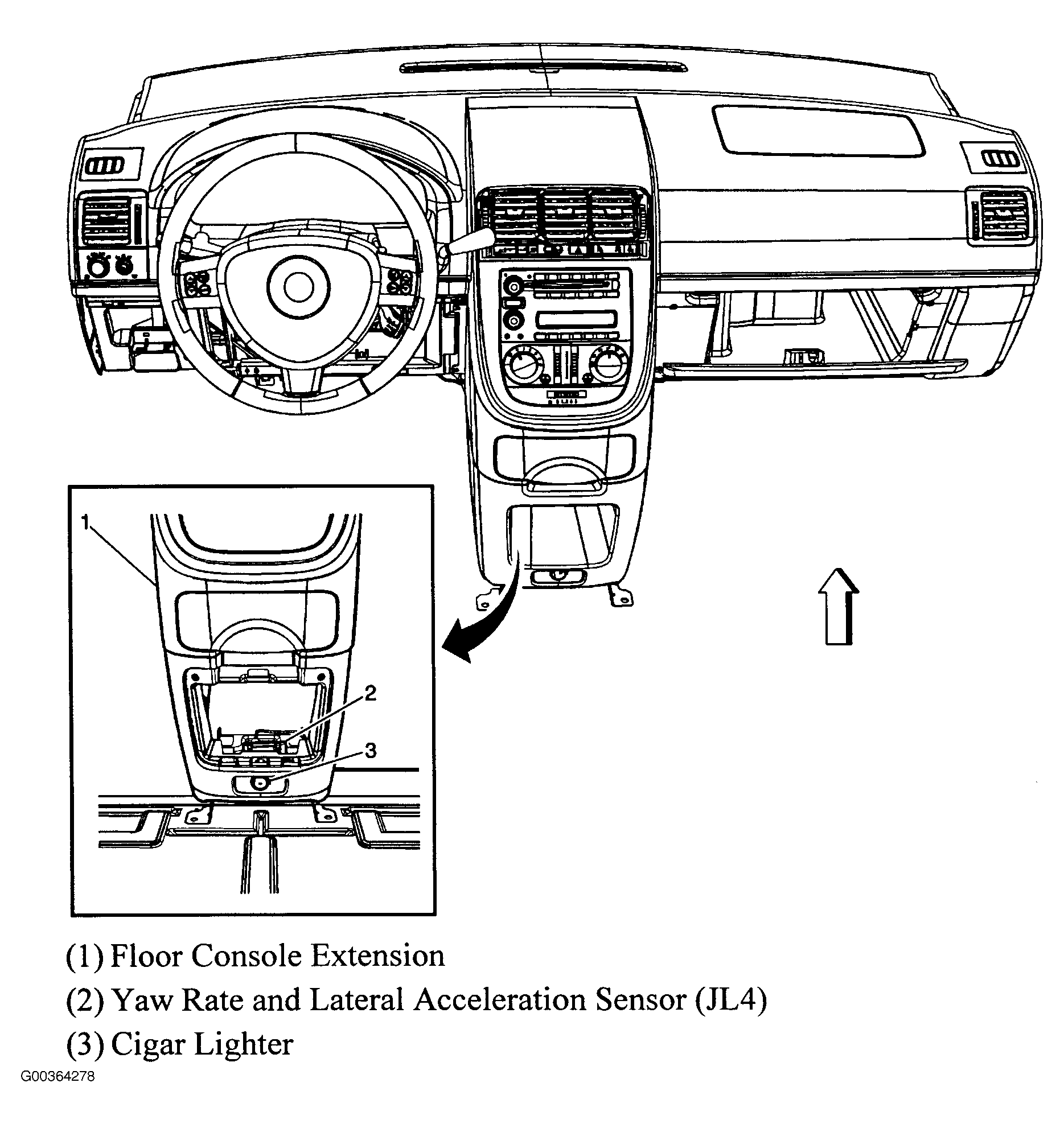

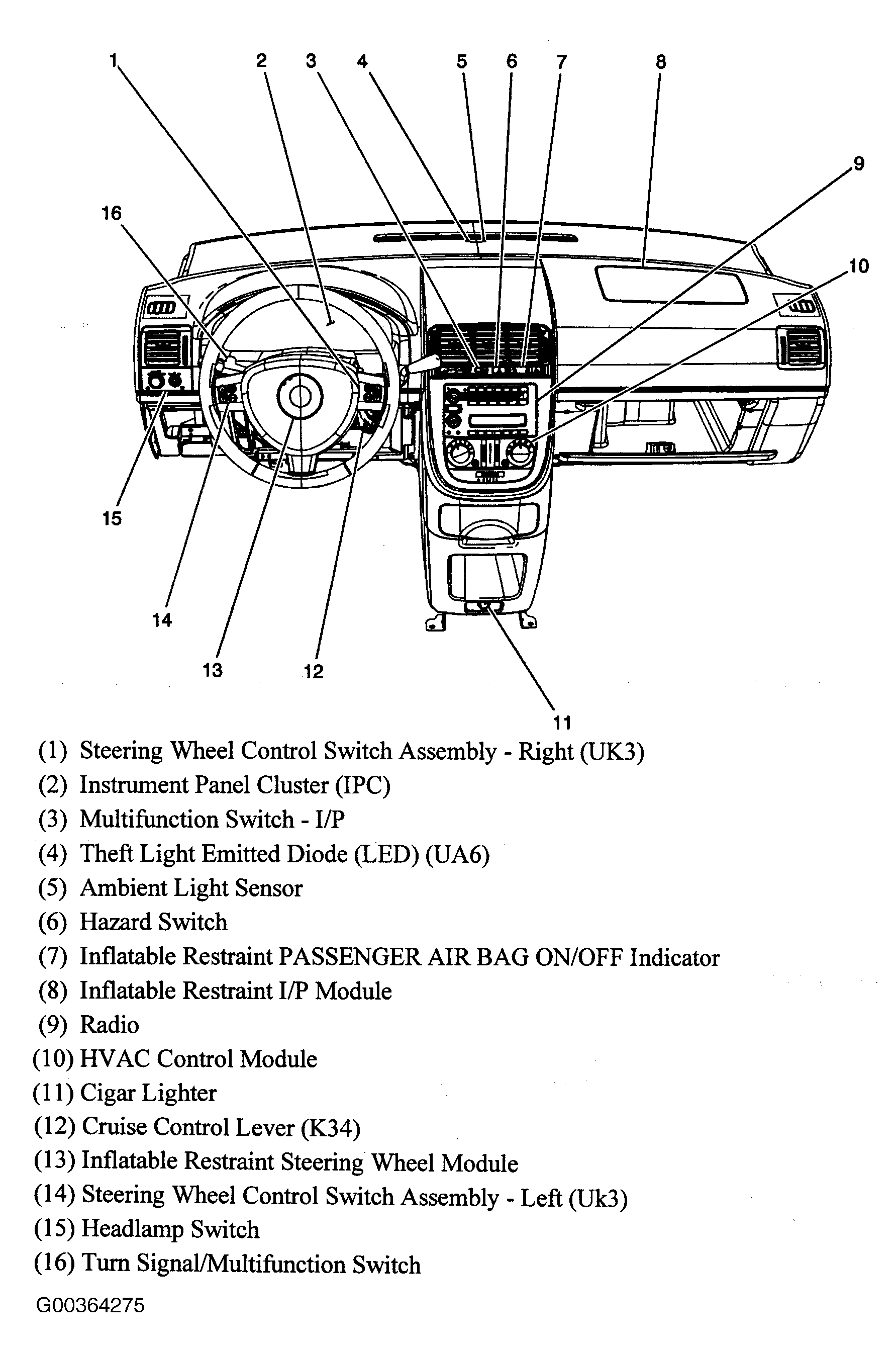

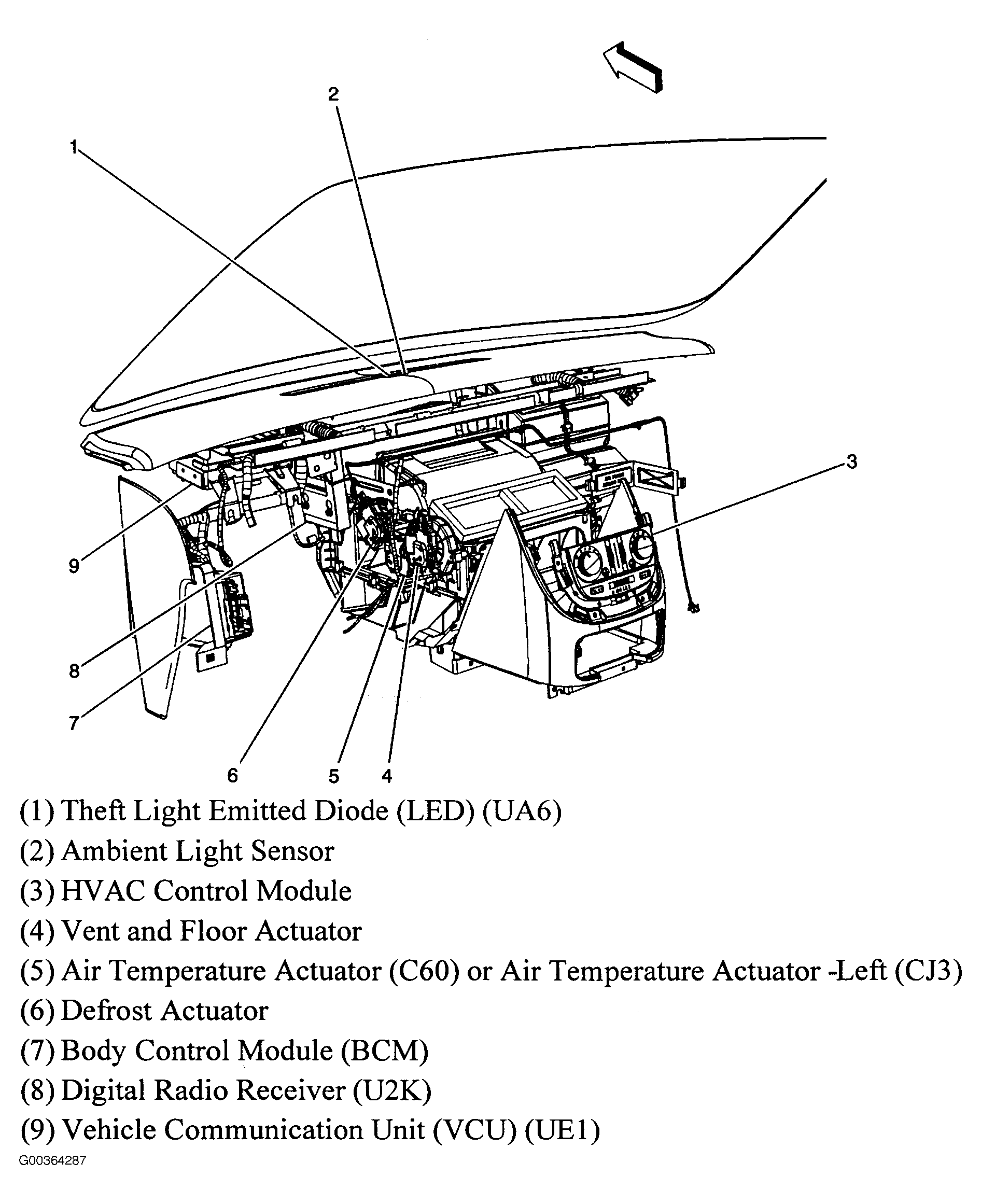

Fig 2: Dash Assembly
Courtesy of GENERAL MOTORS CORP.

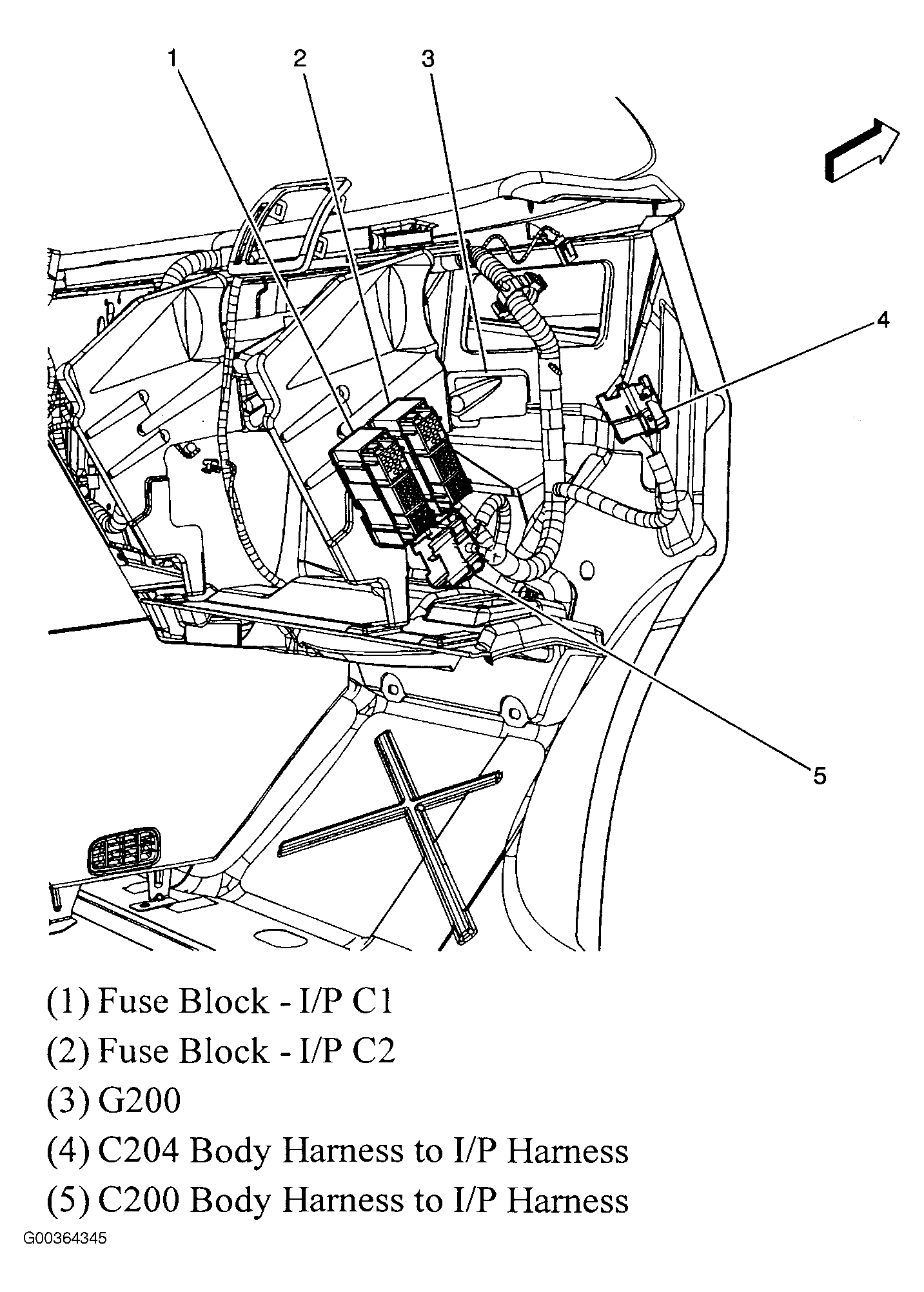

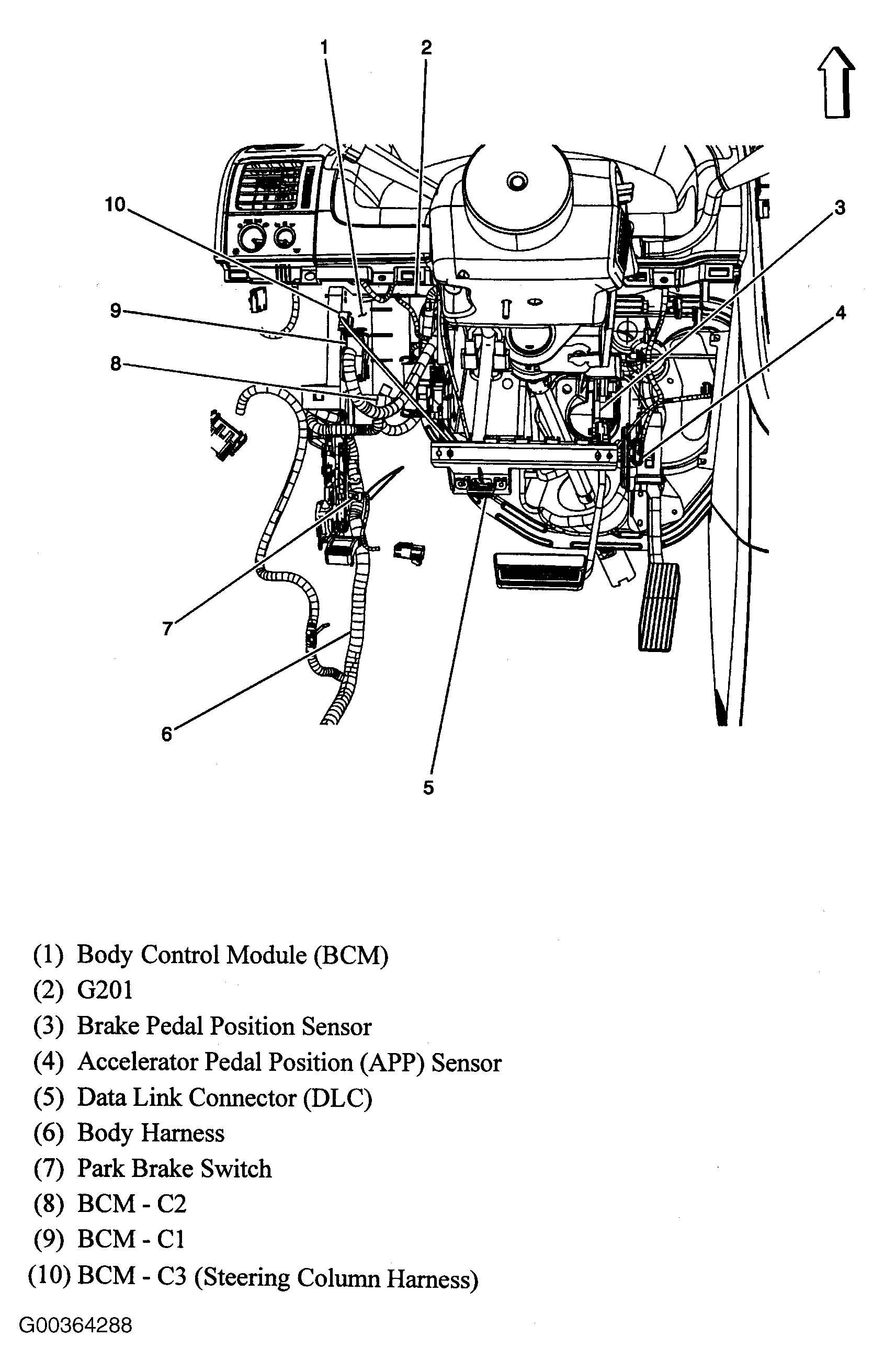

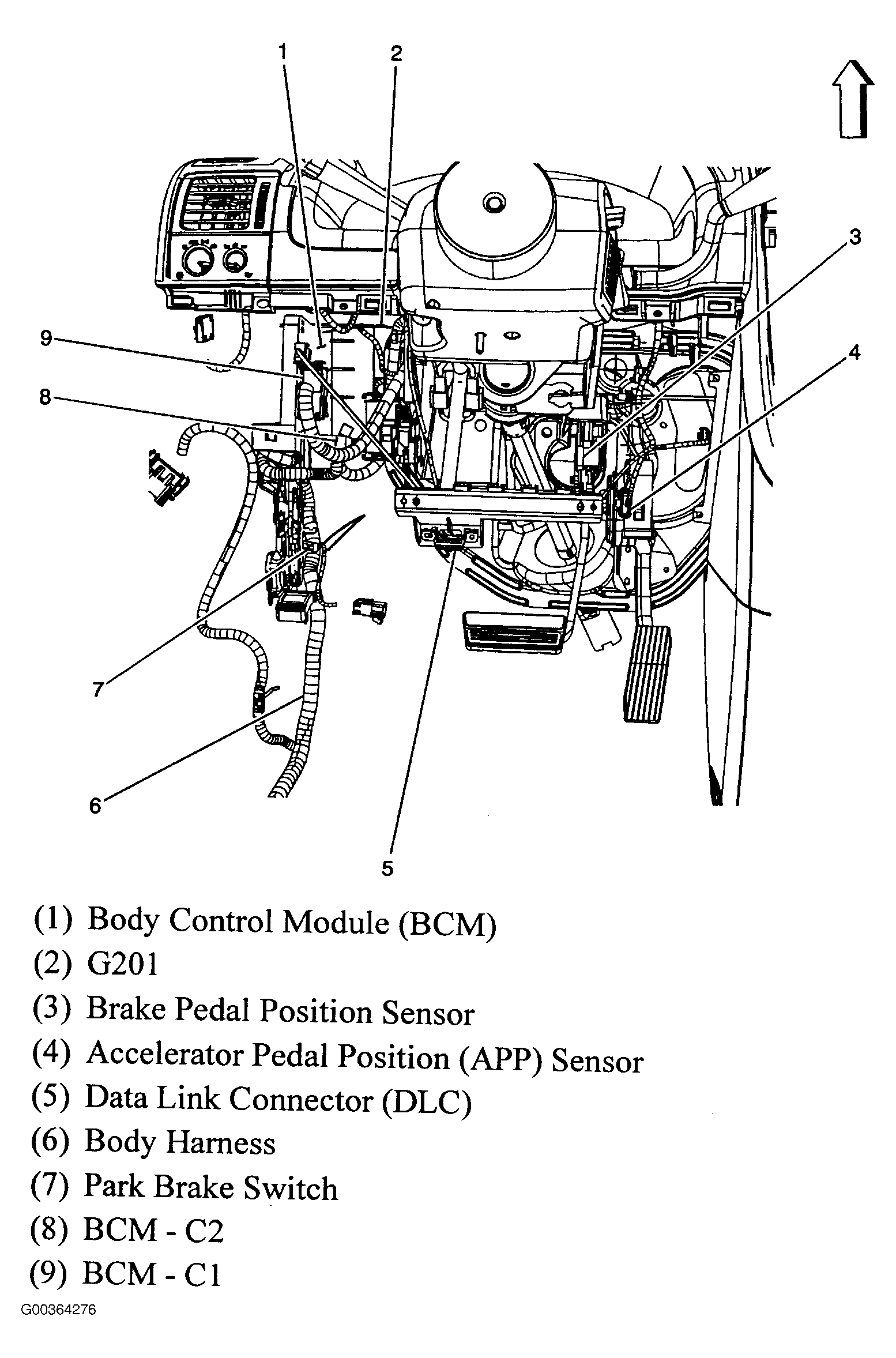

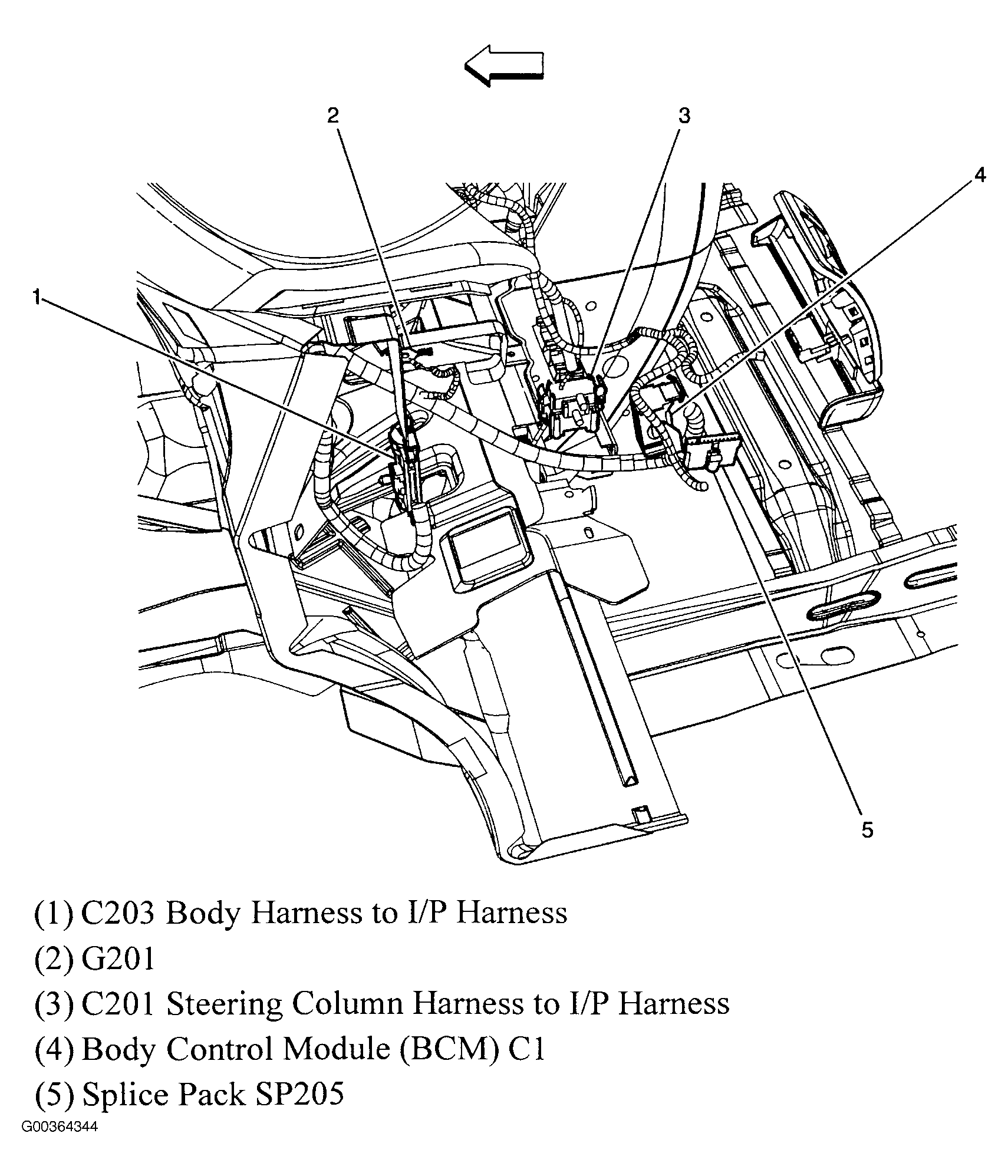

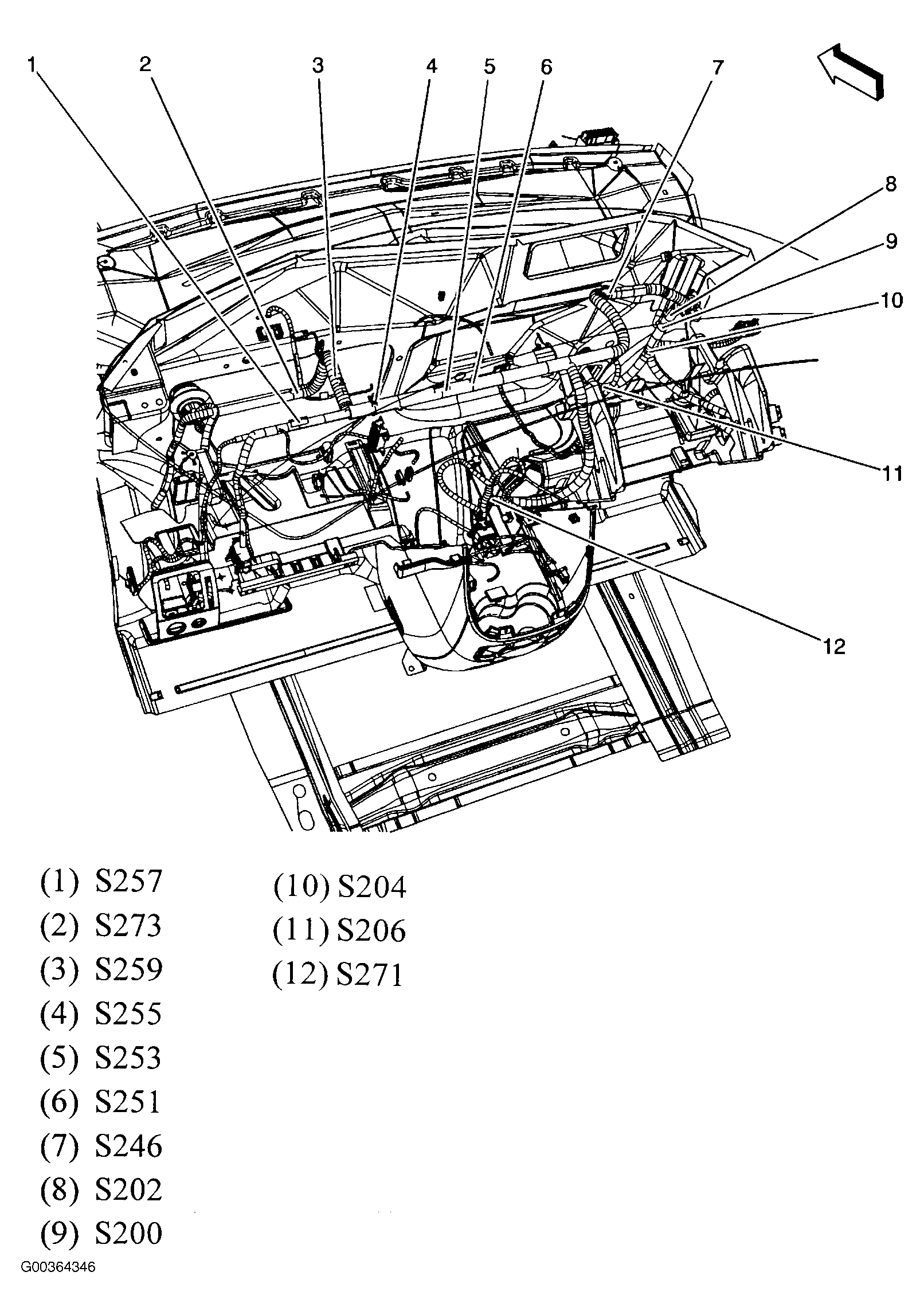

Fig 3: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

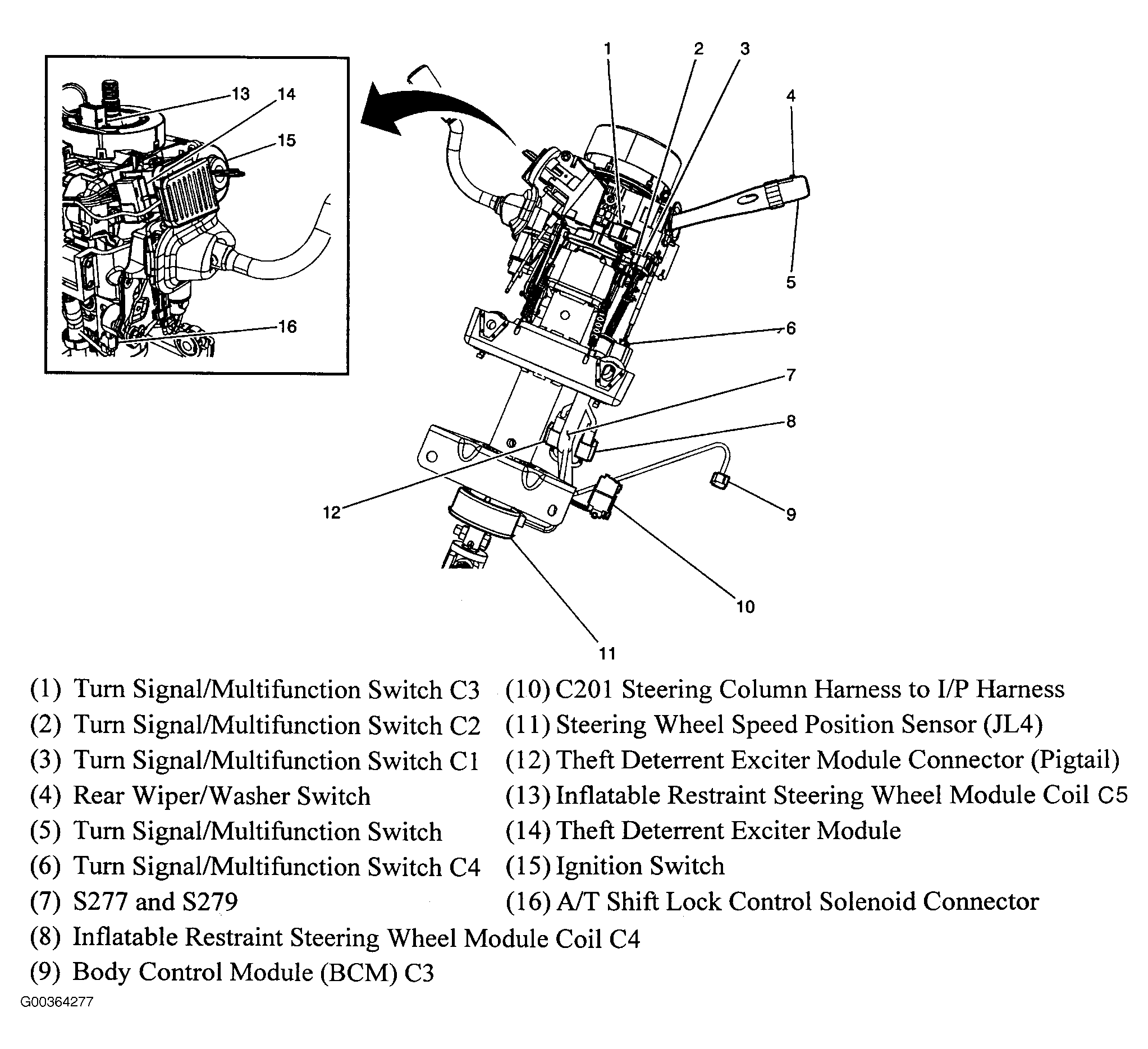

Fig 4: Steering Column Components
Courtesy of GENERAL MOTORS CORP.
Fig 5: Dash Assembly
Courtesy of GENERAL MOTORS CORP.

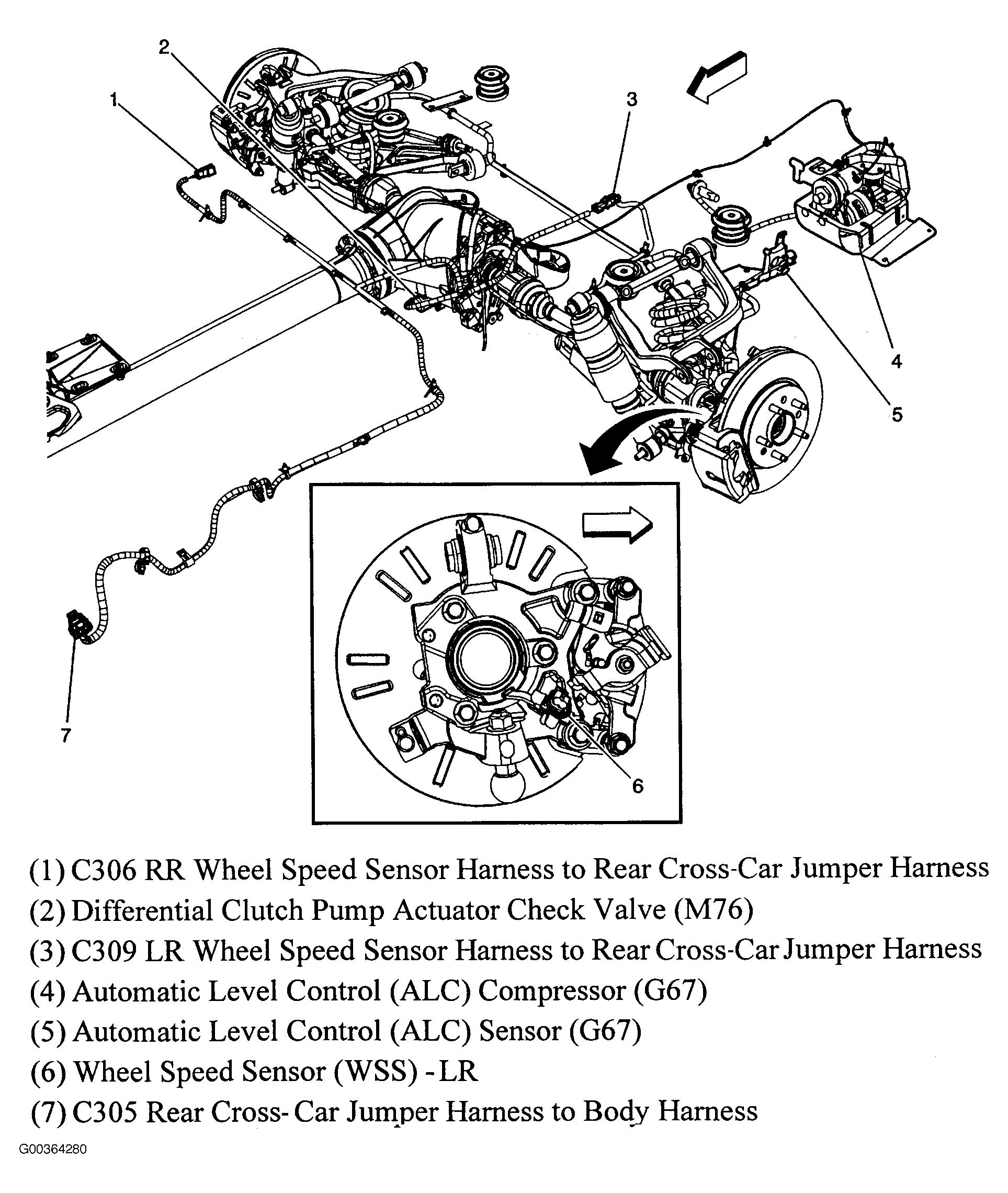

Fig 6: Rear Axle
Courtesy of GENERAL MOTORS CORP.

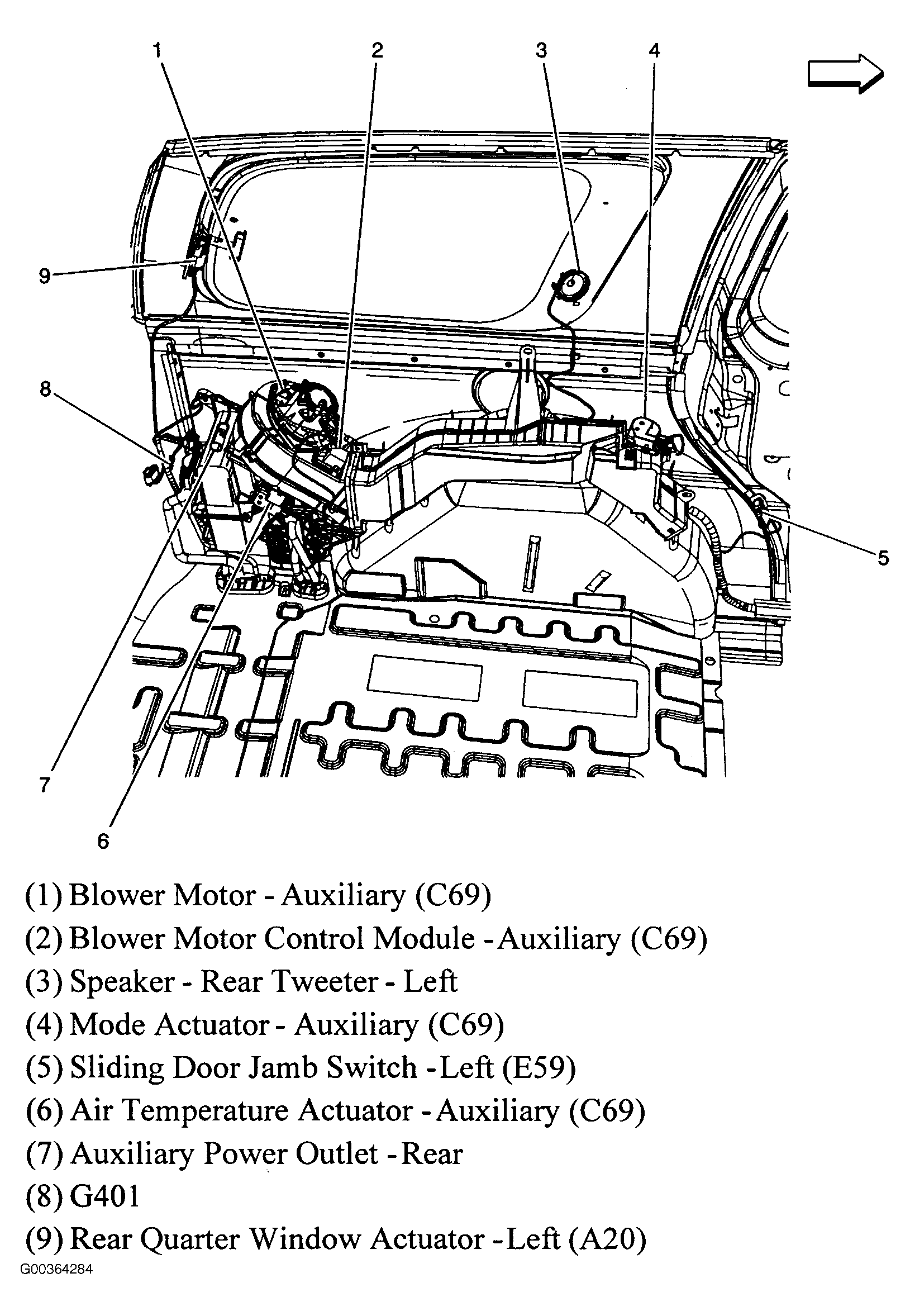

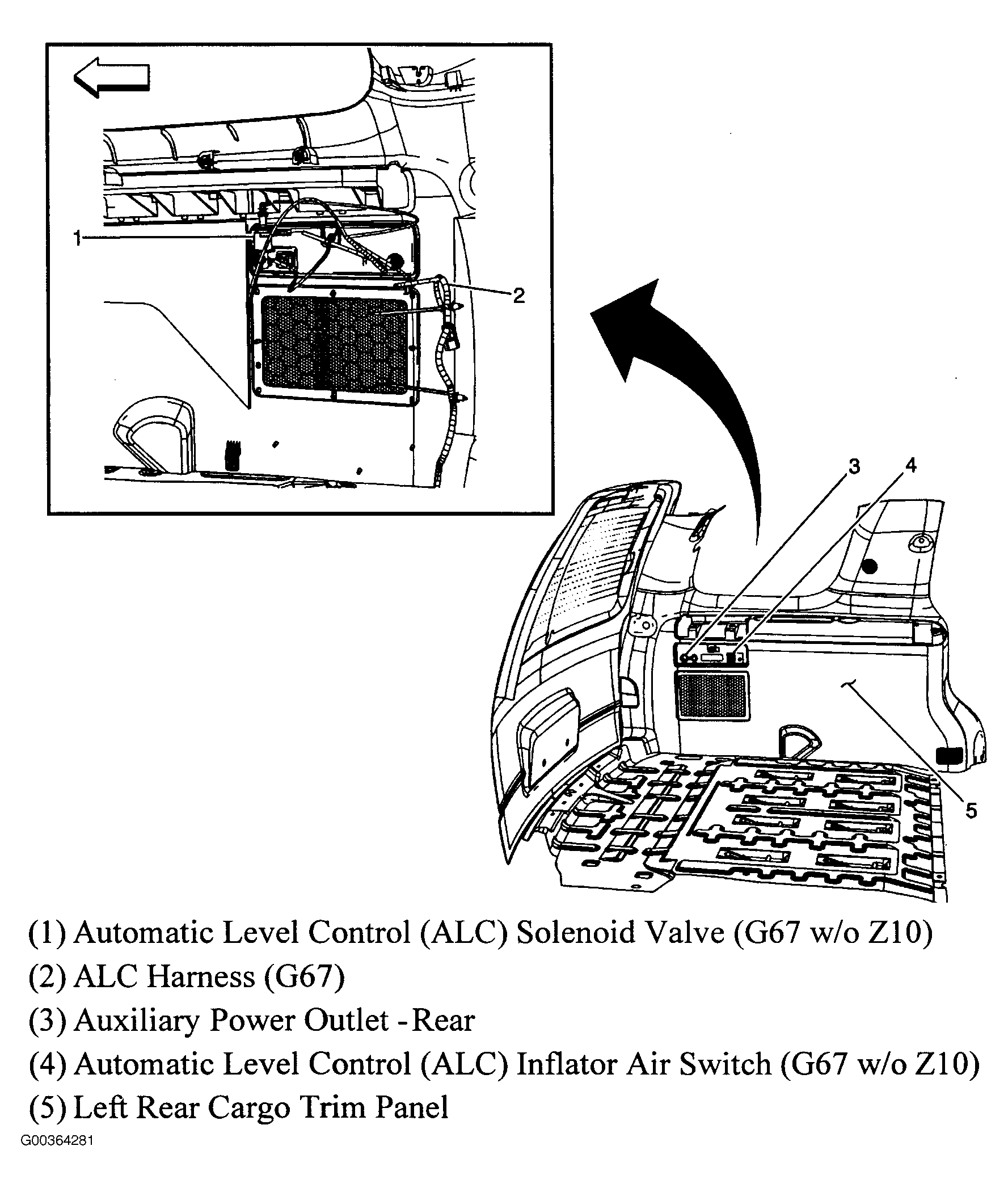

Fig 7: Left Rear Cargo Area
Courtesy of GENERAL MOTORS CORP.

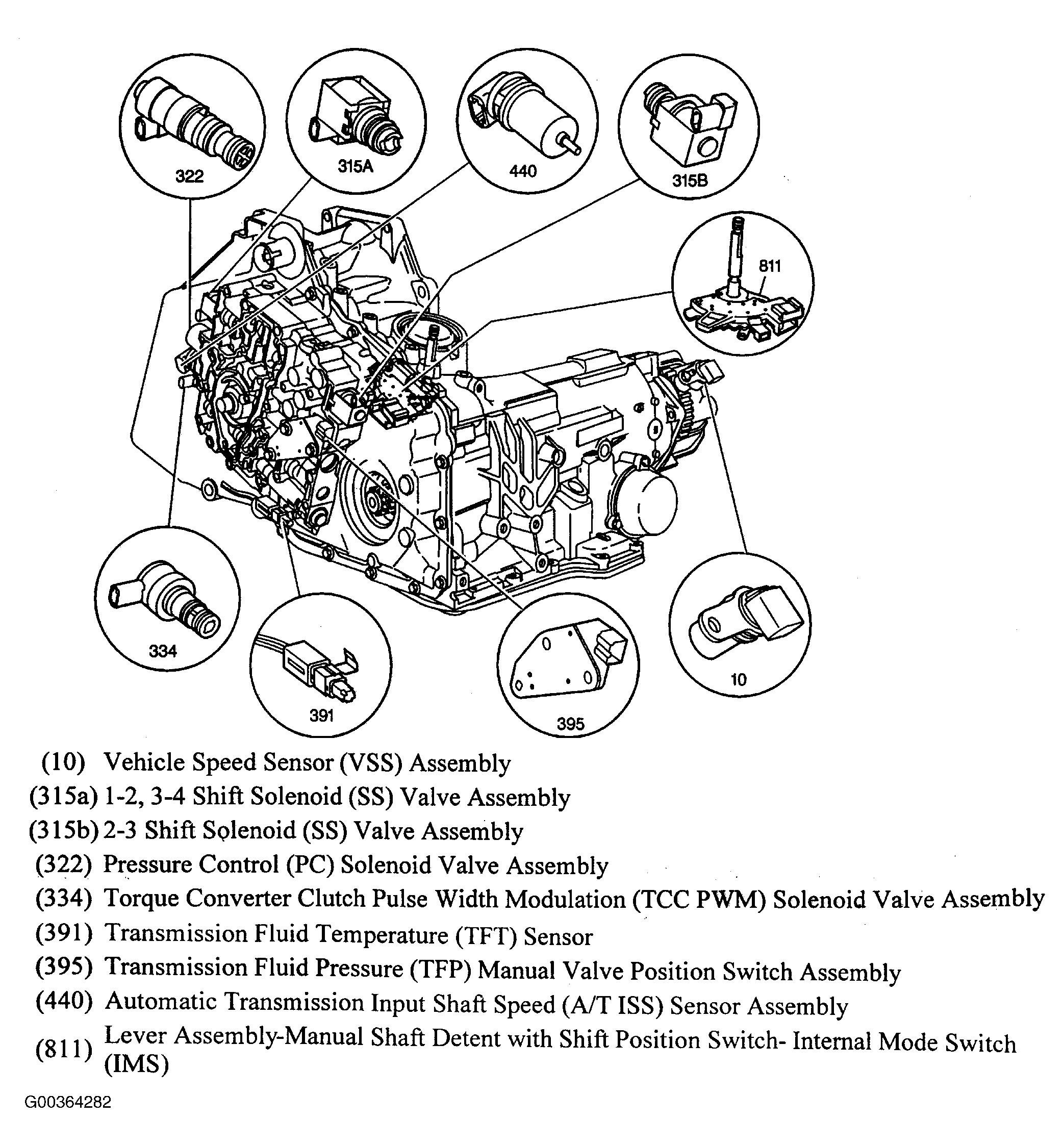

Fig 8: Automatic Transmission Electronic Component Views
Courtesy of GENERAL MOTORS CORP.
Fig 9: Left Rear Cargo Area
Courtesy of GENERAL MOTORS CORP.

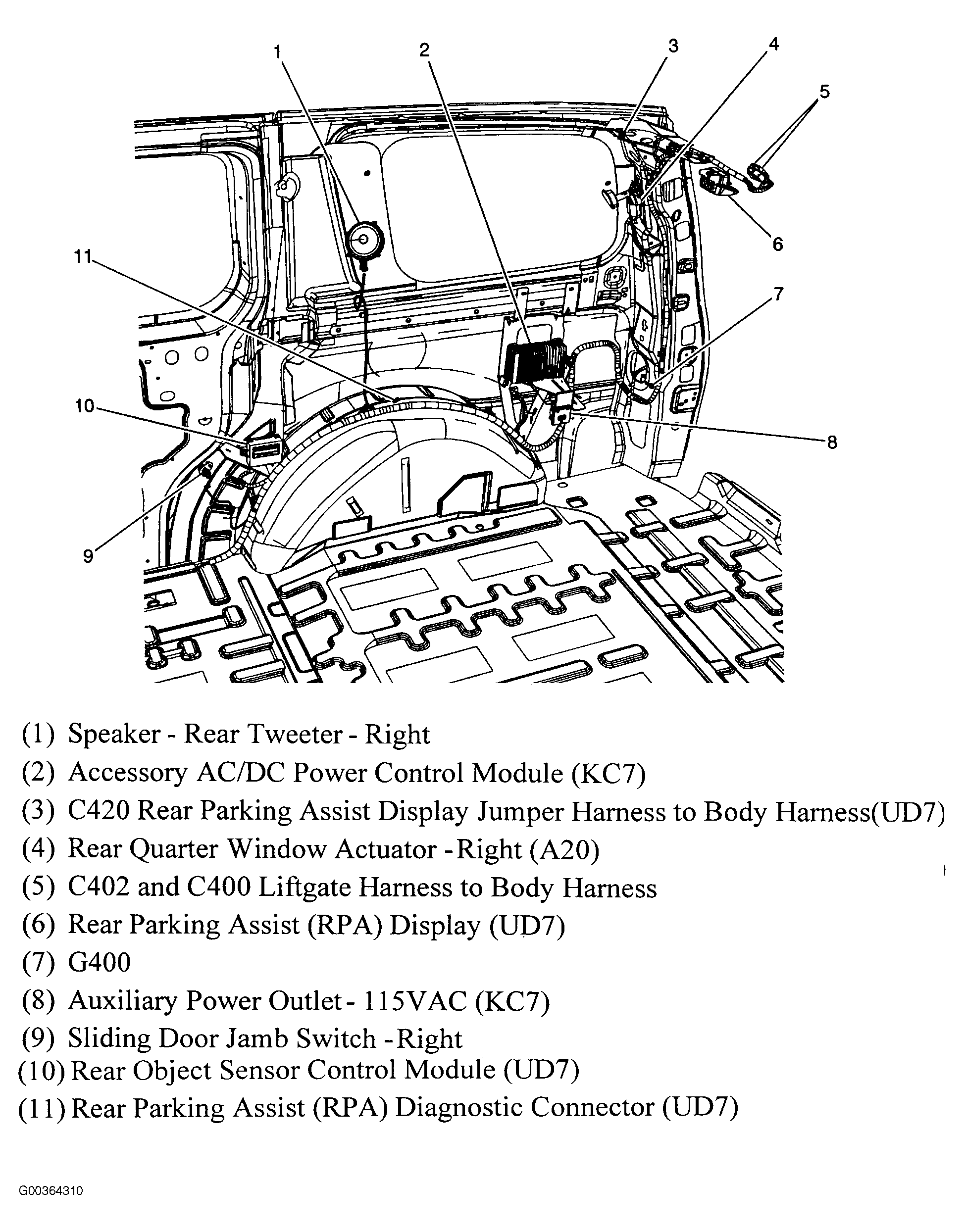

Fig 10: Right Rear Cargo Area
Courtesy of GENERAL MOTORS CORP.

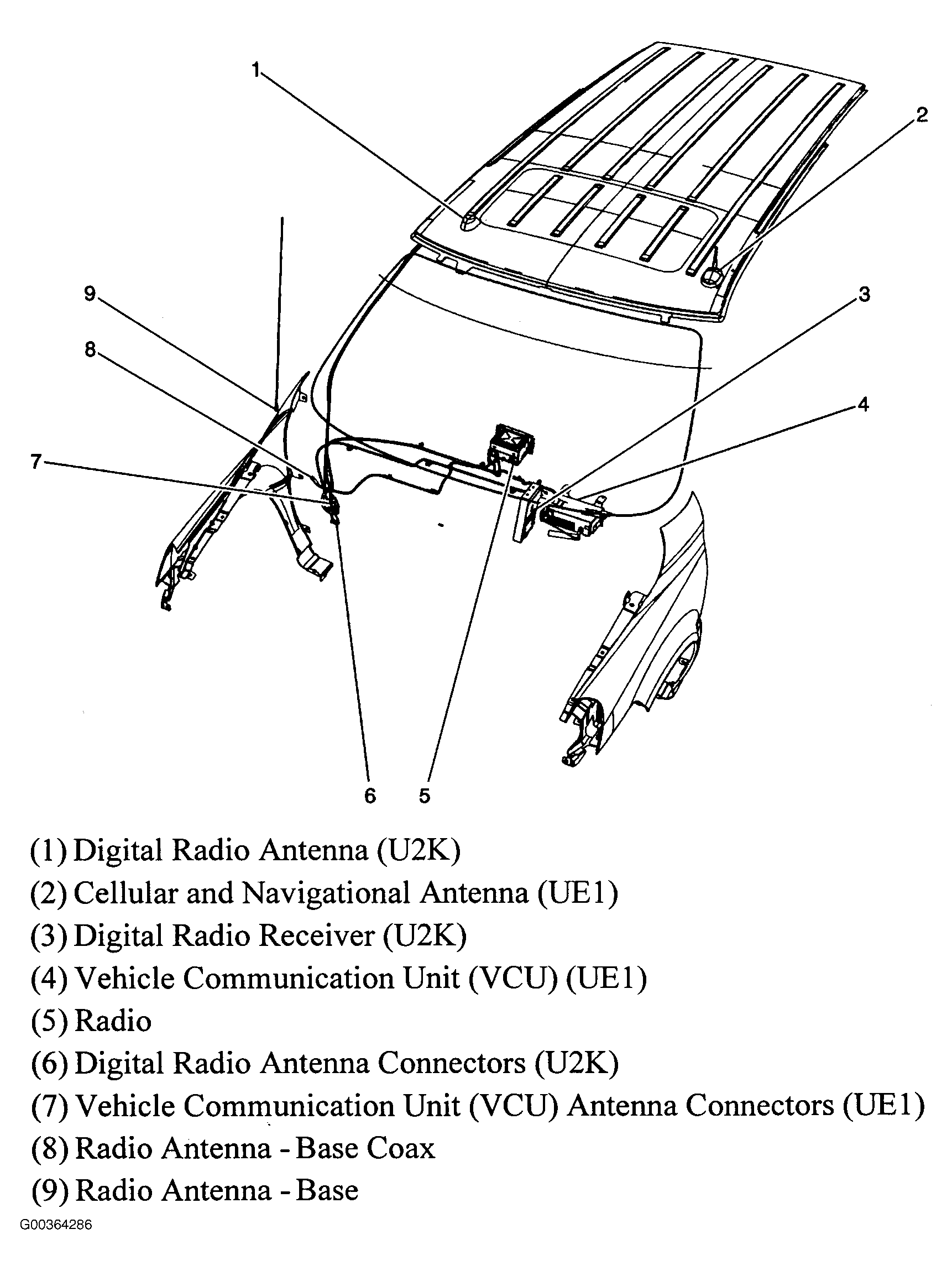

Fig 11: Antenna Components
Courtesy of GENERAL MOTORS CORP.
Fig 12: Middle Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 13: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

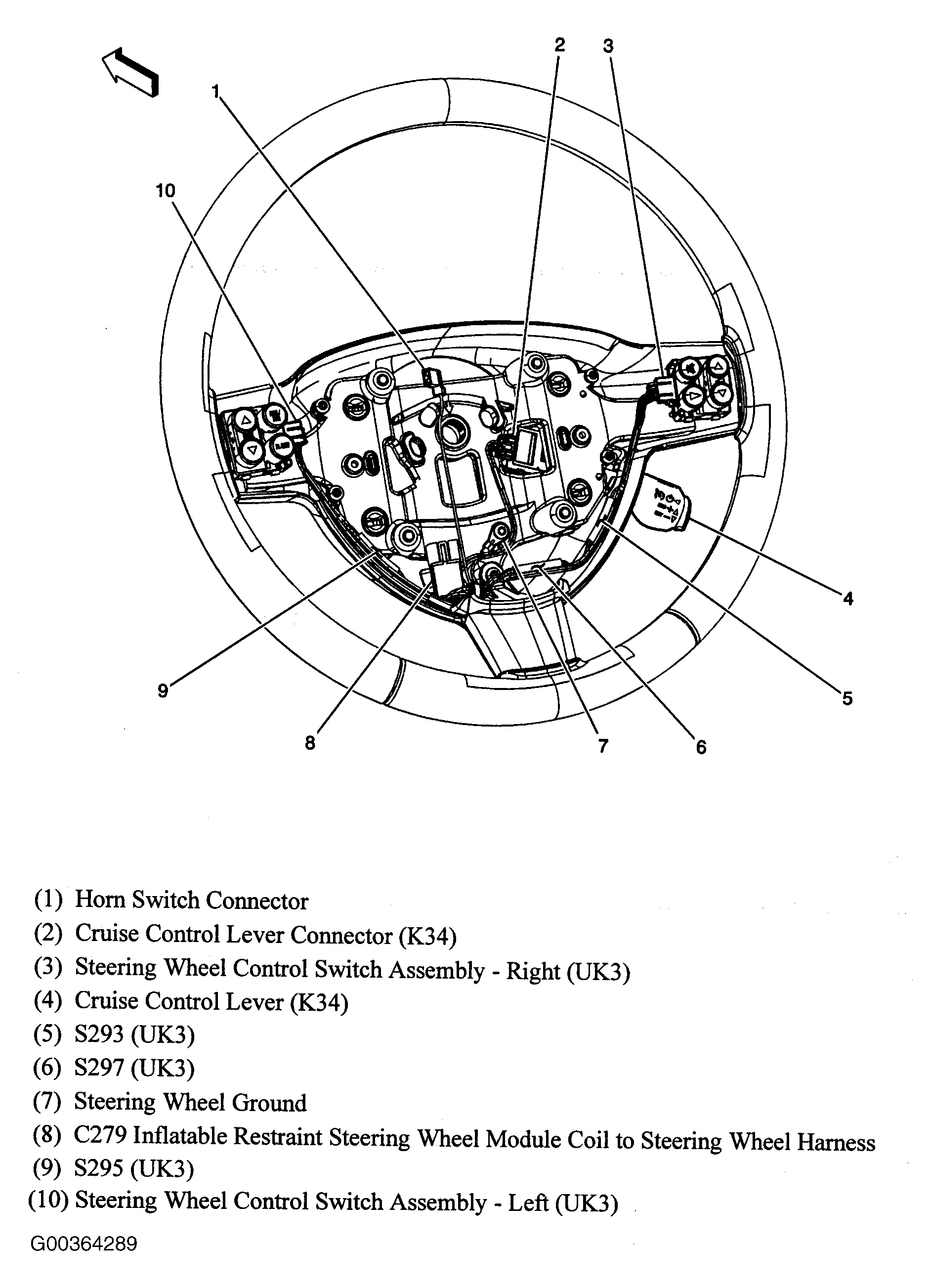

Fig 14: Steering Wheel Assembly
Courtesy of GENERAL MOTORS CORP.

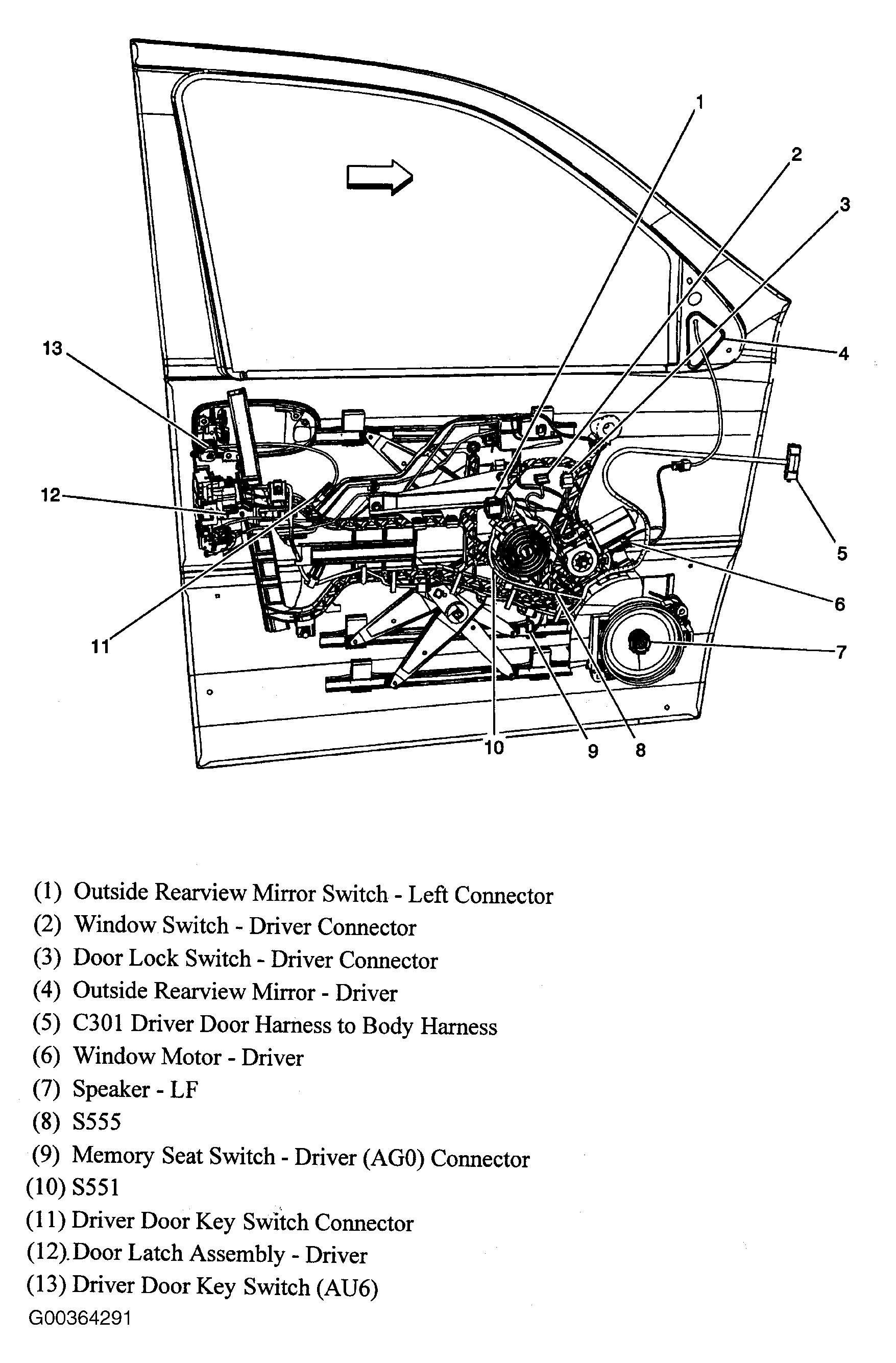

Fig 15: Driver's Door Assembly
Courtesy of GENERAL MOTORS CORP.

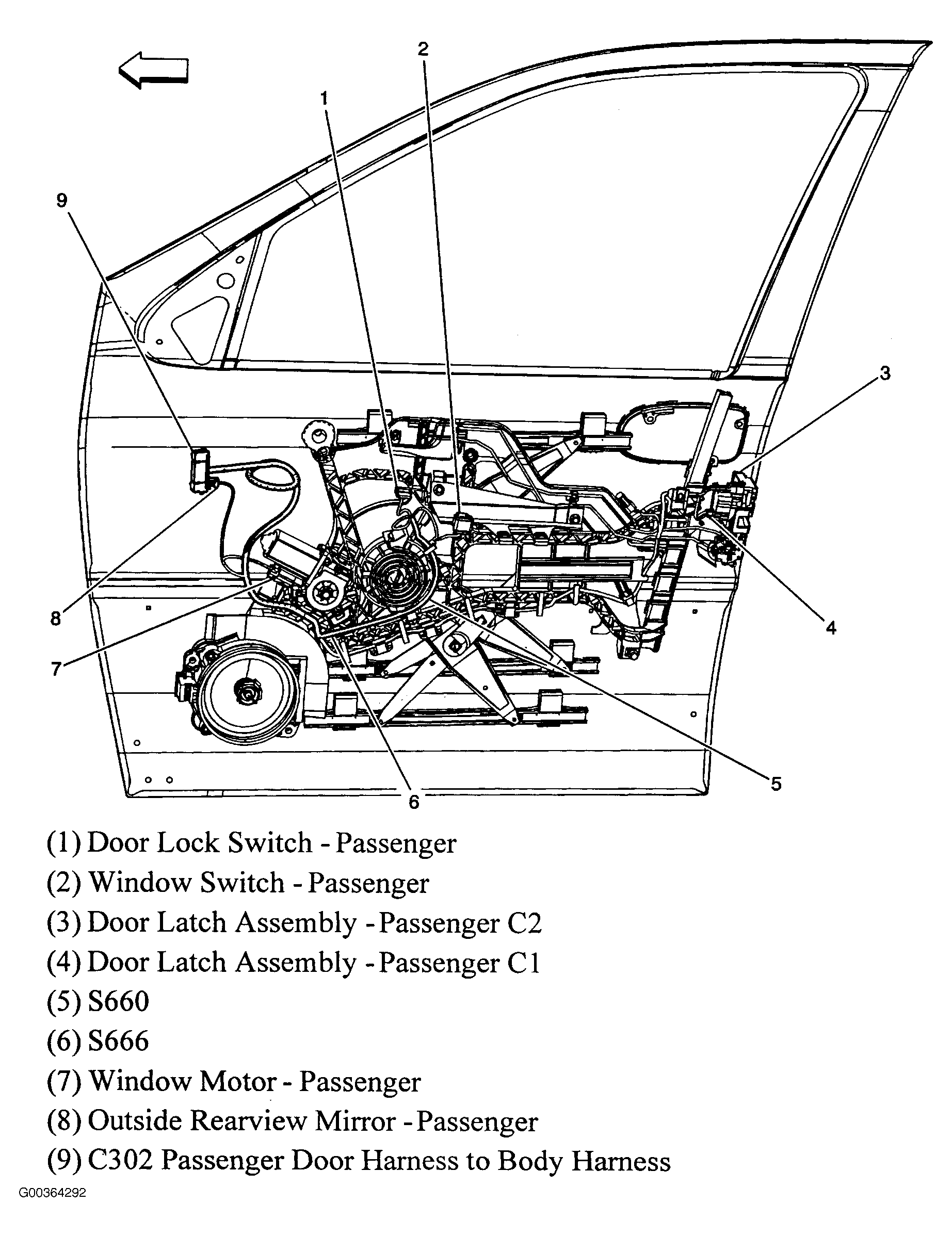

Fig 16: Passenger's Door Assembly
Courtesy of GENERAL MOTORS CORP.

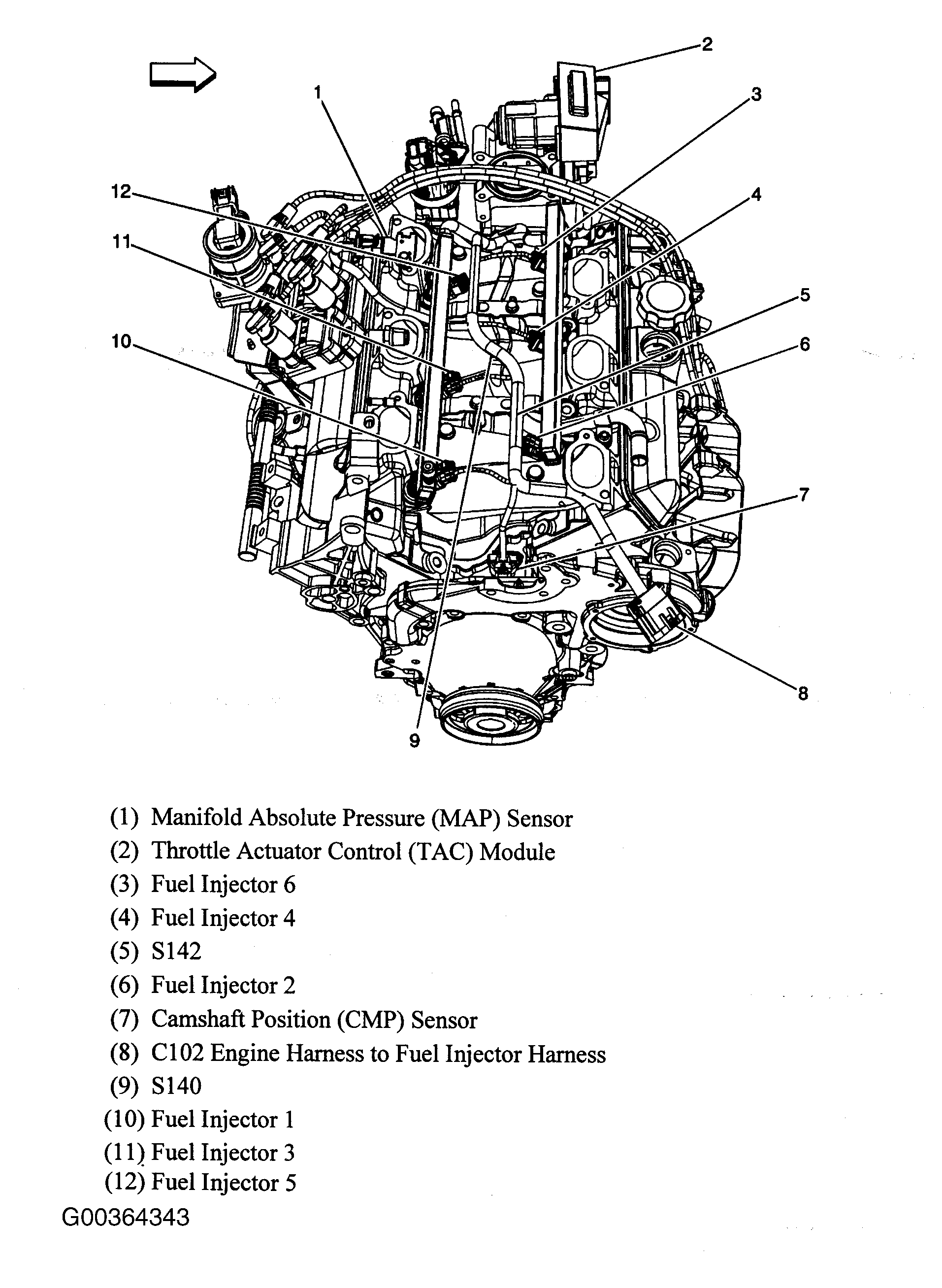

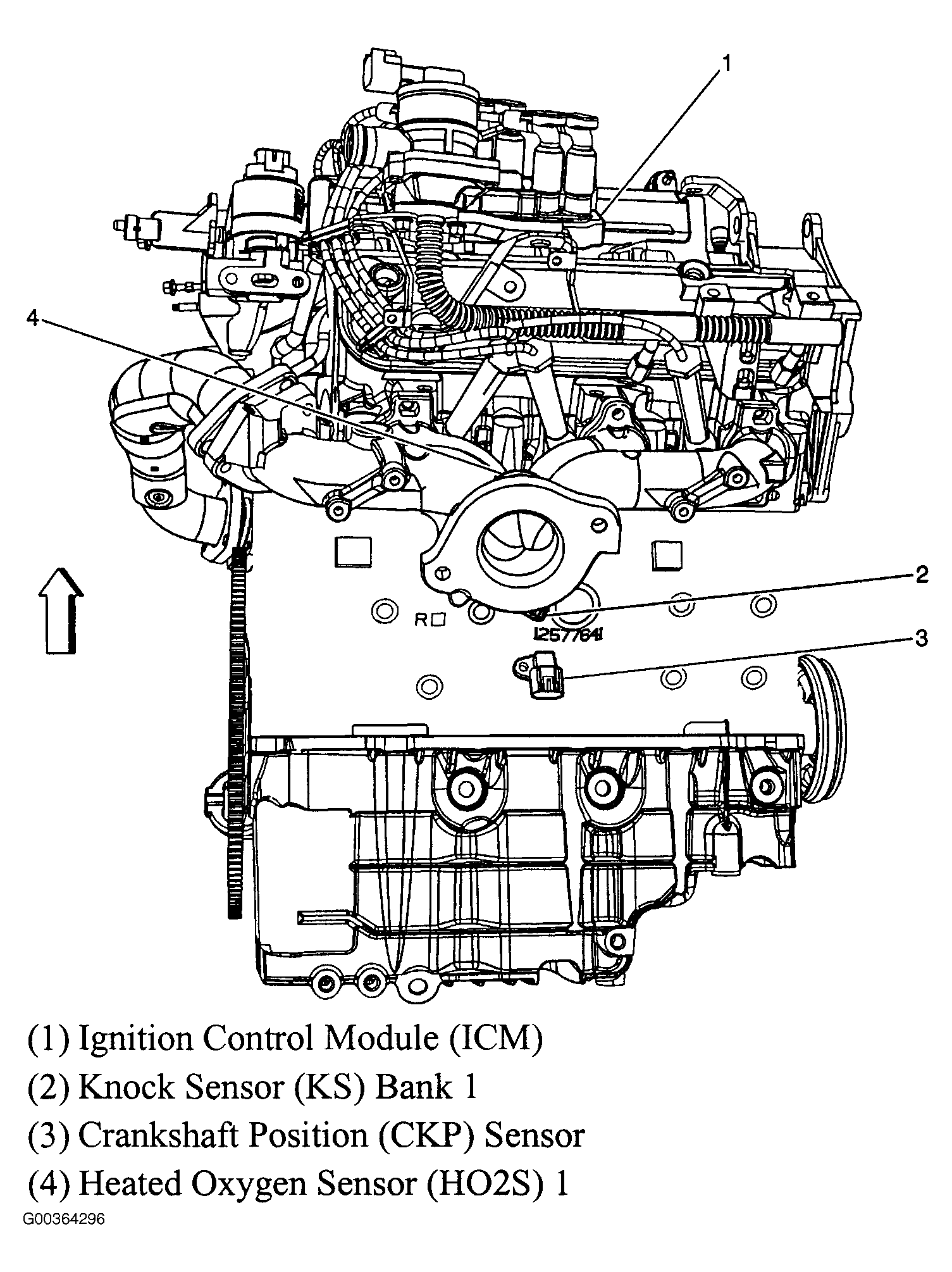

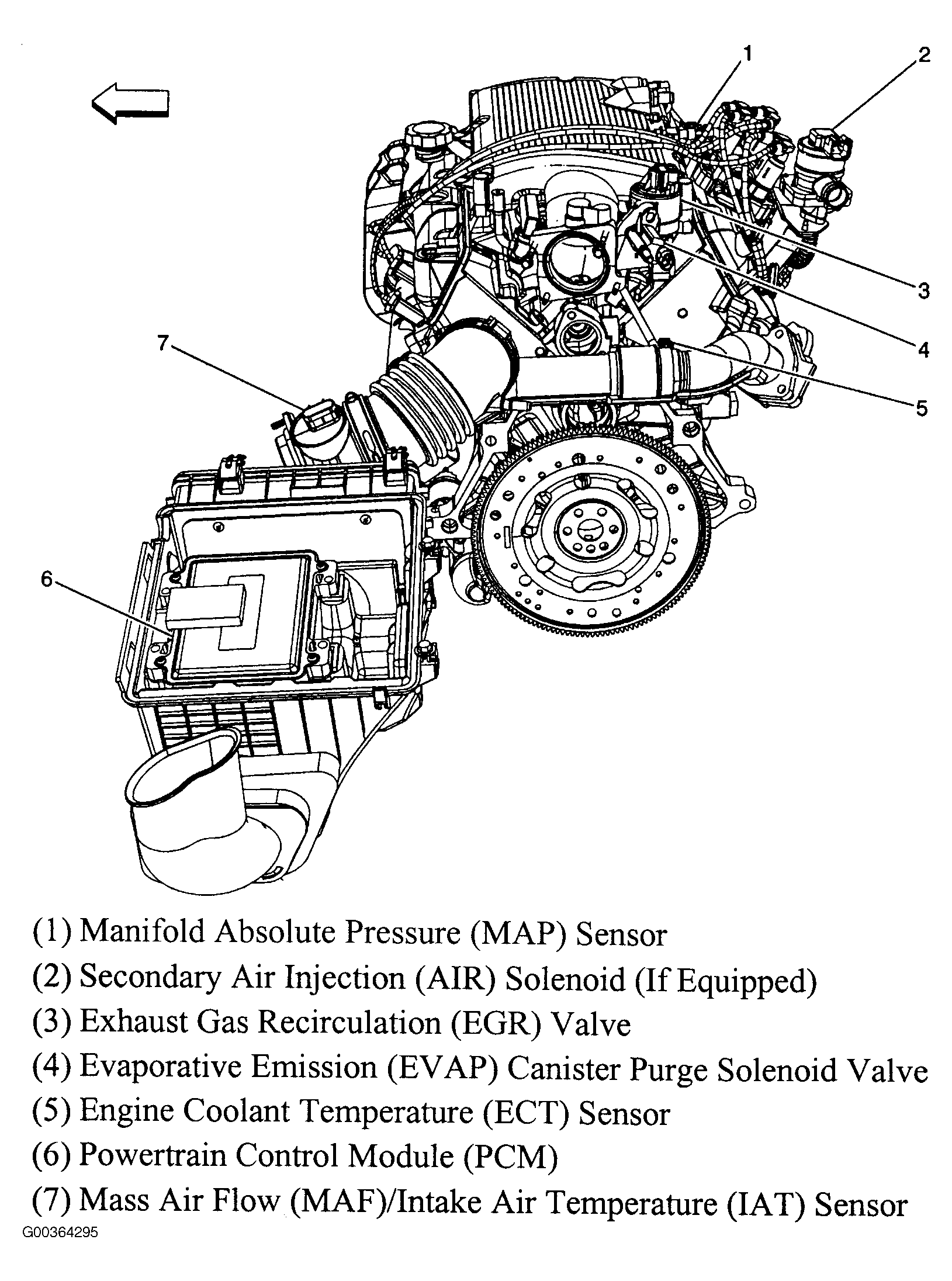

Fig 17: Engine Assembly
Courtesy of GENERAL MOTORS CORP.

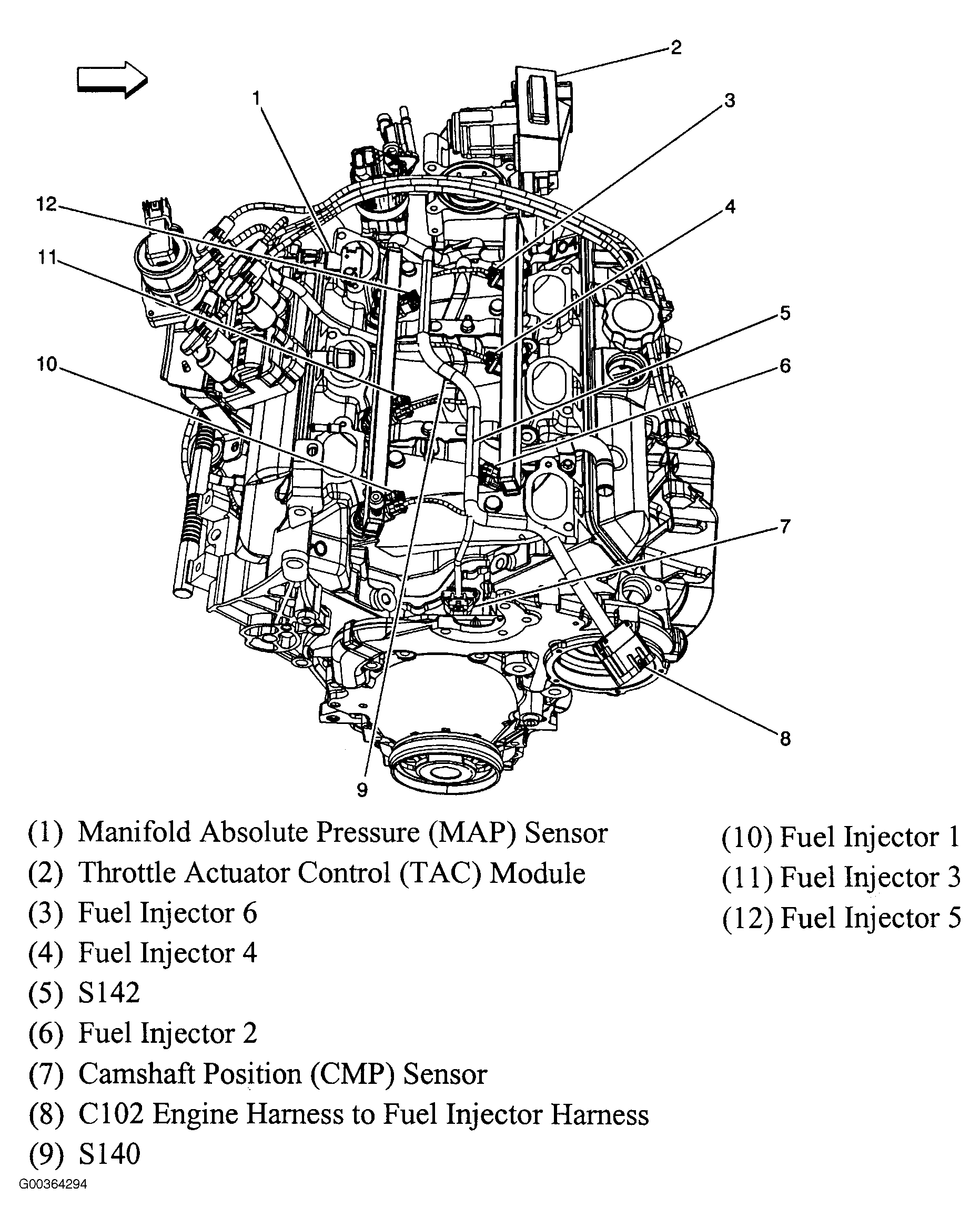

Fig 18: Engine Assembly
Courtesy of GENERAL MOTORS CORP.

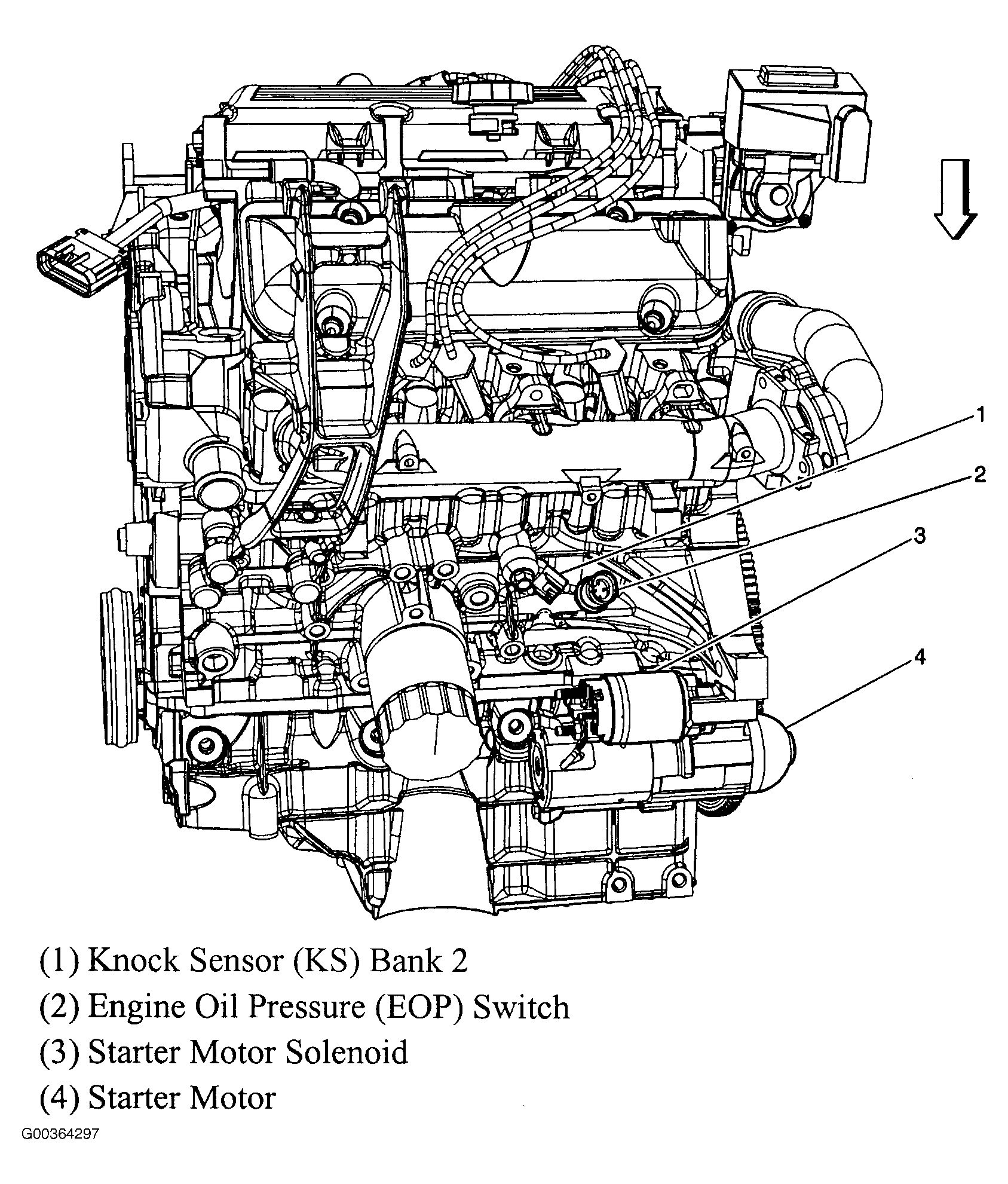

Fig 19: Right Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 20: Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.

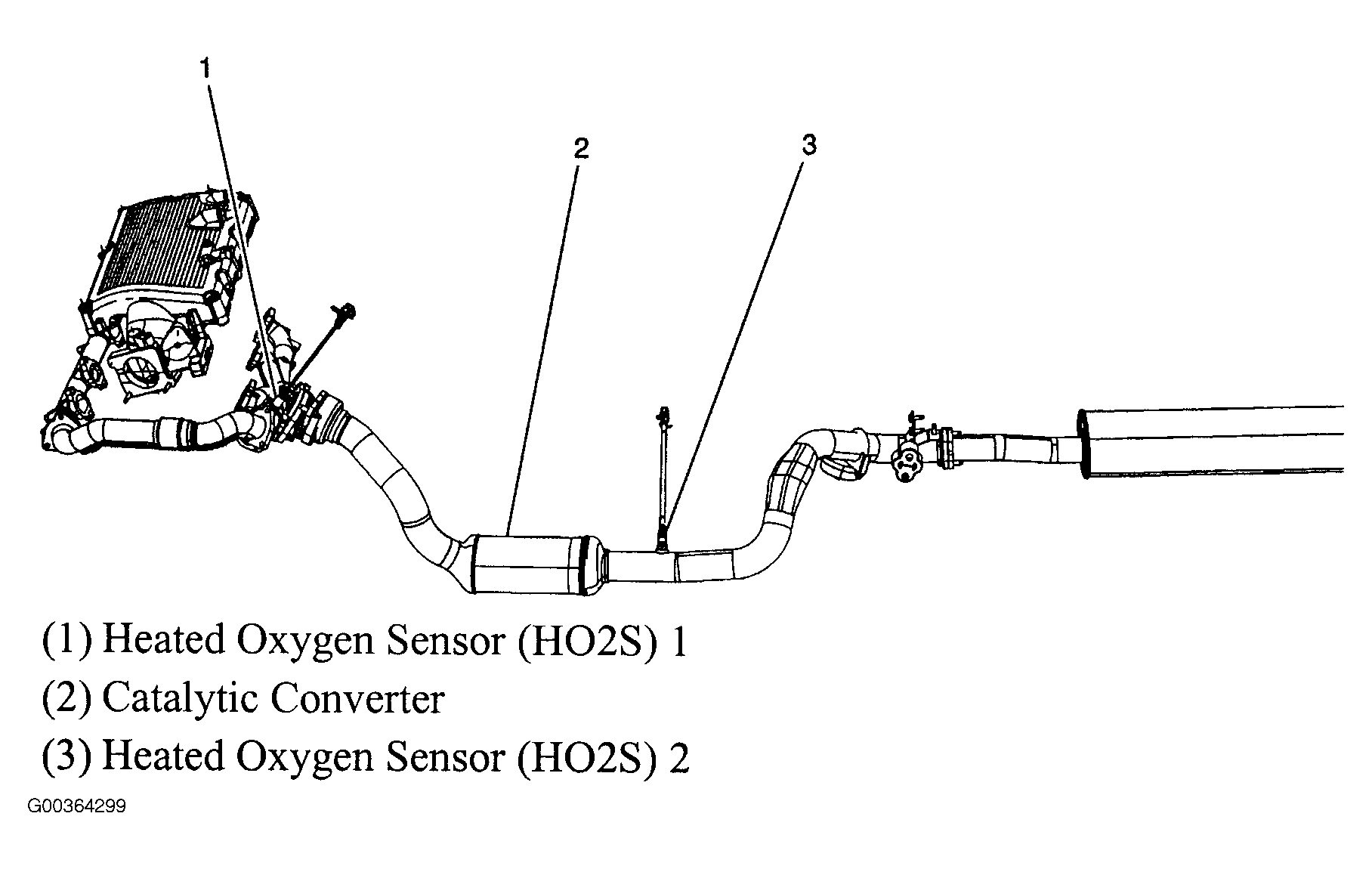

Fig 21: Exhaust Assembly
Courtesy of GENERAL MOTORS CORP.

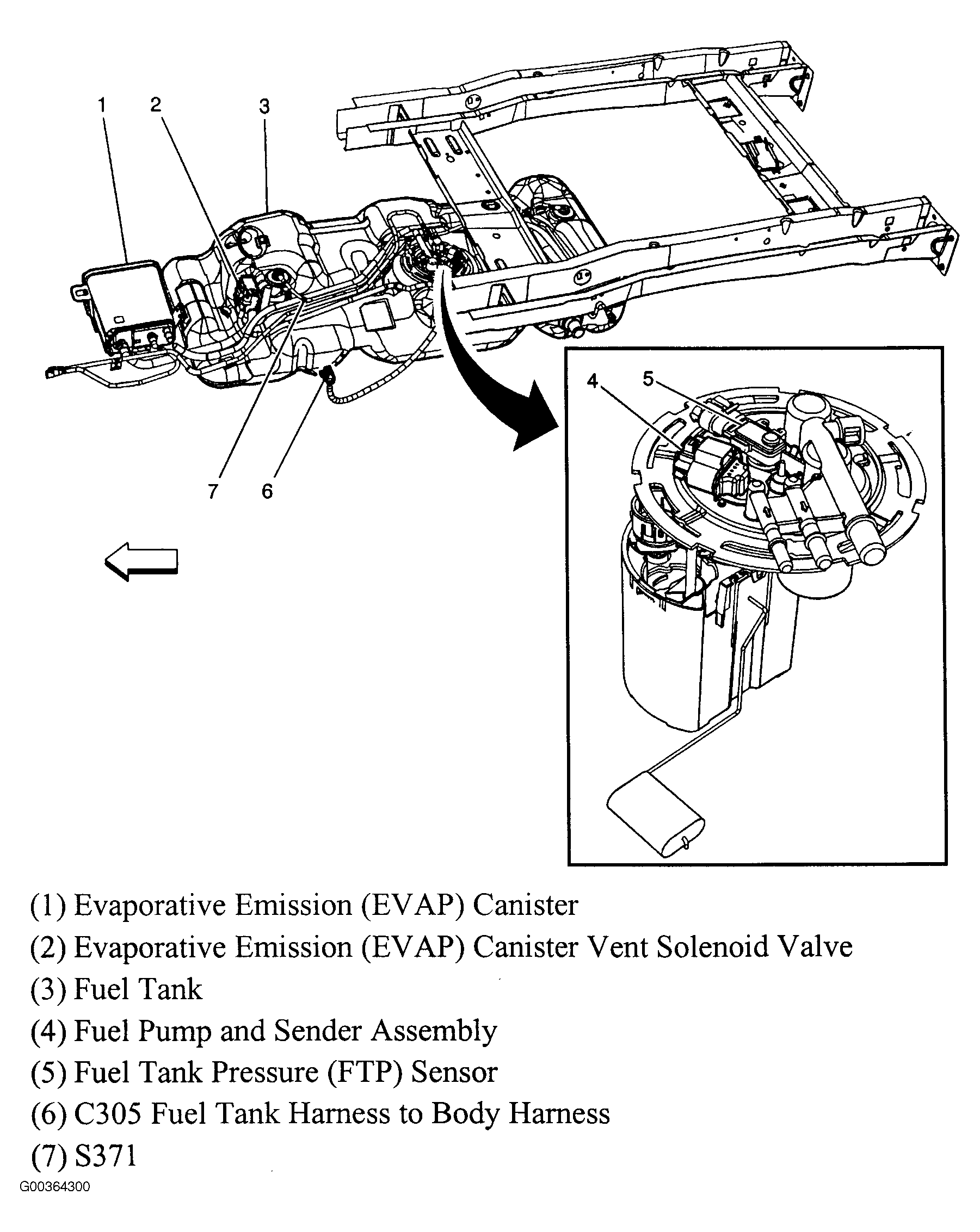

Fig 22: Fuel Tank Components
Courtesy of GENERAL MOTORS CORP.
Fig 23: Cooling System Components
Courtesy of GENERAL MOTORS CORP.
Fig 24: Engine Assembly
Courtesy of GENERAL MOTORS CORP.

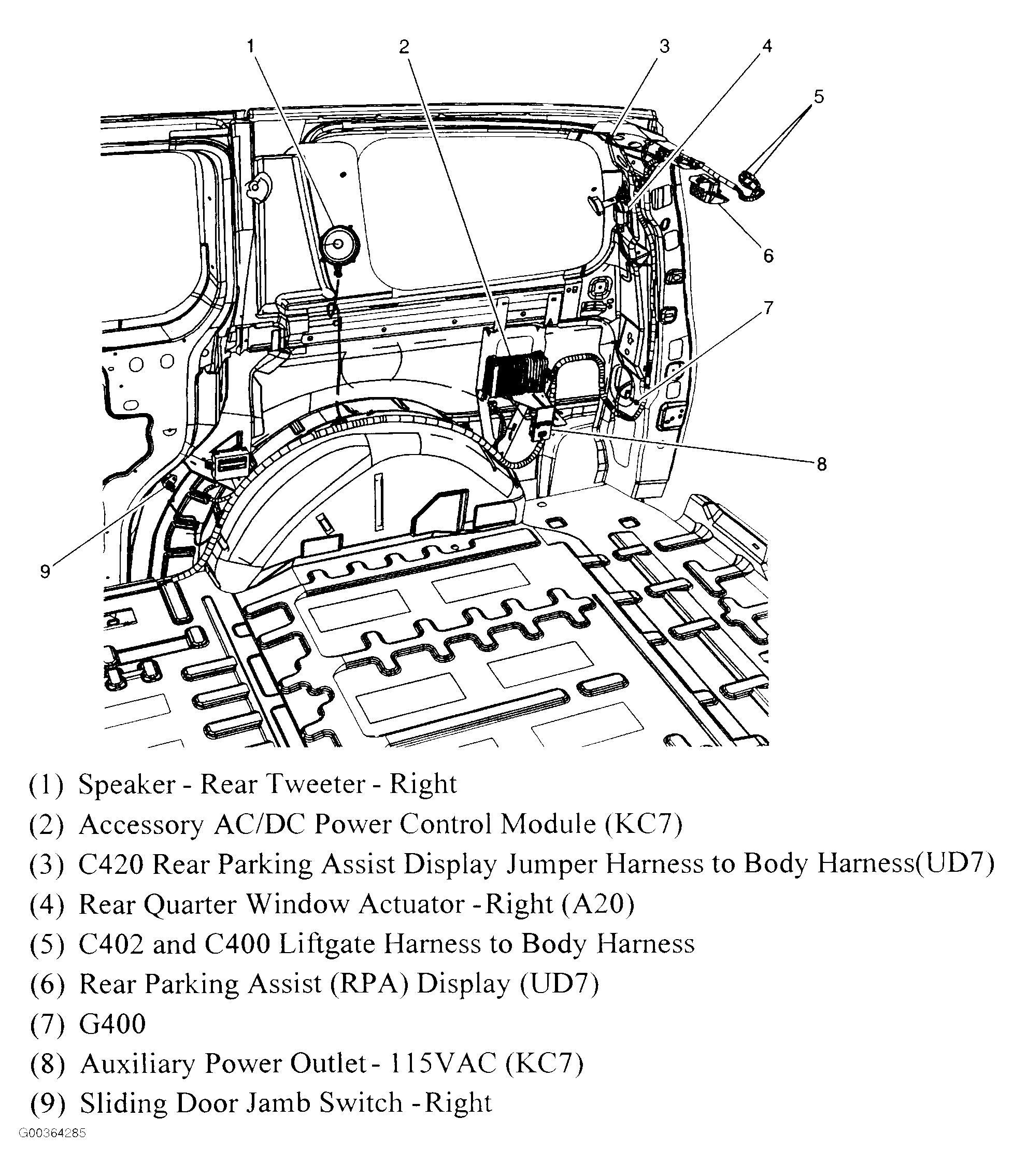

Fig 25: Right Rear Cargo Area
Courtesy of GENERAL MOTORS CORP.

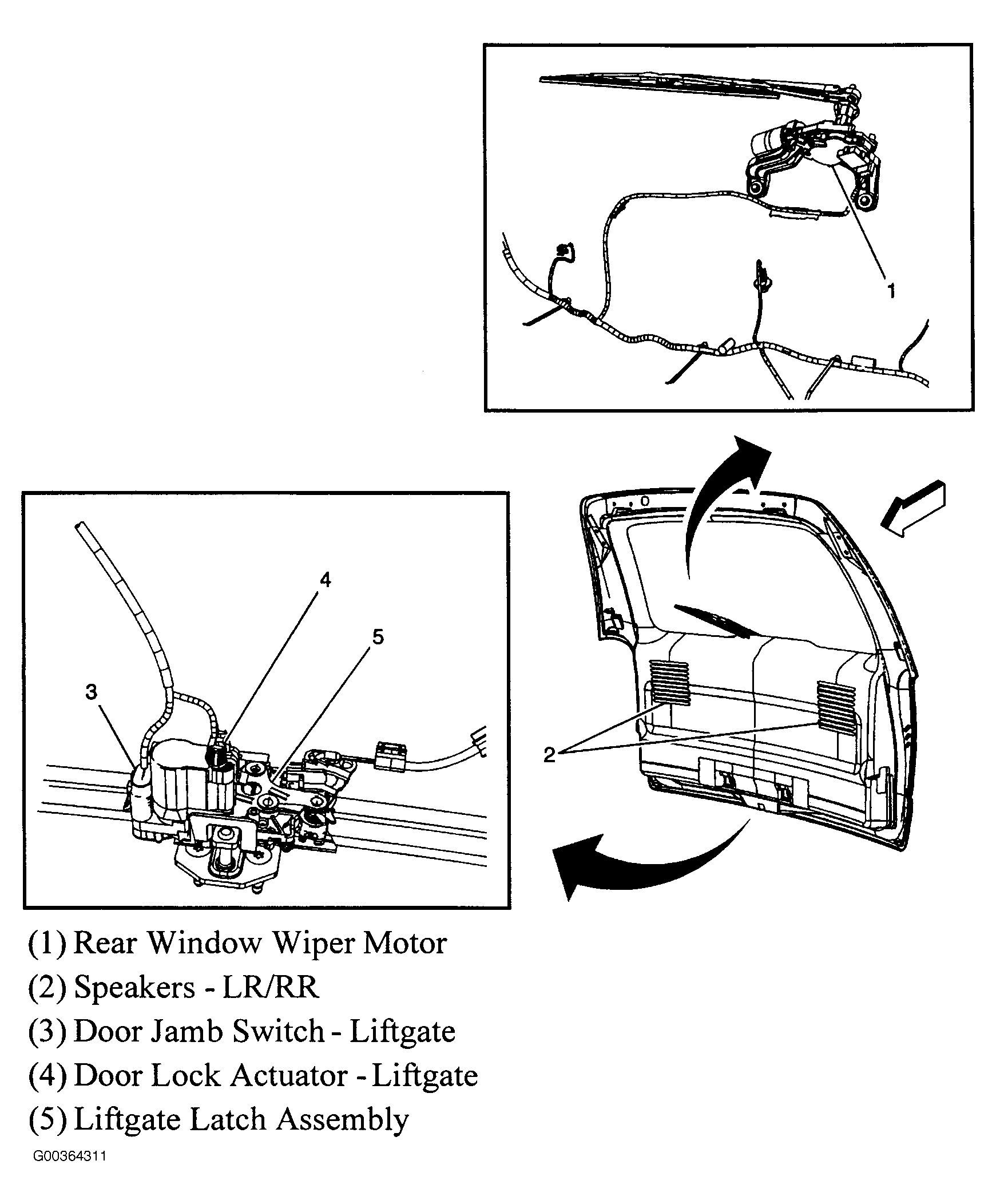

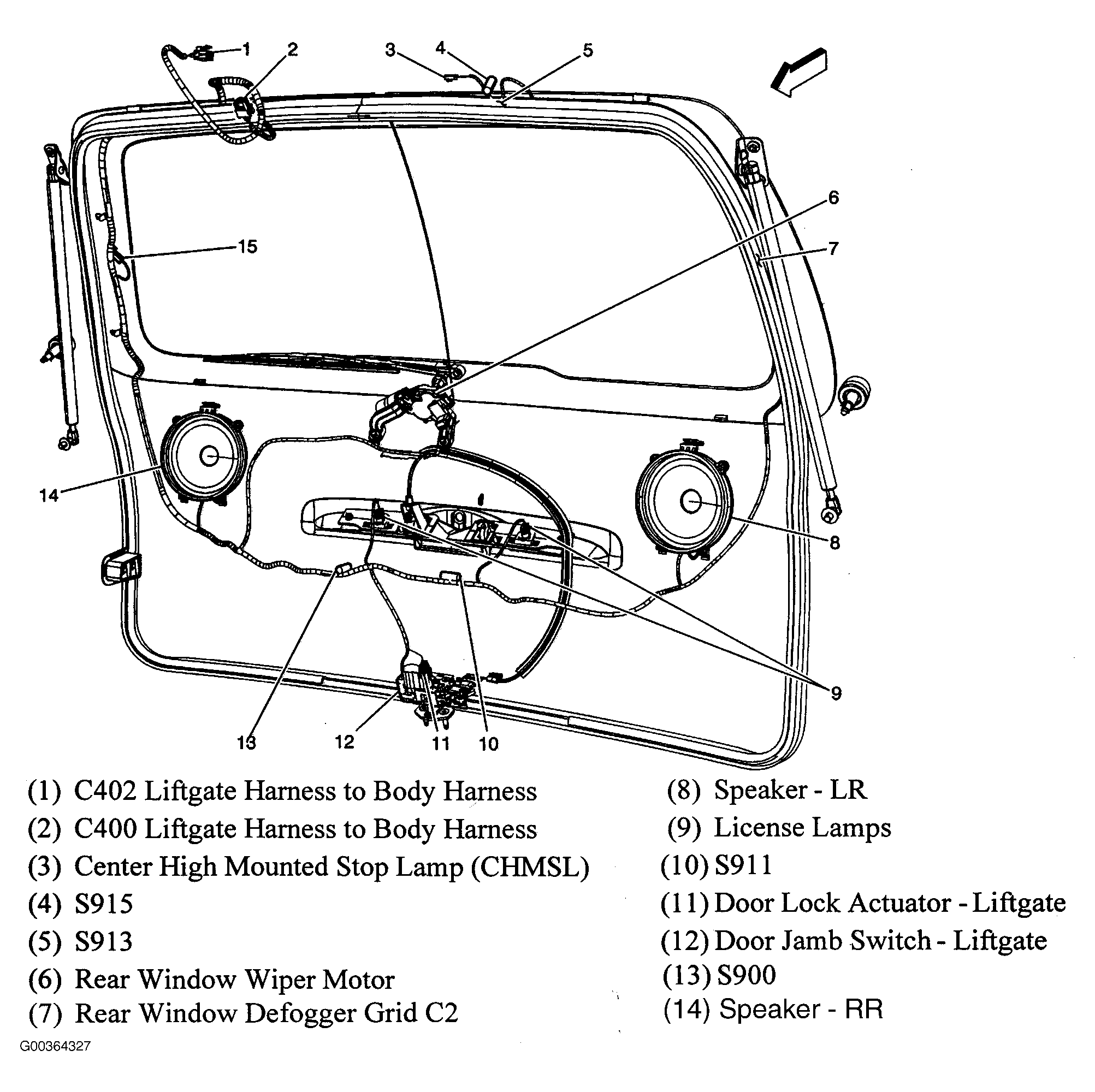

Fig 26: Liftgate Components
Courtesy of GENERAL MOTORS CORP.

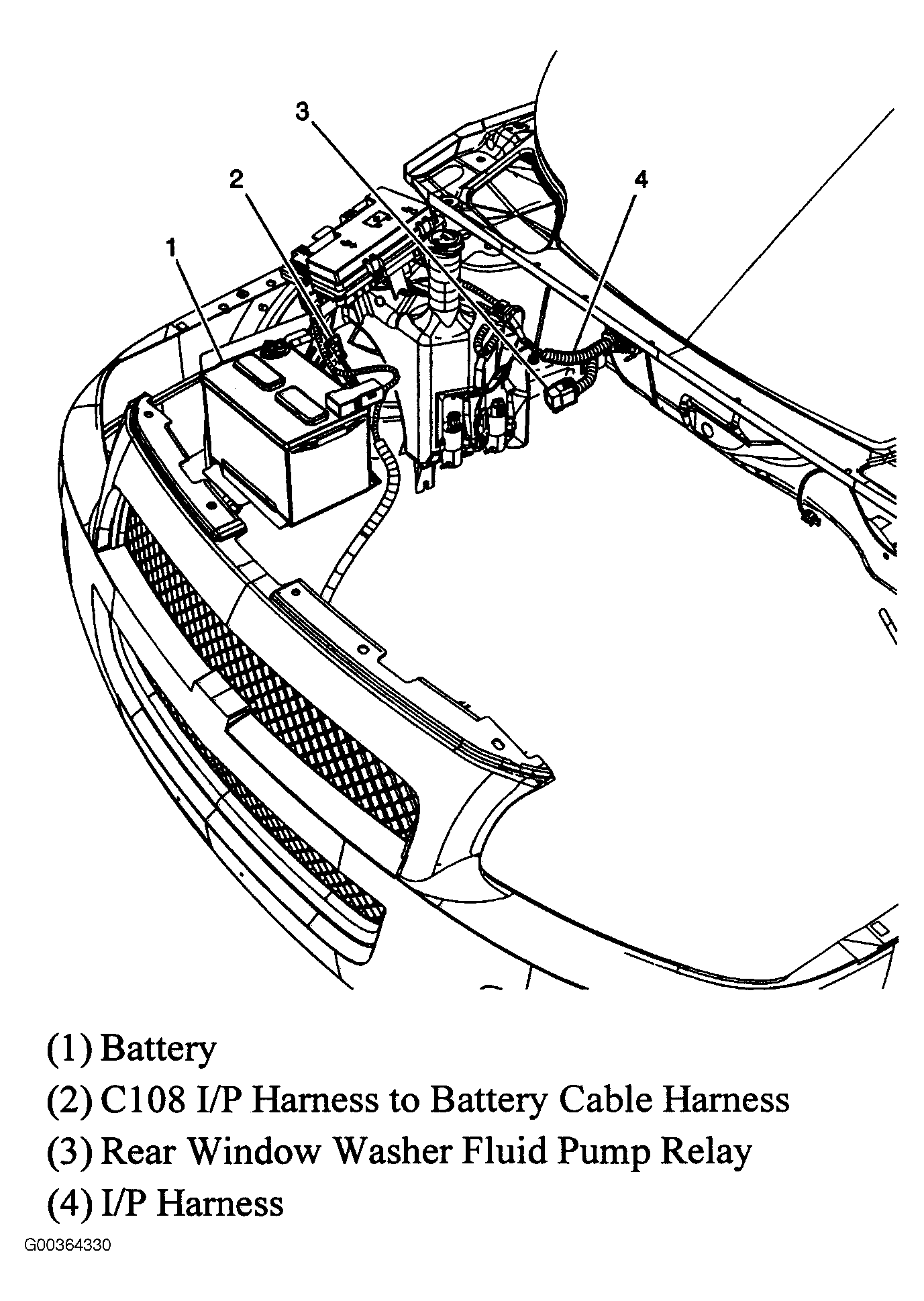

Fig 27: Right Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

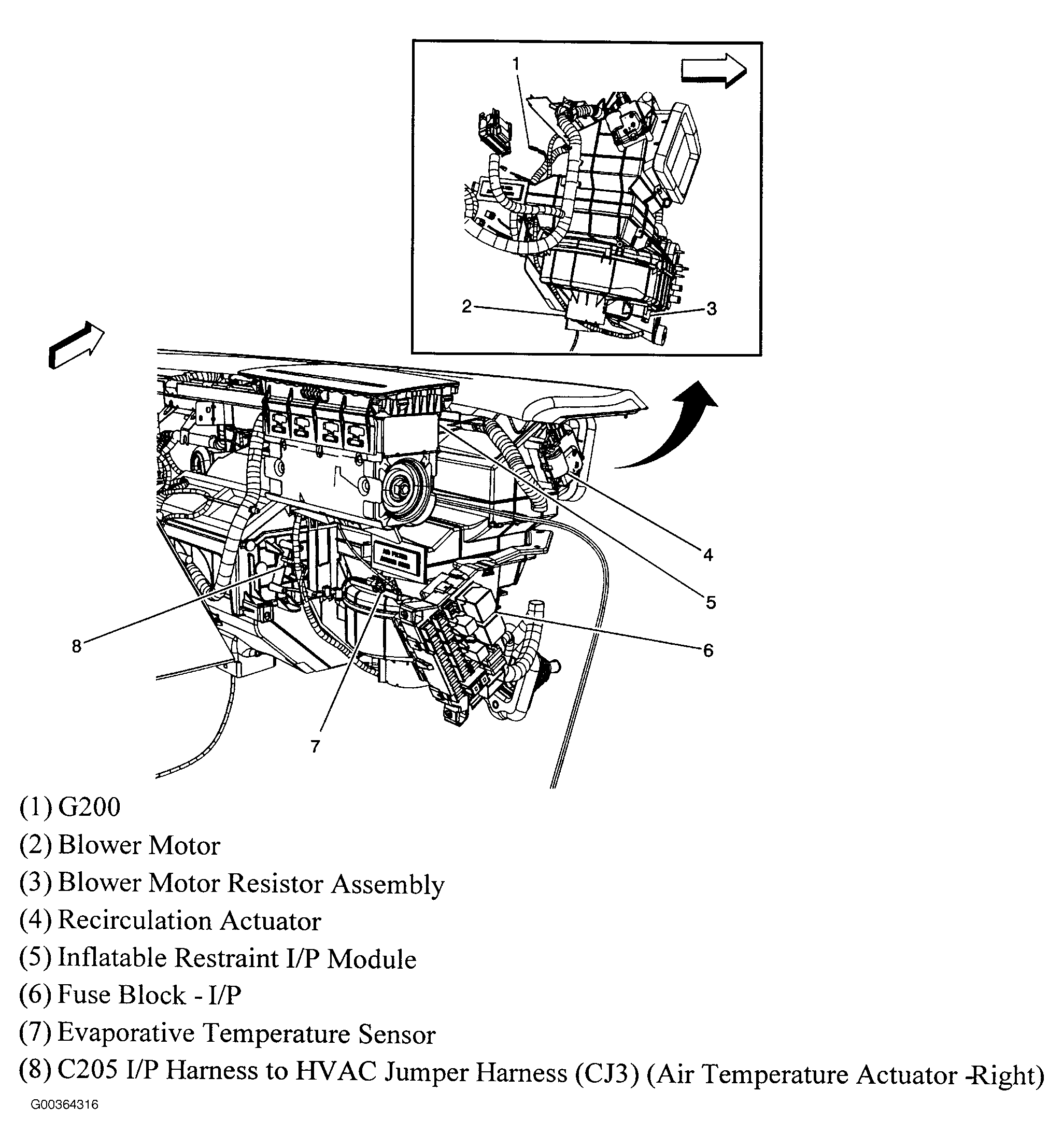

Fig 28: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 29: Engine Compartment
Courtesy of GENERAL MOTORS CORP.

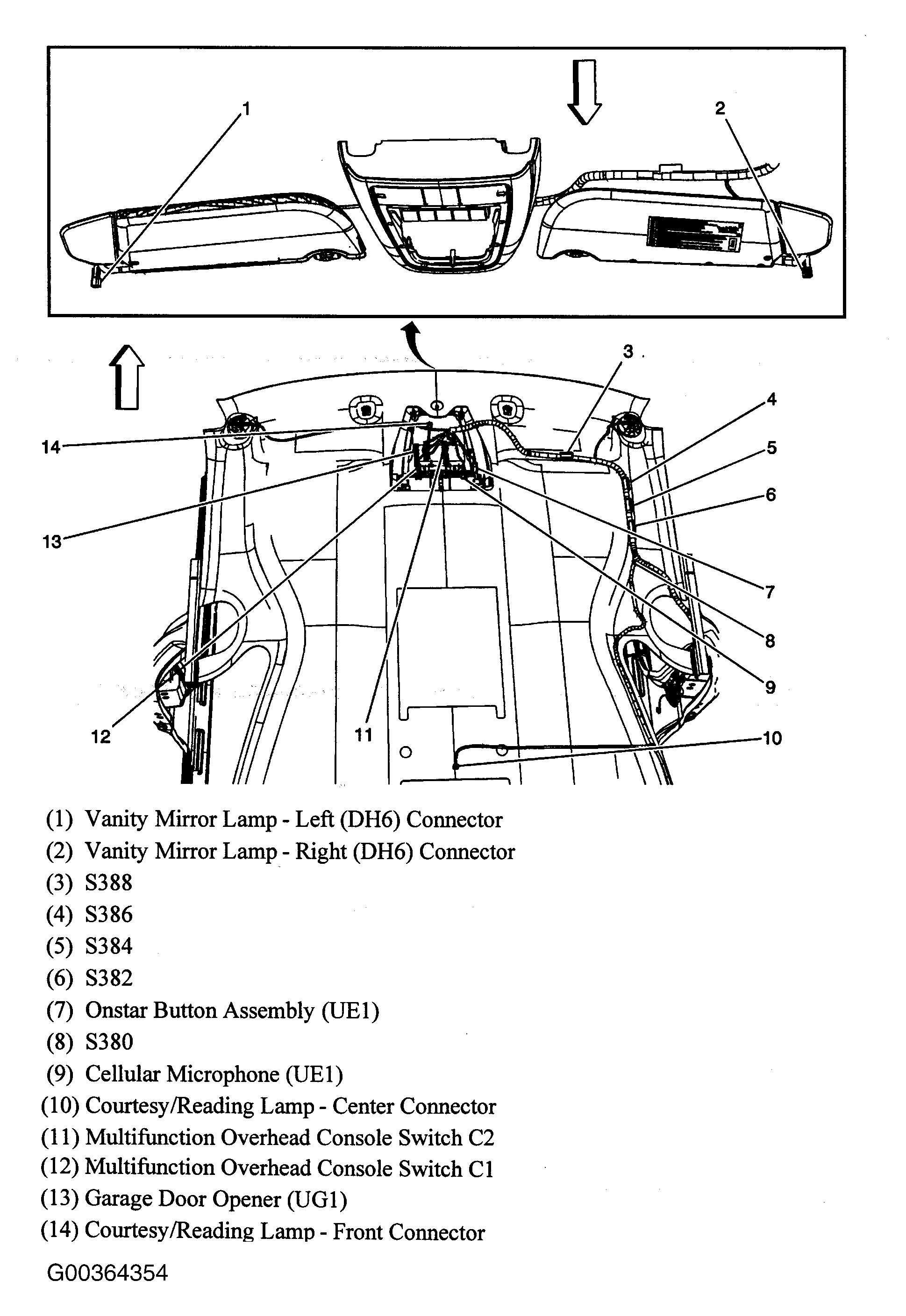

Fig 30: Headliner Harness Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 31: Tailgate Assembly
Courtesy of GENERAL MOTORS CORP.

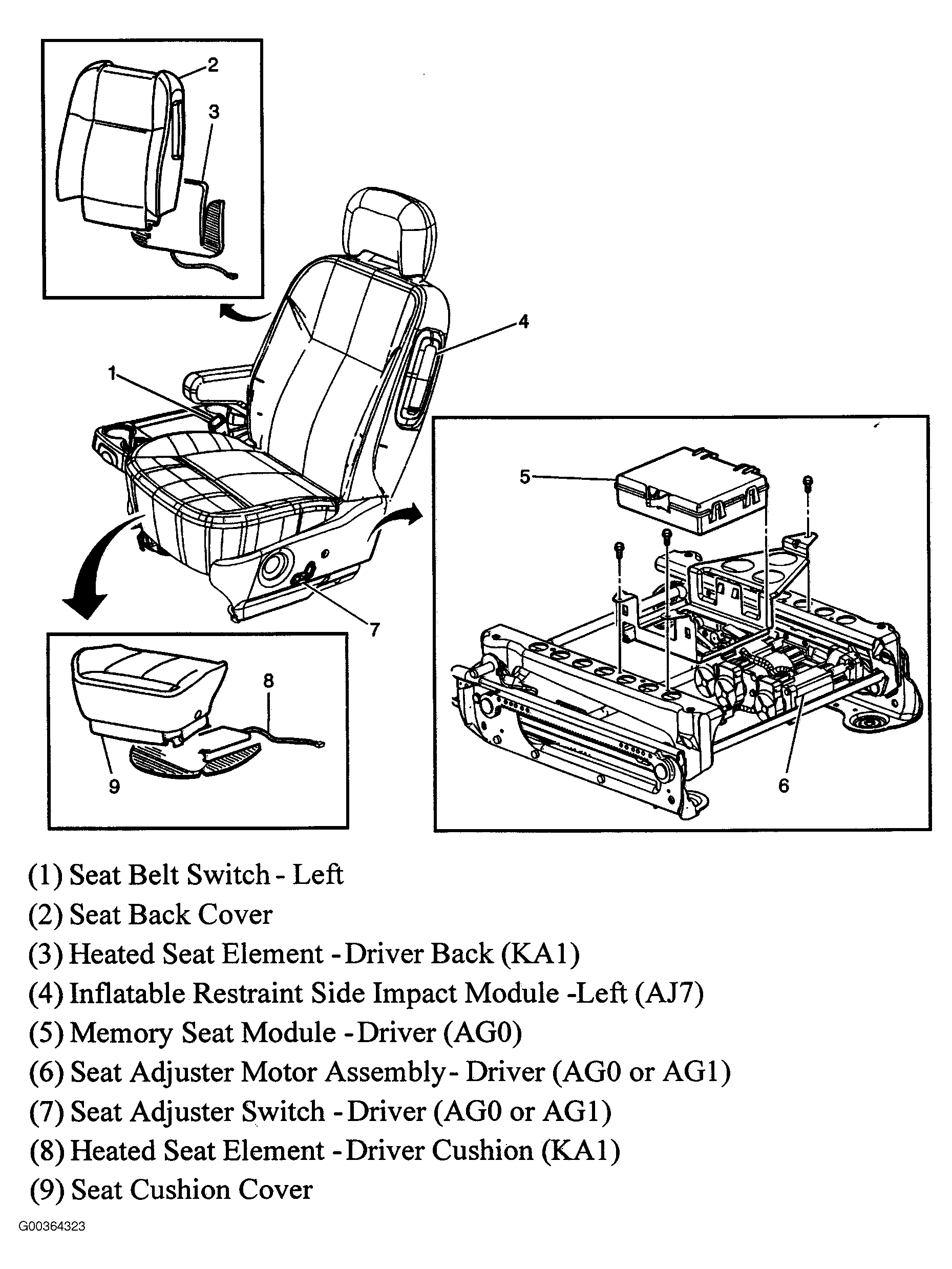

Fig 32: Driver Seat
Courtesy of GENERAL MOTORS CORP.

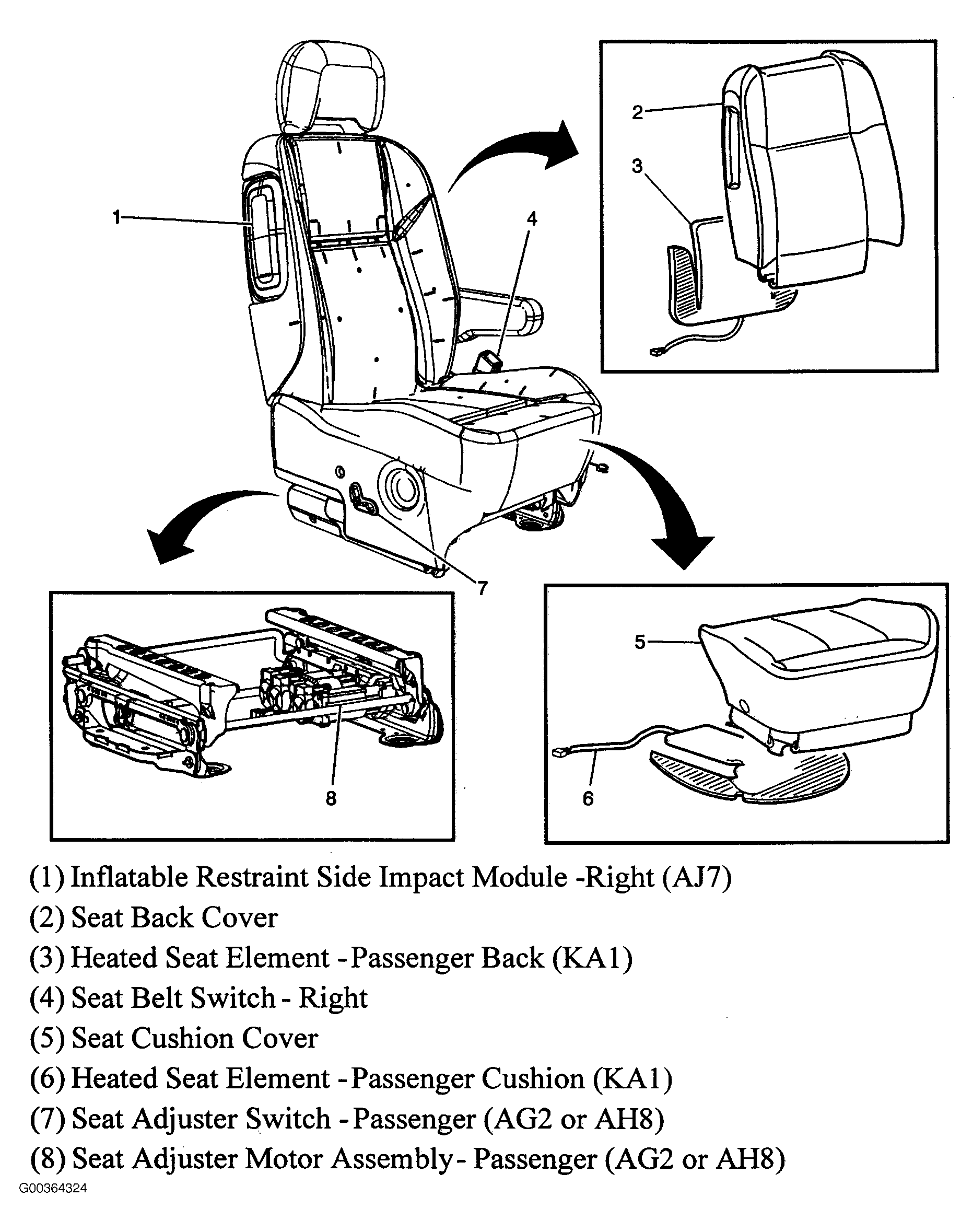

Fig 33: Passenger's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 34: Steering Column
Courtesy of GENERAL MOTORS CORP.
Fig 35: Liftgate
Courtesy of GENERAL MOTORS CORP.
Fig 36: Right Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 37: Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 38: Front Bumper
Courtesy of GENERAL MOTORS CORP.
Fig 39: Vehicle Overview
Courtesy of GENERAL MOTORS CORP.

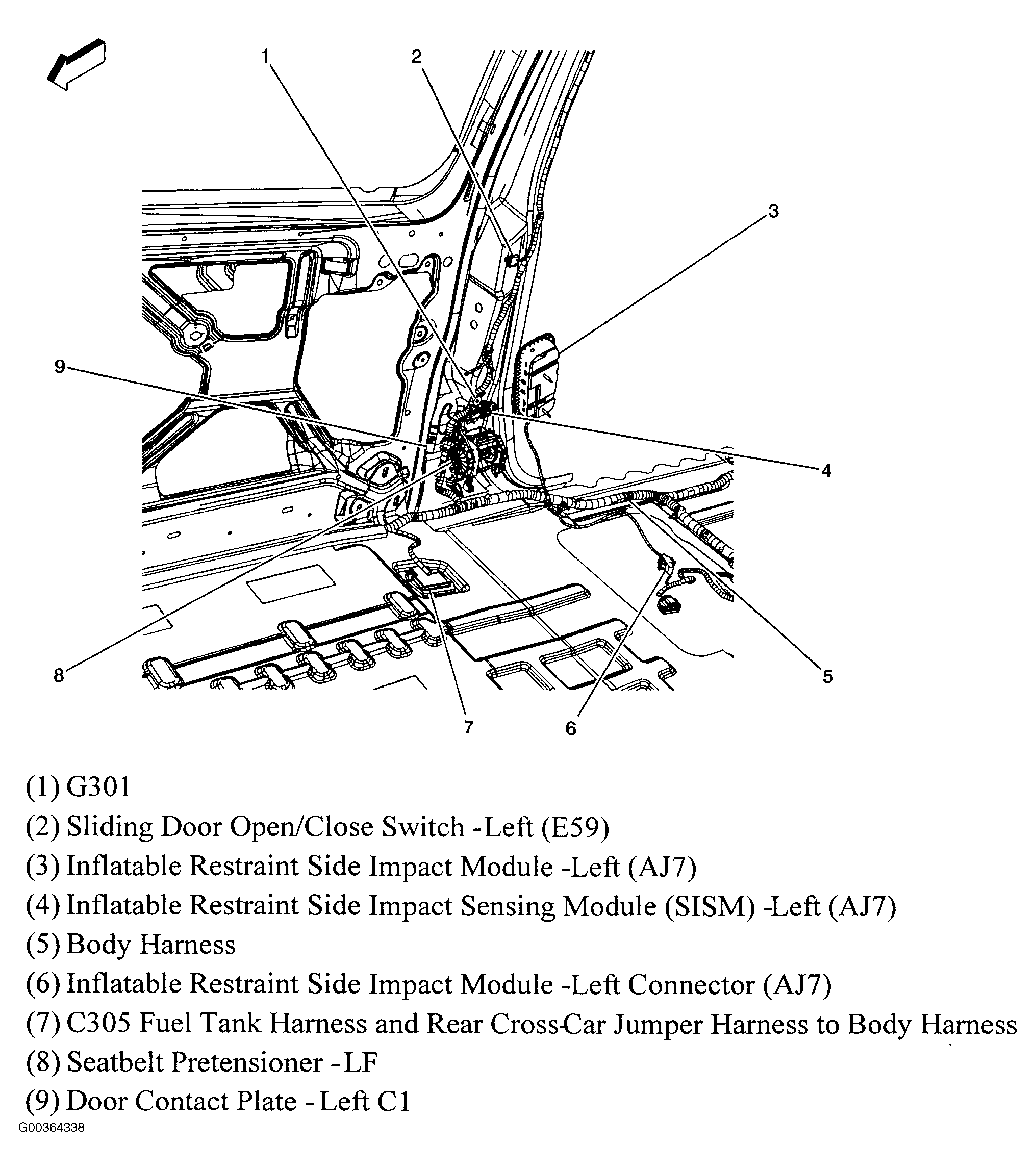

Fig 40: Left "B" Pillar
Courtesy of GENERAL MOTORS CORP.

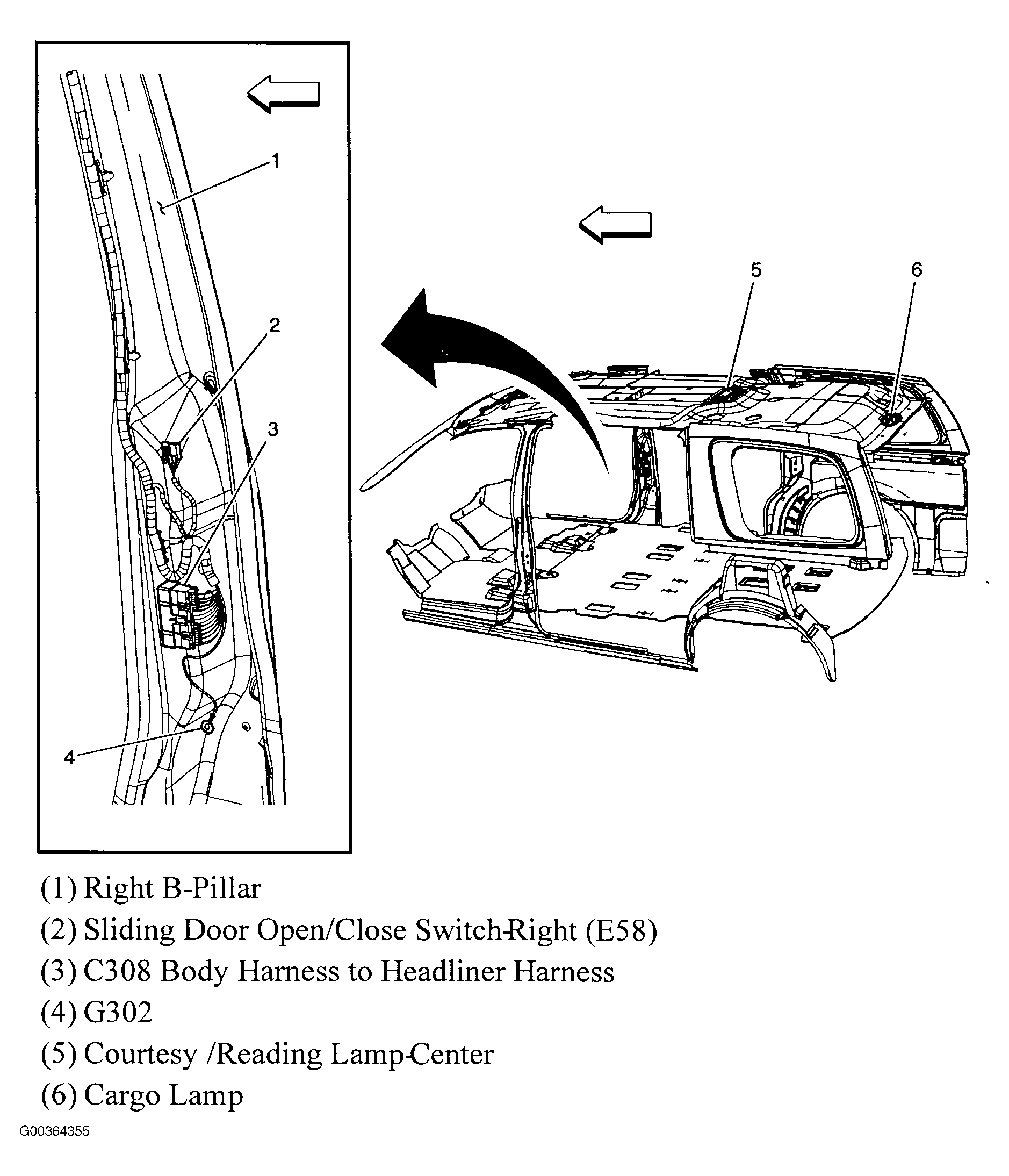

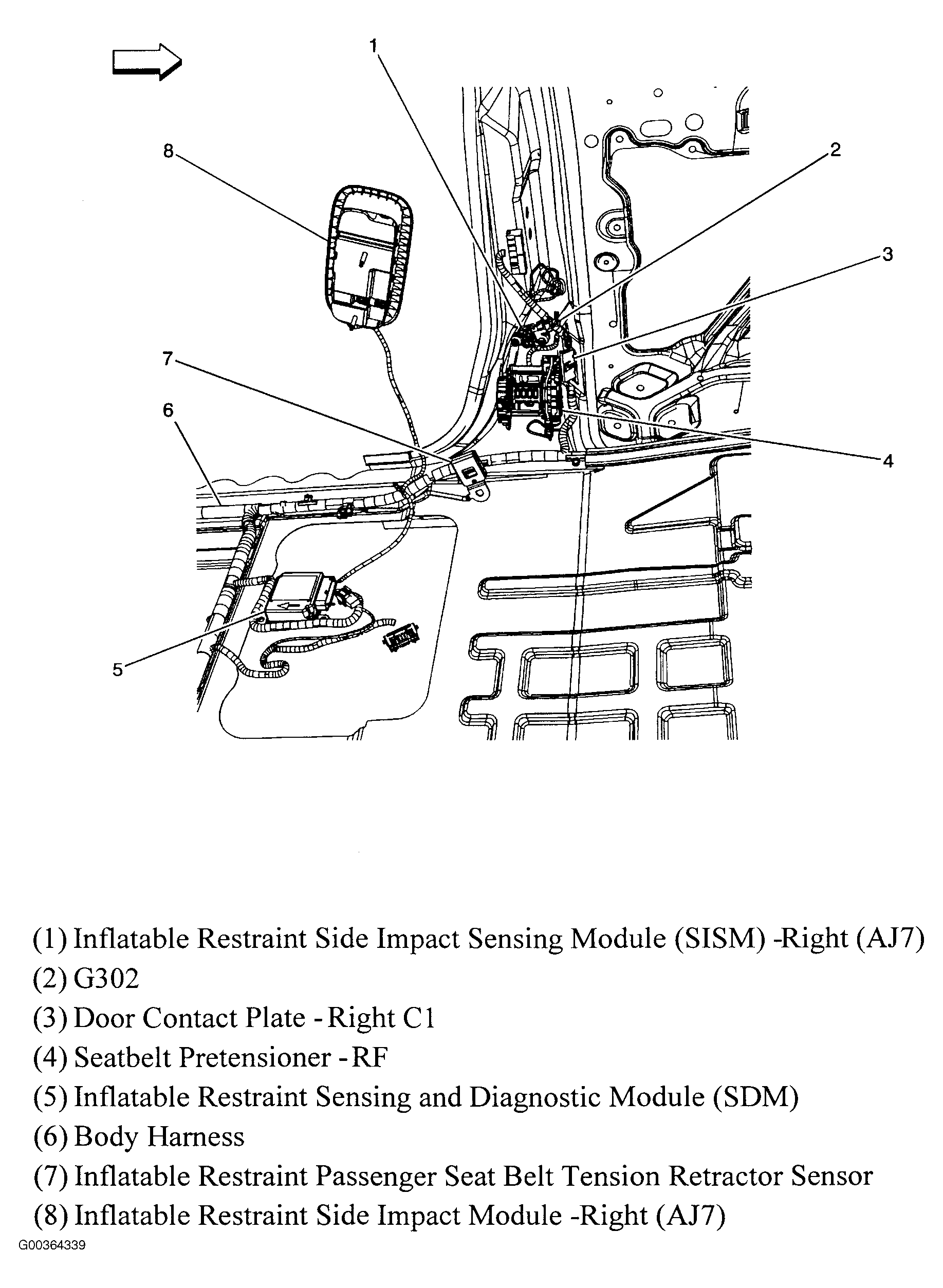

Fig 41: Right "B" Pillar
Courtesy of GENERAL MOTORS CORP.

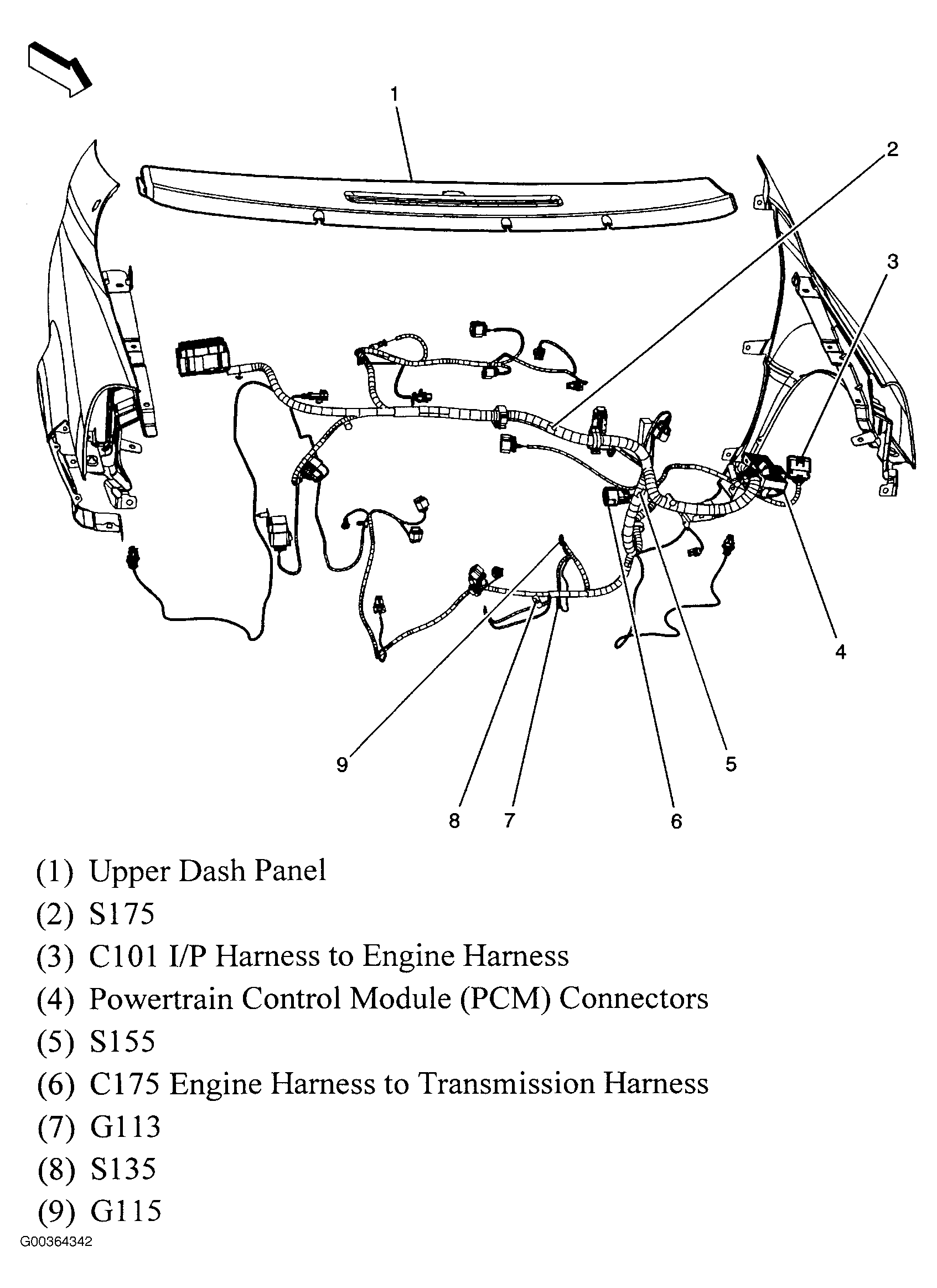

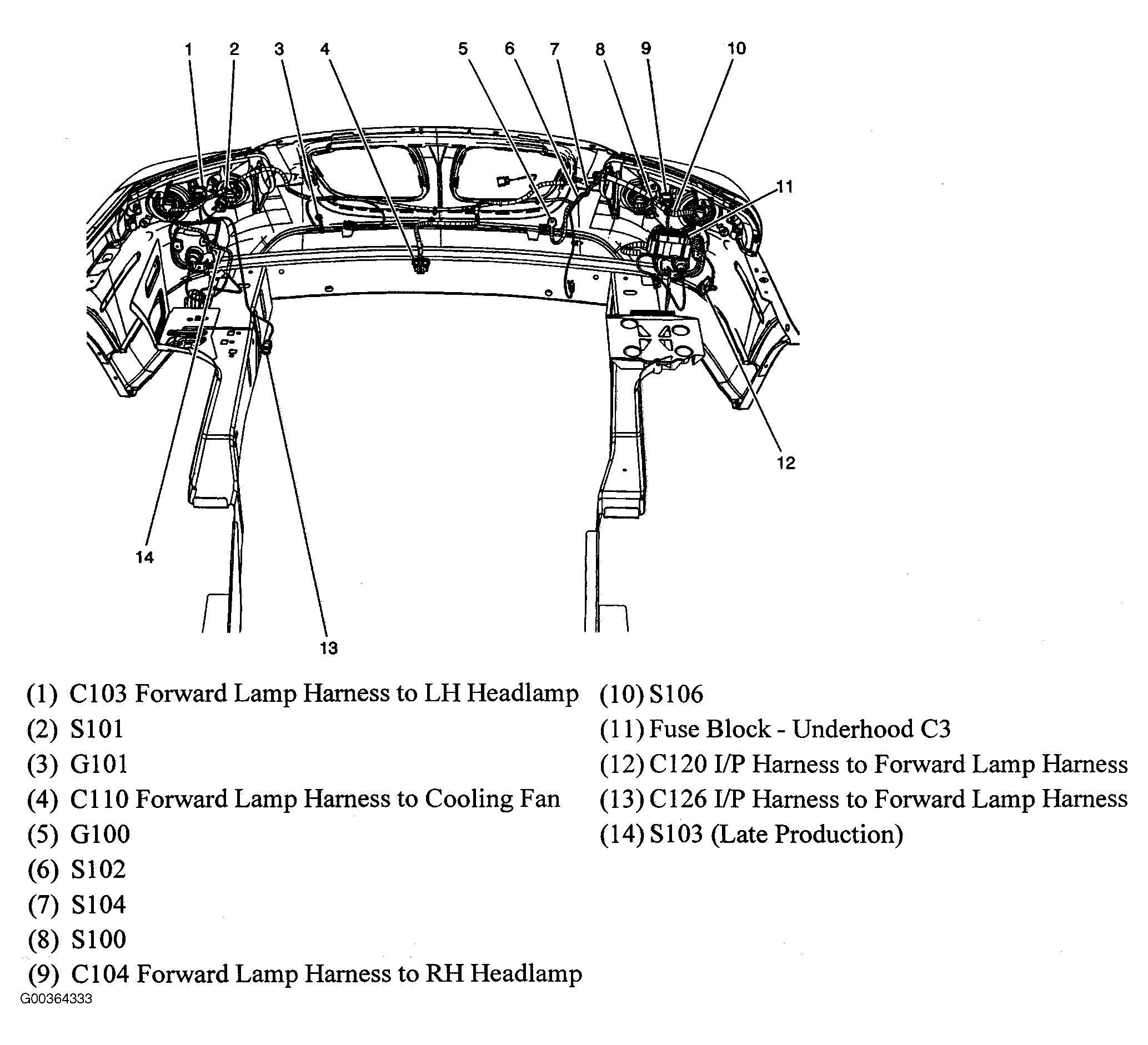

Fig 42: Engine Compartment Harness
Courtesy of GENERAL MOTORS CORP.
Fig 43: Engine Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 44: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 45: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 46: Dash
Courtesy of GENERAL MOTORS CORP.

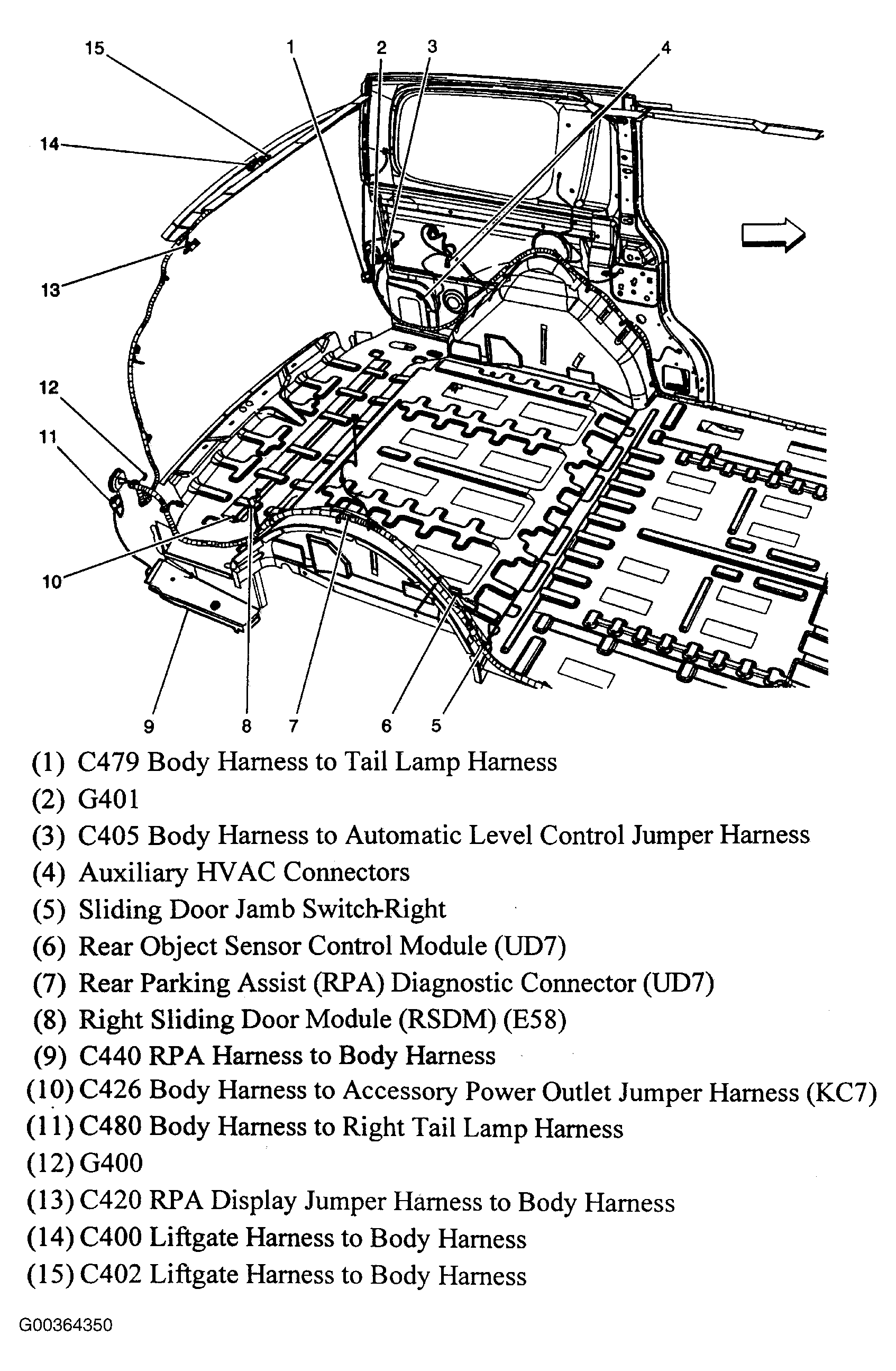

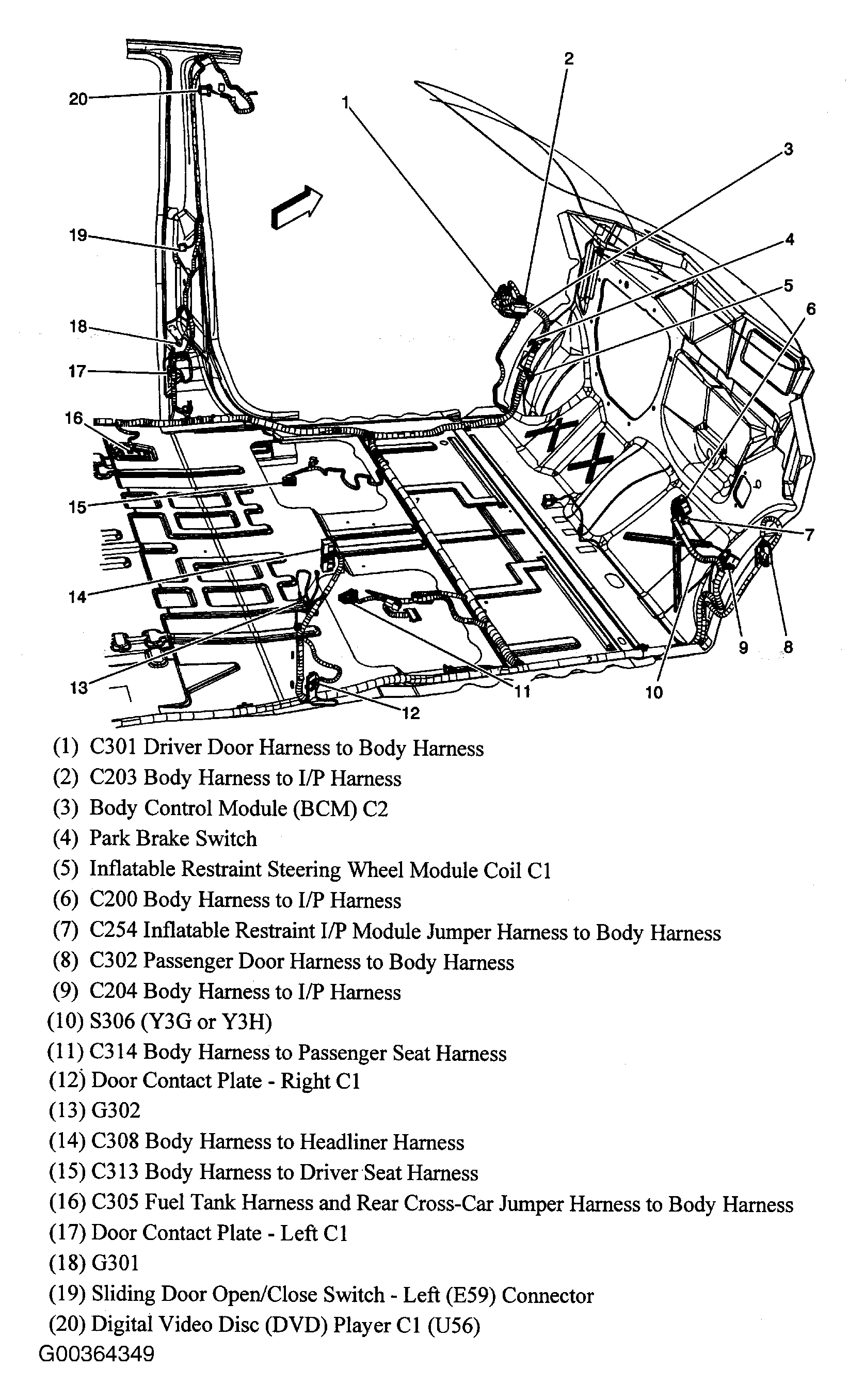

Fig 47: Floor Pan
Courtesy of GENERAL MOTORS CORP.

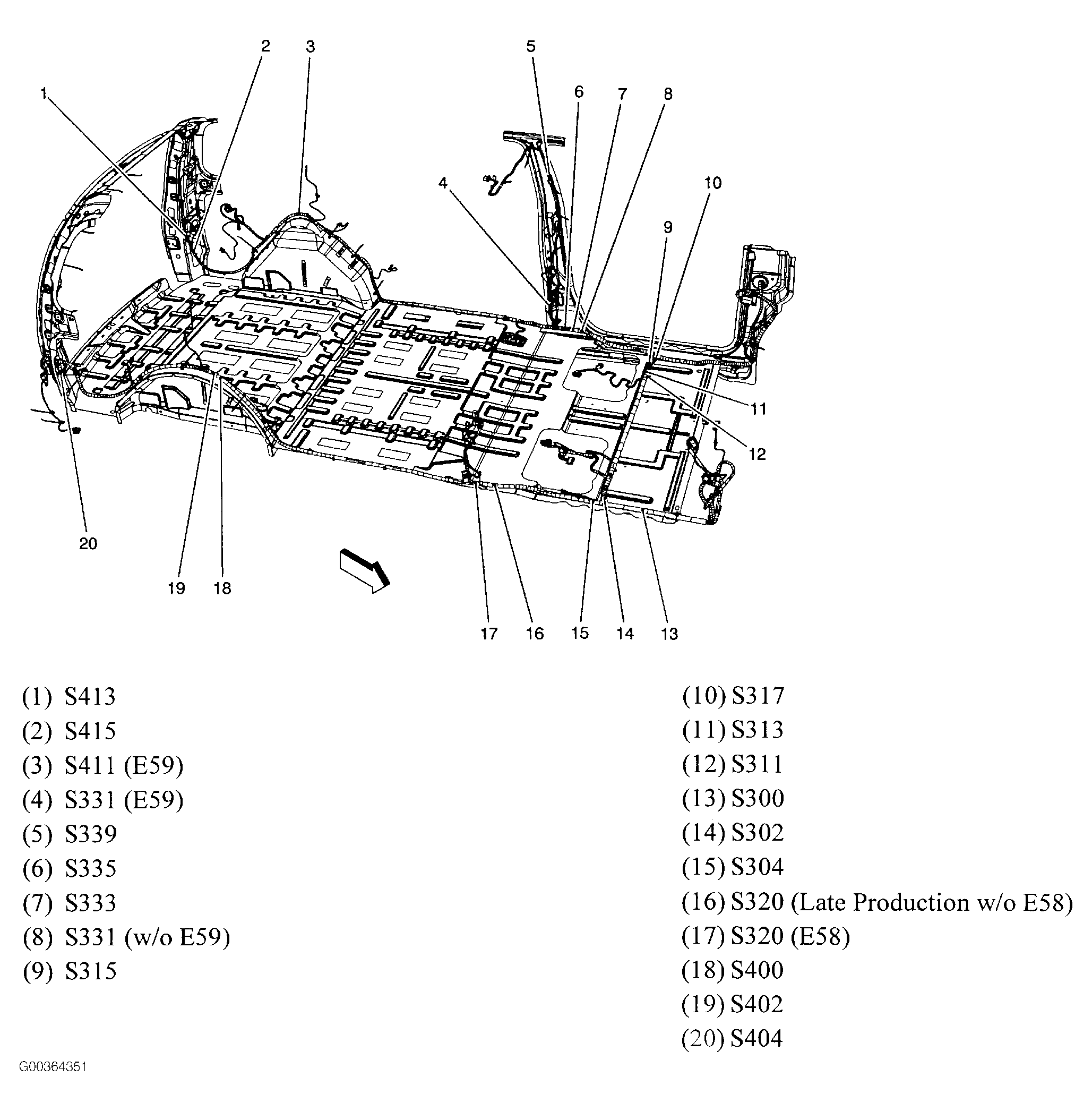

Fig 48: Floor Pan
Courtesy of GENERAL MOTORS CORP.
Fig 49: Floor Pan
Courtesy of GENERAL MOTORS CORP.

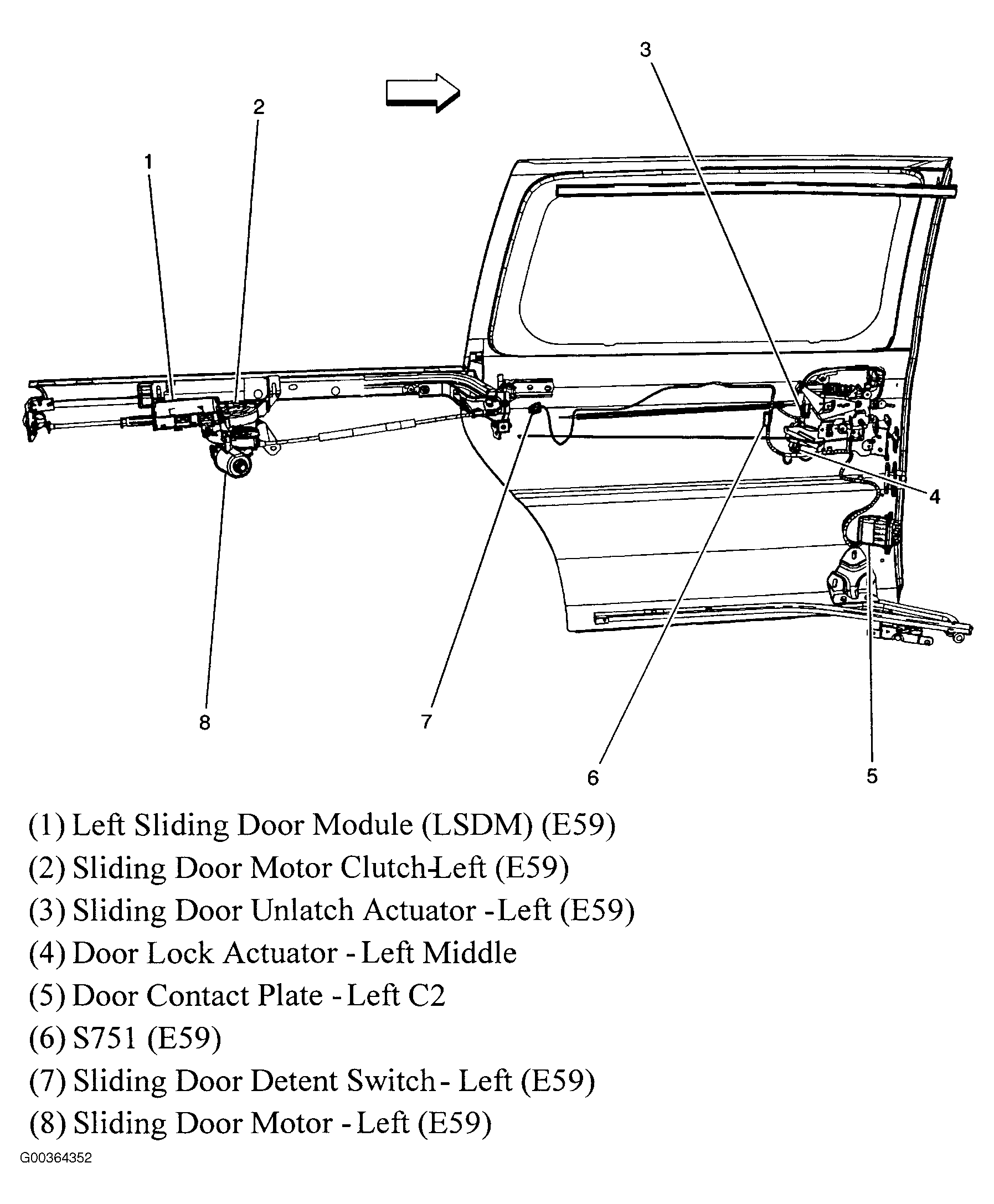

Fig 50: Left Sliding Door
Courtesy of GENERAL MOTORS CORP.

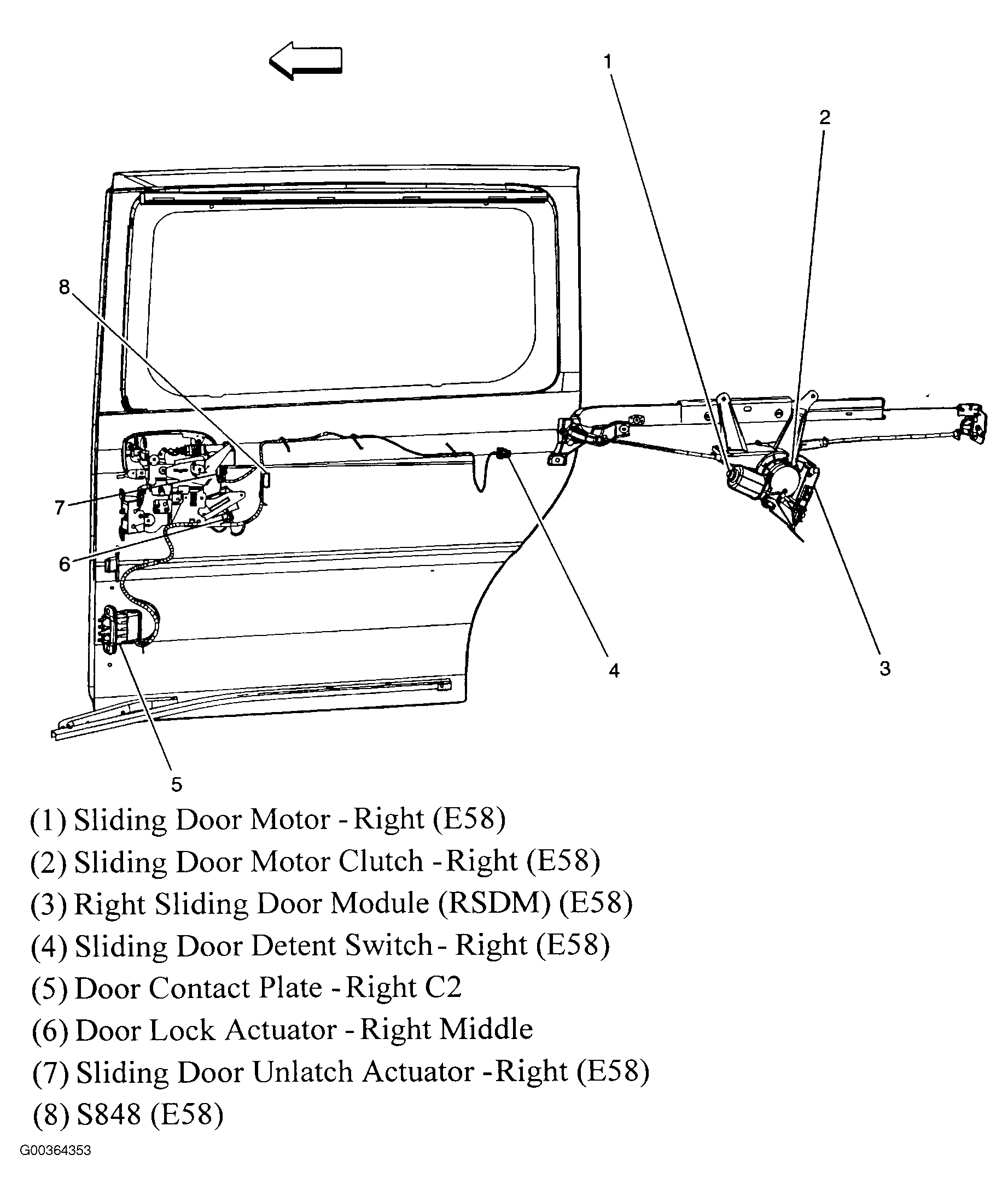

Fig 51: Right Sliding Door
Courtesy of GENERAL MOTORS CORP.
Fig 52: Headliner Harness Components
Courtesy of GENERAL MOTORS CORP.
Fig 53: Right "B" Pillar
Courtesy of GENERAL MOTORS CORP.

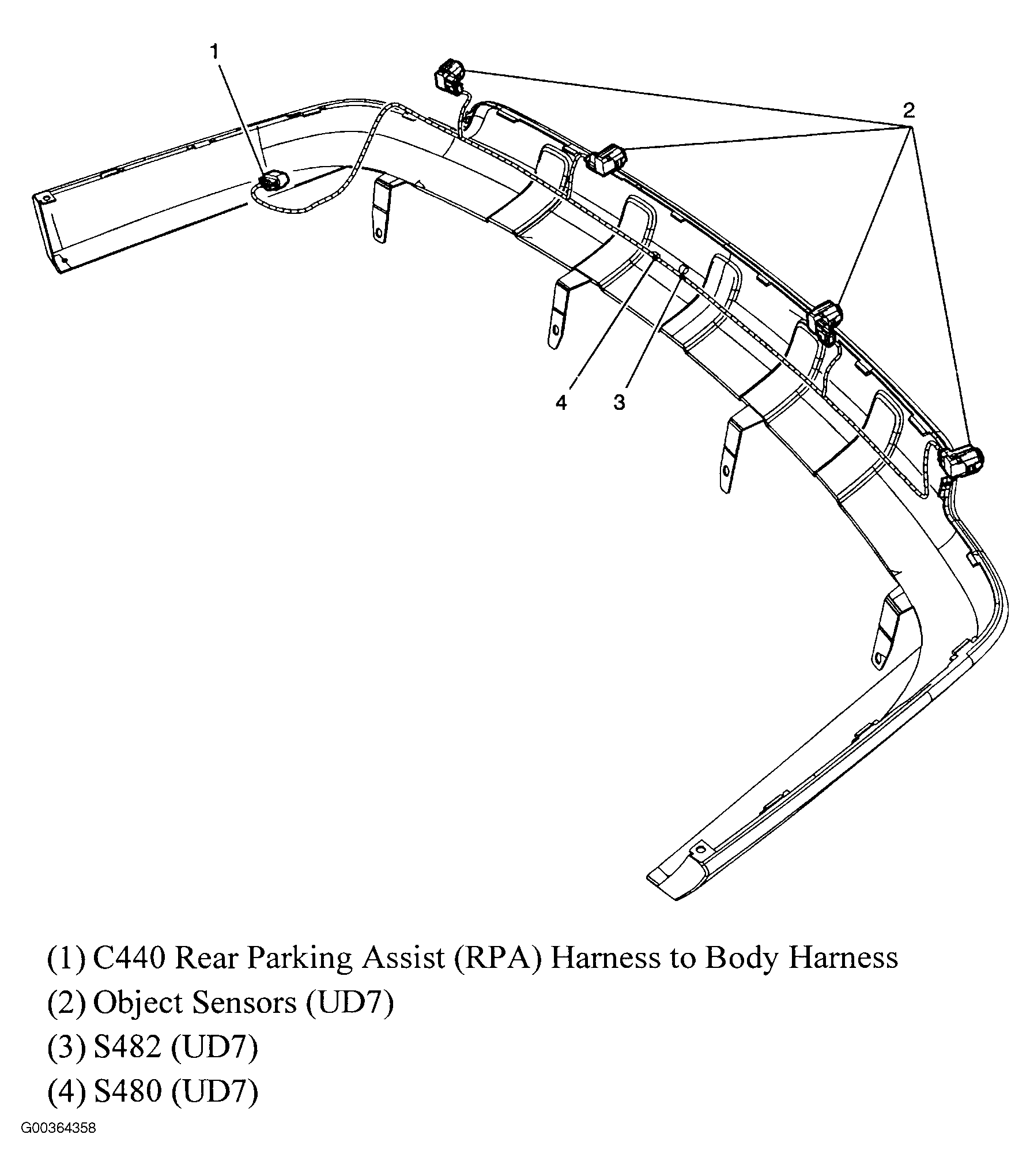

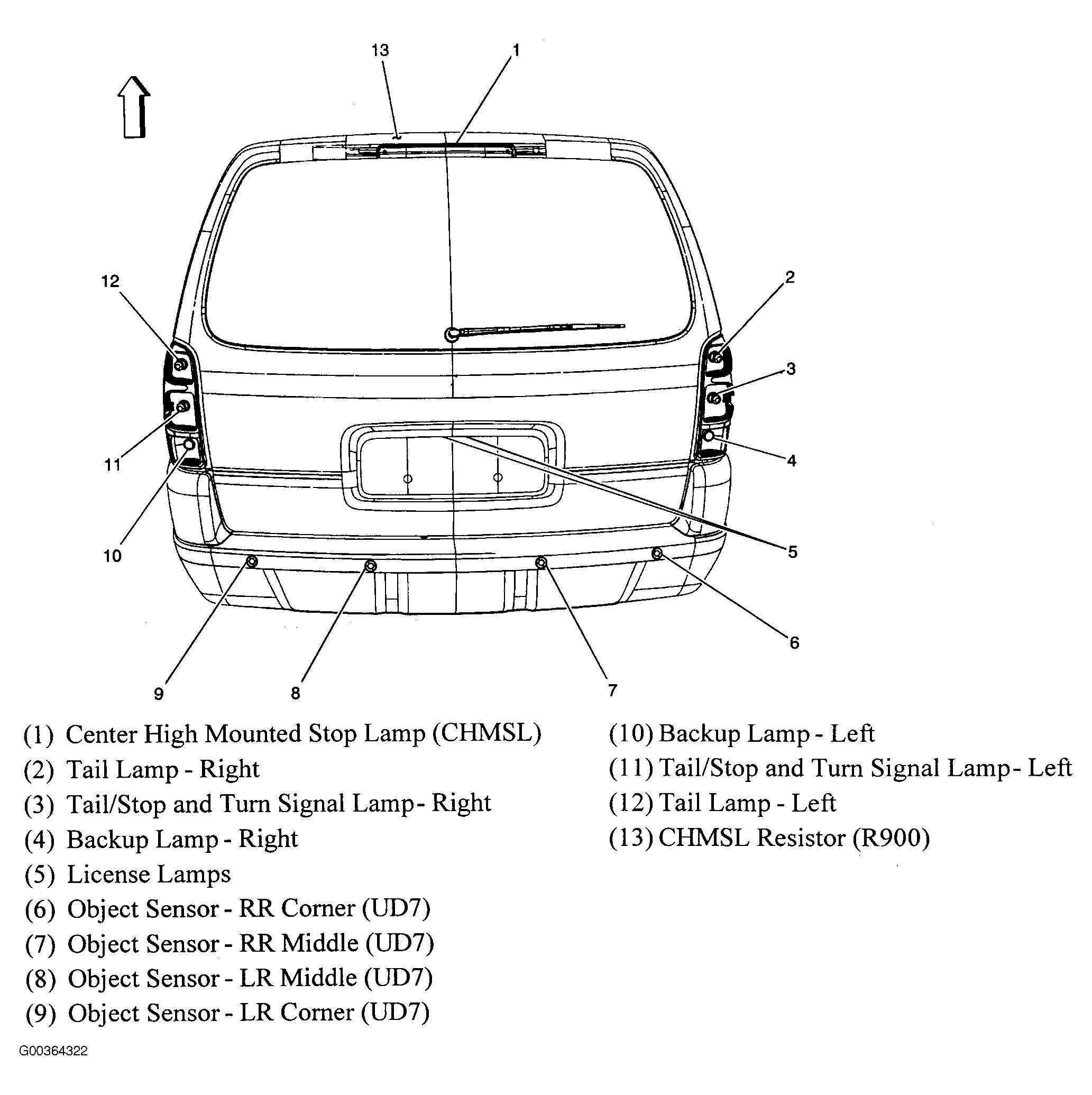

Fig 54: Rear Lower Bumper
Courtesy of GENERAL MOTORS CORP.

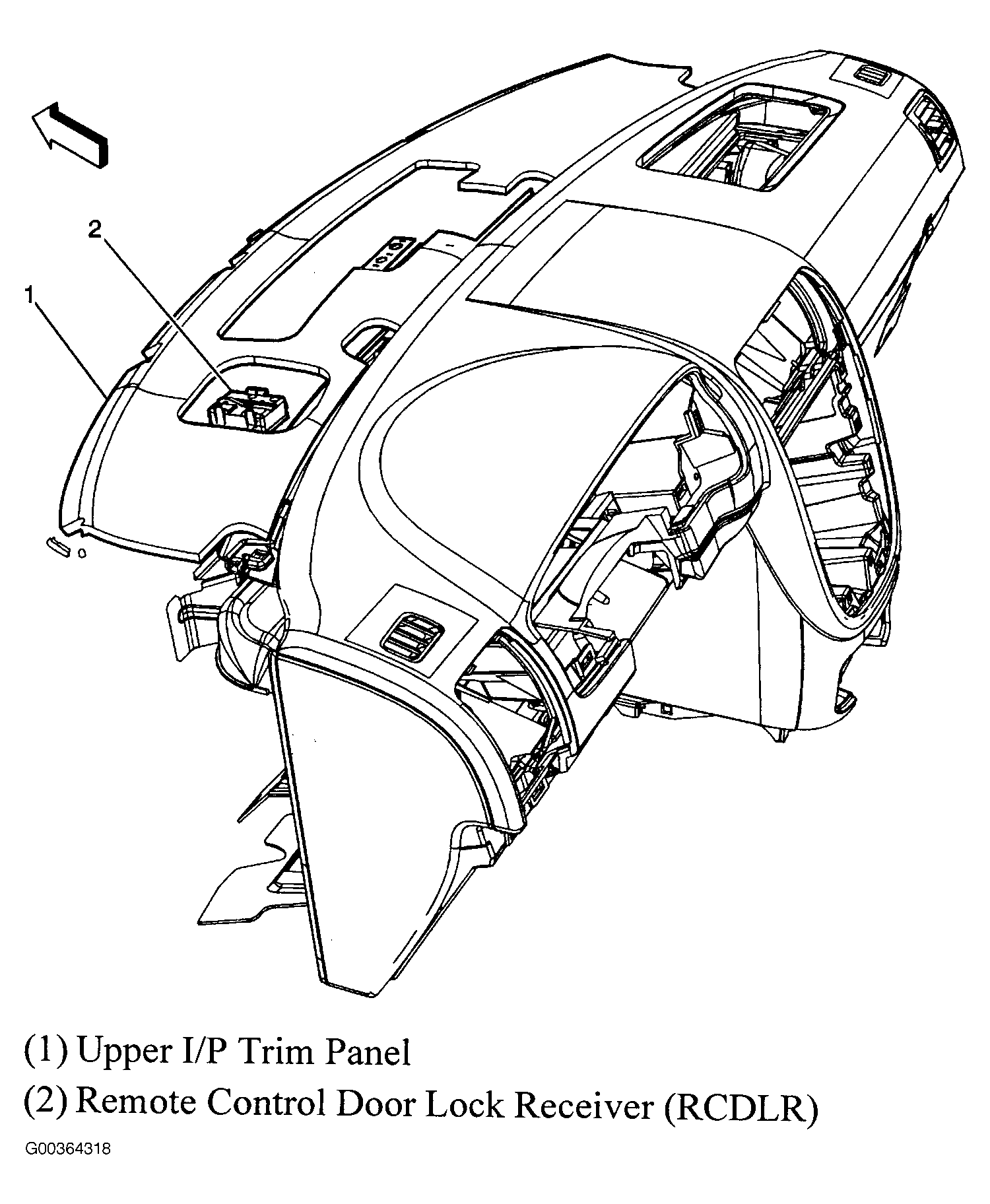

Fig 55: Top Of Dash
Courtesy of GENERAL MOTORS CORP.
