Installation Procedure

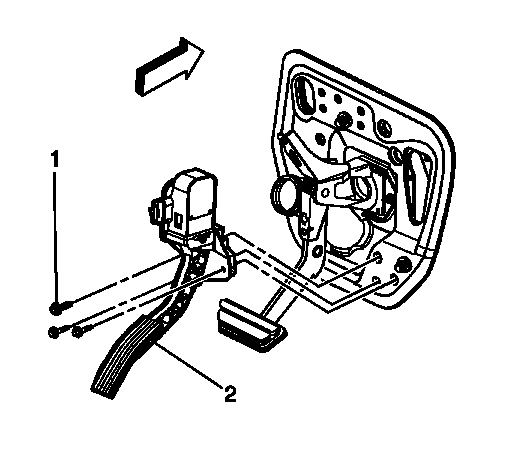

    Fig 1: Disconnecting/Reconnecting Accelerator Pedal Position Sensor Electrical Connector
    GM1544734Courtesy of GENERAL MOTORS CORP.
  1. Install the accelerator assembly (2) to the vehicle.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the accelerator mounting bolts (1) to the accelerator bracket.

    Tighten:  Tighten the accelerator pedal nuts to 10 N.m (89 lb in).

  3. Connect the accelerator pedal position sensor electrical connector.
  4. Confirm that the accelerator sensor CPA clip is fully secured.
  5. Install the insulator panel. Refer to Knee Bolster, Insulator, Molding Replacement - Instrument Panel in Instrument Panel, Gages and Console.
  6. Verify the operation of the accelerator pedal.
