Installation Procedure

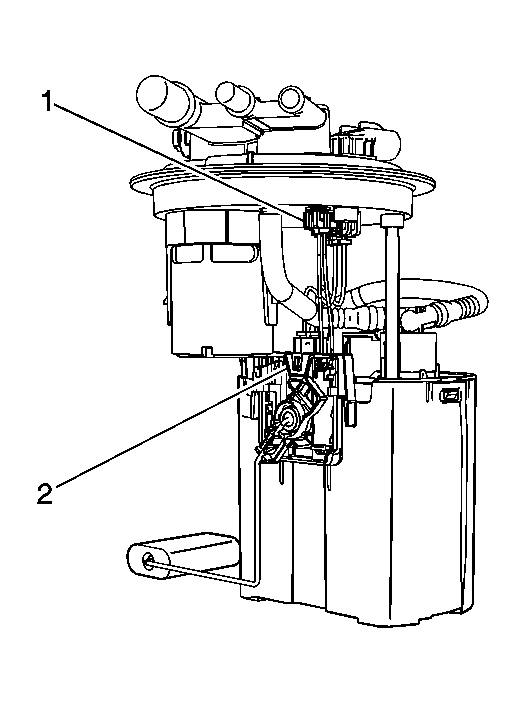

    Fig 1: View Of Fuel Level Sensor
    GM1544791Courtesy of GENERAL MOTORS CORP.
  1. Install the fuel level sensor to the modular fuel sender.
  2. Install the fuel sender assembly. Refer to Fuel Sender Assembly Replacement (Short Wheel Base)  or Fuel Sender Assembly Replacement (Long Wheel Base) .
