Removal Procedure

  1. Disconnect the brake booster vacuum hose from the intake manifold.
  2. Note the position of the spark plug wires for the installation and disconnect the spark plug wires from the ignition coil and module assembly.

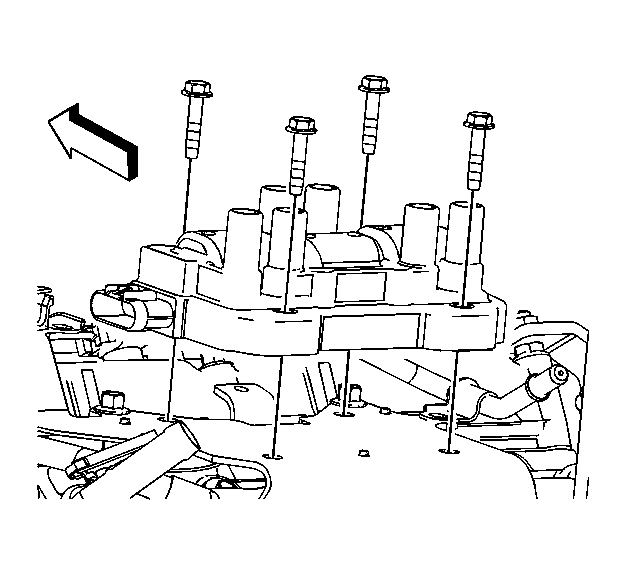

    3. Fig 1: Removing/Installing 4 Screws Securing Ignition Coil And Module Assembly To Bracket
    GM1238999Courtesy of GENERAL MOTORS CORP.
  3. Remove the 4 screws securing the ignition coil and module assembly to the bracket.
  4. Remove the ignition coil and module assembly.
