Body Control Module Replacement

WARNING: This page is about a different car, the 2007 Pontiac Montana SV6, 2007 Chevrolet Uplander, and 2007 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

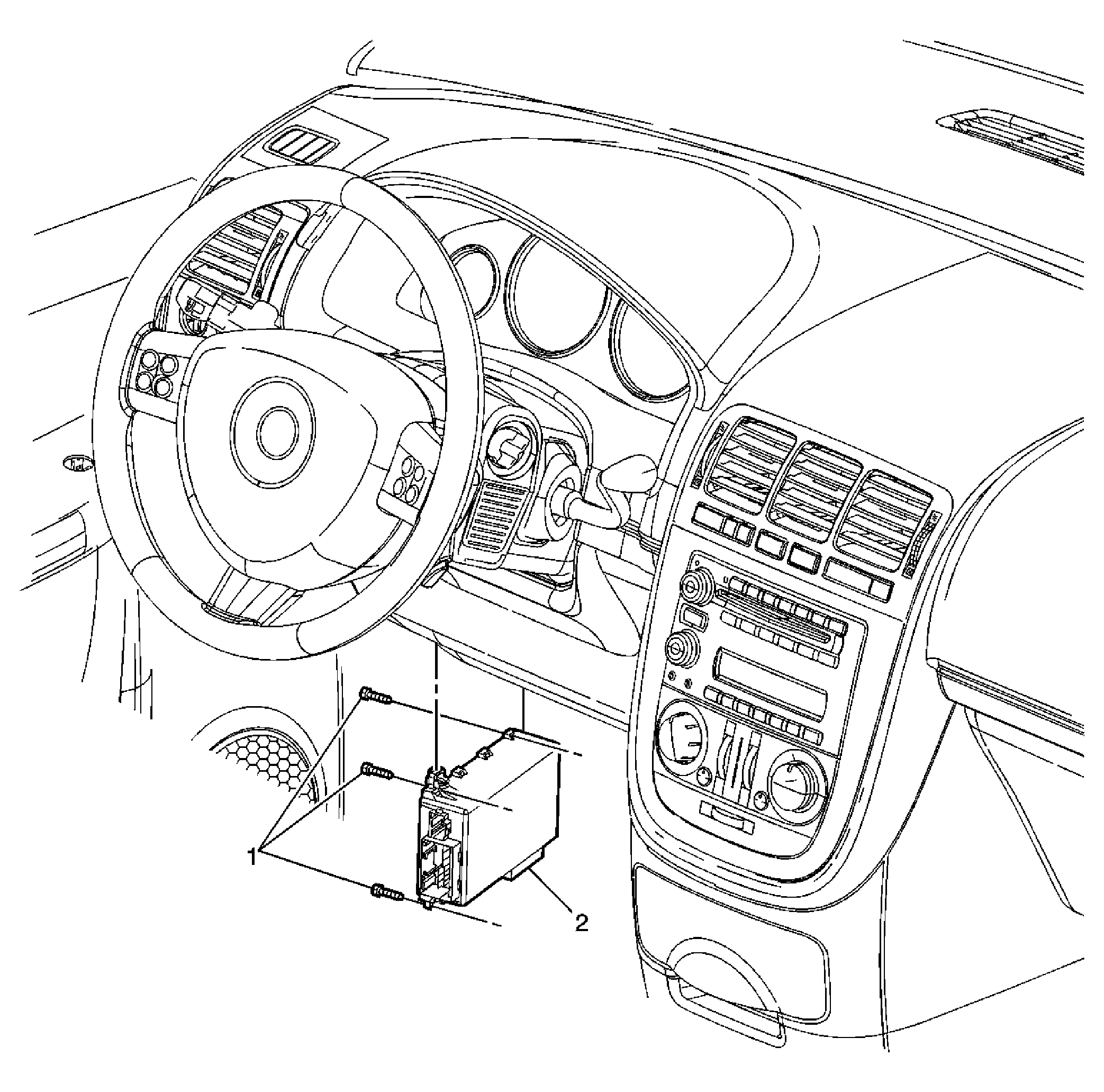

Fig 1: Locating Body Control Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the drivers side instrument panel (I/P) insulator. Refer# to Instrument Panel Insulator Panel Replacement .
1	Body Control Module Screws (Qty: 4) NOTE: Refer# to Fastener Notice . Tighten: 2 N.m (18 lb ft)
2	Body Control Module Tip: Disconnect the electrical connectors. Reprogram the body control module. Refer# to Control Module References for programming and setup information.
