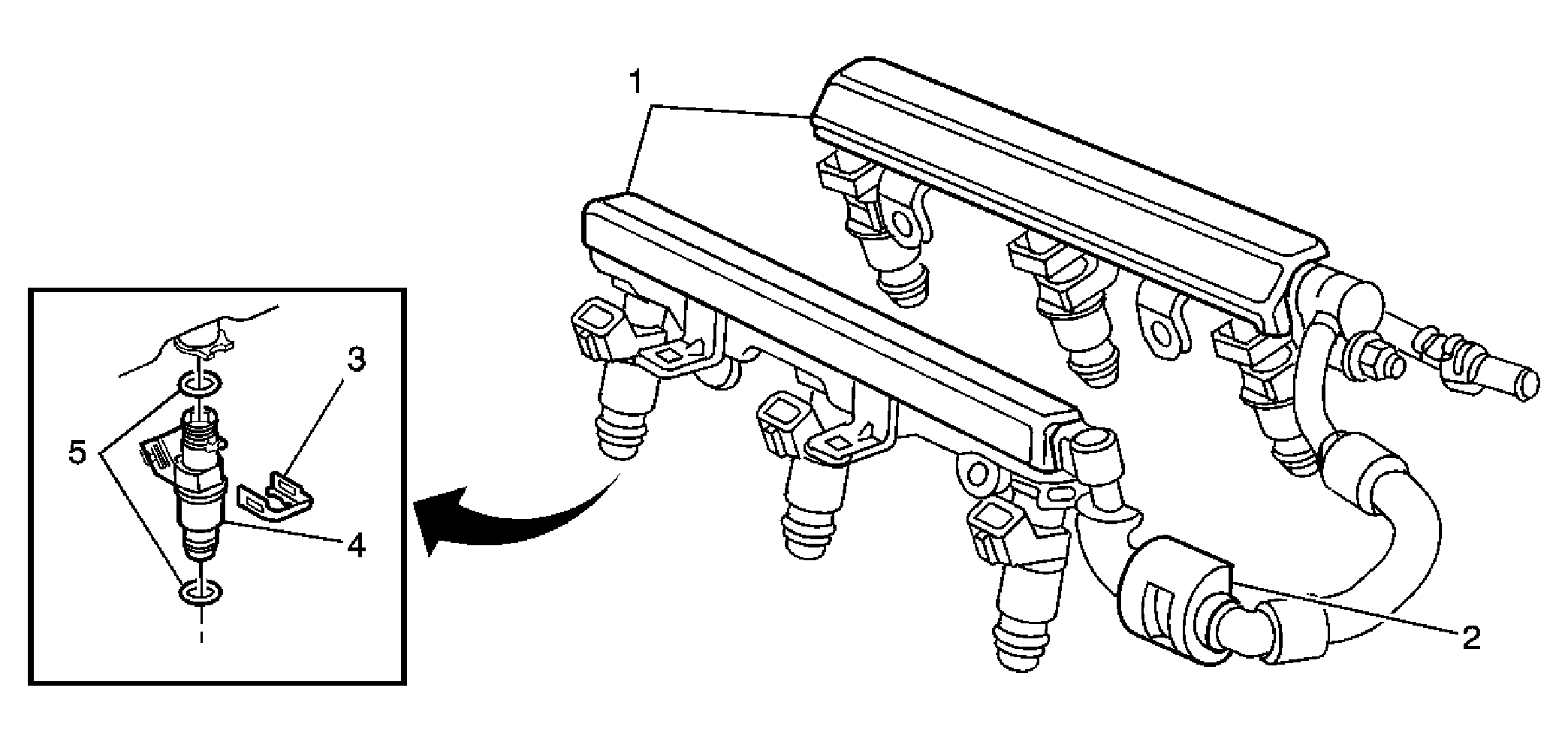

Fuel Rail
| Callout | Component Name |
|---|---|
| 1 | Fuel Rails |
| 2 | Quick Connect Coupling |
| 3 | Retaining Clip |
| 4 | Fuel Injector |
| 5 | O-rings |
The fuel rail is mounted on the intake manifold and distributes the fuel to each cylinder through the individual injectors. The fuel is delivered from the pump through the fuel supply line to the inlet pipe of the fuel rail. The fuel inlet pipe directs fuel to both the front and the rear fuel rails (1) suppling the individual fuel injector (4).
