Removal Procedure

Loosen the clamp at the air cleaner assembly.

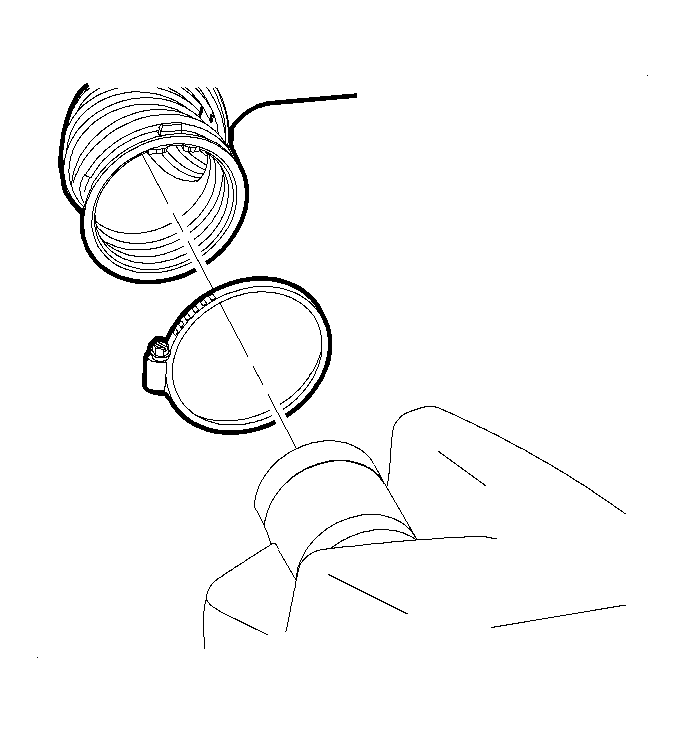

Fig 1: View Of Air Cleaner Element
Courtesy of GENERAL MOTORS CORP.
Disconnect the IAT 1 sensor connector.
Remove the air cleaner assembly top cover and filter element.

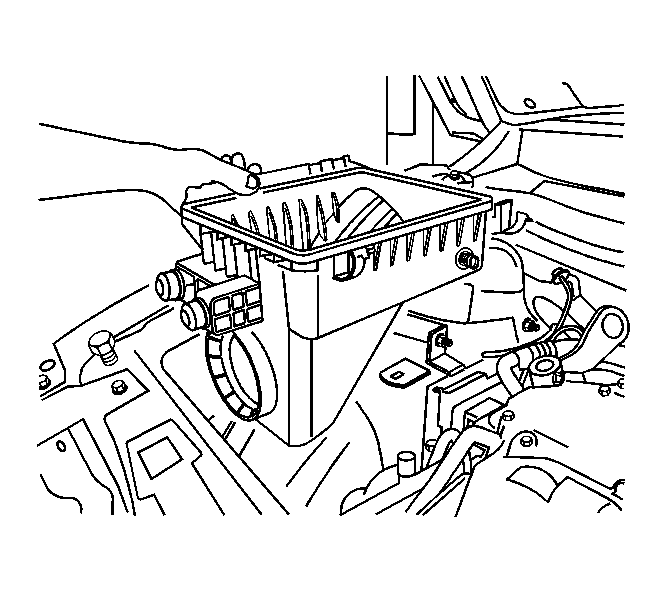

Fig 2: View Of Filter Element & Air Cleaner Assembly
Courtesy of GENERAL MOTORS CORP.
Remove the air cleaner assembly bolt.
Remove the air cleaner assembly.

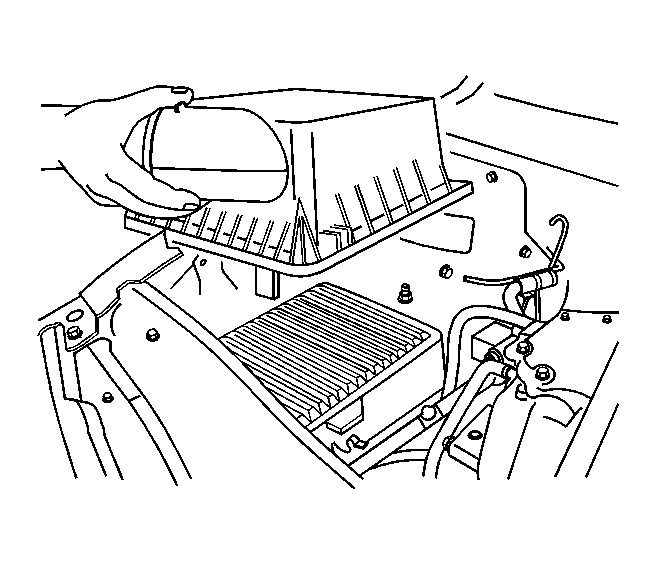

Fig 3: View Of Air Cleaner Assembly
Courtesy of GENERAL MOTORS CORP.
