Installation Procedure

Install the inlet duct assembly.

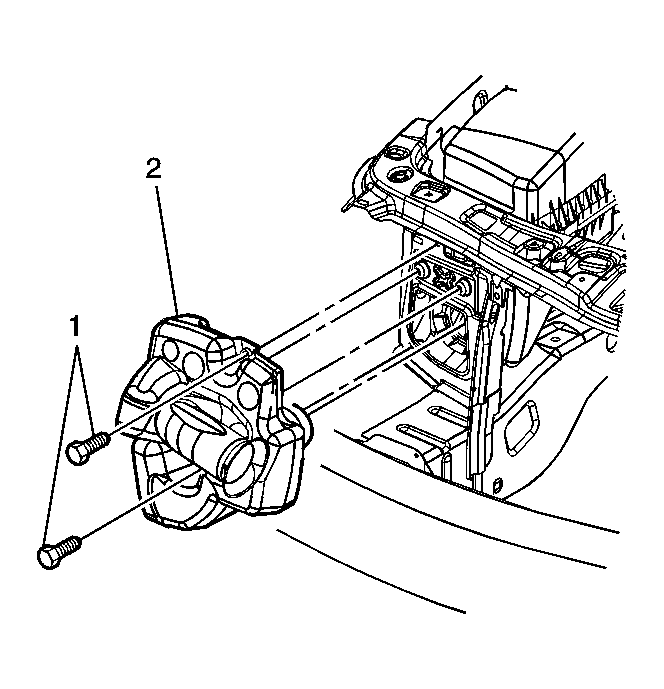

Fig 1: View Of Inlet Duct Assembly
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the inlet duct assembly bolts.
Tighten: Tighten the bolts to 10 N.m (89 lb. in.).
Install the front fascia. Refer to Fascia Replacement - Front Bumper in Bumpers.
