Installation Procedure

    NOTE: Fuel/Vapor lines cannot be spliced or repaired. The line must be replaced (if damaged) with the same type of line.
  1. Make sure the lines are not kinked, bent, or damaged.
  2. Install the fuel and EVAP lines into underbody retainers. Make sure the lines are properly routed and attach retainers to the vehicle.

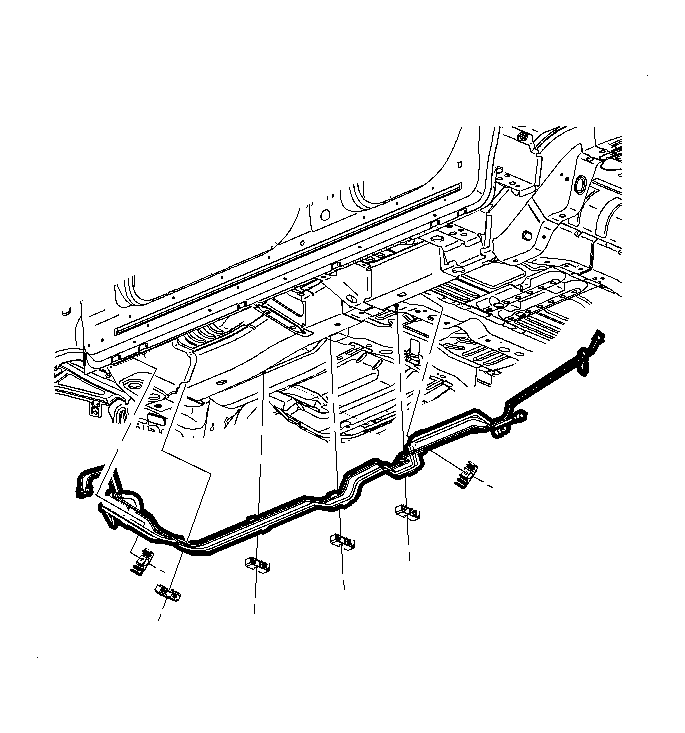

    Fig 1: View Of Fuel & EVAP Lines Onto Underbody Retainers
    GM934016Courtesy of GENERAL MOTORS CORP.
  3. Connect the EVAP purge line onto the EVAP canister.
  4. Lower the vehicle from the hoist.
  5. Connect the fuel feed line to fuel rail and install the safety clip.

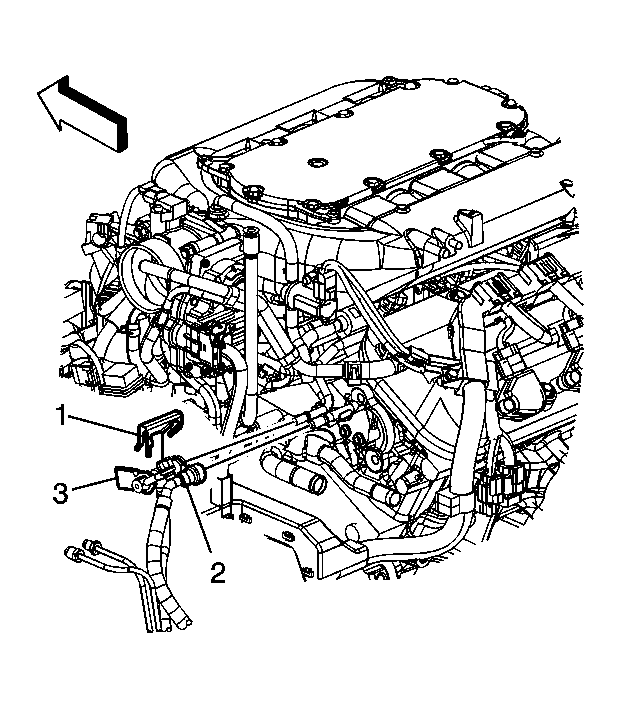

    Fig 2: View Of Fuel EVAP Line
    GM1226396Courtesy of GENERAL MOTORS CORP.
  6. Connect the negative battery terminal. Refer to Battery Negative Cable Disconnect/Connect Procedure in Engine Electrical.
  7. Prime the fuel system.
    1. Cycle the ignition ON for 5 seconds and then OFF for 10 seconds.
    2. Repeat step 7.1 twice.
    3. Crank the engine until it starts. The maximum starter motor cranking time is 20 seconds.
    4. If the engine does not start, repeat steps 7.1-7.4.
  8. Run the engine and check the system for leaks.
