Installation Procedure

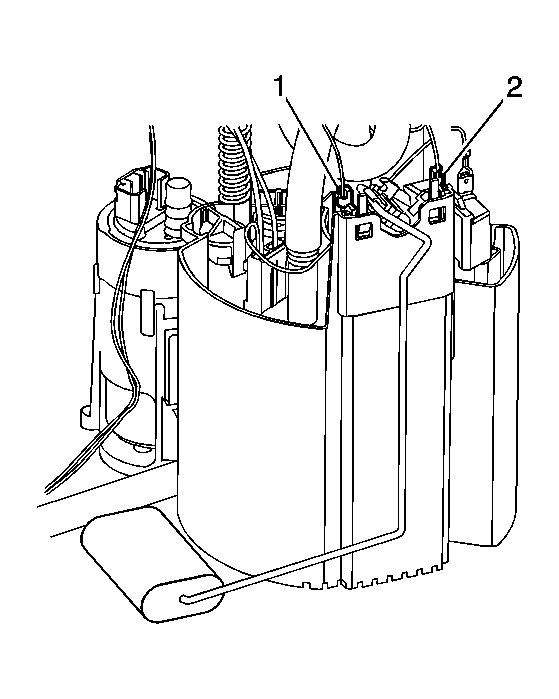

  1. Install the fuel level sender unit and float onto the fuel pump module. Make sure that the sender cap snaps into place (1, 2).
    Fig 1: View Of Fuel Level Sensor
    GM1226418Courtesy of GENERAL MOTORS CORP.
  2. Connect the fuel level sender unit and float electrical connector.
  3. Install the fuel pump module into the fuel tank. Refer to Fuel Tank Module Replacement - Primary .
  4. Install the fuel tank. Refer to Fuel Tank Replacement .
