Installation Procedure

  1. Install the IAT sensor with a new O-ring.
  2. Connect the IAT sensor harness connector. Push in the connector until a click is heard, then pull back to confirm a positive engagement.

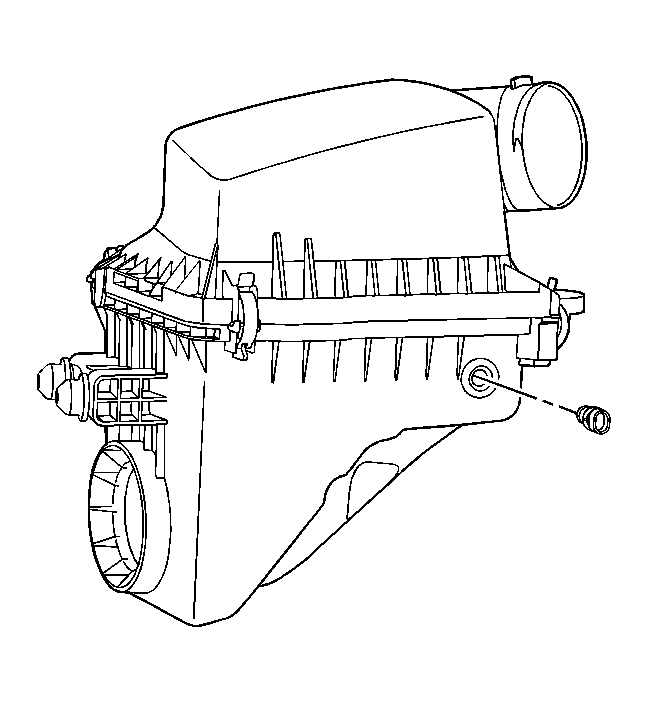

    Fig 1: View Of Intake Air Temperature (IAT) Sensor
    GM1349413Courtesy of GENERAL MOTORS CORP.
