Installation Procedure

    NOTE: Refer to Fastener Notice in Cautions and Notices.

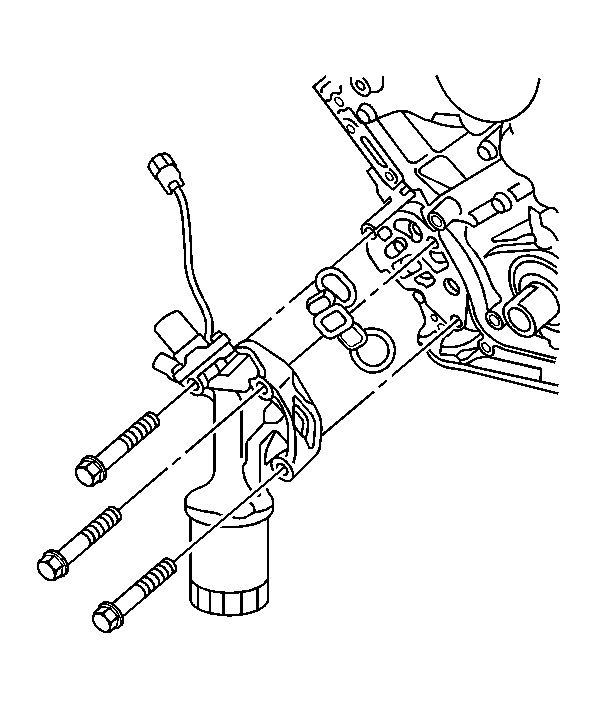

    Fig 1: View Of Oil Flow Control Module
    GM1236195Courtesy of GENERAL MOTORS CORP.
  1. Install the NEW O-ring and switch.

    Tighten:  Tighten the switch to 22 N.m (16 lb. ft.).

  2. Install the splash shield. Refer to Splash Shield Replacement - Engine in Body Front End.
  3. Install the wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
  4. Lower the vehicle.
