Engine Controls Schematics

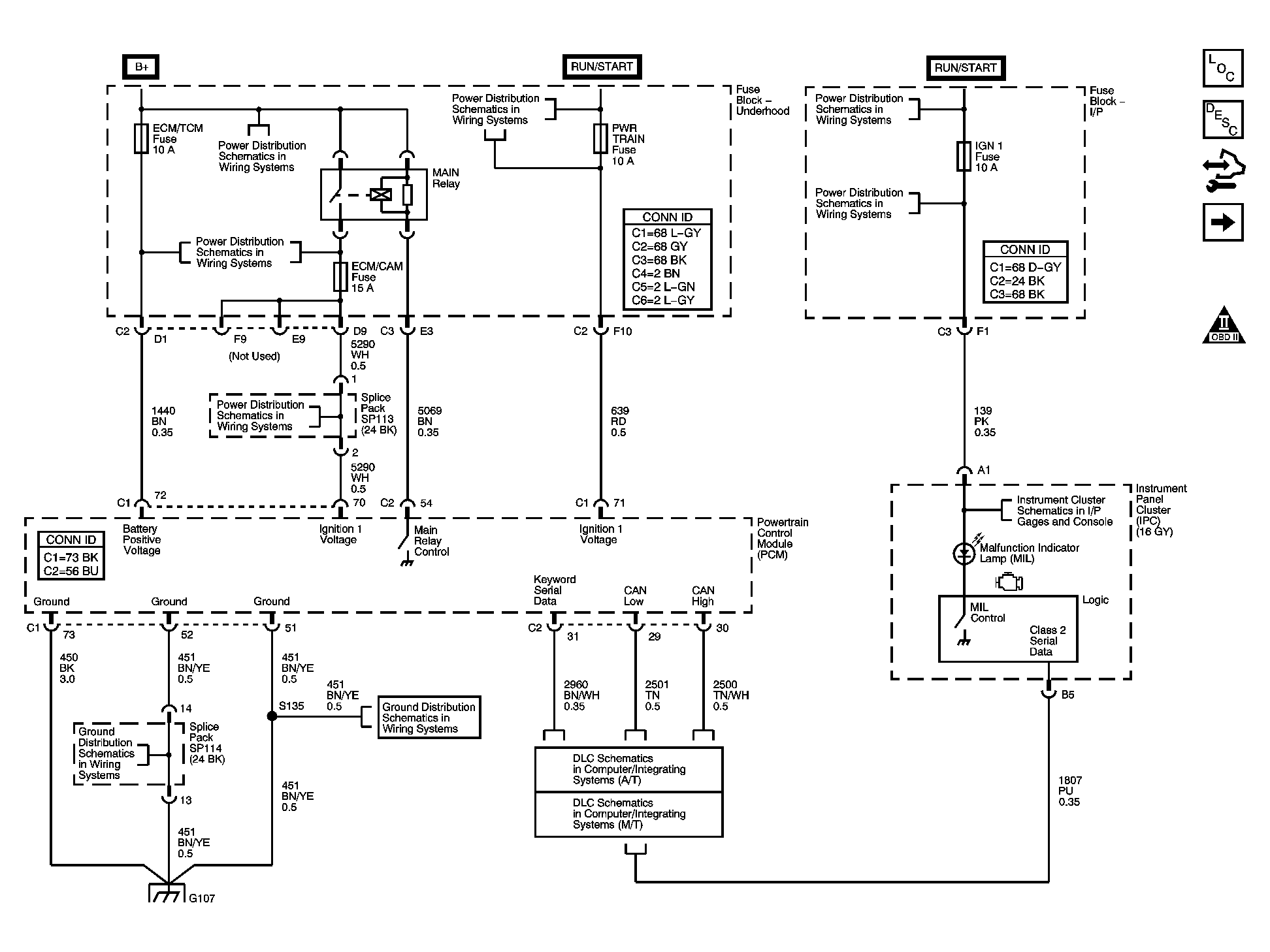

Fig 1: Module Power, Ground, Serial Data and MIL

Courtesy of GENERAL MOTORS CORP.

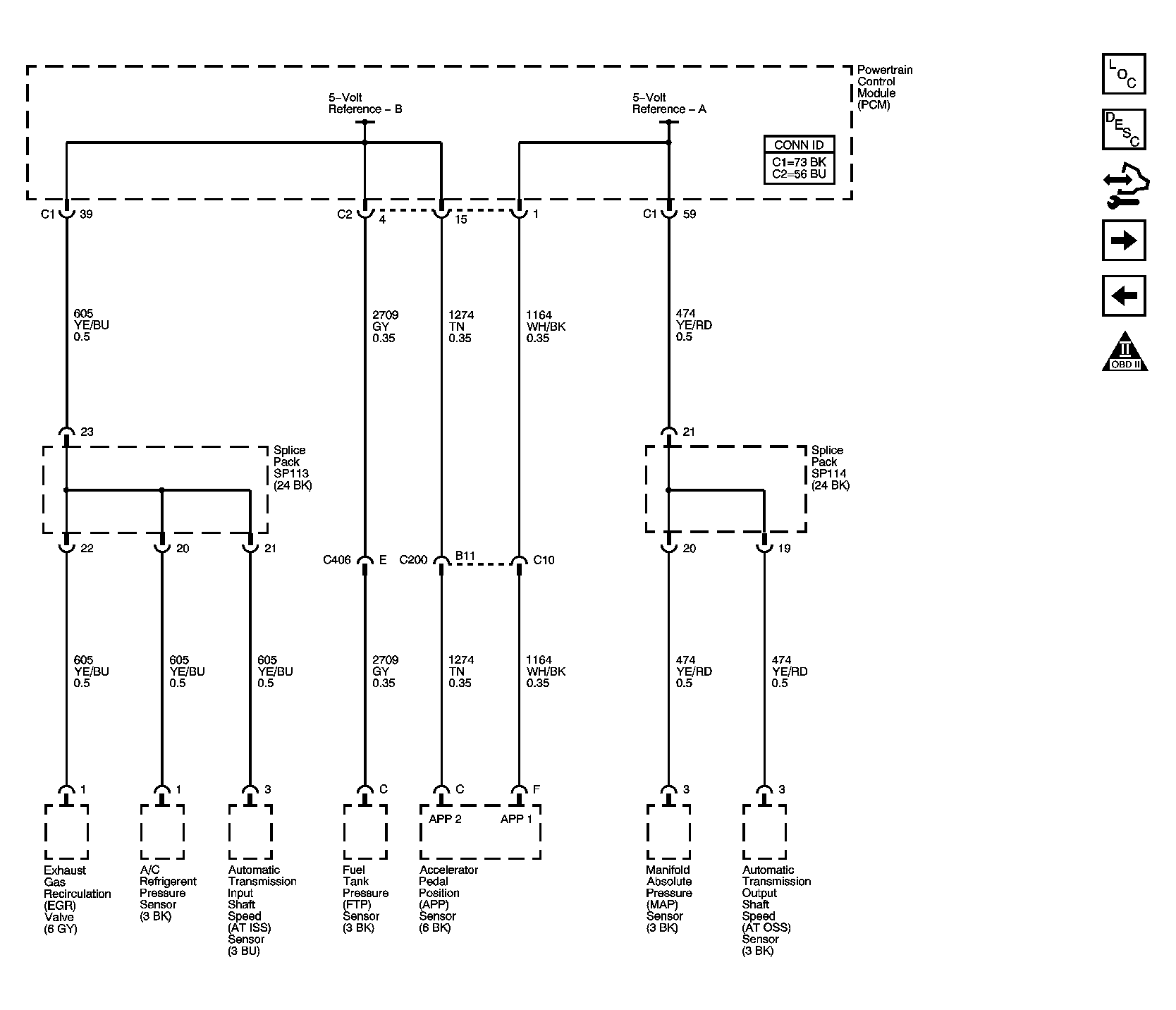

Fig 2: Engine Data Sensors - 5-Volt References

Courtesy of GENERAL MOTORS CORP.

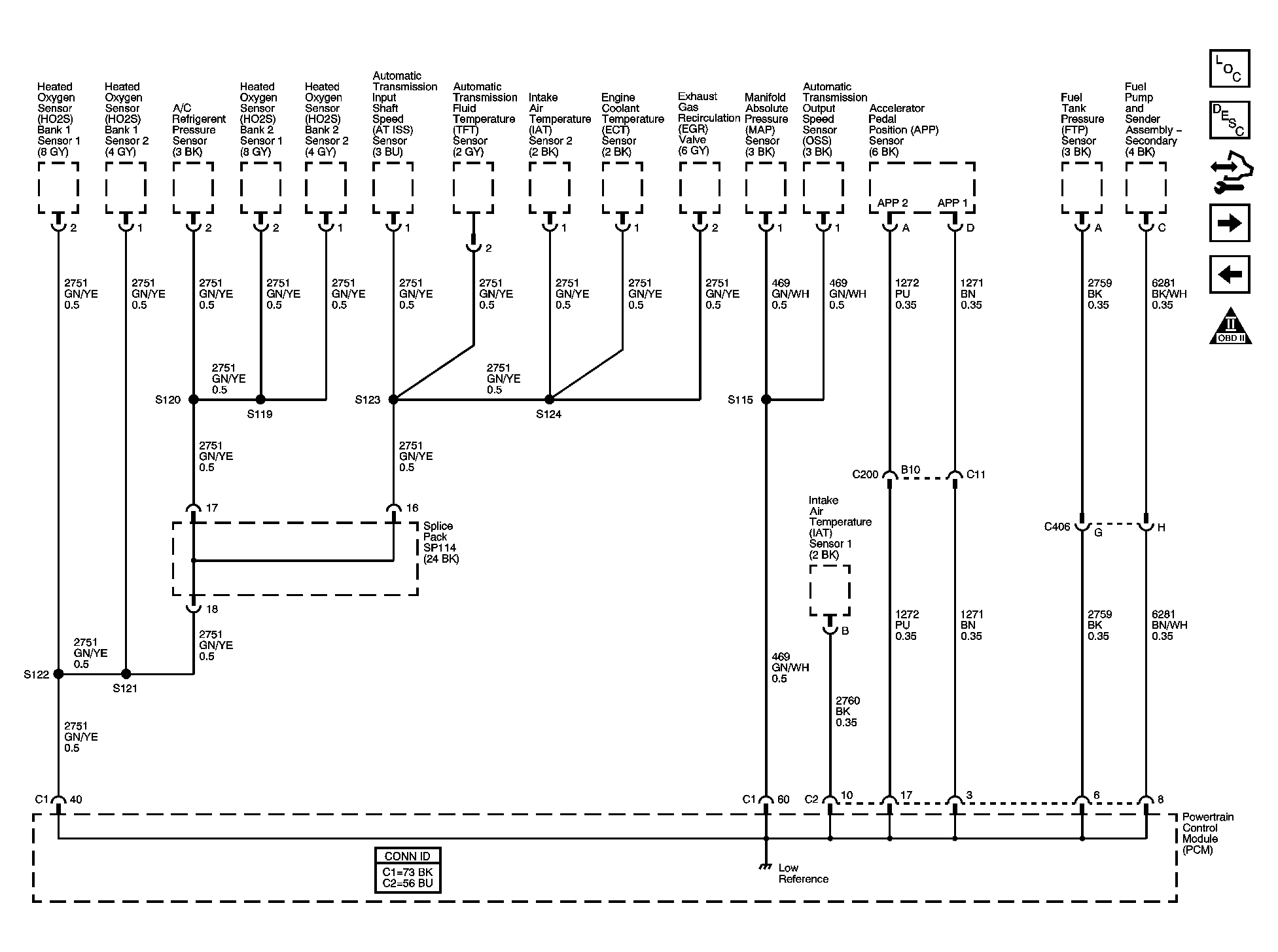

Fig 3: Engine Data Sensors - Low References

Courtesy of GENERAL MOTORS CORP.

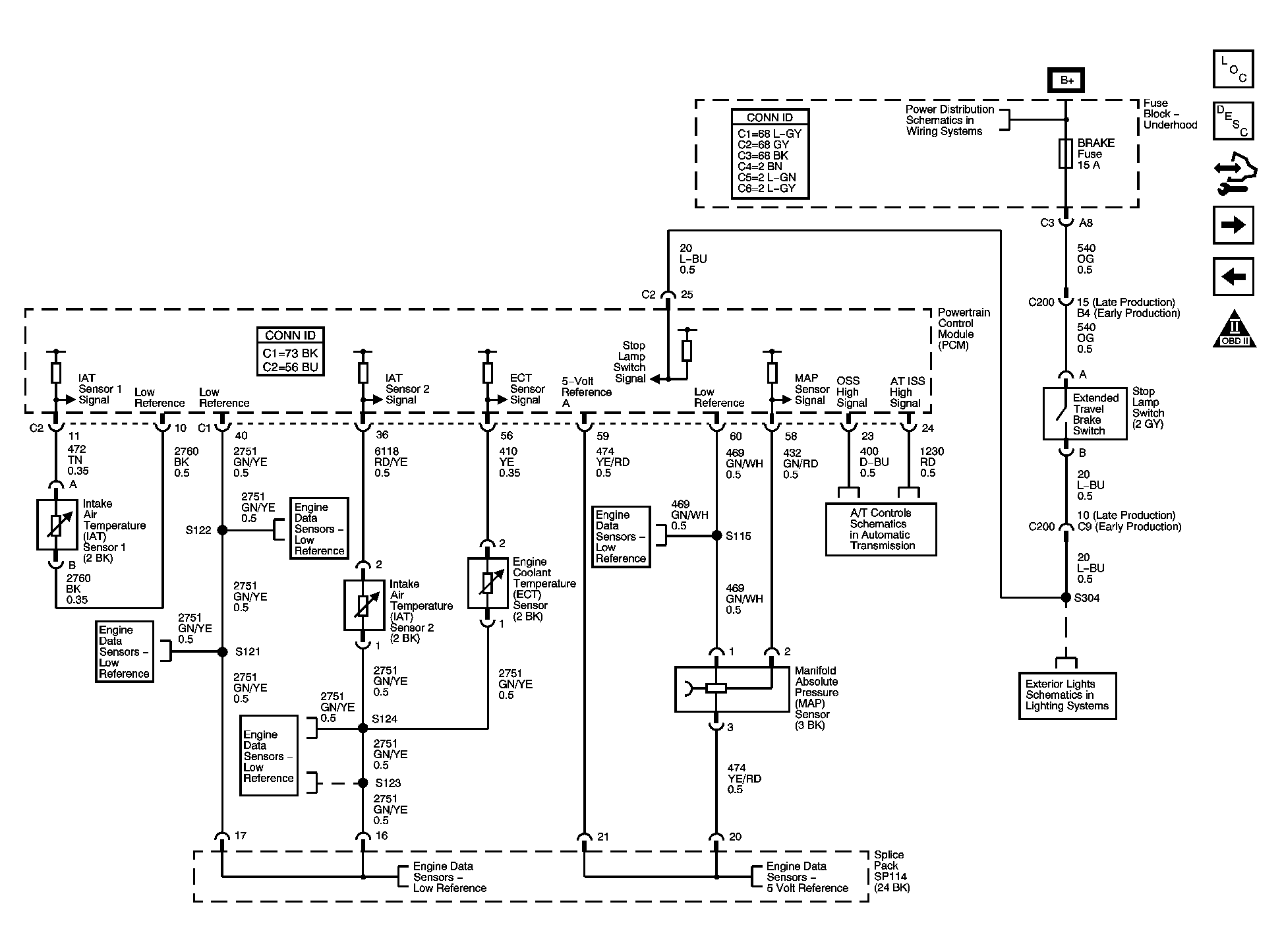

Fig 4: Engine Data Sensors - Pressure, Temperature, and Stop Lamp Switch

Courtesy of GENERAL MOTORS CORP.

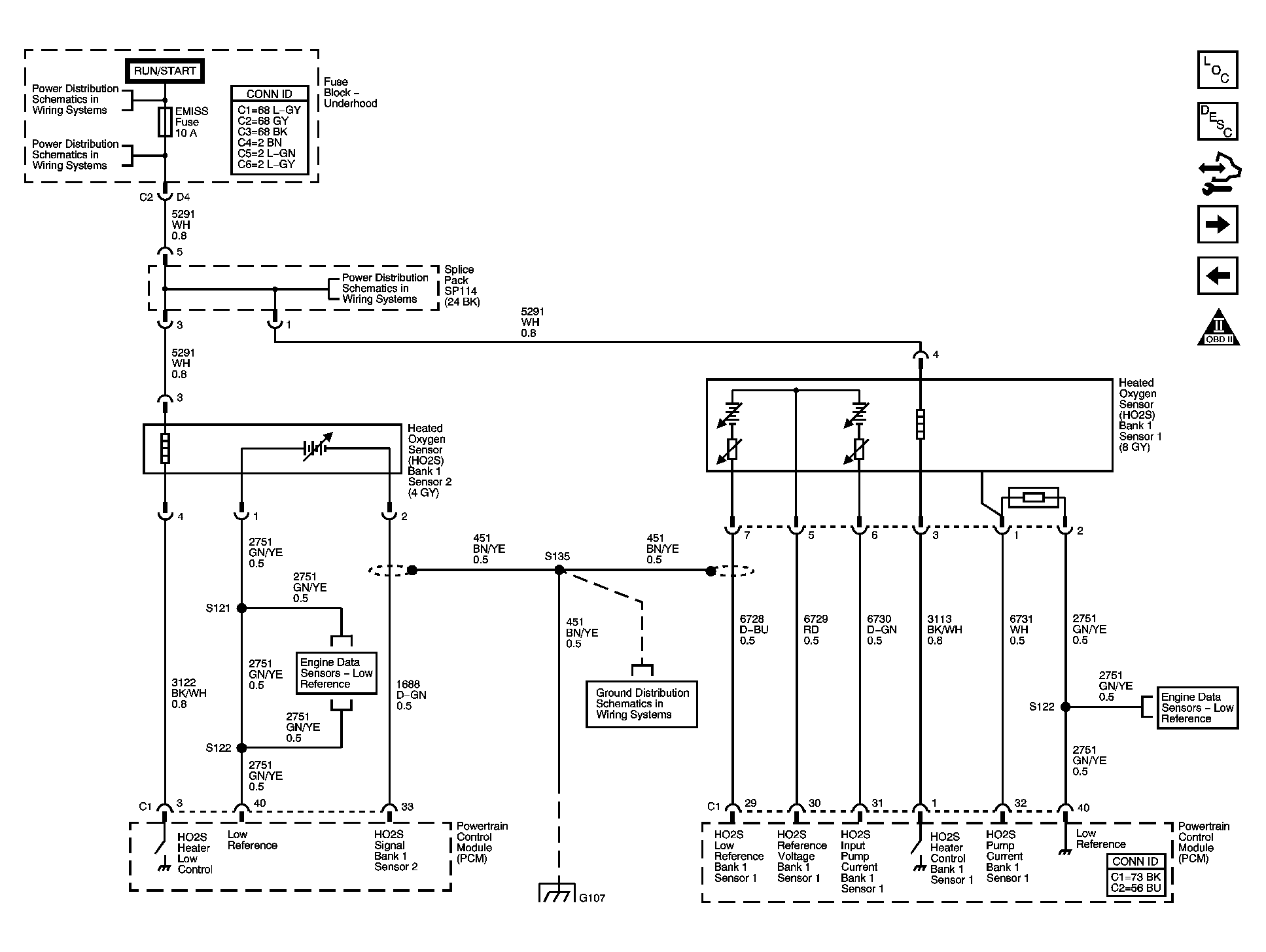

Fig 5: Engine Data Sensors - Bank 1 Oxygen Sensors

Courtesy of GENERAL MOTORS CORP.

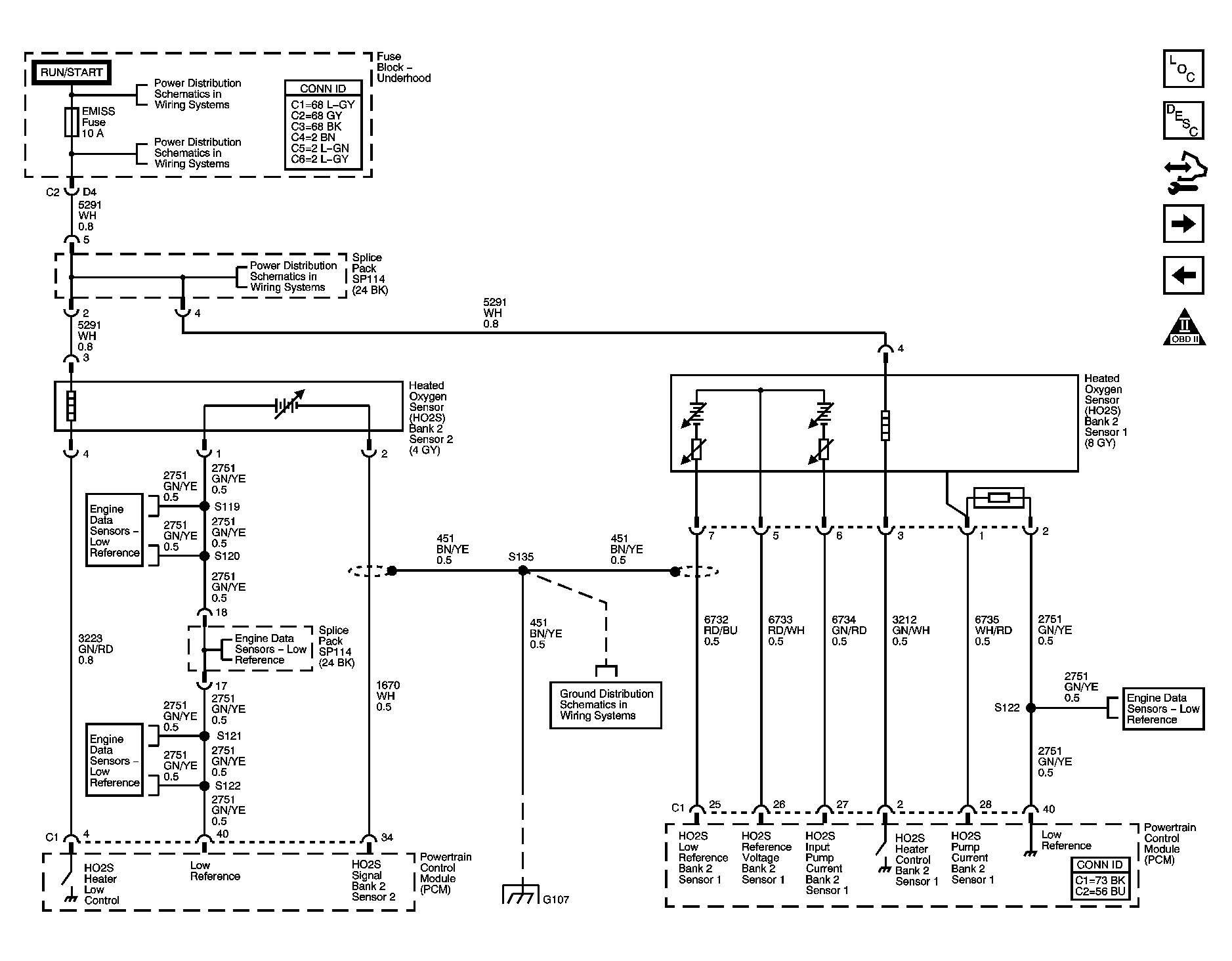

Fig 6: Engine Data Sensors - Bank 2 Oxygen Sensors

Courtesy of GENERAL MOTORS CORP.

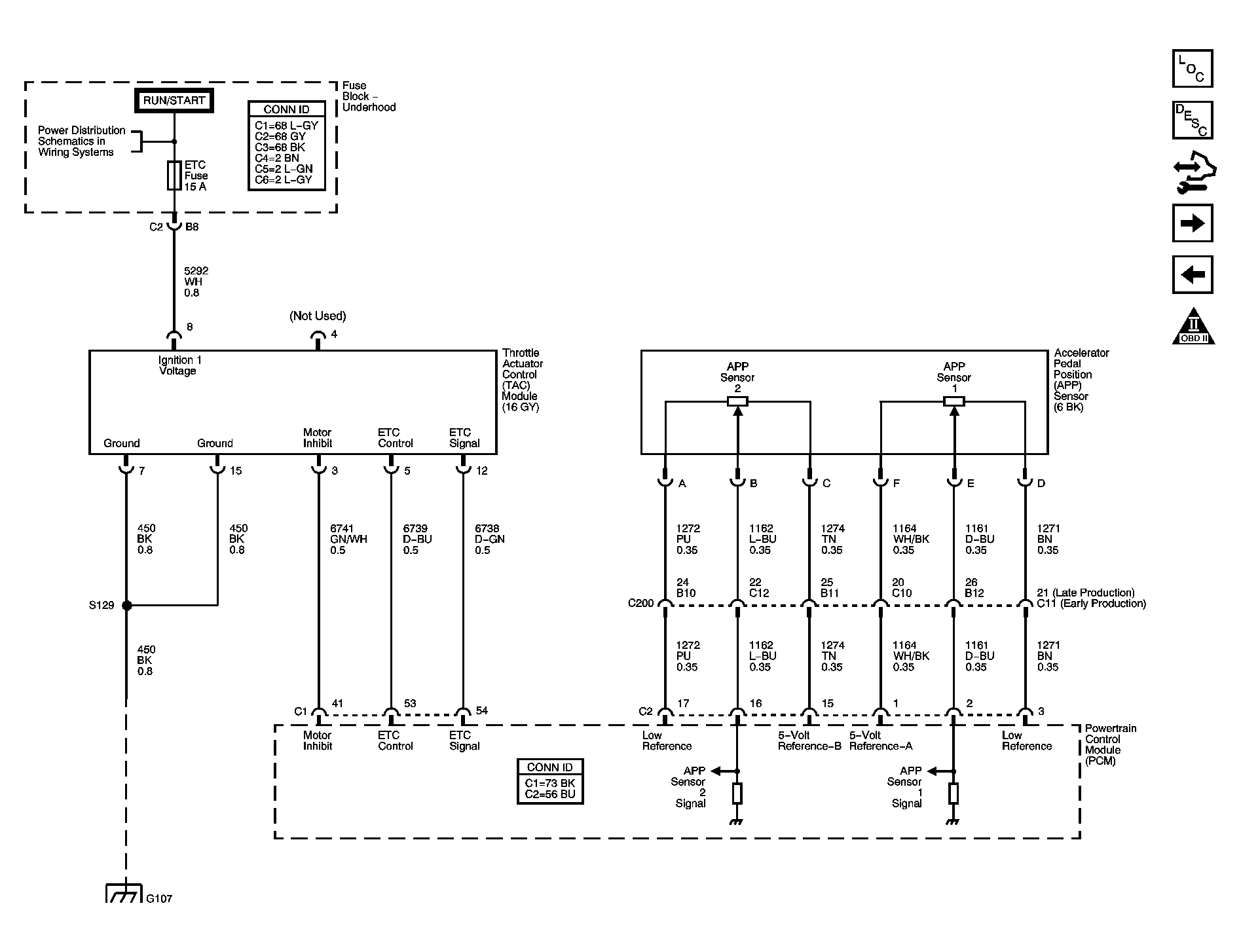

Fig 7: Engine Data Sensors - Throttle Actuator Controls

Courtesy of GENERAL MOTORS CORP.

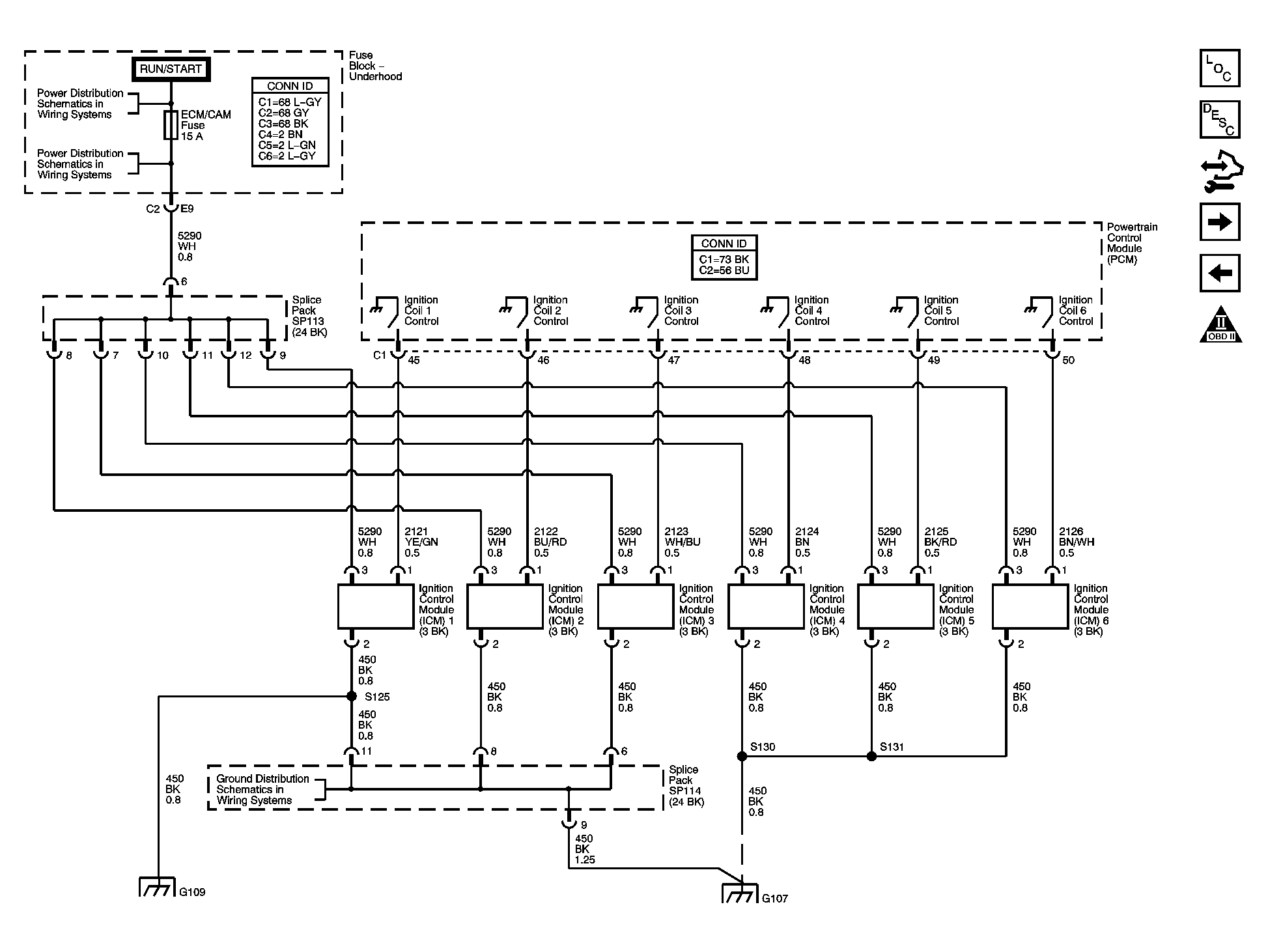

Fig 8: Ignition Controls - Ignition System

Courtesy of GENERAL MOTORS CORP.

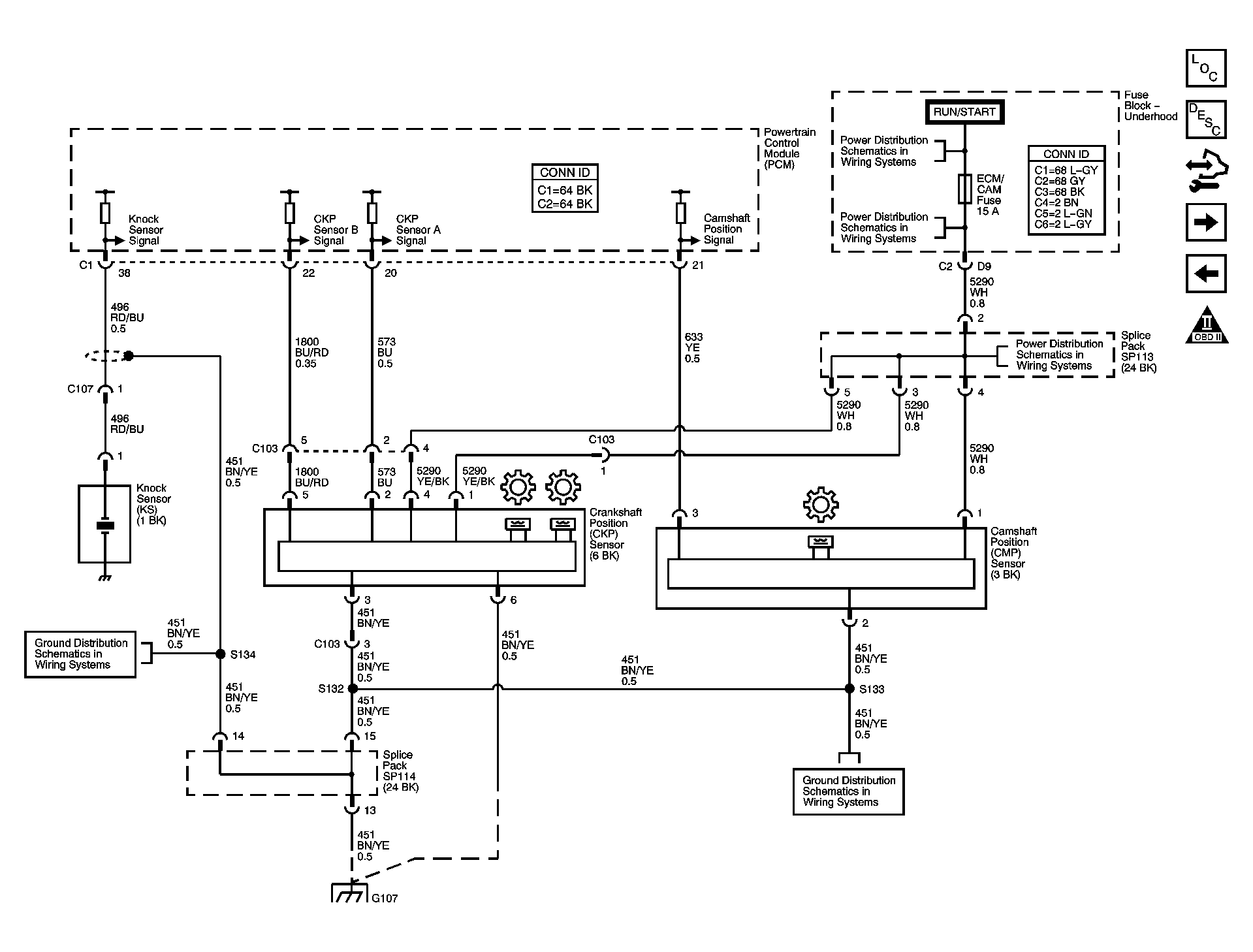

Fig 9: Ignition Controls - Sensors

Courtesy of GENERAL MOTORS CORP.

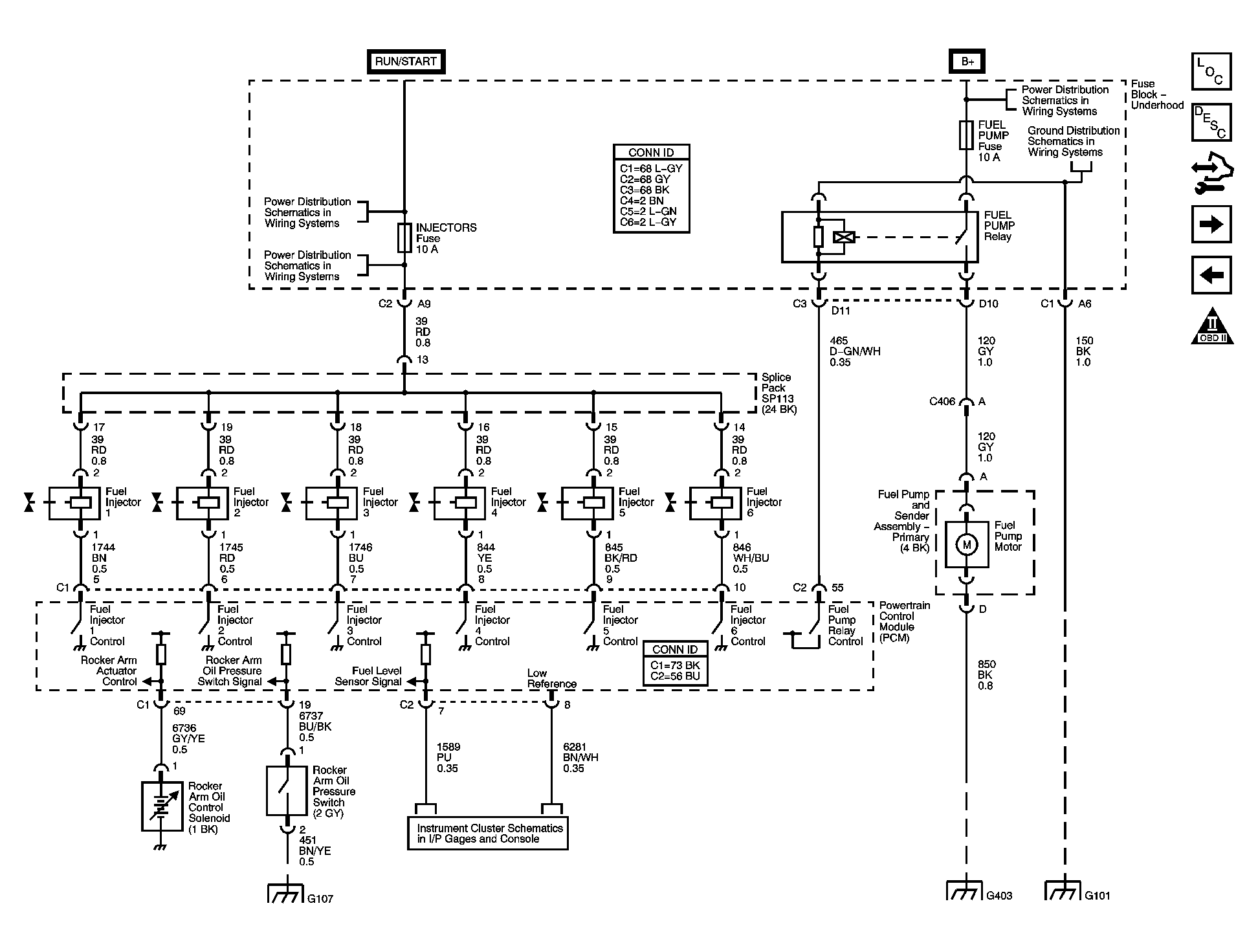

Fig 10: Fuel Controls - Fuel Pump Controls, Injectors, Rocker Arm Oil Switch, and Control Solenoid

Courtesy of GENERAL MOTORS CORP.

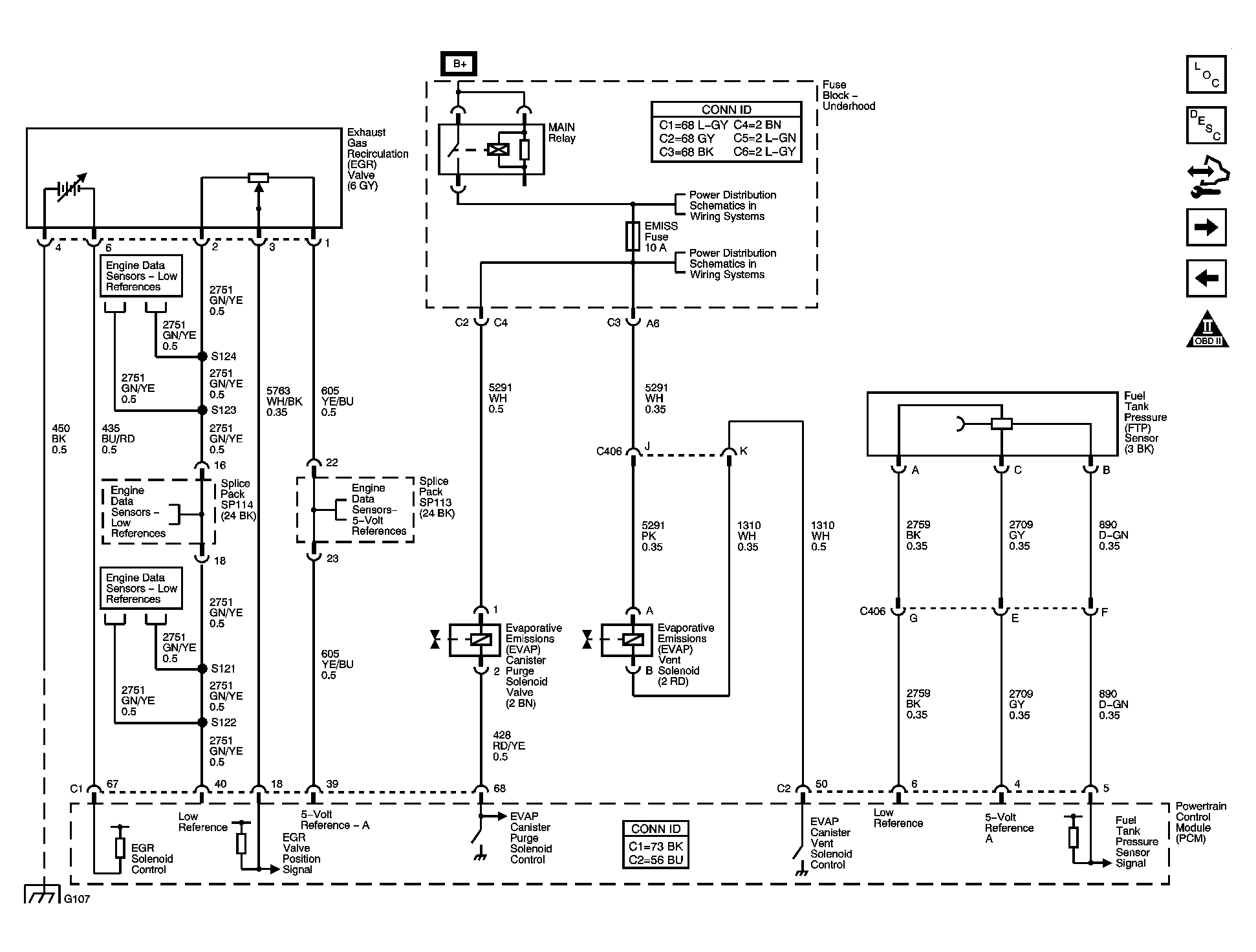

Fig 11: Fuel Controls - EVAP Controls

Courtesy of GENERAL MOTORS CORP.

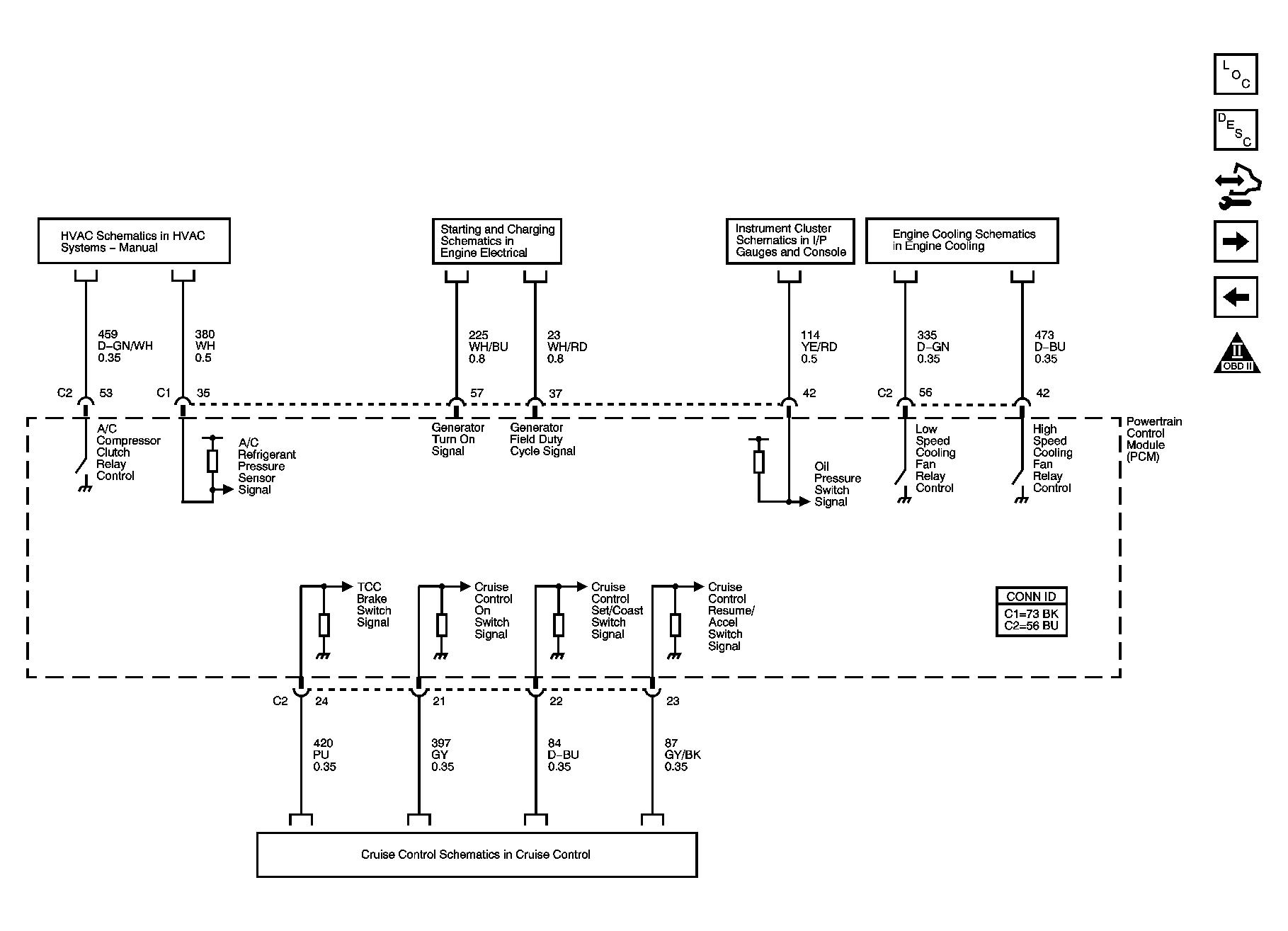

Fig 12: Controlled/Monitored Subsystem References

Courtesy of GENERAL MOTORS CORP.

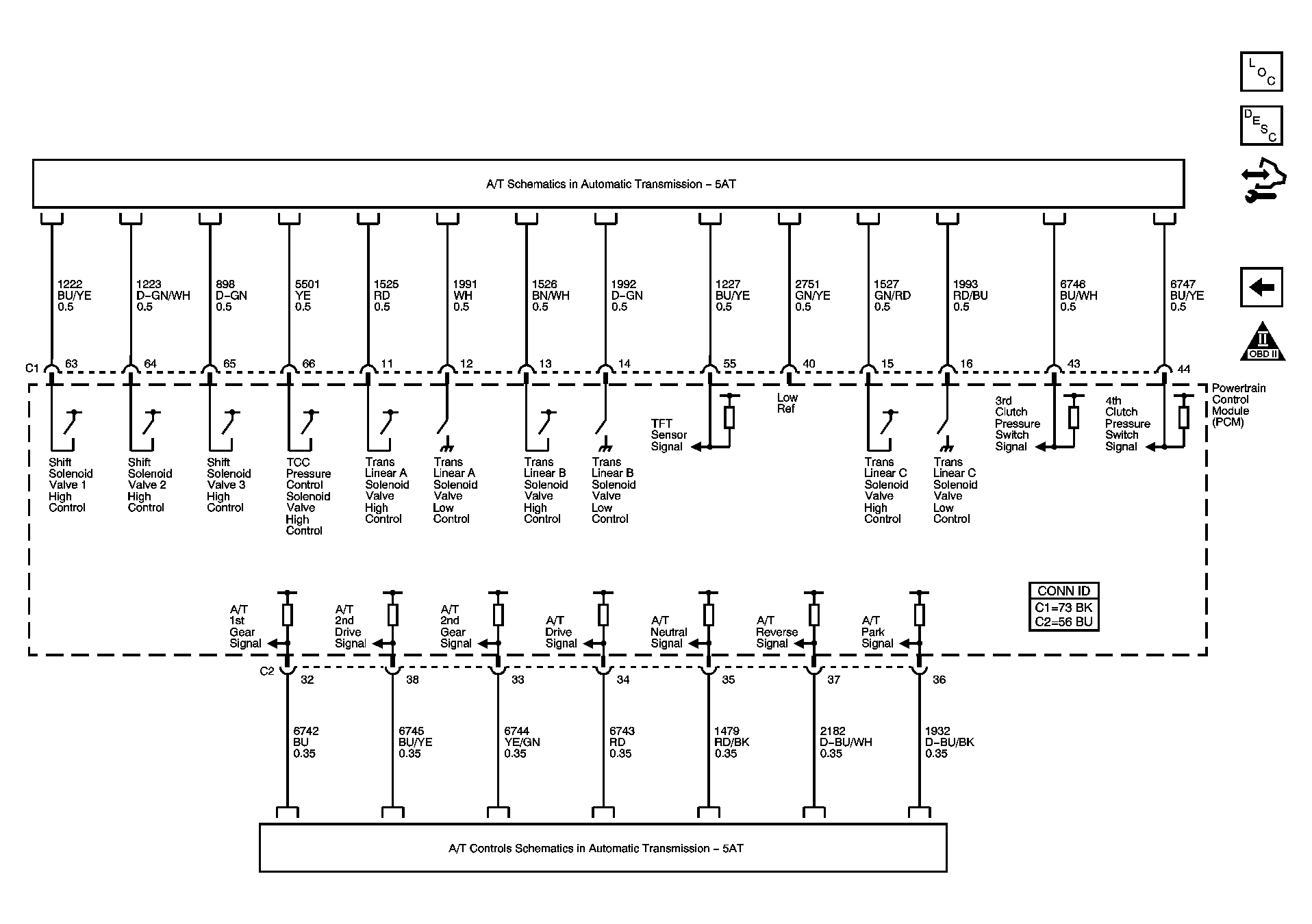

Fig 13: Transmission Controls References

Courtesy of GENERAL MOTORS CORP.
