Installation Procedure

NOTE: Refer to Fastener Notice in Cautions and Notices.

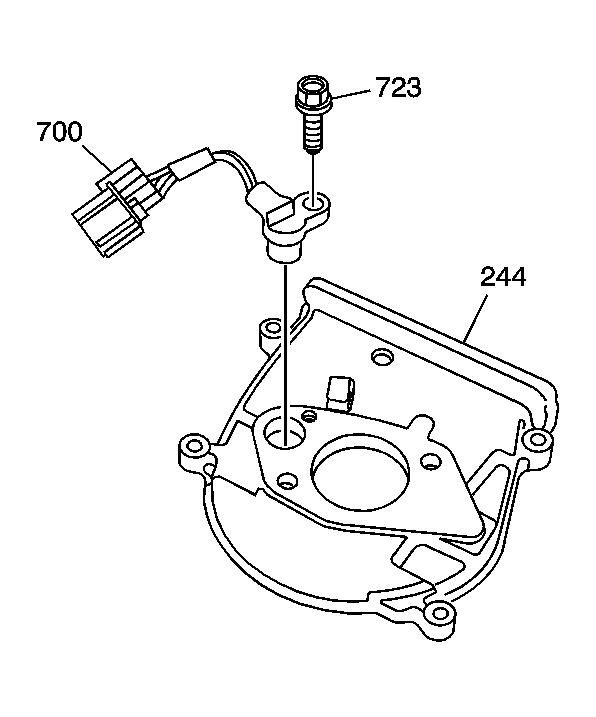

Fig 1: View Of Bolt & Camshaft Position Sensor

Courtesy of GENERAL MOTORS CORP.

Install the camshaft position (CMP) sensor (700) and bolt (723).
Tighten: Tighten the bolt to 4 N.m (35 lb. in.).
Install the cover (244), NEW seal (243) and bolts (242).
Tighten: Tighten the bolts to 22 N.m (16 lb. ft.).

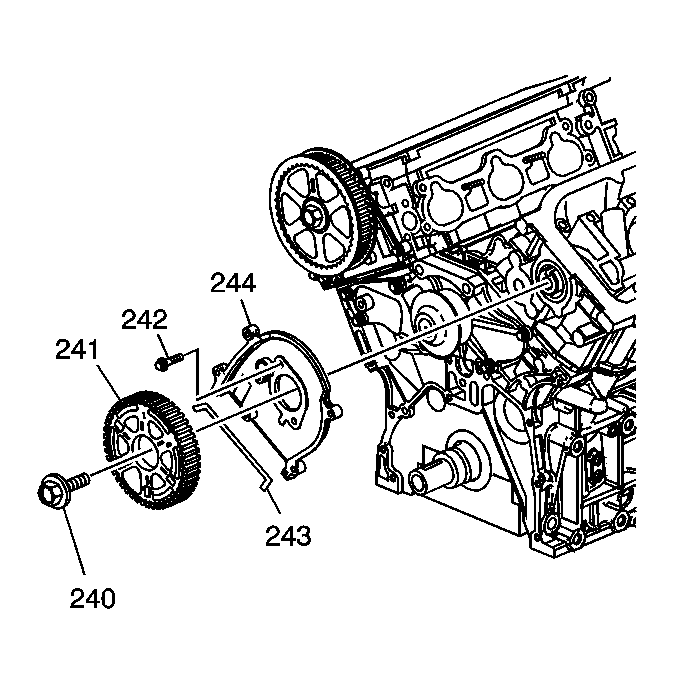

Fig 2: View Of Camshaft Bolt, Sprocket & Rear Cover
Courtesy of GENERAL MOTORS CORP.
Install the left camshaft sprocket. Refer to Camshaft Drive Sprocket Replacement - Left in Engine Mechanical - 3.5L (L66).
