Removal Procedure

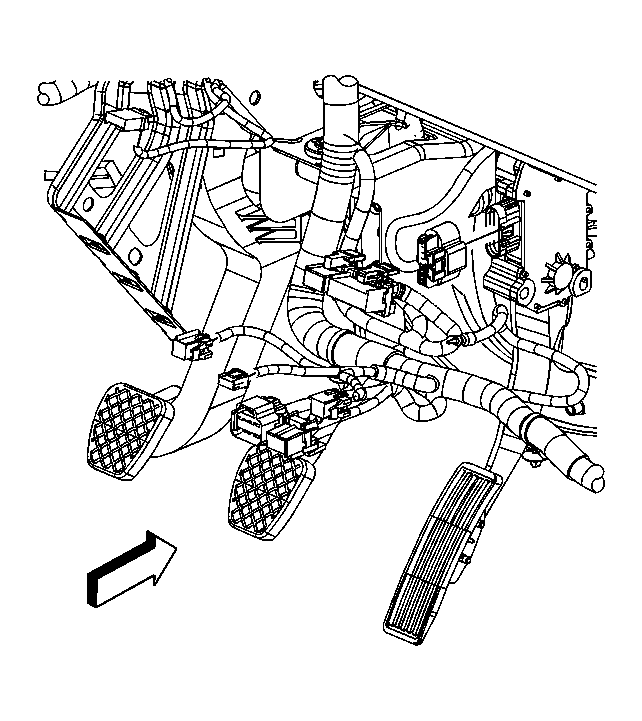

Fig 1: Identifying Steering Column Filler Panel
GM1651113Courtesy of GENERAL MOTORS CORP.
  1. Remove the steering column filler panel. Steering Column Filler Replacement .
  2. Disconnect the instrument panel (I/P) wiring harness electrical connector from the accelerator pedal position (APP) sensor.
    Fig 2: View Of Accelerator Pedal Position Assembly
    GM898158Courtesy of GENERAL MOTORS CORP.
  3. Remove the accelerator pedal bolts.
  4. Remove the accelerator pedal with sensor.
