Removal Procedure

CAUTION: Refer to Gasoline/Gasoline Vapors Caution in Cautions and Notices.

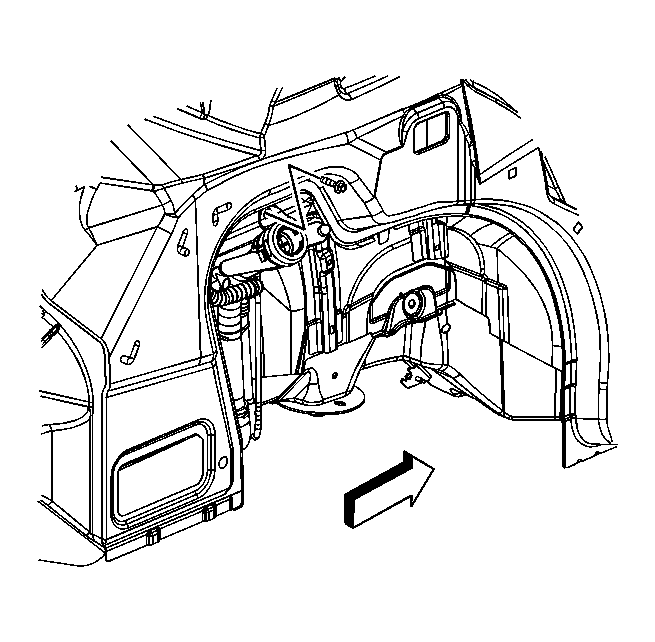

Fig 1: Locating Fuel Filler Pipe Assembly

Courtesy of GENERAL MOTORS CORP.

Remove the fuel fill cap.
Drain the fuel tank. Refer to Fuel Tank Draining Procedure .
Remove the fuel filler pocket. Refer to Fuel Filler Pocket Replacement in Body Rear End.
Remove the fuel filler pipe assembly upper retaining bolt.
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.

Fig 2: View Of EVAP Pipes
Courtesy of GENERAL MOTORS CORP.
Disconnect the evaporative emission (EVAP) vent pipe (1) from the EVAP canister. Refer to Quick Connect Fitting(s) Service (Plastic Collar) (Press Release) .

Fig 3: Fuel Filler Pipe Jumper Hose
Courtesy of GENERAL MOTORS CORP.
Loosen the fuel filler hose clamp (1) at the fuel tank.

Fig 4: Locating Fuel Filler Pipe Assembly Lower Retaining Bolt
Courtesy of GENERAL MOTORS CORP.
Remove the fuel filler pipe assembly lower retaining bolt.
Disconnect the fuel filler hose from the fuel tank.
Remove the fuel filler pipe assembly.
