Installation Procedure

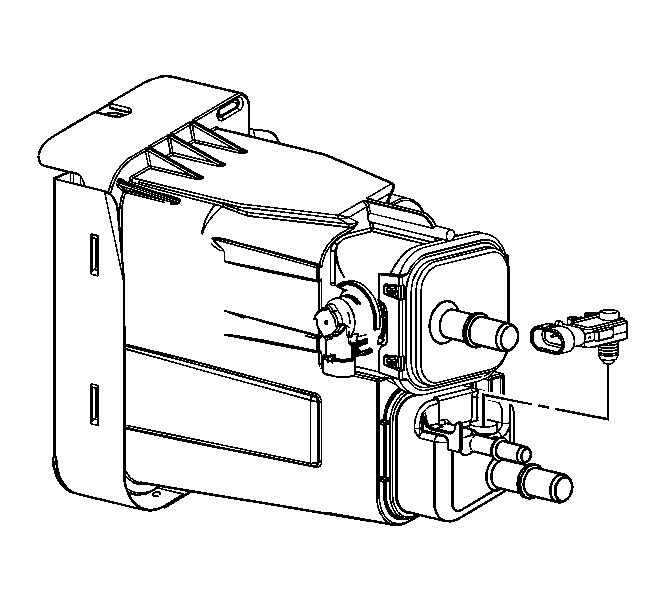

Fig 1: Identifying Fuel Tank Pressure Sensor
GM1742792Courtesy of GENERAL MOTORS CORP.
  1. Install the fuel tank pressure sensor to the EVAP canister. Ensure that the sensor grommet is fully seated to the canister.

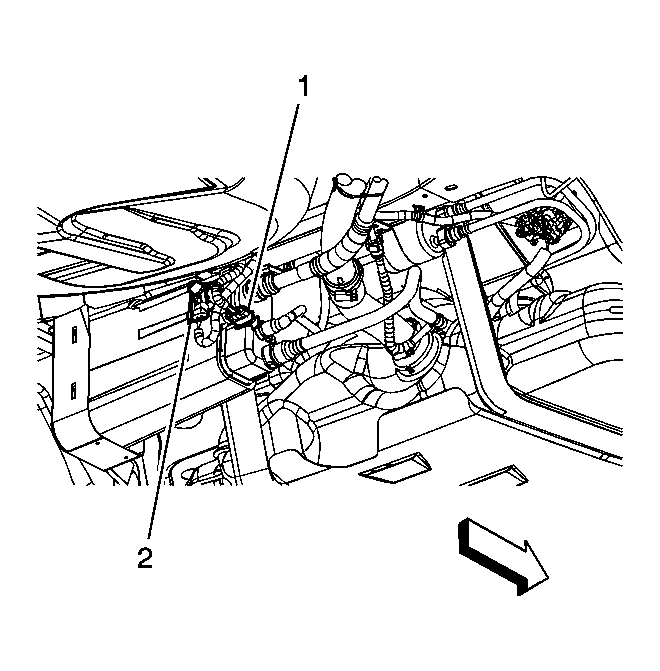

    Fig 2: View Of EVAP Canister Vent Solenoid Valve Electrical Connector
    GM1652166Courtesy of GENERAL MOTORS CORP.
  2. Connect the EVAP canister harness electrical connector (1) to the fuel tank pressure sensor.
  3. Lower the vehicle.
