Engine Controls Schematics

Fig 1: Power, Ground, MIL, and Serial Data

Courtesy of GENERAL MOTORS CORP.

Fig 2: Engine Data Sensors - 5-Volt and Low Reference Busing

Courtesy of GENERAL MOTORS CORP.

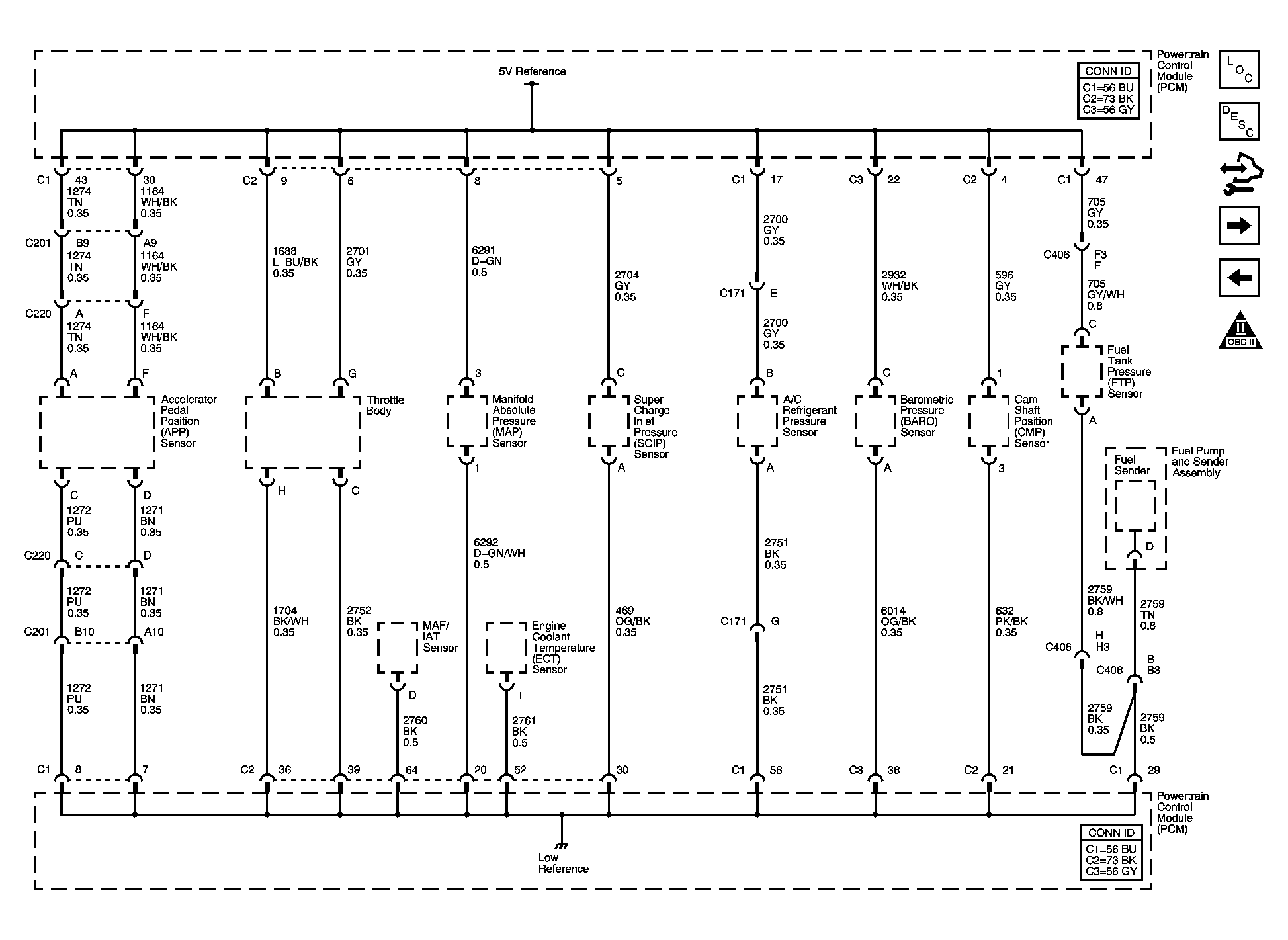

Fig 3: Engine Data Sensors - Pressure and Temperature

Courtesy of GENERAL MOTORS CORP.

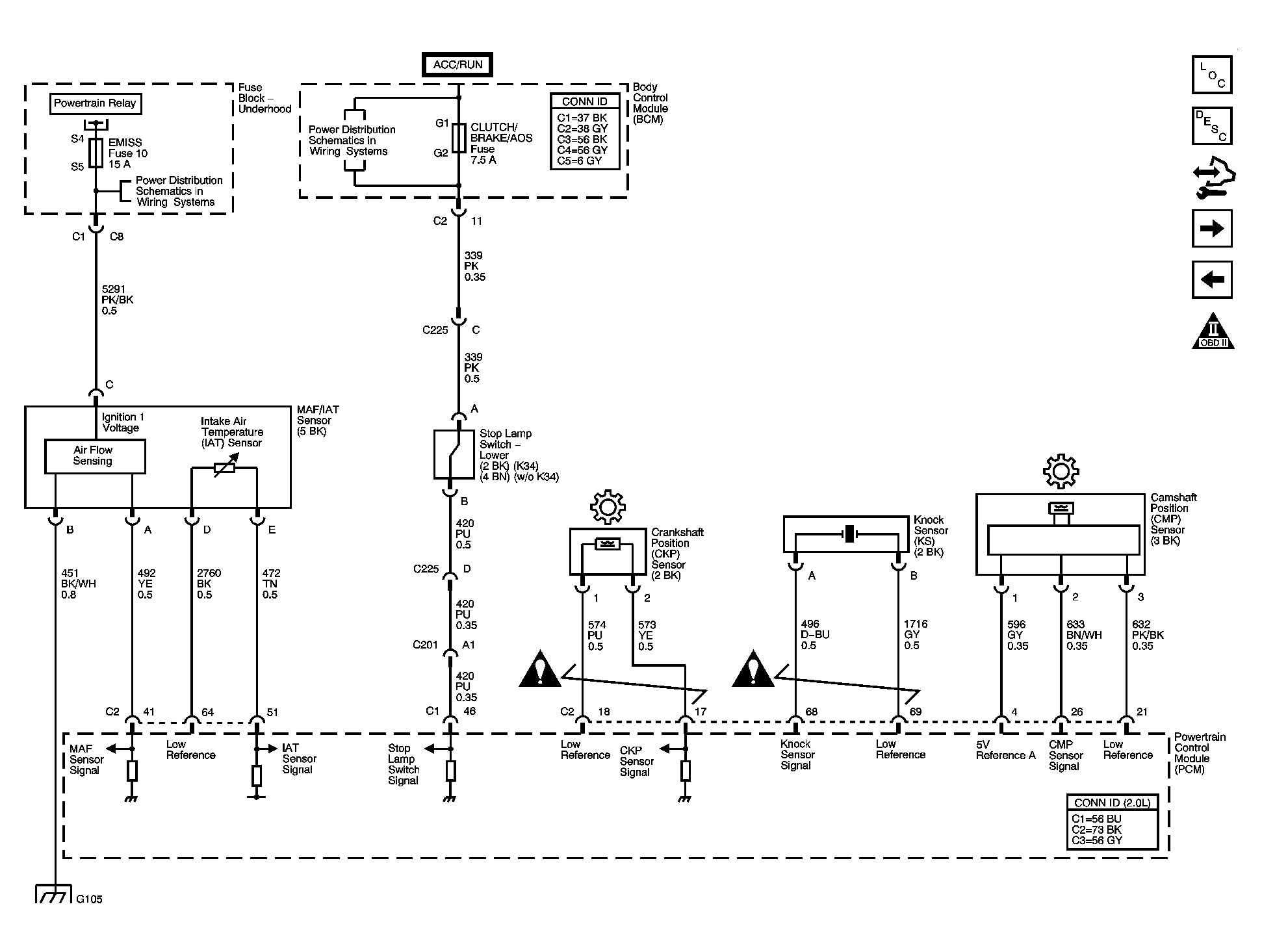

Fig 4: Engine Data Sensors - MAF/IAT, CKP, KS and Stop Lamp Switch - Lower

Courtesy of GENERAL MOTORS CORP.

Fig 5: Engine Data Sensors - HO2S

Courtesy of GENERAL MOTORS CORP.

Fig 6: Engine Data Sensors - APP and TAC

Courtesy of GENERAL MOTORS CORP.

Fig 7: Ignition Controls

Courtesy of GENERAL MOTORS CORP.

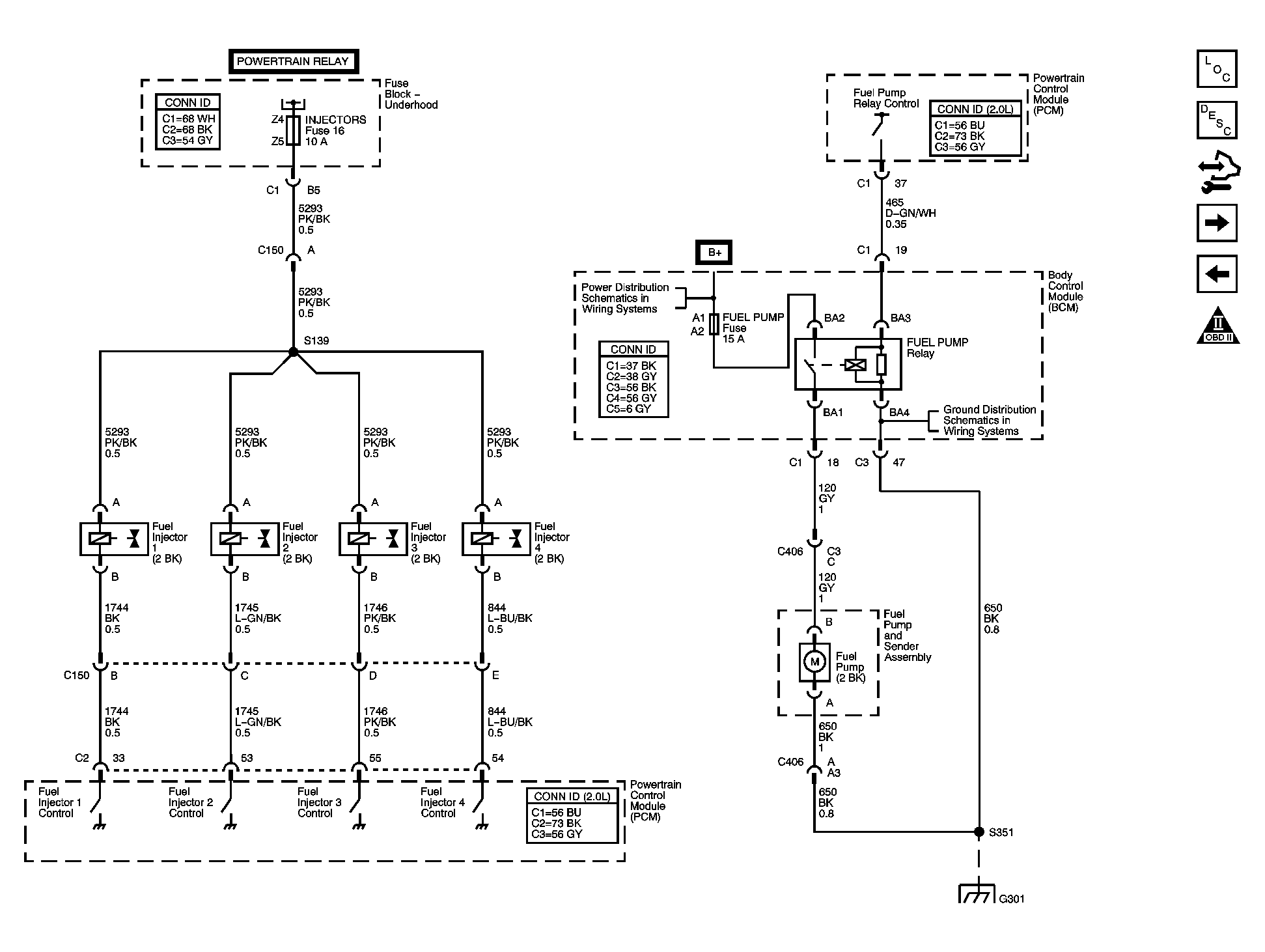

Fig 8: Fuel Controls

Courtesy of GENERAL MOTORS CORP.

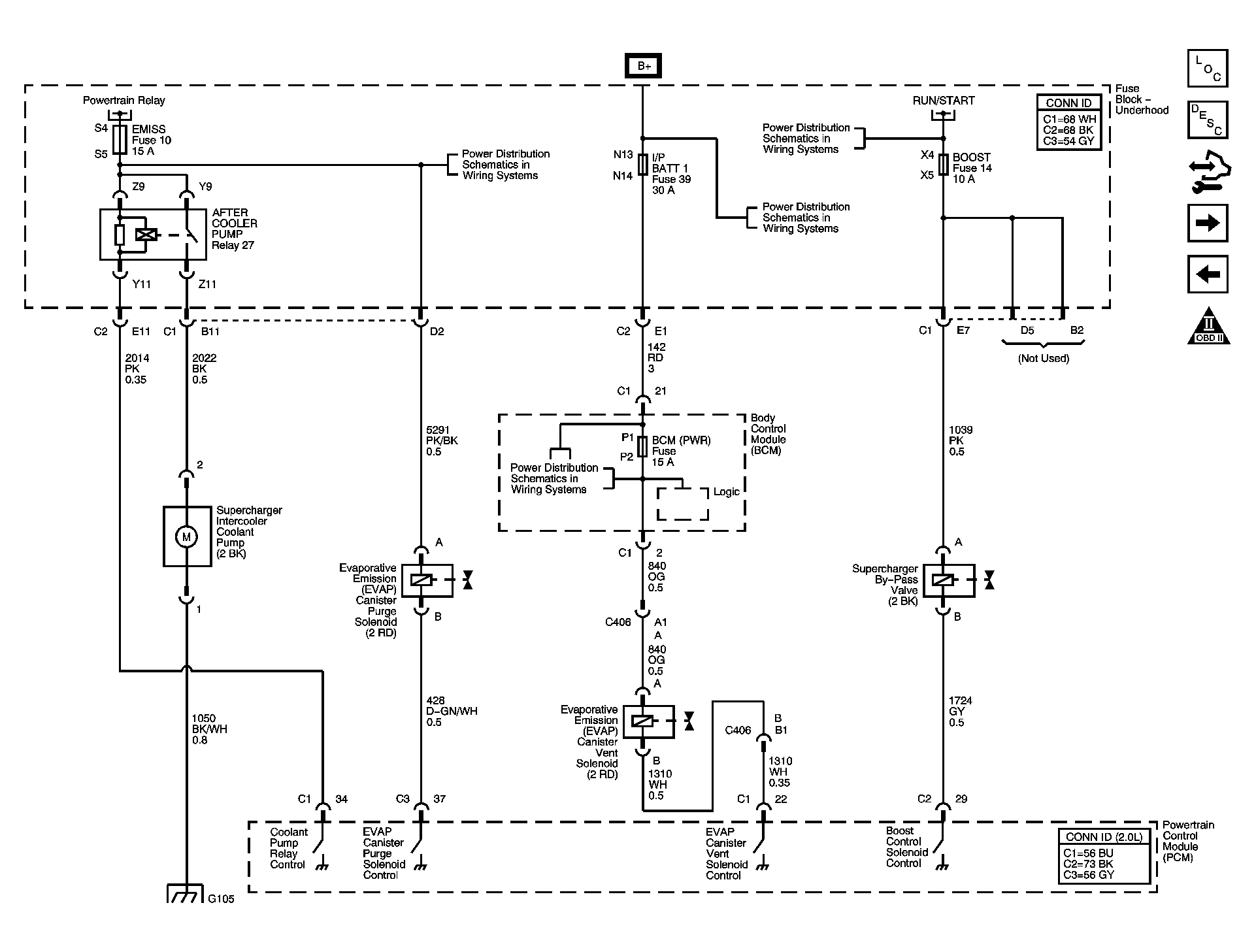

Fig 9: EVAP Controls, After Cooler Pump, and Supercharger By-Pass Valve Solenoid

Courtesy of GENERAL MOTORS CORP.

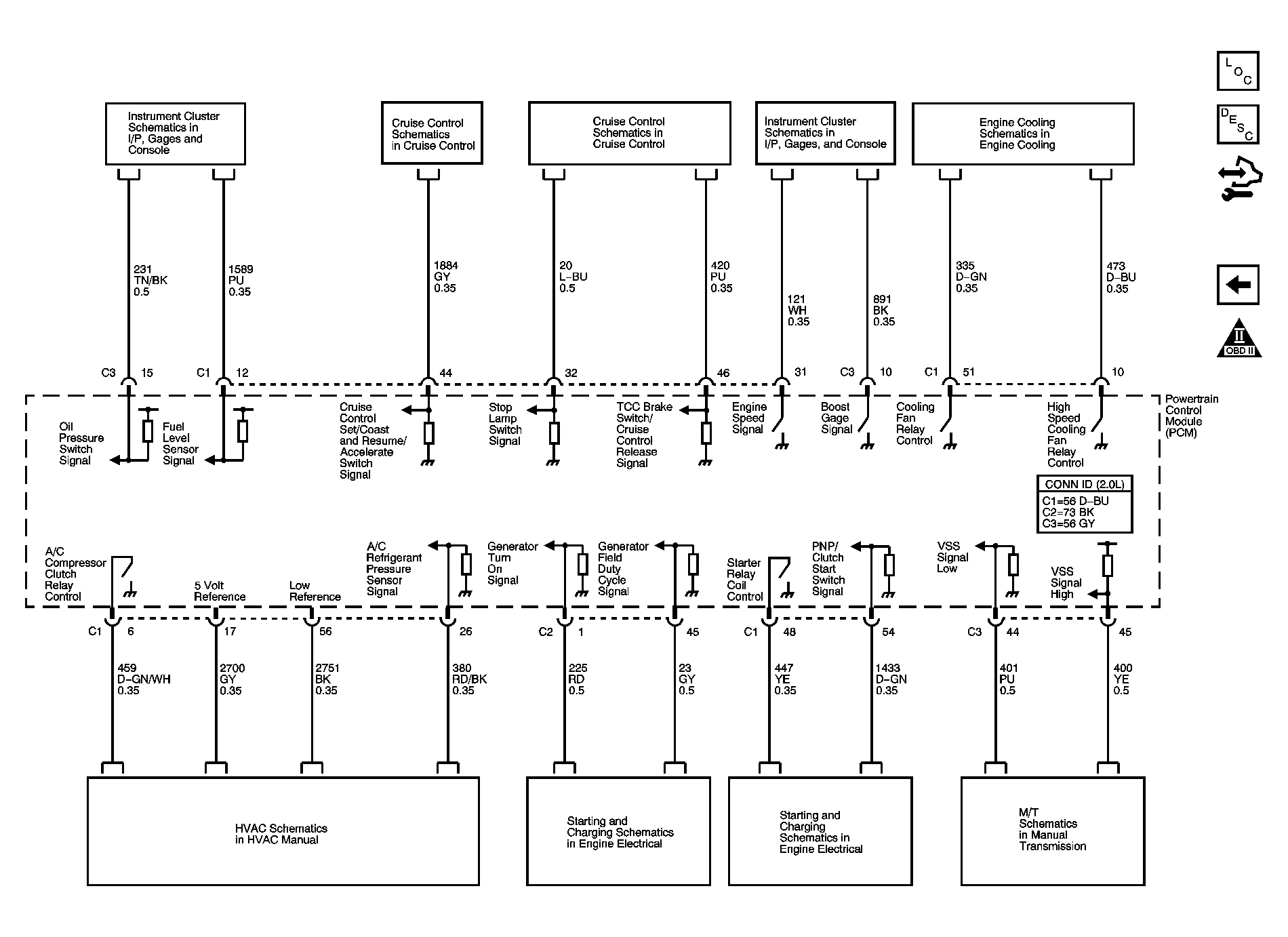

Fig 10: Controlled/Monitored Subsystem Reference

Courtesy of GENERAL MOTORS CORP.
