Seat Belt Component Views

Fig 1: Left Front Seat Of Vehicle Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Belt Switch - Left

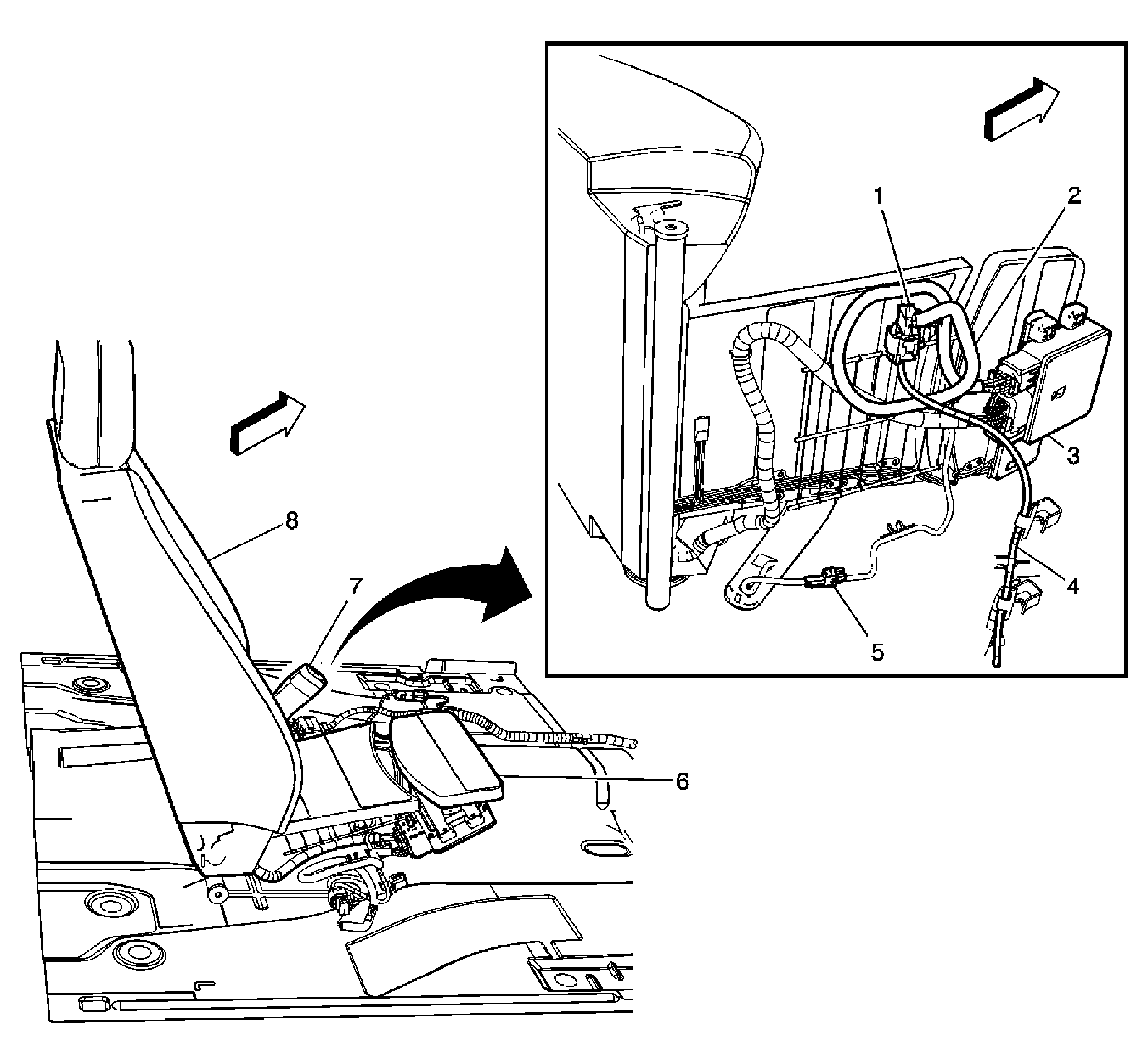

Fig 2: Right Front Seat of the Vehicle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Front Passenger Presence System (PPS) Sensor
2	C300 Passenger Presence System (PPS) Jumper Harness to I/P Harness
3	Passenger Presence System (PPS) Jumper Harness
4	Inflatable Restraint Front Passenger Presence System (PPS) Module
5	I/P Harness
6	Seat Belt Switch - Passenger
7	Seat Belt Buckle - Passenger
8	Passenger Seat
