Engine Control Module
Powertrain Control Module Connector End Views

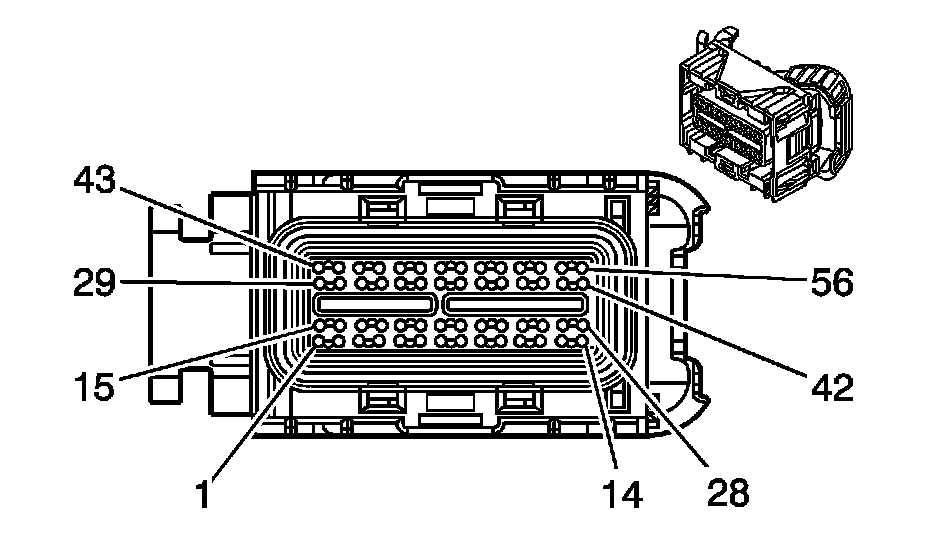

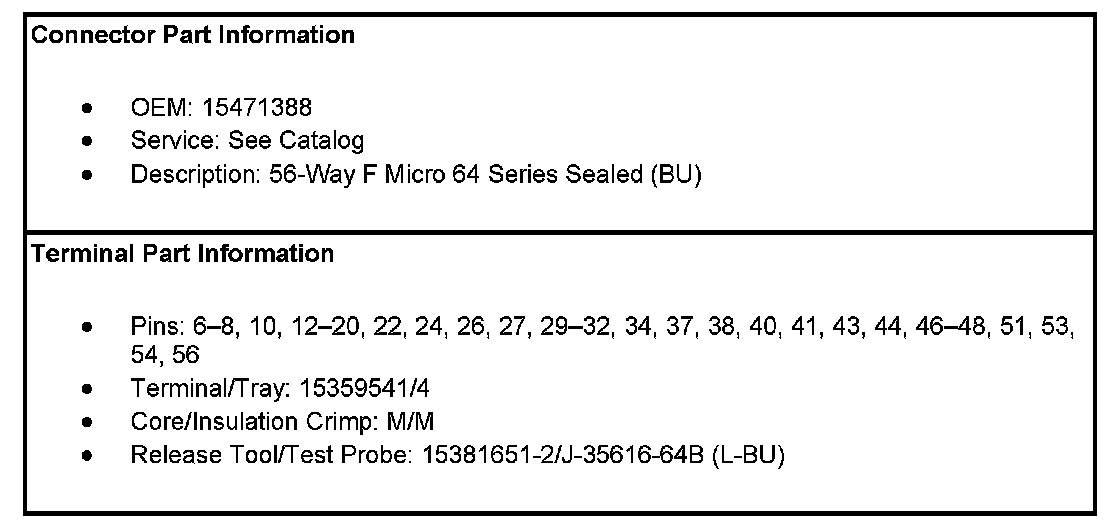

Powertrain Control Module (PCM) C1

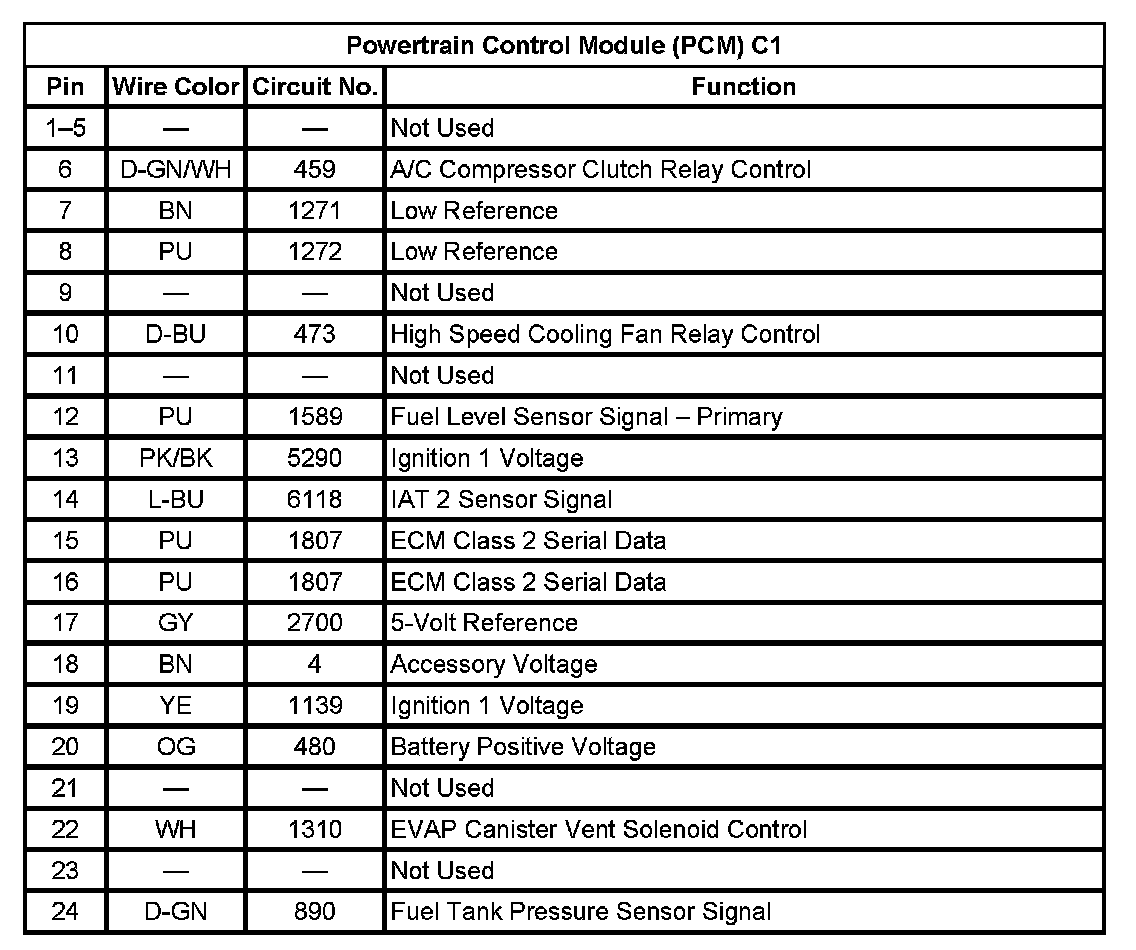

Powertrain Control Module (PCM) C1 (Pin 1 To 24):

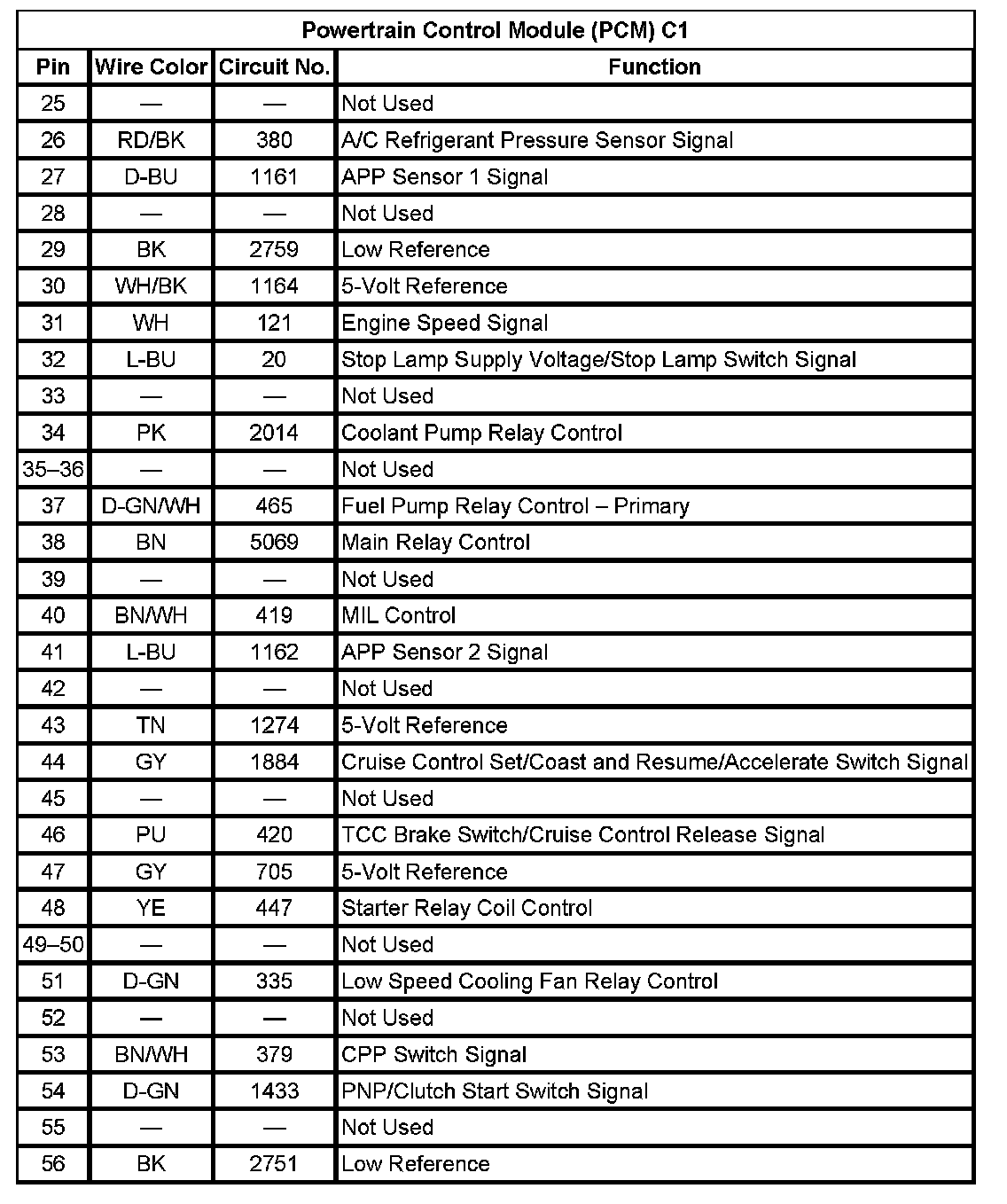

Powertrain Control Module (PCM) C1 (Pin 25 To 56):

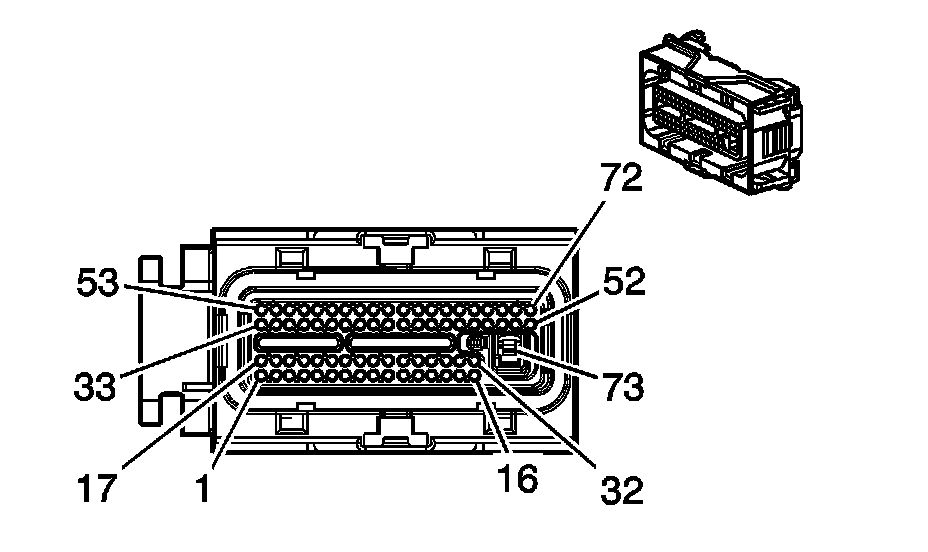

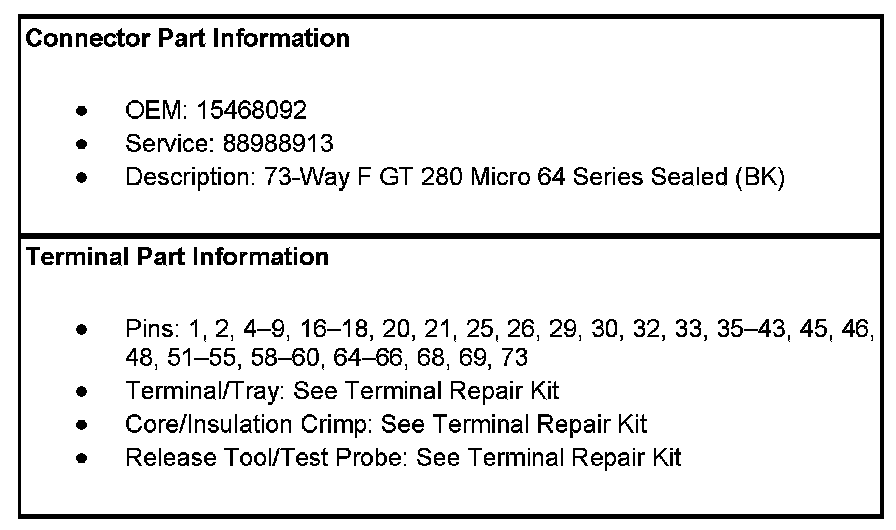

Powertrain Control Module (PCM) C2

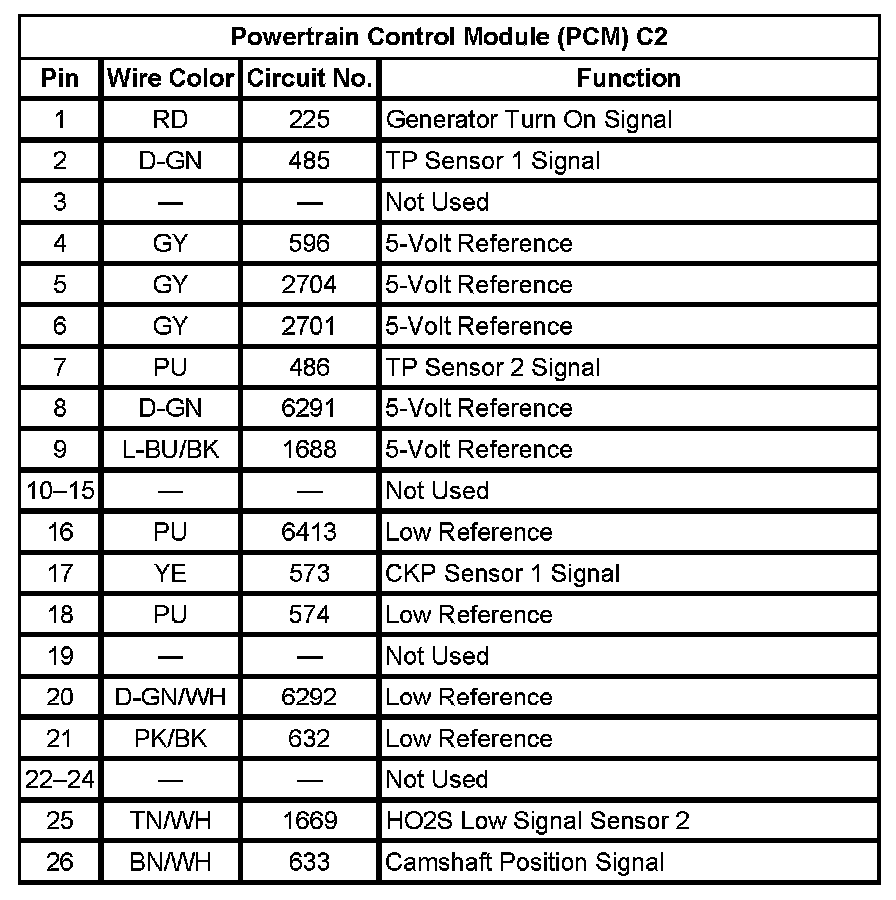

Powertrain Control Module (PCM) C2 (Pin 1 To 26):

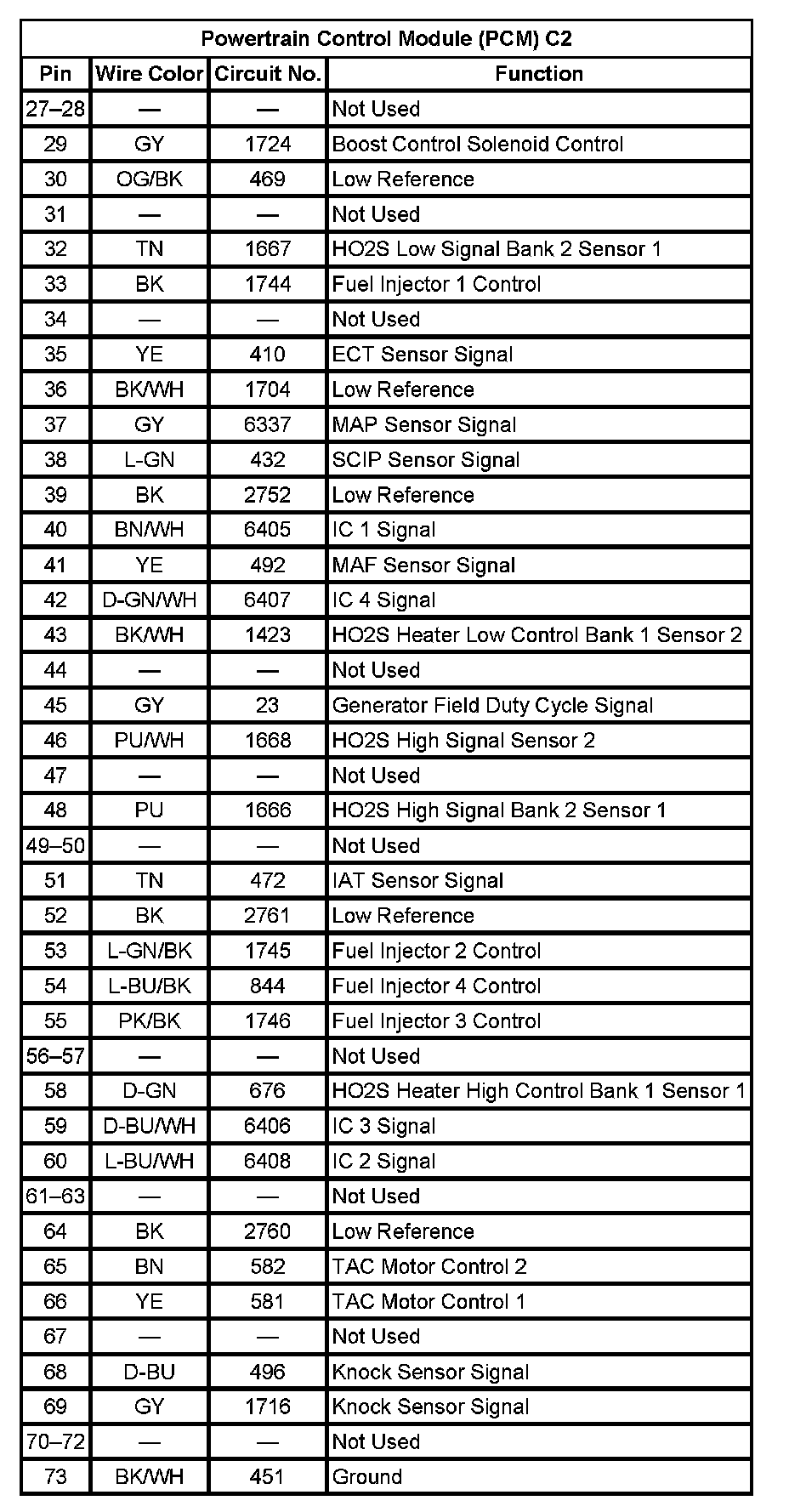

Powertrain Control Module (PCM) C2 (Pin 27 To 73):

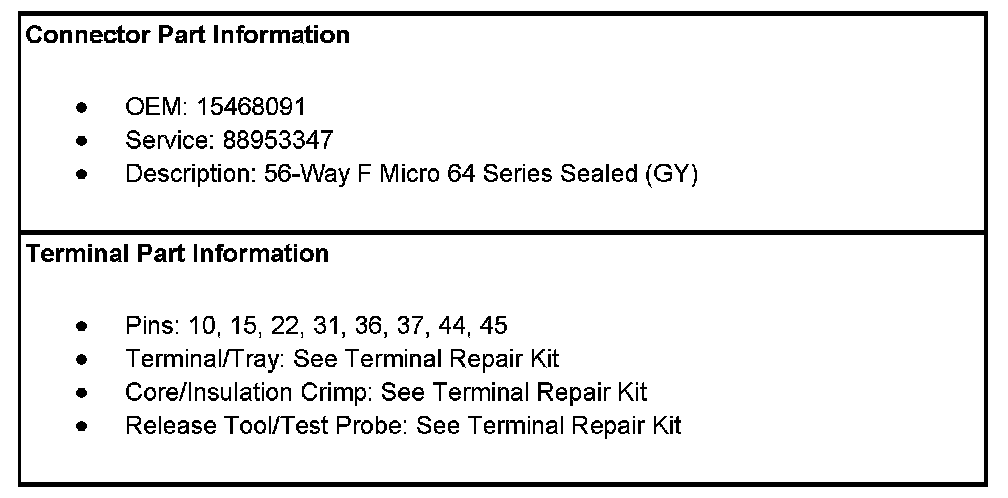

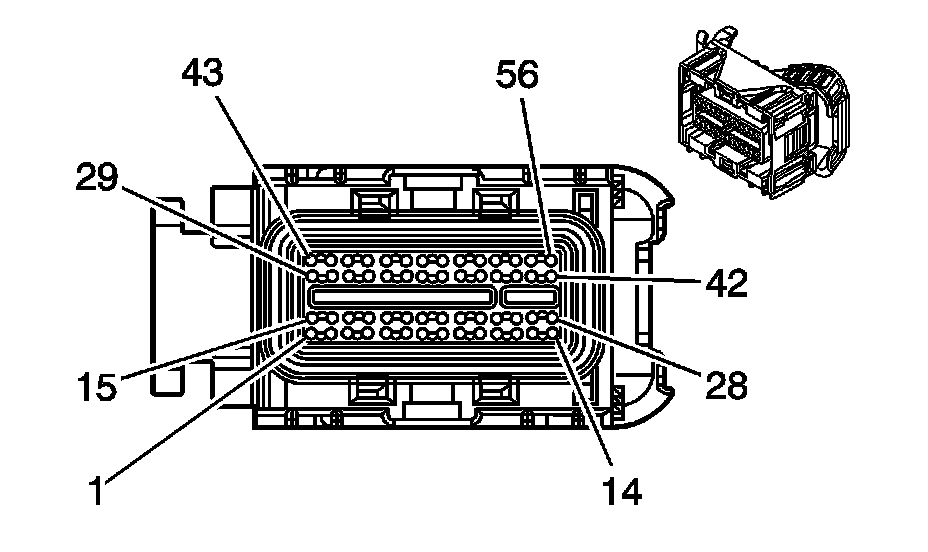

Powertrain Control Module (PCM) C3

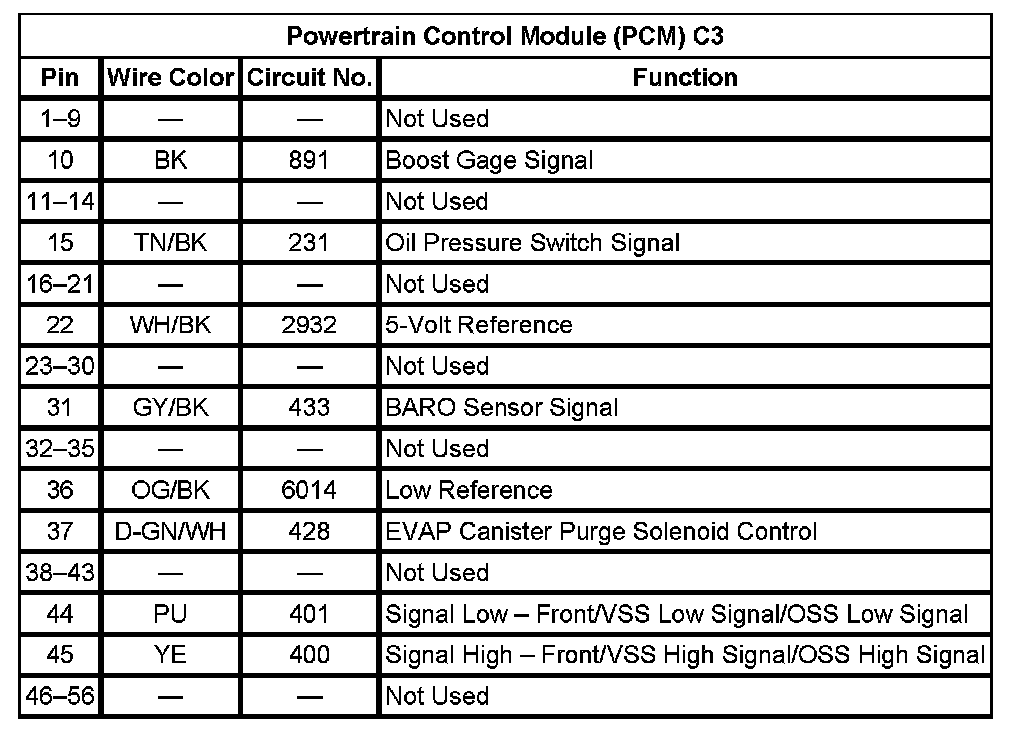

Powertrain Control Module (PCM) C3 (Pin 1 To 56):
