Seat Views

Harness Routing Views

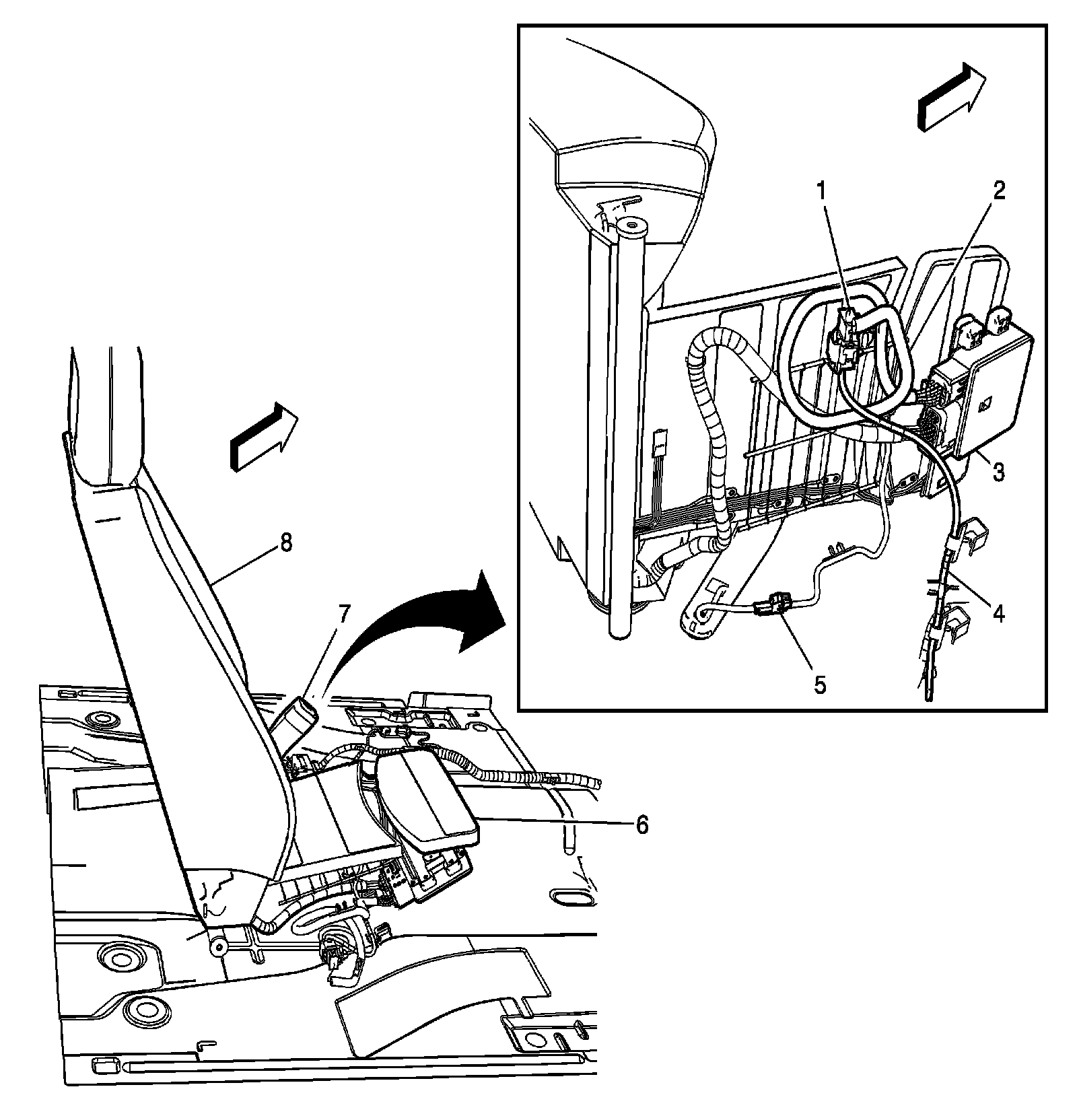

Right Front Seat of the Vehicle




1 - C300 Passenger Presence System (PPS) Jumper Harness to I/P Harness
2 - Passenger Presence System (PPS) Jumper Harness
3 - Inflatable Restraint Front Passenger Presence System (PPS) Module
4 - I/P Harness
5 - Seat Belt Switch - Passenger
6 - Inflatable Restraint Front Passenger Presence System (PPS) Sensor
7 - Seat Belt Buckle - Passenger
8 - Passenger Seat
