Coolant Temperature Sensor/Switch (For Computer): Locations

Engine Controls Component Views

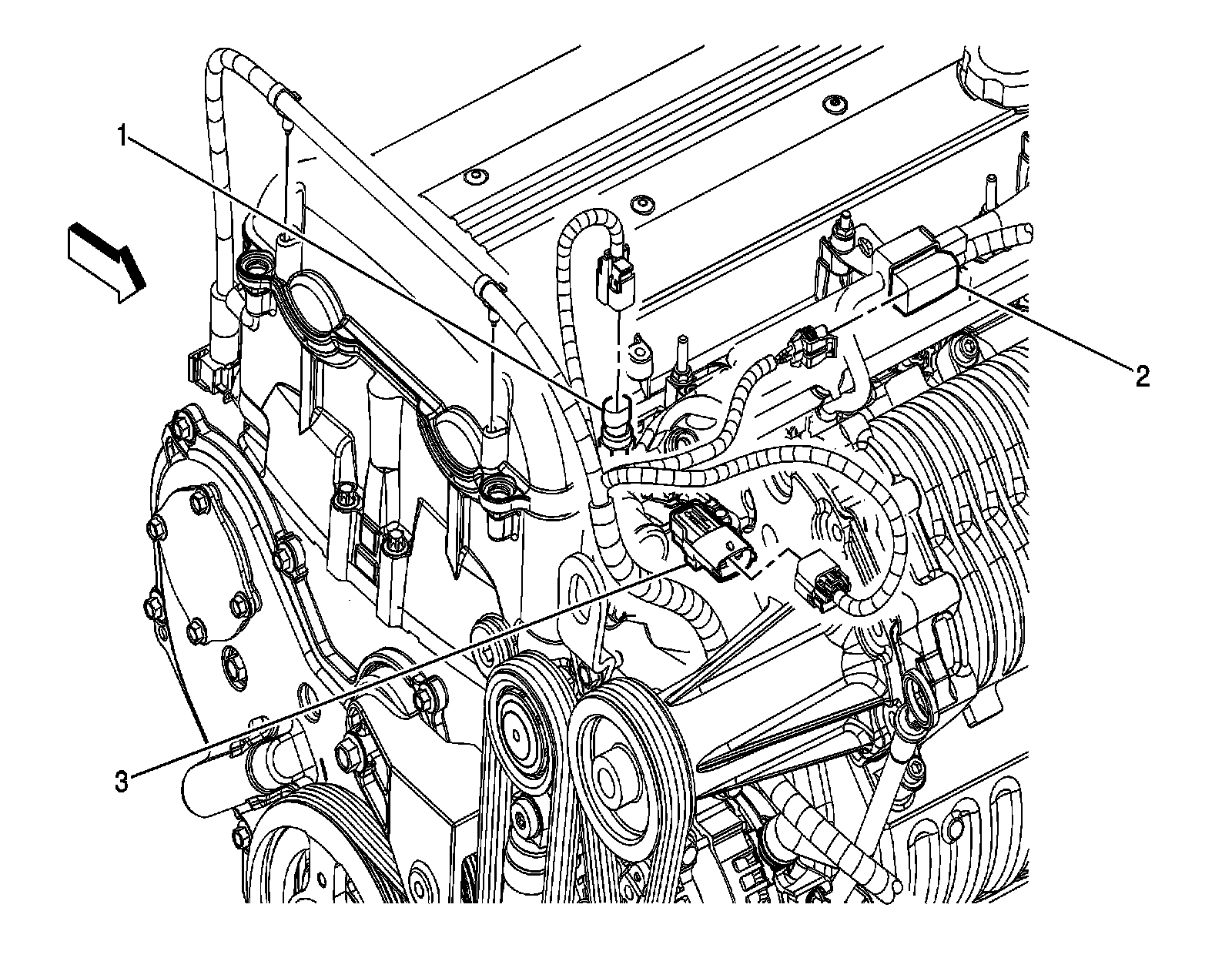

Upper Right Side of the Engine




1 - Engine Coolant Temperature (ECT) Sensor
2 - Supercharger By-Pass Valve Solenoid
3 - Manifold Absolute Pressure (MAP) Sensor
