Transmission Position Sensor/Switch: Locations

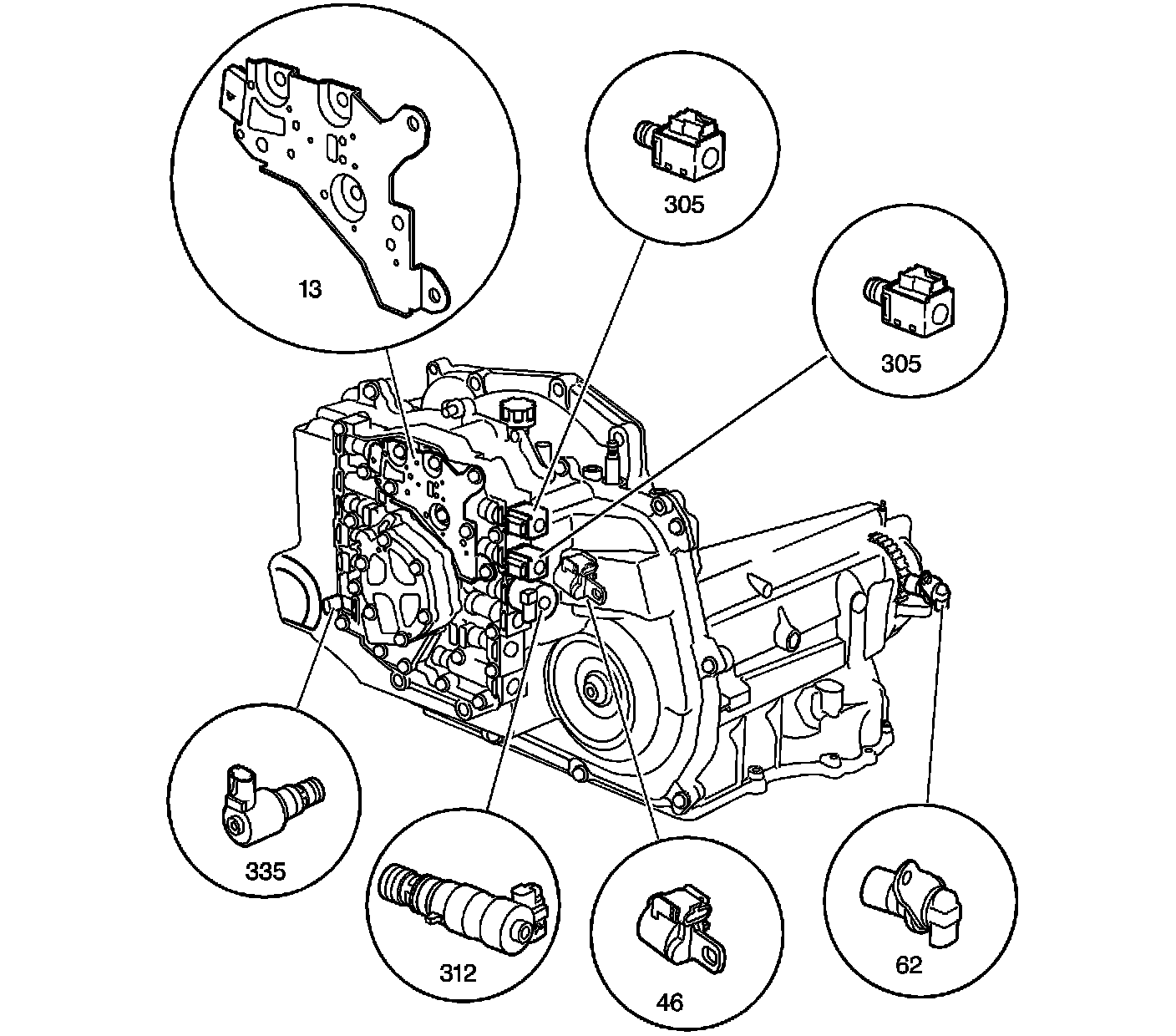

Automatic Transmission Electronic Component Views

Electronic Components:

13 - TFP Manual Valve Position Switch Assembly
46 - Input Speed Sensor
62 - Output Speed Sensor
305 - 1-2 and 2-3 Shift Solenoid Valves
305 - 1-2 and 2-3 Shift Solenoid Valves
312 - Pressure Control Solenoid
335 - TCC Control PWM Solenoid
