Central Control Module: Locations

Entertainment/Communication Component Views

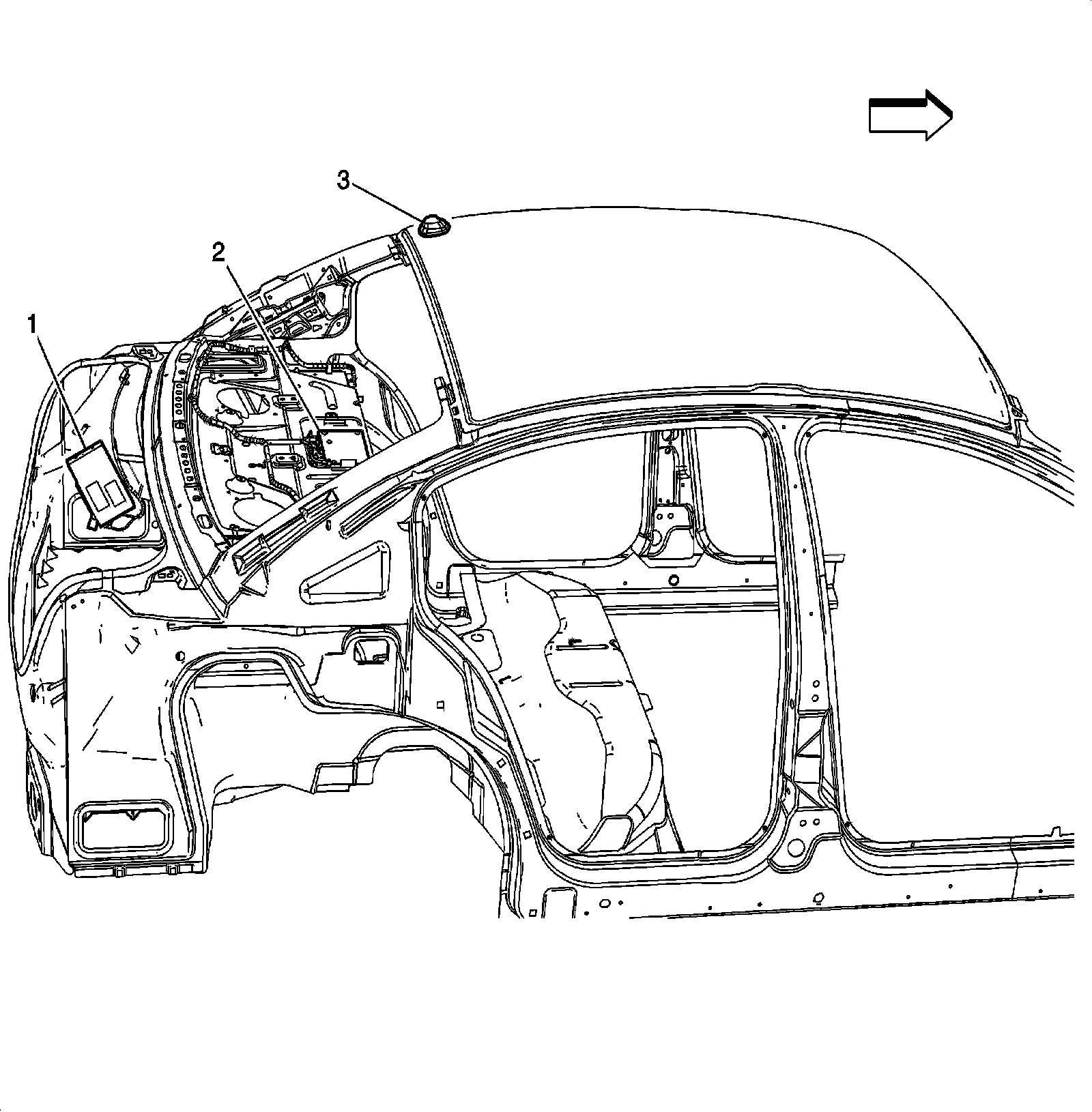

Antenna and Receiver Locations (U2K, UE1)




1 - Digital Radio Receiver (U2K)
2 - Vehicle Communication Interface Module (VCIM)
3 - Cellular/Navigational and Digital Radio Antenna (U2K/UE1)

Antenna and Receiver Locations (U2K, UE1)




1 - Digital Radio Receiver (U2K)
2 - Vehicle Communication Interface Module (VCIM)
3 - Cellular/Navigational and Digital Radio Antenna (U2K/UE1)
