Splash Shield Replacement - Engine

Splash Shield Replacement - Engine

Removal Procedure

1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Remove the front fender liner.




3. Remove the air cleaner intake duct bolt.

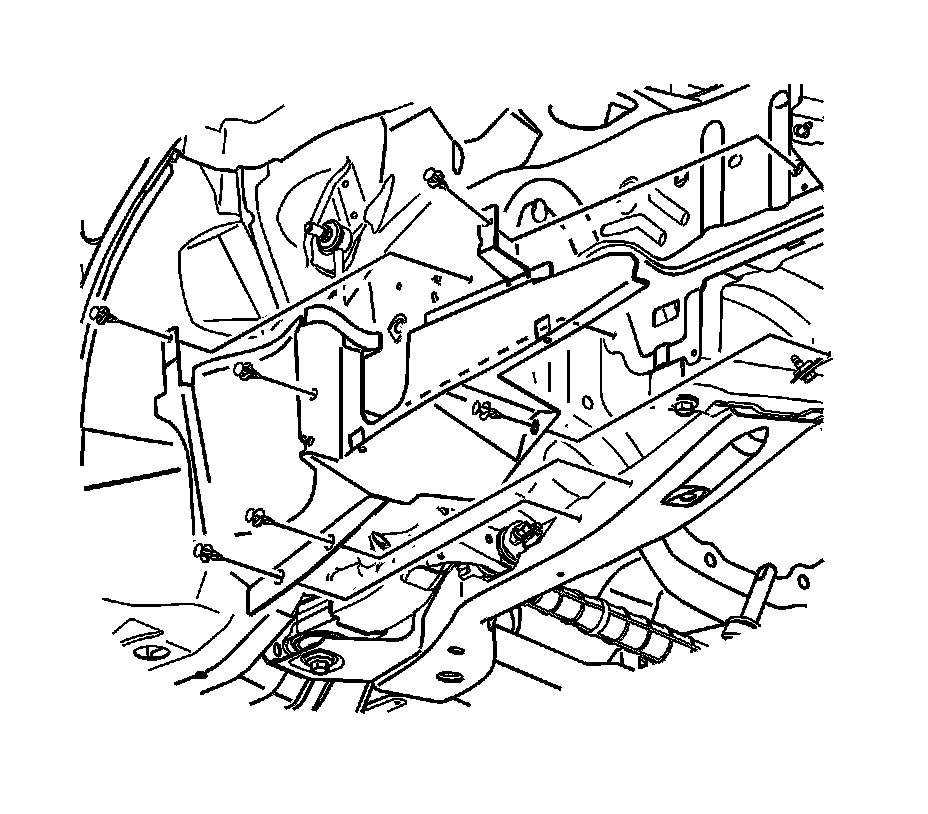

4. Remove the push-in retainers from the engine splash shield. Remove the splash shield.

Installation Procedure




1. Install the engine splash shield by inserting the push-in retainers.

Notice: Refer to Fastener Notice.

2. Install the air cleaner intake duct bolt.

Tighten the bolt to 10 N.m (88 lb in).

3. Install the front fender liner.
4. Lower the vehicle.
